ECHO Depend on it C070 Owner's Manual

7 ton vertical log splitter
Hide thumbs

Advertisement

Quick Links

Download this manual
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL
BEFORE OPERATING MACHINE
MODEL NUMBER :
C070
SERIAL NUMBER :
Both model number and serial number may be found on the main label .
You should record both of them in a safe place for future use.
Save This Manual for Future Reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the C070 and is the answer not in the manual?

Questions and answers

Summary of Contents for ECHO Depend on it C070

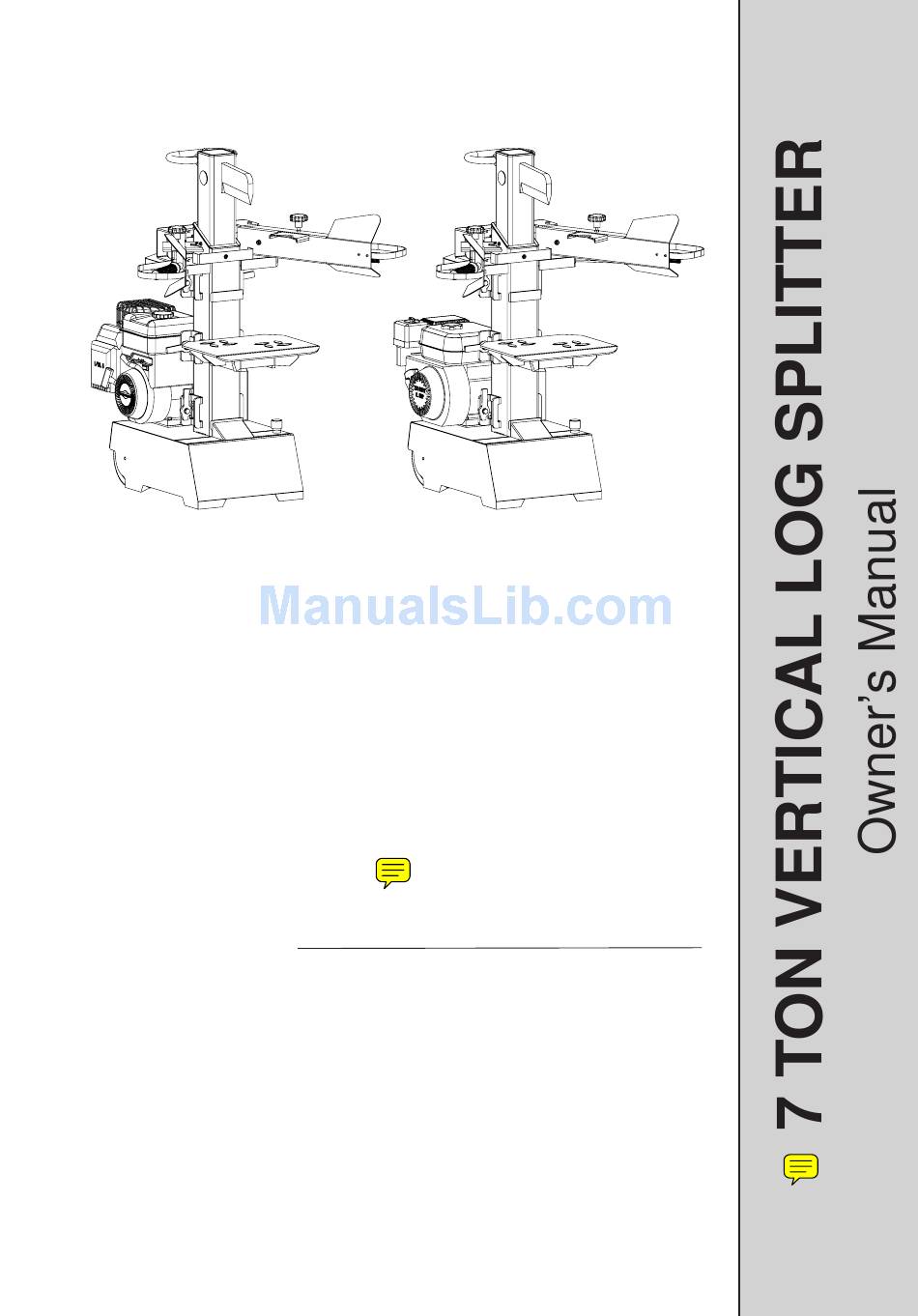

  • Page 1 READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE MODEL NUMBER : C070 SERIAL NUMBER : Both model number and serial number may be found on the main label . You should record both of them in a safe place for future use.

  • Page 2: Specifications

    TABLE OF CONTENTS Specifications Introduction C070 Model Number Specifications Motor 4780W Symbols 12 cm ~ 32 cm Dia. Log Size Safety Capacity 104 cm / 78 cm / 52 cm Length Application Conditions Maximum Force Unpacking 17.8 Mpa Hydraulic Pressure...
  • Page 3 Do not touch a hot muffler, gear housing or cylinder. Keep your work space tidy! Untidiness may result in accidents. Caution! Thrown objects. Do not remove or tamper with any protection or safety devices. SAFETY Wear safety footwear. General Safety Rules Understand your machine Wear safety gloves.
  • Page 4 Dress properly. Wear heavy long pants, boots When refilling or draining the fuel tank, use an and gloves. Do not wear loose clothing, short approved fuel storage container while in a clean, pants, jewelry of any kind. Secure long hair so well-ventilated outdoor area.
  • Page 5 Machine use and care Keep splitting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges Never pick up or carry a machine while the are less likely to bind and are easier to control. engine is running. Walk,never run with the machine.
  • Page 6 Inspect your log splitter.Check your log splitter Always pay full attention to the movement of the before turning it on. Keep guards in place and wedge ram. Never attempt to load your log in working order. Form a habit of checking to see splitter while the ram is in motion.
  • Page 7 Maintain your log splitter with care. Always clean the unit after each use. Keep the log splitter clean for best and safest performance. Follow instructions for lubricating. Inspect all hydraulic seals, hoses and couplers for leaks prior to use. Control levers and power switch must be kept clean, dry and free from oil and grease at all times.
  • Page 8 READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE MODEL NUMBER : C070 SERIAL NUMBER : Both model number and serial number may be found on the main label . You should record both of them in a safe place for future use.

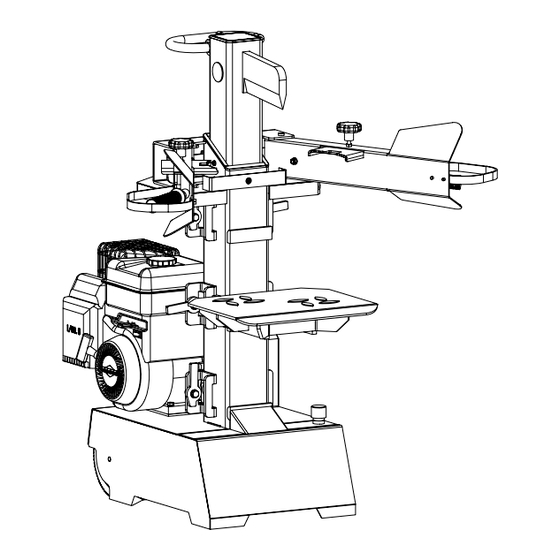

  • Page 9 Familiarize yourself with the controls and features of this log splitter in the illustrations. Transport Handle Ram Travel Adjusting Rod Split Wedge Control Levers Connection Bracket Top Motor Shield Oil Tank Wheels Base Oil Tank Cover / Air Bleeder Table Lock Down Hook Support Table Side Bracket for Support Table Front Bracket for Support Table...
  • Page 10 LOG SPLITTER FAILED TO LOOSEN THE OIL OPERATION TANK COVER WILL KEEP THE SEALED AIR IN HYDRAULIC SYSTEM BEING COMPRESSED Plan your work site. Work safely and save AFTER BEING effort by planning your work beforehand. DECOMPRESSED. SUCH Have your logs positioned where they can CONTINUOUS AIR be easily reached.
  • Page 11 Turn the motor on, the wedge ram should rise to the highest position automatically. If the wedge ram is already at the highest position when the motor starts, grip both control levers and lower them, the wedge ram should start to move downward. While operating under extremely low temperature, keep the log splitter running under no load for 15 minutes to preheat the...
  • Page 12 Place log onto splitter. Place the log onto Accumulated split wood and the support table vertically and sitting flat on wood chips can create a the support table. Be sure the wedge and h a z a r d o u s w o r k support table will contact the log squarely environment.
  • Page 13 TROUBLE SHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Engine oil of brace box is not Filling engine oil enough Engine does not start ON the switch Switch is OFF Valve is not opened owing to Check and tighten the parts the connection parts loosening Log Splitter does not Control Levers or Connection w o r k...
