Section 2 QuicTest Sample Head Overview
2
1
4

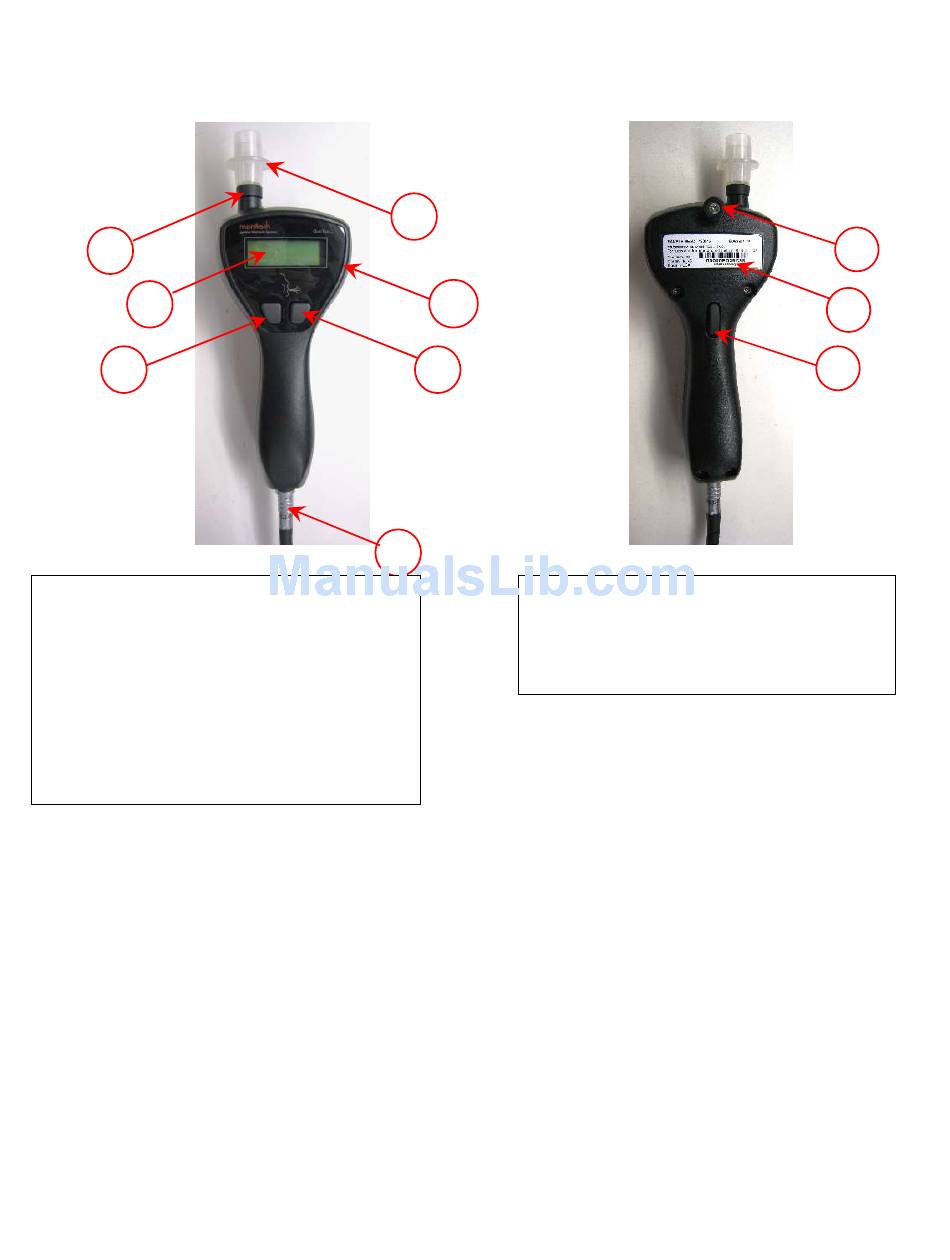

Figure 2-1 Sample Head - Front View
1. Display Window
2. Mouth Piece Port
3. Disposable Mouth Piece
4. Left (Back, <<<) Button
5. Right (Next, >>>) Button
6. Detachable Coil Cord Connector
7. Speaker ports
Section 3 QuicTest User Menu
Unit Wake Up
Under normal circumstances, the unit will go to "sleep" within 3 to 6 minutes (sometimes
longer). This is indicated by an asterisk (*) that slowly moves across the bottom of the display.
To wake the unit up you may either pick it up and move it, or press any button. The unit will
wakeup and say "QuicTest by Monitech". A brief stand by period (countdown) may begin,
depending on how long the unit has been asleep and the outside temperature. During this time
the unit is verifying that it is functioning properly and warming up. At the end of the standby
period, the LCD will display "START TEST", unless there are lockouts, recalls, or other service
needs that will be addressed in a later section.
QuicTest User Manual
TM
3
7
5
6
Figure 2-2 Sample Head – Back View
1. Trigger Button
2. Serial Number
3. Mounting Clip
