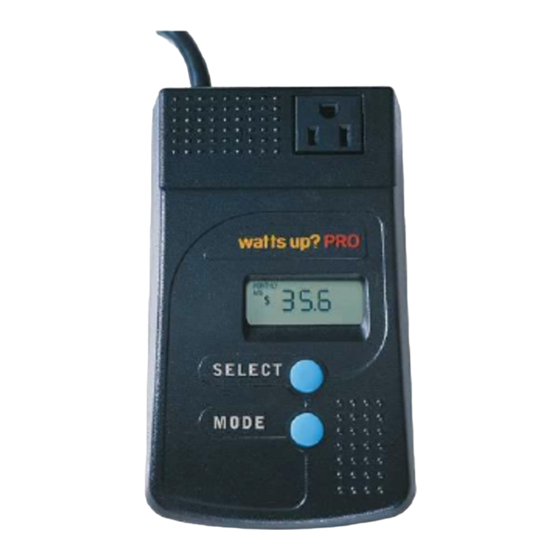

Electronic Educational Devices Watts up Operator's Manual

Sample Consumption and Costs for Typical Appliances
Appliance Wattage
Refrigerator 250 watts
Computer 60 watts
100 bulb on 12 hrs/day 100 watts
Sample consumption and costs for typical appliances (using an electricity rate of 8 cents per kilowatt hour)
Technical specifications
> 120 VAC, 60 Hz, 15 amps continuous
> * Electronics handle 100-277v, 50/60 Hz, 20 amps. Universal outlet version with country specific
cord sets available for these applications
> True power, RMS voltage, RMS current measured and displayed
> Accuracy: +/- 1.5% + 3 counts, for example 100w load is +/- 1.8 watts
Below 60 watts, amps and power factor accuracy degrades, but wattage is accurate down to 0.5 watts
> USB interface (PRO and ES)
> Ethernet interface (.Net)
> Mains supply voltage fluctuations not to exceed +/- 10% of the nominal voltage
> Input is via 6' electric cord, output is via outlet on top of meter
For UL rating
> Watts up? is intended for use on 20 amp circuits. Per NEC requirements, this is necessary when the
load is above 12 amps.
> Indoor use only
> Pollution Degree 2
> Altitude up to 2000 meters
> Maximum relative humidity 80% for temperatures up to
> Temperature 5˚ C to 40˚ C 31˚ C decreasing linearly to 50% relative humidity at 40 ˚ C
> Installation Category II
Cleaning
Watts up? may be cleaned using a dry soft towel. Do not use liquids to clean. Do not disassemble. There
are no spare parts. No preventative maintenance is required. If the case breaks or other physical dam-
age is apparent, do not use.
Warning
Watts up? is not a toy and is only intended for use by people over the age of 10. Never open the case.
Shock hazard exists. Watts up? is not water resistant. As with all electronic equipment, avoid water and
liquids. Do not touch Watts up? if it is wet. Watts up? is not repairable. If Watts up? is used in a manner
not specified herein, the protection provided by Watts up? may be impaired.
Warranty
Watts up? is guaranteed for 12 months from date of purchase. If a problem arises, simply return the
meter to the place of purchase, along with proof of purchase, for a new meter or credit. For technical
assistance or repair, please call toll free: 877.928.8701. Electronic Educational Devices believes it is
everyone's responsibility to help the environment. In this effort, e.e.d purposefully uses recycled com-
ponents wherever possible and minimizes extraneous packaging. We hope that using Watts up? helps
people understand the costs involved with electricity, and thereby encourages conservation and partic-
ipation in environmental issues.
Printed on recycled paper, 20% post consumer content
Electronic Educational Devices
Illegal to reproduce without written permission
© 2008 by E. E. D, incorporated.
02/08 REV 9
Shop for ThinkTank Energy products online at:
Daily Cost Monthly Cost Annual Cost
$.25 $7.50 $90
$.12 $3.46 $41
$.10 $2.88 $35
3090 S Jamaica Ct, #306
Aurora, CO 80014
www.wattsupmeters.com
POWER ANALYZER , WATT METER AND ELECTRICITY MONITOR
PowerMeterStore
www.
O P E R A T O R S M A N U A L
A N D
1.877.766.5412
.ca
?
watts up
