Sundrape 5060 Assembly Instructions

abbreviations used:
width of blind (wb)
length of blind (lb)
driving side (ds)
non driving side (nds)

Preparing the profiles:

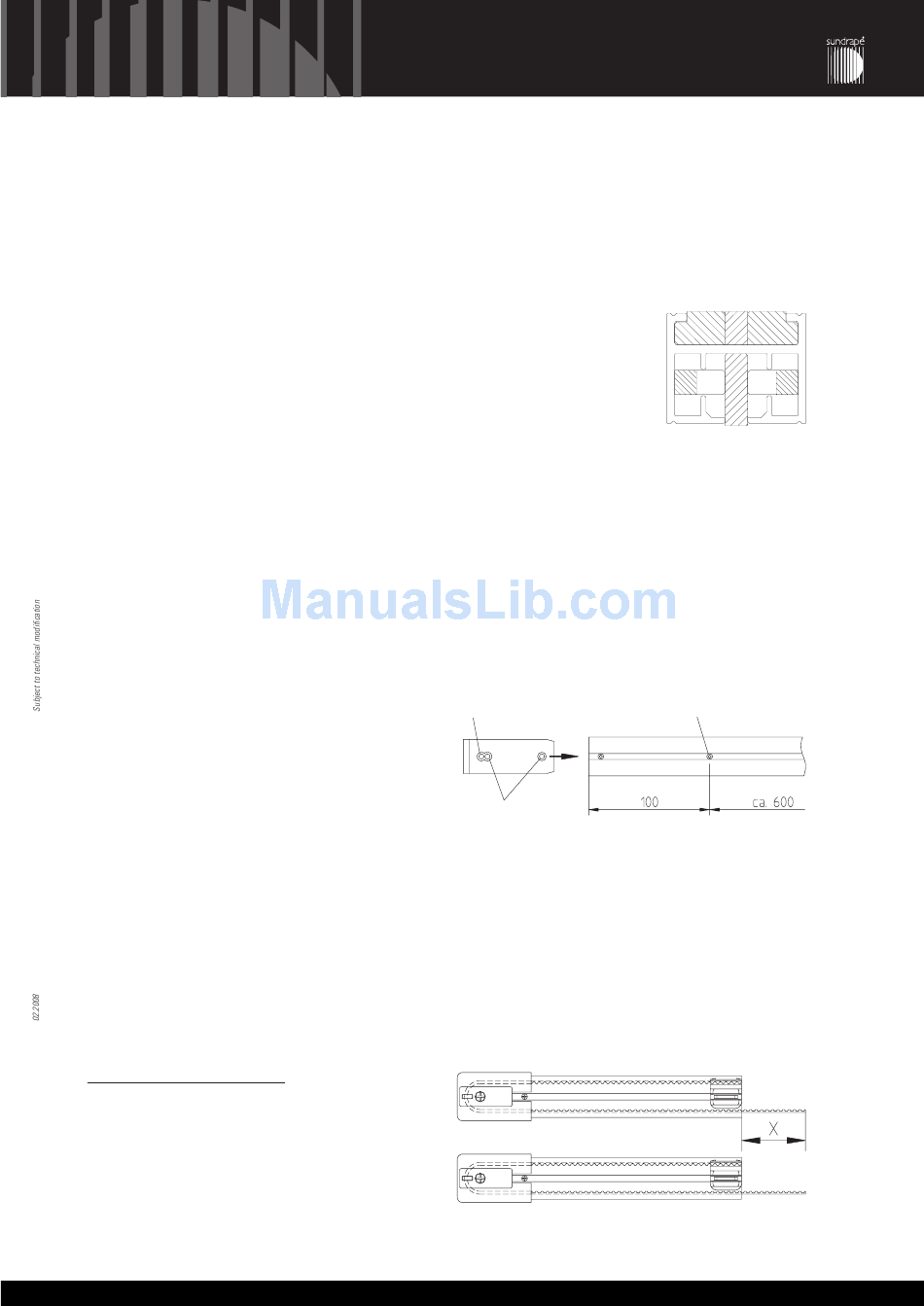

1.
For bent blinds at first please bend the profile with bending machine according to instructions.
Before bending you have to fill the overlengthed rail with plastic stripes 505 293 (1) in order to
avoid change of the cross section on bending the rail. Further details about bending please find
in the instructions of the bending machine. After having bent the rail control measurements
and angles and sign rail ending.
2.

Sawing rail:

cutting measures with single motor: wb – 102 mm
cutting measures with tandem motor: wb – 120 mm
The width of a bent blind corresponds to the width of the not bent blind (rail + gear).
Remove sawdust out of the rail and also keep the sawing table clean in order to avoid nickings.
3.

Drilling rail:

Please use drilling template 505 026 for drilling the holes to fasten the gear and counter bearing. Insert drilling template com-
pletely into the rail (2) and mark the drilling position without
slipping the template. Then remove template and drill holes
for countersunk screw with 3,2/5,3 Ø gradual drilling machi-
ne (301 309). On drilling holes for rail connection (wb > 7000
mm) procede in a similar manner. Distances for mounting
drill holes, if necessary: see (2). Avoid damages on rail aper-
ture through drilling machine. When drilling the holes, plea-
se see to it that they are deep enough in order to avoid outs-
tanding screw heads.
4.
After finishing the drilling and bending process, remove saw dust and burrs and clean rail with an adequate cleansing agent.

Assembling of runner rail:

5.
For assembling process, lay down rail on its rear side.
Coupled rails (wb > 7000 mm) initially have to be screwed together per rail connector. For this please use countersunk screw
2,9 x 9,5 mm (505 034).

Toothed belt drive, one-part fabric:

Insert toothed belt for left and also for right curtain tracks into
the left outer channel of the rail profile until it juts at the other
end out of the rail a couple of centimeters. Now lead end of
toothed belt though counter bearing (for tandem units rail
gear) and plug a drive runner flush on at the end. Insert drive
runner into the rail and plug counter bearing on at the rail end.
ASSEMBLY INSTRUCTIONS
ELECTRO CURTAIN TRACK SYSTEM 5060
Drill hole for rail gear
and counterbearing
Drill holes for rail
coupling
Drill hole for mounting with
counter sunk screw
drive right
drive left
(1)
(2)
(3)
1
