AGENT-2 S41D Line
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGENT-2 S41D Line and is the answer not in the manual?

Questions and answers

Summary of Contents for Pullnet AGENT-2 S41D Line

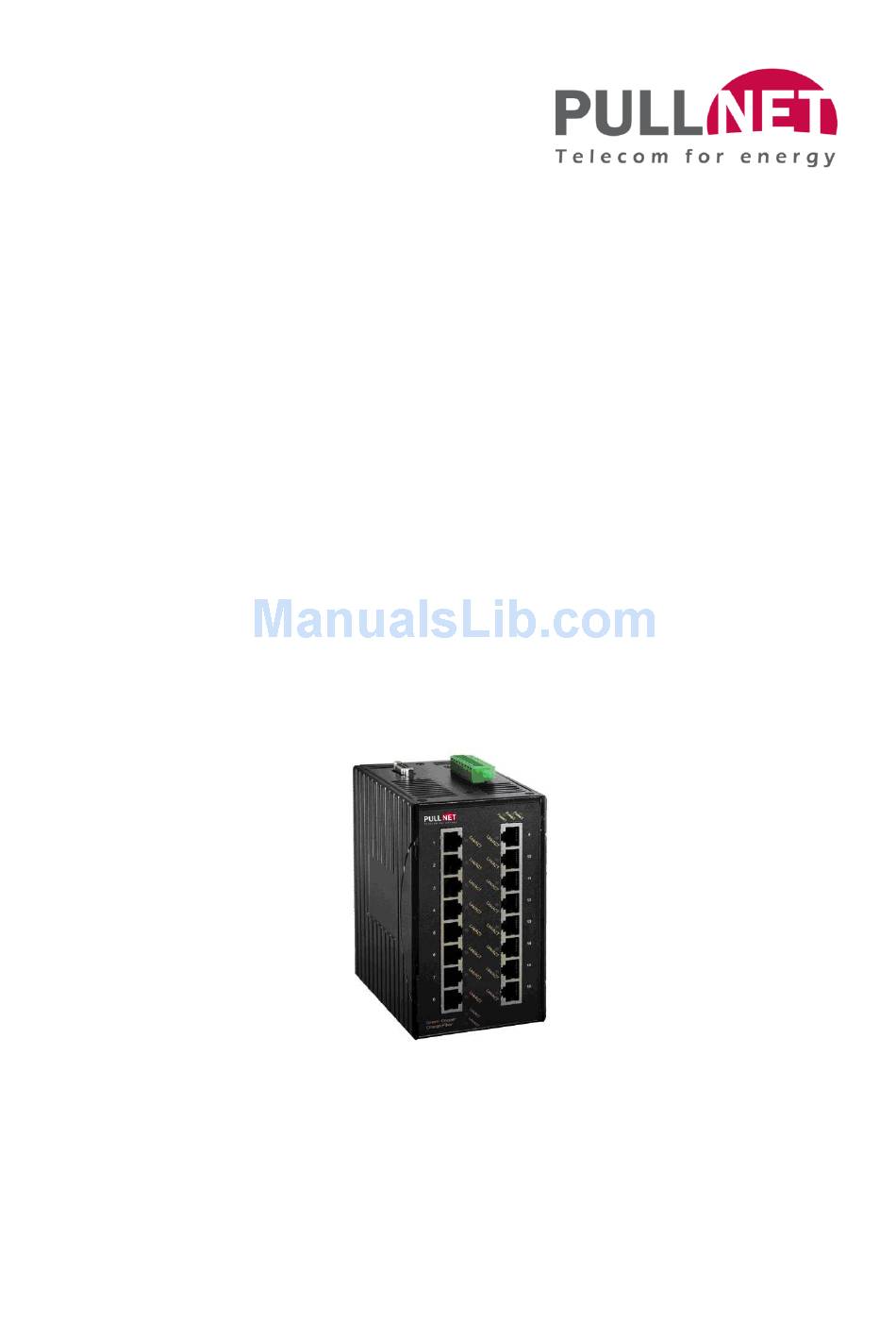

  • Page 1 AGENT-2 S41D Line User Manual...
  • Page 2 TRADEMARKS The Pullnet Telecom for energy logo is a trade mark of Pullnet Technology. This device meets and exceeds IEC61000-6-2 requirements for Industrial equipments. CISPR PUB.22 Class A COMPLIANCE This device complies with EMC directive of the European Community and meets or exceeds the following technical standard.

  • Page 3: Document History

    AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Document History System Series Record System Series Date Part No. Version Edition Comments AGENTSSR/AGENT-2 02/07/2012 AG2-S41D/MU-EE 1.0_en S41D Line Ed. Jul-2012 Proprietary information 1 of 89...

  • Page 4: Chapter 1 - Quick Start Guide

    AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Chapter 1 - Quick Start Guide This quick start guide describes how to install and use the Hardened Managed Ethernet Switch. This is the switch of choice for harsh environments constrained by space.

  • Page 5: Functional Description

    AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Power Input Assignment Power3 12VDC DC Jack 48VDC Power2 Power Ground Terminal 48VDC Block Power1 Power Ground Earth Ground 1A @ Relay Output Rating 24VDC Relay Alarm Assignment *Warning signal disable for following:...

  • Page 6: Console Configuration

    AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 100Base-FX: Multi mode SC or ST type, Single mode SC or ST type. 100Base-  BX: WDM Single mode SC type.  1000Base-SX/LX: Multi mode or Single mode SC type. 1000Base-BX: WDM Single mode SC type.
  • Page 7 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Press the “Enter” key. The Command Line Interface (CLI) screen should appear  as below:  Logon to Exec Mode (View Mode): At the “switch_a login:” prompt just type in “root” and press <Enter> to logon to ...

  • Page 8: Web Configuration

    AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 1.4 Web Configuration • Login the Serial Device Server: Specify the default IP address (192.168.1.10) of the Serial Device Server in the web browser. A web-based login window will be displayed as shown below: ...
  • Page 9 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE  Enter the factory default login ID: root. Enter the factory default password (no password). Then click on the “Login” button to log on to the switch. Ed. Jul-2012 Proprietary information 7 of 89...

  • Page 10: Table Of Contents

    AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Table of Contents Chapter 1 - Quick Start Guide ................... 2 1.1 Physical Description ......................2 1.1.1 Port Status LED’s and Power Inputs ................. 2 1.2 Functional Description ....................3 1.3 Console Configuration ....................4 1.4 Web Configuration ......................
  • Page 11 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Chapter 6 - Web-Based Browser Management ............23 Chapter 7 - SNMP & RMON Management ..............24 7.1 Overview ......................... 24 7.2 SNMP Agent and MIB-II (RFC 1213) ................24 7.3 RMON MIB (RFC 2819) and Bridge MIB (RFC 1493) ..........25 7.3.1 RMON Groups Supported..................

  • Page 12: Chapter 3 - Product Overview

    AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Chapter 3 – Product Overview 3.1 Hardened Managed Ethernet Switch Front and Bottom View 3.2 Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.
  • Page 13 AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE  Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.  Manageable via SNMP, Web-based, Telnet, and RS-232 console port.  Supports Command Line Interface in RS-232 console.  Supports 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation: 10/100/1000Mbps, full/half-duplex;...
  • Page 14 AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE PORT-MIRRORING Port-mirroring QoS (IEEE802.1p Quality of Service) 4 priority queues INTERNETWORKING PROTOCOLS Bridging: IEEE802.1s Multiple Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1D Spanning Tree compatible IEEE802.1Q – GVRP Ring IP Multicast: IGMP Snooping Rate Control NETWORK MANAGEMENT METHODS Console port access via RS-232 cable (CLI, Command Line Interface) Telnet remote access...

  • Page 15: Front Panel Display

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE 3.4 Front Panel Display POWER This LED lights on when the switch is properly connected to a power source and turned on. Port Status LED’s The Port Status LED’s are located on the front panel, displaying status for each respective port.

  • Page 16: Physical Ports

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE 3.5 Physical Ports The AGENT-2 S41D Hardened Managed Advanced Ethernet Switch provides: Up to 24-port 10/100Base-TX (or 18-port 100Base-FX/BX) and/or 4-port 10/100/1000Base-TX with Gigabit SFP socket combo (or 4-port 1000Base-SX/LX/BX or 2-port 10/100/1000Base-TX with 2-port 1000Base-SX/LX/BX) CONNECTIVITY ...

  • Page 17: Chapter 4- Installation

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE Chapter 4- Installation This chapter provides step-by-step instructions about how to install the AGENT-2 S41D equipment. 4.1 Selecting a Site for the Switch As with any electric device, installers should place the switch where it is not subjected to extreme temperatures, humidity, or electromagnetic interference.

  • Page 18: Redundant Dc Terminal Block Power Inputs

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE Redundant DC Terminal Block Power Inputs There are two pairs of power inputs for use with redundant power sources. You only need to have one power input connected to run the switch. Step 1: Connect the DC power cord to the plug-able terminal block on the switch, and then plug it into a standard DC outlet.

  • Page 19: Connecting To The Network

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE 4.3 Connecting to the Network 4.3.1 Cables Type & Lengths It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Speed Connector Port Speed...
  • Page 20 AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE  Step 5: Once the connections between two end devices are made successfully, turn on the power and the switch shall become operational. Ed. Jun-2012 Proprietary information 18 of 89...

  • Page 21: Chapter 5 - Switch Management

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE Chapter 5 – Switch Management This chapter explains the methods that can be used to configure management access to the AGENT-2 S41D system. It describes the types of management applications, and the communication and management protocols that deliver data between user’s management device (workstation or personal computer) and the AGENT-2 S41D system.

  • Page 22: Direct Access

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE 5.2.1 Direct Access Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the AGENT-2 S41D console port. When using the management method, configure the terminal-emulation program to use the following parameters (users can change these settings after login): [DEFAULT PARAMETERS] 115,200bps...

  • Page 23: Web Management

    AG2-S41D/MU-EE 5.3 Web Management The AGENT-2 S41D Line of advanced Ethernet switches has a Browser Interface that lets users to configure and manage the switch remotely. After setting up an IP address for the AGENT-2 S41D, users can access the switch’s Web Interface applications directly by entering the IP address of the switch in their Web Browser.

  • Page 24: Management Architecture

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE SIMPLE NETWORK MANAGEMENT PROTOCOL (SNMP) SNMP is the standard management protocol for multi-vendor IP networks. SNMP supports transaction-based queries that allow the protocol to format messages and to transmit information between reporting devices and data-collection programs. SNMP runs on top of the User Datagram Protocol (UDP), offering a connectionless-mode service.

  • Page 25: Chapter 6 - Web-Based Browser Management

    AG2-S41D/MU-EE Chapter 6 - Web-Based Browser Management The AGENT-2 S41D Line of advanced Ethernet switches provides a Web-based Browser interface for configuring and managing purposes. This interface allows users to access every AGENT-2 S41D switch by using their preferred Web Browser.

  • Page 26: Chapter 7 - Snmp & Rmon Management

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE Chapter 7 - SNMP & RMON Management This chapter describes the Simple Network Management Protocol (SNMP) and Remote Monitoring (RMON) capabilities of the AGENT-2 S41D switch. 7.1 Overview RMON is an abbreviation for Remote Monitoring MIB (Management Information Base). RMON is a system that defines how networks can be monitored remotely.

  • Page 27: Rmon Mib (Rfc 2819) And Bridge Mib (Rfc 1493)

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE Generating an SNMP TRAP frame message to the Network Management Station if the threshold of a certain MIB counter is reached or if other trap conditions (such as the following) are met: WARM START COLD START LINK UP LINK DOWN...

  • Page 28: Bridge Groups Supported

    AGENT-2 S41DLine - User Manual AG2-S41D/MU-EE MIB variable exceeds a threshold, falls below a threshold, or exceeds or falls below a threshold. RMON Event Group – allows a network administrator to define actions based on alarms. SNMP Traps are generated when RMON Alarms are triggered. The action taken in the Network Management Station depends on the specific network management application.

  • Page 29: Chapter 8 - Web-Based Browser Management

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Chapter 8 - Web-Based Browser Management The AGENT-2 S41D provides a Web-Based browser interface for configuring and managing the switch. This interface allows users to access the switch by using any preferred Web Browser.

  • Page 30: Understanding The Browser Interface

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 8.2 Understanding the Browser Interface The Web Browser interface provides groups of point-and-click folders/interfaces on the left area of the main window, for configuring and managing the AGENT-2 S41D switch. SYSTEM System Information,...
  • Page 31 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE SNMP SNMP General Setting, SNMP v1/v2c, SNMP v3 802.1X Radius Configuration, Port –Based Authentication OTHER PROTOCOLS GVRP, IGMP Snooping, NTP Ed. Jun-2012 Proprietary information 29 of 89...

  • Page 32: System

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 8.3 System System Information View System information, VLAN ID, IP Address, and IP Subnet Mask of the Switch. System Name/Password 1. System Name: Click in “System Name” text box. Type a system name if it is blank, or replace the current system name with a new one.
  • Page 33 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE IP Address 1. IP Address: Click in “IP Address” text box and type a new address to change the IP Address. 2. IP Subnet Mask: Click in “IP Subnet Mask” text box and type a new address to change the IP Subnet Mask.
  • Page 34 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Save Configuration 1. Load config from TFTP server: Click in “TFTP Server” text box and type the TFTP server IP address from where the file will be obtained. Click in “FILE” text box and type the name of the file that will be obtained.
  • Page 35 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Firmware Upgrade 1. Filename: Click in “Filename” text box and type the name of the file that you intend to upgrade it to the switch. 2. TFTP server IP: Click in “TFTP server IP” text box and type the TFTP server IP address from where the file will be obtained.
  • Page 36 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Please follow the message on the screen during the firmware upgrade process. Do not turn off the power or perform other functions during this period of time. Firmware has been upgraded successfully to the switch. Reboot the switch after completing the upgrade process.
  • Page 37 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Alarm Setting 1. Name: Click “Name” drop-down menu to choose “fe1~fe16”, “ge1~ge2”, or “Power1~Power3” from the “Name” drop-down list. Ed. Jun-2012 Proprietary information 35 of 89...
  • Page 38 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 2. Trigger Enabled: Click “Trigger Enabled” drop-down menu to choose “YES” or “NO” from the “Trigger Enabled” drop-down list to enable or disable Trigger. 3. Update Setting: Click “Update Setting” button to update settings to the switch.
  • Page 39 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Logout Logout: Click “Logout” button to logout of the switch. Ed. Jun-2012 Proprietary information 37 of 89...

  • Page 40: Port

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 8.4 Port Configuration 1. Admin Setting: Click “Admin Setting” drop-down menu to choose “Link down” or “Link up” from the “Admin Setting” drop-down list to disable or enable Admin Setting for the port.
  • Page 41 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Port Status View the Link Status, Speed, Duplex, and Flow control status for all ports. Ed. Jun-2012 Proprietary information 39 of 89...
  • Page 42 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Rate Control 1. Ingress: Click in “Ingress” text box and type a new Rate to change the Ingress Rate Control for the port. Rate Values: 64kbps, 128kbps, 192kbps, … , 1792kbps. 2Mbps, 3Mbps, 4Mbps, … , 100Mbps.
  • Page 43 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Per port VLAN activities Click Port 1 ~ Port 18 to view corresponding Vlan activities. Ed. Jun-2012 Proprietary information 41 of 89...

  • Page 44: Switching

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 8.5 Switching Bridging 1. Aging Time (seconds): Click on the text box and type a decimal number as the Bridging Aging Time in seconds. 2. Update setting: Click on the “update setting” button after finishing the Aging Time settings.
  • Page 45 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE the “Storm-control enabled type” column, on port-basis. 5. Update Setting: Click on the “Update Setting” button after finishing this configuration procedure. Threshold level and Storm-control enabled type settings. Static MAC Entry Static-MAC-Entry Forward: 1.
  • Page 46 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Static-MAC-Entry Discard: 1. Add MAC address: Click on the “Add MAC address” text box and type a MAC address to be discarded, on port-basis. 2. VLAN ID: Click on the “VLAN ID” drop-down menu and choose a VLAN ID from the “VLAN ID”...

  • Page 47: Trunking

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Port Mirroring 1. Mirror From: Select Mirror From port from boxes Port 1 ~ Port 18, as required. 2. Mirror To: Click on the “Mirror To” drop-down menu to Choose Mirror To port (Port 1 ~ Port 18) from the “Mirror To”...

  • Page 48: Stp / Ring

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 8.7 STP / RING Global Configuration 1. Spanning Tree Protocol: Click on the “Spanning Tree Protocol” drop-down menu to Choose “Enable” or “Disable” from the “Spanning Tree Protocol” drop- down list to enabling or disabling the Spanning Tree Protocol on the Switch.
  • Page 49 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Configuration settings. RSTP Port Setting 1. STP Version: Click on the “STP Version” drop-down menu to choose “RSTP” from the “STP Version” drop-down list. 2. Port: Click on the “Port” drop-down menu to select Port 1 ~ Port 10 from the “Port”...
  • Page 50 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 6. Edge Port: Click on the “Edge Port” drop-down menu to Choose “Enable”, “Disable”, or “Auto” from the “Edge Port” drop-down list to set Enable, Disable, or Auto Edge Port on port-basis. 7. Update setting: Click on the “Update setting” button after finishing the RSTP Port Setting procedure.
  • Page 51 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE from the “STP Version” drop-down list. 2. Region Name: Click on the “Region Name” text box to create an MST region and specify a name to it. MST bridges of a region form different spanning trees for different VLAN’s.
  • Page 52 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE MSTP Instance Setting VLAN Instance Configuration 1. VLAN Instance Configuration: Click on the “VLAN Instance Configuration” button. The “VLAN Instance Configuration” window becomes displayed. 2. VLAN ID: Click on the “VLAN ID” drop-down menu to choose VLAN from the “VLAN ID”...
  • Page 53 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 1. Bridge Priority (0..61440): Click on the “Bridge Priority” text box to set the bridge priority for an MST instance to the value specified. The lower the priority, the better the chances are for the bridge to become a root bridge or a designated bridge for the LAN.
  • Page 54 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE MSTP Port Setting Port Instance Configuration 1. Instance ID: Click on the “Instance ID” drop-down menu to choose the instance ID from the “Instance ID” drop-down list. 2. Click on ports to assign ports to the corresponding instance ID, as required.
  • Page 55 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Ring Setting Ring state 1. Click on the “Ring state” drop-down menu from the “Ring state” drop-down list in order to choose “Enable” or “Disable” to enabling or disabling Ring state. 2. Update setting: Click on the “Update setting” button after finishing the Ring state setting procedure.

  • Page 56: Vlan

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 8.8 VLAN VLAN Mode Setting 1. VLAN Mode Setting: Click on the “VLAN Mode Setting” drop-down menu to Choose “Tag-based VLAN” or “Port-based VLAN” from the “VLAN Mode Setting” drop-down list. 2. Update Setting: Click on the “Update Setting” button after finishing the VLAN Mode Setting procedure.
  • Page 57 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 802.1Q VLAN setting Add VLAN: 1. VLAN setting: Click on the “VLAN setting”. The “VLAN Setting” window becomes then displayed. 2. Add VLAN: Click on the “Add VLAN” button to create a new VLAN from the “VLAN Setting”...
  • Page 58 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Delete VLAN: 1. VLAN setting: Click on “VLAN setting”. The “VLAN Setting” window becomes then displayed. 2. Delete VLAN: Click on the “Delete VLAN” button. 3. Select a VLAN ID: Click on the “Select a VLAN ID” drop-down menu from the “Select a VLAN ID”...
  • Page 59 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE VLAN Port Setting 1. VLAN Port Setting: Click on the “VLAN Port Setting”. The “VLAN Port Setting” window becomes then displayed. 2. Mode: Click on the “Mode” drop-down menu to select “Access”, “Trunk”, or “Hybrid”, on port-basis.
  • Page 60 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Port Based VLAN 1. VLAN: Select the ports to be added to or deleted from the VLAN. 2. Select all: Click on the “select all” button to choose all Port 1 ~ Port 18 to be added to the VLAN.

  • Page 61: Qos

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 8.9 QoS Global Configuration 1. QoS: Click on the “QoS” drop-down menu from the “QoS” drop-down list in order to choose “Enable” or “Disable” to enabling or disabling QoS. 2. Trust: Enable or disable the switch port to trust the CoS (Class of Service) labels of all traffic received on that port.
  • Page 62 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 802.1p Priority 1. Priority: Click on the “Priority” drop-down menu from the “Priority” drop-down list to choose 0 ~ 3 for VLAN Priority 0 ~ 7. 2. Submit: Click on the “Submit” button after finishing the 802.1p priority settings.

  • Page 63: Snmp

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE DSCP 1. Priority: Click on the “Priority” drop-down menu from the “Priority” drop-down lists to choose 0 ~ 3 for DSCP Priority 0 ~ 63. 2. Submit: Click on the “Submit” button after finishing the DSCP settings.
  • Page 64 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Contact: Click on the “Contact” textbox and specify a new contact for SNMP. Trap Community Name: For each “Trap Community Name”, Click on the “Trap Community Name” textbox and specify a trap community name.
  • Page 65 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 3. Update Setting: Click on the “Update Setting” button after finishing SNMP V1/V2c Setting. SNMP v3 Add User: 1. Add User: Click on the “Add User” button. The “SNMP V3 Setting” window is then displayed.
  • Page 66 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE SNMPv3 No-Auth: Add a user using SNMP v3 without authentication. SNMPv3 Auth-MD5: Add a user using SNMP v3 with authentication. Click on the “Auth. Password” textbox and specify an authentication password. SNMPv3 Auth-SHA: Add a user using SNMP v3 with authentication. Click on the “Auth.
  • Page 67 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Delete User: 1. Delete User: Click on the “Delete User” button. The “Select User Name” window is then displayed. 2. Select User Name: Click on the “Select User Name” drop-down menu from the “Select User Name”...

  • Page 68: Ieee 802.1X

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 8.11 IEEE 802.1X Radius Configuration 1. Radius Status: Click on the “Radius Status” drop-down menu from the “Radius Status” drop-down list in order to choose “Enable” or “Disable” to globally enabling or disabling authentication.
  • Page 69 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 2. Radius Server IP: Click on the “Radius Server IP” textbox and specify the IP address of the remote radius server host. 3. Radius Server Port: Click on the “Radius Server Port” textbox and specify the UDP destination port for authentication requests.
  • Page 70 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 1. Delete Radius: Click on the “Delete Radius” button. The “Select Radius Server IP” window is then displayed. 2. Select Radius Server IP: Click on the “Select Radius Server IP” drop-down menu from the “Select Radius Server IP” drop-down list to choose the IP address of the remote radius server host to be deleted.
  • Page 71 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Unauthorized” to force a port state. “Auto” specifies to enable authentication on port. “Force Authorized” specifies to force a port to always be in an authorized state. “Force Unauthorized” specifies to force a port to always be in an unauthorized state.

  • Page 72: Other Protocols

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 8.12 Other Protocols GVRP GVRP Global Setting: 1. GVRP: Click on the “GVRP” drop-down menu from the “GVRP” drop-down list in order to choose “Enable” or “Disable” to enabling or disabling GVRP (GARP VLAN Registration Protocol).
  • Page 73 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 3. Update Setting: Click on the “Update Setting” button after finishing the GVRP Global Setting procedure. Per port setting (include LAG): 1. GVRP: Click on the “GVRP” drop-down menu from the “GVRP” drop-down list in order to choose “Enable”...
  • Page 74 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE IGMP Snooping 1. IGMP mode: Click on the “IGMP mode” drop-down menu from the “IGMP mode” drop-down list in order to choose “Disable”, “Passive”, or “querier” for the switch. Disable: Disable IGMP on the switch. Passive: The switch is set with only multicast-data-forwarding capability.
  • Page 75 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE 1. Query-interval: Click on the “query-interval” textbox and specify a new number from 1 ~ 18000. The query-interval field is used to set the time (in seconds) between transmitting IGMP queries. Entries between 1 and 18000 seconds are allowed.
  • Page 76 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE NTP Setting: 1. NTP Status: Click on the “NTP Status” drop-down menu from the “NTP Status” drop-down list in order to choose “Enable” or “Disable” to enabling or disabling NTP for the Switch.
  • Page 77 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Daylight Saving Setting: 1. Daylight Saving Mode: Click on the "Daylight Saving Mode" drop-down menu from the "Daylight Saving Mode" drop-down list in order to choose "Disable", "Weekday", or "Date" to set disable, weekday, or date daylight saving for the Switch.
  • Page 78 AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE <Note> The “Week”, “Hour”, “Minute”, and “Day” fields do not accept alphabetic characters (as for example Jan, Feb, Sun, Mo). They only accept two digit numbers (0 to 9). Ed. Jun-2012 Proprietary information...

  • Page 79: Specifications

    AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Specifications IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX Applicable Standards IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX Switching Method Store-and-Forward Forwarding Rate 10Base-T 10 / 20Mbps half / full-duplex 100Base-TX 100 / 200Mbps half / full-duplex...
  • Page 80 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Storage Temperature -40ºC to 85ºC Humidity 5%-95% non-condensing FCC Part 15, Class A EN61000-6-4: EN55022, EN61000-3-2, EN61000-3-3 EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards)

  • Page 81: Appendix A

    AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Appendix A DB9 DCE pin assignment Pin no. Name RS232 Signal name Data Carrier detect Received data Transmit data Signal ground Data set Ready Clear to send Ed. Jun-2012 Proprietary information 79 of 89...

  • Page 82: Appendix B

    AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Appendix B Time Zone Country and City Lists Europe Europe/Vienna, Europe/Berlin, MEZ-1MESZ Europe/Zurich Africa/Tunis, CET, MET, Europe/Tirane, Europe/Andorra, Europe/Brussels, Europe/Prague, Europe/Copenhagen, Europe/Paris, Europe/Gibraltar, Europe/Budapest, Europe/Rome, Europe/Vaduz, Europe/Luxembourg, MET-1METDST Europe/Malta, Europe/Monaco, Europe/Amsterdam, Europe/Oslo, Europe/Warsaw, Europe/Belgrade,...
  • Page 83 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE RFT-3RFTDST Europe/Moscow Asia/Yerevan, Asia/Baku, Asia/Oral, RFT-4RFTDST Asia/Ashkhabad Asia/Aqtobe, Asia/Aqtau, Asia/Bishkek, RFT-5RFTDST Asia/Yekaterinburg RFT-6RFTDST Asia/Omsk, Asia/Novosibirsk RFT-7RFTDST Asia/Hovd, Asia/Krasnoyarsk Asia/Irkutsk, Asia/Chungking, RFT-8RFTDST Asia/Ulan_Bator RFT-9RFTDST Asia/Choibalsan, Asia/Yakutsk RFT-10RFTDST Asia/Vladivostok RFT-11RFTDST Asia/Sakhalin, Asia/Magadan RFT-12RFTDST Asia/Kamchatka, Asia/Anadyr...
  • Page 84 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE AST10ADT America/Adak, America/Atka, US/Aleutian YST9YDT Canada/Yukon NST3:30NDT America/St_Johns, Canada/Newfoundland NAST3NADT America/Godthab, America/Miquelon Pacific/Pitcairn, America/Juneau, NAST9NADT America/Yakutat, America/Anchorage, America/Nome, US/Alaska, SystemV/YST9YDT, SystemV/PST8 South America & Central America TTST4 America/Port_of_Spain America/Argentina/Buenos_Aires, America/Argentina/Cordoba, America/Argentina/Tucuman, America/Argentina/La_Rioja, America/Argentina/San_Juan, America/Argentina/Jujuy,...
  • Page 85 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Asia/Harbin, Asia/Shanghai, CST-8 Asia/Chongqing, Asia/Urumqi, Asia/Kashgar, Asia/Hong_Kong, Asia/Macau, Asia/Macao, Hongkong, PRC, ROC Oceania Australia/Adelaide, Australia/Broken_Hill, CST-9:30CDT Australia/South, Australia/Yancowinna Australia/Brisbane, Australia/Lindeman, Australia/Currie, Australia/Melbourne, Australia/Sydney, EST-10EDT Australia/ACT, Australia/Canberra, Australia/NSW, Australia/Queensland, Australia/Tasmania, Australia/Victoria LHT-10:30LHDT Australia/Lord_Howe, Australia/LHI...
  • Page 86 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE UCT1 Atlantic/Cape_Verde, Etc/GMT+1 UCT2 Atlantic/South_Georgia, Etc/GMT+2 Antarctica/Rothera, America/Belem, UCT3 America/Cayenne, America/Paramaribo, Etc/GMT+3 America/Anguilla, America/Antigua, America/Barbados, America/Dominica, America/Grenada, America/Guadeloupe, America/Martinique, America/Montserrat, America/Puerto_Rico, America/St_Kitts, UCT4 America/St_Lucia, America/St_Vincent, America/Tortola, America/St_Thomas, America/Aruba, America/La_Paz, America/Porto_Velho, America/Curacao, America/Caracas, America/Guyana, Etc/GMT+4, America/Virgin,...
  • Page 87 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE Africa/Gaborone, Africa/Bujumbura, Africa/Lubumbashi, Africa/Tripoli, Africa/Blantyre, Africa/Maputo, UCT-2 Africa/Kigali, Africa/Lusaka, Africa/Harare, Etc/GMT-2, Libya Indian/Comoro, Africa/Djibouti, Africa/Asmera, Africa/Addis_Ababa, Africa/Nairobi, Indian/Antananarivo, UCT-3 Indian/Mayotte, Africa/Mogadishu, Africa/Khartoum, Africa/Dar_es_Salaam, Africa/Kampala, Antarctica/Syowa, Asia/Bahrain, Asia/Kuwait, Asia/Qatar, Asia/Riyadh, Asia/Aden, Etc/GMT-3 Indian/Mauritius, Indian/Reunion,...
  • Page 88 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE UCT-11:30 Pacific/Norfolk Pacific/Fiji, Pacific/Tarawa, Pacific/Enderbury, Pacific/Majuro, Pacific/Kwajalein, Pacific/Nauru, UCT-12 Pacific/Tongatapu, Pacific/Funafuti, Pacific/Wake, Pacific/Efate, Pacific/Wallis, Etc/GMT-12, Kwajalein UCT-13 Etc/GMT-13 Asia/Tokyo, Japan Asia/Seoul, Asia/Pyongyang, ROK UCT-3:30 Asia/Tehran, Iran UCT-4:30 Asia/Kabul Asia/Jerusalem, Asia/Gaza, Asia/Tel_Aviv, IST-2IDT Israel...
  • Page 89 AGENTSSR/AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE America/Montreal, America/Toronto, EST5EDT_CA America/Thunder_Bay, America/Nipigon, America/Iqaluit, Canada/Eastern America/Goose_Bay, America/Halifax, AST4ADT_CA America/Glace_Bay, Canada/Atlantic North America (Cuba) EST5EDT_CU America/Havana, Cuba North America (Haiti) America/Nassau, America/Santo_Domingo, EST5EDT_HT America/Port-au-Prince, America/Bogota North America (Mexico) America/Tijuana, America/Ensenada, PST8PDT_MX Mexico/BajaNorte...
