Summary of Contents for GP Systems BioSmart PV-WTC-EM

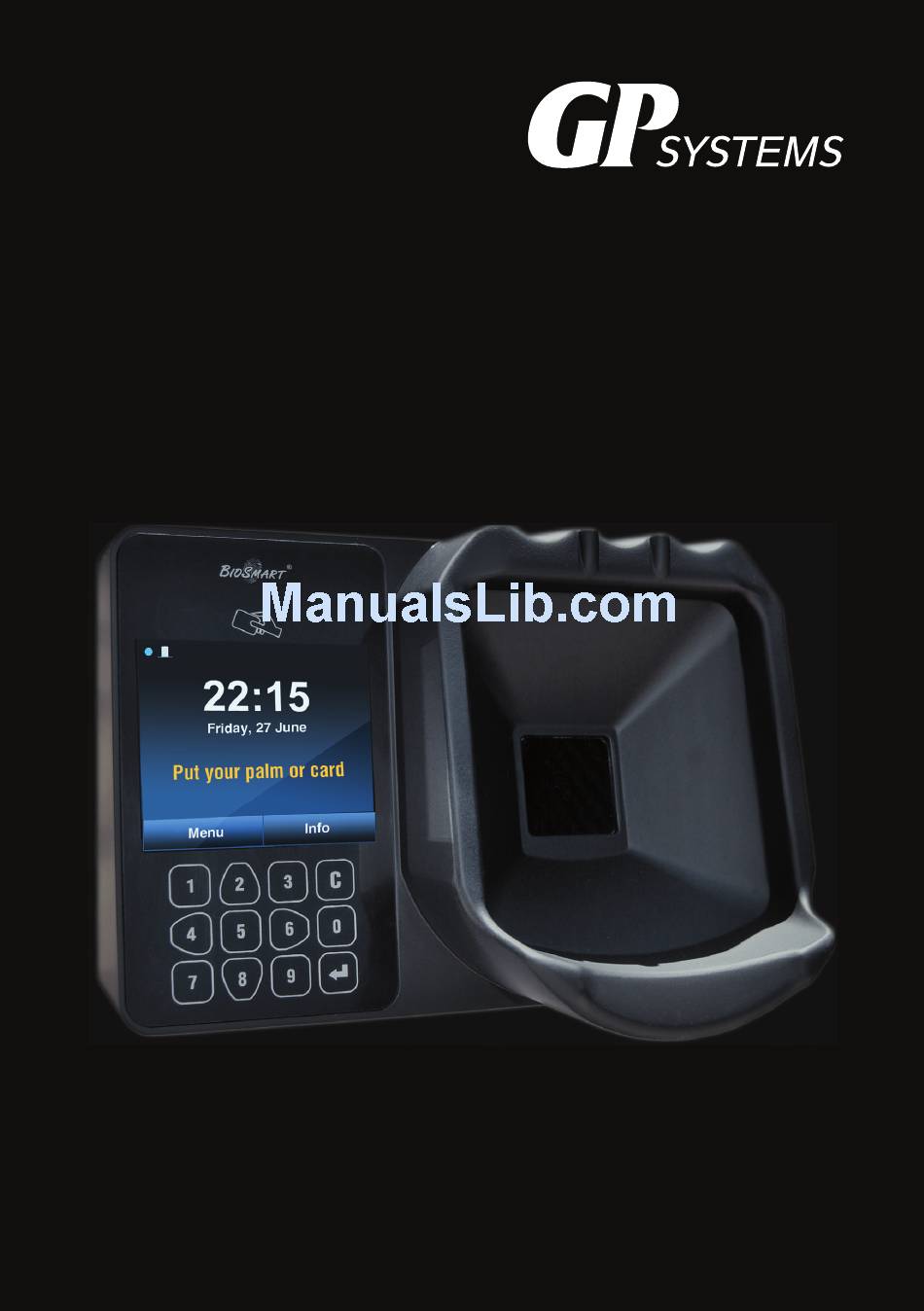

- Page 1 BioSmart PV-WTC Terminal Installation guide...
-
Page 3: Table Of Contents
TABLE OF CONTENTS GENERAL PRODUCT INFORMATION ..............4 1. SPECIFICATIONS....................5 1.1.BioSmart.PV-WTC.models................5 1.2.Basic.specifications..................5 1.3.Factory.settings..................6 1.4.Package.contents..................6 2. USE, TRANSPORTATION AND STORAGE CONDITIONS........6 3. SAFETY REQUIREMENTS..................6 4. DISPOSAL......................7 5. MANUFACTURER’S GUARANTEE.................7 6. INSPECTION CERTIFICATE...................7 7. TERMINAL DESCRIPTION..................8 7.1.Description.of.terminal’s.front.panel............8 7.2.Description.of.connection.ports..............10 7.3.Description.of.indicators.and.circuit.board.jumpers........11 8. -
Page 4: General Product Information
Dear customers! Thank.you.for.purchasing.our.product..With.proper.installation.and.use,.this.device.will. bring.you.many.years.of.reliable.service.. GENERAL PRODUCT INFORMATION The.BioSmart.PV-WTC.work.and.attendance.terminal.is.designed.for.use.as.part.of.the. BioSmart.biometric.access.monitoring.and.control.system..The.terminal.provides.a.means. to.track.working.hours.and.attendance.by.identifying.users.through.the.unique.biometric. characteristics.of.subcutaneous.palm.veins.and.RFID.proximity.cards..It.can.also.be.used. for.access.monitoring.and.control. Compatible with BioSmart-Studio software version V5.0.3.269 and above. Four.models.of.this.terminal.are.available:. -.With.Em-Marin.(EM).card.format.scanner; -.With.Mifare.(MF).card.format.scanner; -.With.HID.iClass.and.HID.Prox.(HD).card.format.scanner; -.With.Legic.(LG).card.format.scanner. -
Page 5: Specifications
1. SPECIFICATIONS 1.1.BioSmart.PV-WTC.models Designation Device serial number BioSmart..PV-WTC-EM BioSmart..PV-WTC-MF BioSmart..PV-WTC-HD BioSmart..PV-WTC-LG 1.2.Basic.specifications Palm.vein.scanner.type Optical,.infrared Maximum.number.of.users* 1,000,000 Maximum.number.of.card.codes 1,000,000 Maximum.number.of.palms 300,000 Maximum.number.of.events 10,000,000 1:1000.vein.matching.identification.time,.sec not.longer.than.2 False.acceptance.rate,.%.** 0.00008 Integrated.RFID.card.scanner Card.scanning.range,.mm up.to.100 Display TFT.3.5”.320х240 Keyboard keypad,.12.buttons BioSmart.relay.module.support Connection.interface.with.computer Ethernet USB.interface.for.configuration USB.2.0 Web.interface.for.configuration Wiegand.26-40.bit.output.interface On-board.relay 12.VDC,.1.А... -
Page 6: Factory.settings
1.3.Factory.settings Terminal’s.IP.address. .. 175.25.110.71 Terminal’s.network.address. Serial.number Administrator.password. No.password 1.4.Package.contents. Item Number, pcs. BioSmart.PV-WTC.Terminal. Product.certificate Installation.instructions Mounting.kit.(two.6х35.dowels,.two. 3.5х38.self-tapping.screws) 2. USE, TRANSPORTATION AND STORAGE CONDITIONS Abrasive.or.chemically.active.materials.should.not.be.used.to.clean.the.outer.surfaces.of.the.device. or.the.palm.vein.scanner. The.terminal.may.be.stored.in.the.following.environmental.conditions: -.ambient.air.temperature.from.minus.40.to.plus.50.°С; -.relative.air.humidity.(without.condensation).up.to.98%. Water,.dust.and.other.foreign.substances.should.be.prevented.from.entering.the.inside.of.the. terminal.during.transportation.and.storage..Following.storage.of.the.terminal.in.low.temperature.or. high.humidity.conditions,.it.must.be.kept.in.a.dry.environment.at.a.temperature.of.(20±5).°С.for.no. less.than.30.minutes.before.being.turned.on. 3. SAFETY REQUIREMENTS To.avoid.malfunctions.in.the.terminal,.it.must.be.disconnected.from.its.power.source.before.any. work.is.carried.out.with.its.case.open. Only.specialists.authorized.by.the.manufacturers.of.this.terminal.should.carry.out.the.repair.and. replacement.of.terminal.parts. -
Page 7: Disposal
4. DISPOSAL The.BioSmart.PV-WTC.terminal.does.not.contain.materials.hazardous.to.the.health.of.users.or.the. environment..No.special.ecological.safety.measures.are.required.when.disposing.of.this.unit.at.the. end.of.its.operational.lifespan. 5. MANUFACTURER’S GUARANTEE The.manufacturer.guarantees.successful.performance.and.correspondence.to.the.stated.product. characteristics.on.the.condition.that.the.consumer.complies.with.the.rules.of.its.use,.installation,. connection,.transportation.and.storage.. The.manufacturer.provides.a.warranty.on.the.BioSmart.PV-WTC.terminal.for.the.period.of.60. months.from.the.day.of.sale.indicated.in.its.certificate.. If.notes.on.the.date.of.the.product’s.sale.are.absent.from.the.certificate,.the.warranty.period.is. calculated.from.its.manufacturing.date.. The.Manufacturer’s.Warranty.does.not.extend.to.BioSmart.PV-WTC.terminals.that.have.broken. down.due.to.the.Customer.failing.to.comply.with.its.rules.of.operation.. 6. INSPECTION CERTIFICATE BioSmart.PV-WTC-......terminal,.assembly.no..............has.been.classified.as.fit.for.use. Issue.date......Production.Manager......(print.full.name) (signature) Manufacturer:... -
Page 8: Terminal Description
7. TERMINAL DESCRIPTION 7.1.Description.of.terminal’s.front.panel An.exterior.view.of.the.terminal.is.shown.on.figure.1.. Figure.1..Exterior.view.of.BioSmart.PV-WTC.terminal 1..Smart.card.reader 2..LCD.screen 3..Keypad 4..Palm.vein.scanner... - Page 9 The.terminal’s.status.panel.is.displayed.at.the.top.of.the.screen.with.the.following.symbols: Operating mode indication blue.flashing.symbol.–.terminal.is.ready.to.identify.users yellow.flashing.symbol.–.terminal.is.undergoing.administration,.identification.is.temporarily.disabled Output relay status Status of connection to BioSmart-Studio server closed connection.established open no.connection Other indicators connection.with.identification.server.established free.access.mode.enabled terminal.locked there.is.an.error.in.the.terminal’s.operation.(error.status.indicated.in.the.terminal’s.“Info”.menu) The.instrument’s.factory.serial.number.is.displayed.in.the.top.right.corner.of.the.status.panel. The.screen.displays.the.current.date,.time.and.day.of.the.week. The.screen.also.features.two.buttons:.“Menu”.and.“Info”..The.“Info”.menu.displays.all.the.informa- tion.you.need.about.the.device’s.state..The.“Menu”.button.opens.the.device’s.options. The.keypad.buttons.(fig..2).are.used.to.navigate.through.the.on-screen.menu: ..–.moves.up.the.list; ..–.moves.to.the.right.or.switches.from.list.to. function.buttons..Used.for.page.navigation.in. the.“Users”.menu; ..–.moves.to.the.left.or.switches.from.func- tion.buttons.to.list..Used.for.page.navigation.in. the.“Users”.menu; .–.moves.down.the.list.. .–.used.for.selection.and.confirmation С ..–.used.to.return.to.the.previous.menu.sec- tion.or.delete.the.last.digit.entered.
-
Page 10: Description.of.connection.ports
7.2.Description.of.connection.ports A.view.of.the.terminal’s.circuit.board.is.shown.in.fig..3..The.circuit.board’s.contacts.are.described. in.table.1. 1...2..3..4...5...6..7..8..9 11..12 Figure.3..Exterior.view.of.terminal’s.circuit.board Table 1. Circuit board connectors Label Description Connection purpose 1st.relay.normally-open.contact.output.(DC.1A,.12V) Actuator.control.input 2nd.relay.normally-open.contact.output.(DC.1A,.12V) Actuator.power.supply.output Wiegand.external.controller.interface. Wiegand.interface.DATA1.output DATA.1.intput Wiegand.external.controller.interface. Wiegand.interface.DATA0.output DATA0.intput +12V.output.for.discrete.input Relay.control.button Discrete.input Door.sensor.output,.relay.control.button 485- -.interface.of.RS485.connection.with.BCR -485.BCR.contact 485+ +.interface.of.RS485.connection.with.BCR +485.BCR.contact Mini.USB.connector.for.terminal.configuration.using. Computer.USB.port the.BioSmart.Manager.program. RJ45(8P8C).port.for.Ethernet.network.connector Ethernet.network.interface Power,.ground Ground.of.12V.power.supply +12.V... -
Page 11: Description.of.indicators.and.circuit.board.jumpers
7.3.Description.of.indicators.and.circuit.board.jumpers The.LEDs.located.on.the.Ethernet.port.indicate.the.physical.connection’s.state.(Link,.green).and. transfer.activity.(Activity,.red). The.IPRST jumper.is.used.to.reset.the.network.configuration.to.factory.settings..To.do.this,.you. must.close.the.jumper.contacts.and.wait.for.the.Link.and.Activity.LEDs.to.go.out..Afterwards,.the. jumper.must.be.opened.again. The.BOOT jumper.is.used.to.put.the.terminal.into.bootloader.mode..This.mode.allows.you.to. restore.the.terminal.to.normal.function.if.its.firmware.becomes.corrupted..To.enable.bootloader. mode,.you.must.close.the.BOOT jumper.with.the.power.off.and.then.power.on.the.terminal..After. the.terminal.is.powered.on,.the.contacts.must.be.opened..The.terminal’s.display.should.show.the. message.“BOOT”..The.process.of.loading.the.terminal’s.firmware.is.described.in.more.detail.in.the. terminal’s.Operating.Manual.. 8. INSTALLATION 8.1.Installation.notes When deciding where to install the terminal, the following should be taken into account: -.The.recommended.height.for.the.terminal.is.120-150.cm.from.the.floor,.for.reasons.of.conveni- ence.in.positioning.the.palm.on.the.scanner,.presenting.a.card.and.viewing.events.on.the.LCD.screen.. Access.to.the.terminal.should.be.free.and.unobstructed.to.allow.for.convenient.positioning.of.the. palm.. -.If.installing.multiple.terminals,.they.must.be.placed.no.closer.than.80.cm.away.from.each.other.in. order.to.minimize.mutual.interference.from.their.in-built.RFID.card.readers. -.Installing.a.terminal.within.1.m.of.any.external.RFID.readers.or.other.sources.of.electromagnetic. interference.is.not.recommended..Nearby.sources.of.electromagnetic.interference.may.negatively. affect.the.operation.of.the.built-in.RFID.card.reader. -
Page 12: Installation.procedure
Before installation: -.Carefully.check.for.mechanical.damage.on.the.surface.of.the.terminal’s.palm.scanner,.circuit. board.and.housing; -.In.order.to.avoid.short.circuits,.the.protected.ends.of.cables.used.to.connect.the.terminal.must. not.exceed.5.mm. Table.2...Types.of.cables.used: Cab. no. Cable connection Max. length Type Four.twisted.pair.cables.of.no.lower.than. Ethernet.(IEEE.802.3).–.terminal 100.m category.five.with.a.wire.size.of.no.less. than.0.2.mm Duplex.cable.with.a.wire.size.of.no Power.source.–.terminal.power less.than.0.75.mm .(for.example,.3192Y) Duplex.cable.with.a.wire.size.of.no Terminal.–.lock,.BCR.-.lock less.than.0.75.mm .(for.example,.3192Y) Four.twisted.pair.cables.of.no.lower.than. Terminal.–.BioSmart.BCR category.five.with.a.wire.size.of.no.less. than.0.2.mm IN,.IN+.terminal.contacts.–.external.devices CQR-6.or.RAMCRO-6.cable Four.twisted.pair.cables.of.no.lower.than. WO0,.WO1.terminal.contacts.–.external. category.five.with.a.wire.size.of.no.less. devices than.0.2.mm 8.2.Installation.procedure The.terminal.must.be.installed.using.the.following.procedure: 1..Open.the.box.and.verify.that.all.the.terminal’s.parts.are.present. - Page 13 7..Fix.the.terminal’s.rear.panel.onto.the.installation.surface.using.the.fixings.included.in.the.pack- aging. 8..Connect.the.terminal’s.power.according.to.p..4.3. 9..Connect.the.terminal’s.network.cable.according.to.p..4.4 10..If.necessary,.connect.the.lock.and.external.sensors.according.to.p..4.5.–.4.8.if.using.the.termi- nal.for.access.monitoring.and.control.or.with.external.equipment.through.the.Wiegand.interface.. 11..After.connecting.all.the.necessary.cables,.attach.the.terminal.to.the.rear.panel.and.screw.in.the. fastening.screws.located.on.the.base.. Hole.for.cable. insertion Figure.4..Marking.attachment.points...
-
Page 14: Connecting.the.terminal's.power.supply
8.3.Connecting.the.terminal’s.power.supply Use.cable.2.(see.table.2).to.connect.the.power.supply.according.to.the.connection.diagram.in. figure.6.. DC.12V. power. supply GND..+12V Figure.6..Connecting.the.terminal’s.power.supply... -
Page 15: Connecting.the.terminal.to.an.ethernet.network
8.4.Connecting.the.terminal.to.an.Ethernet.network Connect.the.terminal.to.an.Ethernet.network.according.to.figure.7. Network. interface Figure.7..Connecting.to.an.Ethernet.network... - Page 16 Use.cable.1.(see.table.2).to.connect.the.terminal.(via.the.Ethernet.port).to.a.computer,.network. switch.or.router..The.order.of.connections.in.the.cable’s.modular.connector.must.correspond.to.the. TIA/EIA-568-B.standard,.in.accordance.with.figure.8.
-
Page 17: Connecting.an.electromechanical.lock.to.the.terminal's.circuit.board
8.5.Connecting.an.electromechanical.lock.to.the.terminal’s.circuit. board Figure.9.describes.how.to.connect.an.electromechanical.lock.to.the.terminal..Use.cable.3.(see.table. 2).to.connect.the.electromechanical.lock... Power Lock supply Figure.9..Connecting.an.electromechanical.lock... -
Page 18: Connecting.an.electromagnetic.lock.through.the.biosmart.bcr
8.6.Connecting.an.electromagnetic.lock.through.the.BioSmart.BCR An.electromagnetic.lock.is.connected.in.conjunction.with.the.BioSmart.BCR.in.accordance.with..figure.10.. Use.cables.3.and.4.to.connect.it.(see.table.2)... +485..NC1 Lock -485...C1 Figure.10..Connecting.an.electromagnetic.lock The.connection.and.configuration.of.the.BioSmart.BCR.is.described.in.detail.in.the.BioSmart.BCR. Operating.Manual.. -
Page 19: Connecting.an.entry.sensor.and.control.buttons
8.7.Connecting.an.entry.sensor.and.control.buttons An.entry.sensor.or.a.control.button.for.exiting.the.premises.can.be.connected.directly.to.the.BioS- mart.PV-WTC.terminal’s.on-board.discrete.input. Door.sensor. or.button Figure.11..Connecting.a.door.sensor.or.button. to.the.on-board.discrete.input Use.cable.5.for.this.connection.(see.table.2)... If.your.access.monitoring.and.control.system.requires.the.simultaneous.use.of.an.entry.sensor.and. button.for.exiting.the.premises,.you.must.connect.them.using.the.BioSmart.BCR. -
Page 20: Connecting.to.an.external.controller.through.wiegand
+485 -485 Figure.12..Connecting.a.door.sensor.and.button. using.the.BioSmart.BCR Use.cables.4.and.5.for.this.connection.(see.table.2)... The.connection.and.configuration.of.the.BioSmart.BCR.is.described.in.detail.in.the.BioSmart.BCR. Operating.Manual.. 8.8.Connecting.to.an.external.controller.through.Wiegand Figure.13.describes.how.to.connect.the.terminal.to.an.external.AMCS.controller.through.the.Wie- gand.interface. Use.cable.6.for.this.connection.(see.table.2)... -
Page 21: Configuring Network Parameters
D0.(IN) D1.(IN) Figure.13..Connecting.the.terminal.to.an.external. controller.through.the.Wiegand.interface 9. CONFIGURING NETWORK PARAMETERS Connect.the.terminal’s.power.supply..Wait.for.the.screen.to.turn.on. Navigate.through.the.on-screen.menu.using.the.corresponding.keypad.buttons.(p..3.1). Press.“Menu”..A.prompt.will.appear.on.the.display.requesting.the.terminal’s.configuration.pass- word..To.log.in,.press..The factory default password is an empty password. -
Page 22: Ensuring Of The Operation
When.you.log.in.to.configuration.mode.for.the.first.time,.it.is.recommended.that.you.set.a.new. password.to.avoid.future.unsanctioned.access.to.the.terminal’s.options. Go.to.the.“Options”.section,.choose.“Reset.options”.and.press..Warning! The “Reset options” button in this menu resets all the terminal’s settings to factory default settings, and removes all user and event data saved in the terminal’s memory. To.change.the.terminal’s.network.settings,.go.to.the.“Network”.section. Choose.the.“New.IP.address”.option.from.the.list.and.press..Enter.the.required.IP.address.using.the.keypad.and.press..Enter.the.required.network.mask.and.gateway.options.in.the.same.way. Navigate.to.the.“Apply”.button.and.press..After.this,.the.new.network.settings.will.go.into.effect. The.device.is.ready.for.use..Further.configuration.of.the.device.should.be.carried.out.using.the. BioSmart-Studio.or.BioSmart.Manager.programs. The.BioSmart.PV-WTC.Operating.Manual.and.all.necessary.drivers.and.software.can.be.found.at. - Page 23 Thank.you.for.purchasing.our.product!
- Page 24 GP.Systems.GmbH Ochshäuser.Str..45 34123.Kassel.Germany Tel..+49.151.100.41.701...
