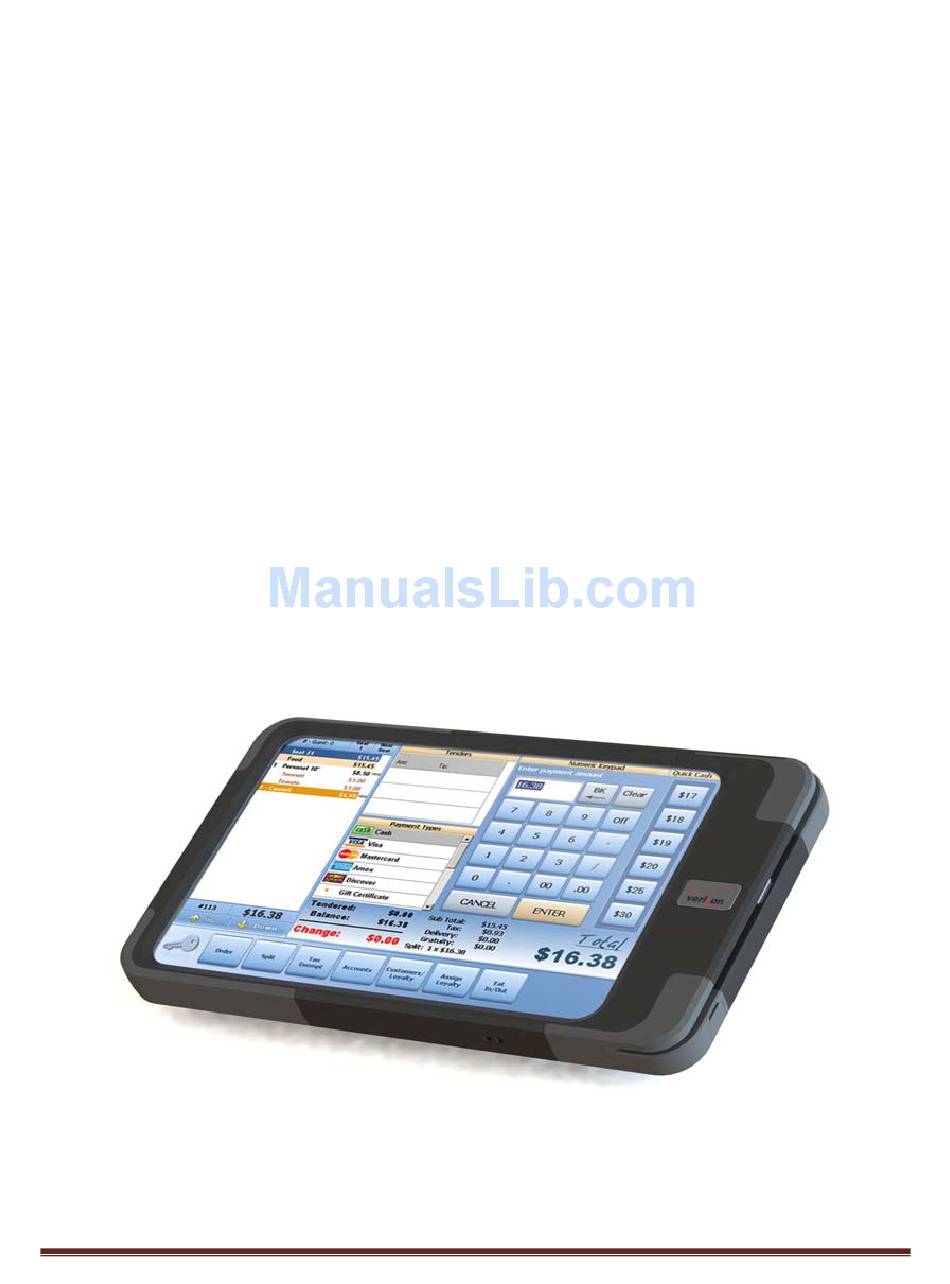

- Page 1 MoGo Blank Slate Tablet ID8-BS-1000 User’s Manual 7” Android Tablet and Smart Case for Secure Financial Transactions 10/24/11 www.aactechnologies.com Page 1 ...
- Page 2 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of AAC Technologies Inc. (“AAC”), or its respective suppliers relating to the Mogo SecurePay SCS‐1000, including but not limited to, accessories, parts, or software relating there to (the “SecurePay System”), is proprietary to AAC and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with AAC and its suppliers. AAC‐ID8 Accessories Group 11 Mercer Road Natick, MA. 01760 (508) 650‐0055 www.aactechnologies.com Printed in USA The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. microSDTM, microSDHCTM and the microSD logo are Trademarks of the SD Card Association. Wi‐Fi is a registered trademark of the Wireless Fidelity Alliance, Inc. Google, the Google logo, Gmail, Google Talk, Google Search, Google Maps, Latitude, YouTube, Picasa, Android and Android Market are trademarks of Google, Inc. © AAC Technlogies Inc. (“AAC”). Mogo and SecurePay are trademarks of AAC Technologies, Inc. and/or its related entities. All product and brand names are trademarks or registered trademarks of their respective companies. Screen images simulated. Appearance of the device may vary. www.aactechnologies.com Page 2 ...
-
Page 3: Table Of Contents
MoGo Blank Slate ID8‐BS‐1000 User’s Manual Rev. 0 – 10/24/11 Table of Contents Introduction . . . . . . . . . 4 Getting Started . . . . . . . . . Getting to know your MoGo Blank Slate ID8‐BS‐1000 . . . . . 4 Charging the Battery ... -
Page 4: Introduction
Introduction: Your MoGo Blank Slate is a complete, portable financial transaction solution built by combining a standard Android tablet computer with a shock absorbing, water‐resistant “smart case” that not only protects the base tablet, but also adds a series of secure peripherals (magnetic card reader, front facing camera for bar code scanning, 3G/4G modules, etc.) to customize the device for specific enterprise level applications. Blank Slate systems are typically supplied preconfigured for specific applications by the IT departments of the enterprises that are deploying them. Getting Started: Getting to know your MoGo Blank Slate ID8‐BS‐1000: Main Controls: Volume + Volume ‐ Power (On/Off) SEARCH Button Front Camera BACK Button HOME Button MENU Button Status LED www.aactechnologies.com Page 4 ... -
Page 5: Charging The Battery
Smart Case Peripherals: Rear Facing Camera (on back of case) Speaker Ports Magnetic Card Reader Mini USB Charging Port Microphone Port Charging the Battery: Your device is powered by a rechargeable, standard Li‐Ion battery. An AC Power Supply is included with the device, for charging the battery. Insert the micro USB connector on the charging cable into the port on the side of the Blank Slate case. Plug the power supply into an appropriate 110 to 240 AC source. Note: The battery comes partially charged. You must fully charge the battery before using your device for the first time. After the first charge, you can use the device while charging. Warning!: Use only approved charging devices. Approved accessories are designed to maximize battery life. Using other accessories may invalidate your warranty and may cause damage. Battery Indicator: www.aactechnologies.com Page 5 ... -
Page 6: Turning On The Device
The Battery icon in the Status Bar shows battery power level. When battery power is 15% or less, your device will prompt you to charge the battery. If you continue to operate the device without charging, the device will power off. Turning On the Device: Power Button Press and hold the power button (located on the left side of the top edge of the device) for approximately 3 seconds to turn on the unit. Once the system boots, the system home screen will be presented with icons for the installed software applications. In some cases, the devices will be configured to launch directly into a custom software application for a particular enterprise. Standby (Sleep) Mode: With the system running, a quick press of the power button will blank the system display and put the system into “Standby Mode”. A second quick press of the power button will restore the system to full operation. Turning Off the Device: Press and hold the power button for approximately 3 seconds. A pop‐up window will appear allowing the user to select full power down, standby, or airplane modes. www.aactechnologies.com Page 6 ... -
Page 7: Main Button Functionality
Main Button Functionality: Menu Key: Press to display options for current screen. Home Key: Press to display Home Screen. Press and hold to display recent applications or to launch Task Manager (if available). Back Key: Press to return to the previous screen or option. Search Key: Press to launch Google Search (if available), to search your device or the web. www.aactechnologies.com Page 7 ... -
Page 8: Using The Touchscreen
Using the Touchscreen: Swiping: Touch the screen and slide your finger to scroll lists, navigate web pages, move between pages, etc. Multi‐Touch: To zoom in or out of a picture, web page or other content, touch the screen with two fingers at the same time and then drag them together (to zoom in) or move them apart (to zoom out). Zoom Out www.aactechnologies.com Page 8 ... -
Page 9: Fcc Compliance
Zoom In Moving Objects: To move an object (such as an icon on the Home screen), touch and hold the object – then drag it to the new desired position. FCC Compliance: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 10: Device Specifications
FCC RF Radiation Exposure Statement: 1. This transmitter has been demonstrated to meet co-location compliance requirements with transmitter FCC ID: ZUJ-MTP1122. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. Blank Slate complies with FCC RF radiation exposure limits set forth for an uncontrolled environment and meets the FCC RF Exposure Guidelines in Supplement C of OET65. -
Page 11: Hardware Specifications
-Power button/ Volume up/Volume down button -Home button/ /Return button /Menu Controls button/Search button for Touch Panel (capacitance T/P) Standby: 8 hours (min.) Battery Life Working: depends on peripherals and software in Battery charge current: max. 1.4 A Battery Charge Battery charge timing <... - Page 12 Playing 16 bit, 44KHz Microphone record Loudspeaker support Stereo Audio Output support 3.5mm earphone jack Multimedia Encode: AMR-NB Decode: AACLC/LTP, AAC+, Enhanced AAC+ Audio codec AMR-NB, AMR-WB, MIDI, Ogg vorbis, PCM/WAVE 1080p MFC (Multi Format Codec) 30fps H.264 codec (BP/MP/HP) MPEG-4 codec (SP/ASP) Video Codec H.263 codec (P3 / MPEG-4 ERT)
- Page 13 SD Performance/Protocols Feature Comment SD v2.0 Class 2、4、6 Wi-Fi Performance/Protocols Feature Comment 802.11 b/g/n WEP Security WPA, WPA2 Security DHCP TFTP/HTTP Smartcase Peripherals Feature Comment Magnetic Card Reader PCI PED V2.1 2 Megapixel Camera Module 1-D and 2-D Bar Code Reader Mini USB Port Data sync and Battery Charging 3G/4G modem (optional)
- Page 14 Low: ‐10°C, 24 hours, with bias applied; Low:24 hours TH Extremes, Operating VI, FT Pre / Post High: 50°C/80%, 72 hours, with bias applied High:72 hours Temperature/Humidity/ 60°C/90% RH, with Bias applied. VI, FT 96 hours Pre / Post Durability, Operating Logo: 60 cycles Paint/Logo Abrasion 350 g load, Taber CS‐10F abrader, 60 cycles/min Pre / Post Paint: 35 cycles 12 hours RT 12 chemicals, 2 per unit, room temperature exposure Chemical Withstand 24 hours Pre, Post followed by 60°C/65% RH Elevated Rain test Portable usage classification IPX4 VI, FT 10 min Pre / Post 10 Dust test Classification IP5X 2kg / m3 8 hours duration VI, FT 8 hours Pre / Post Irradiance level of 2806 W‐h/m ; Approximately 0, 100, 200, 11 UV Stability Color Shift ASTM D4674...
