Base Cabinet Assembly Instructions
Tools needed: Flat head screwdriver, wood glue, rubber mallet, drill

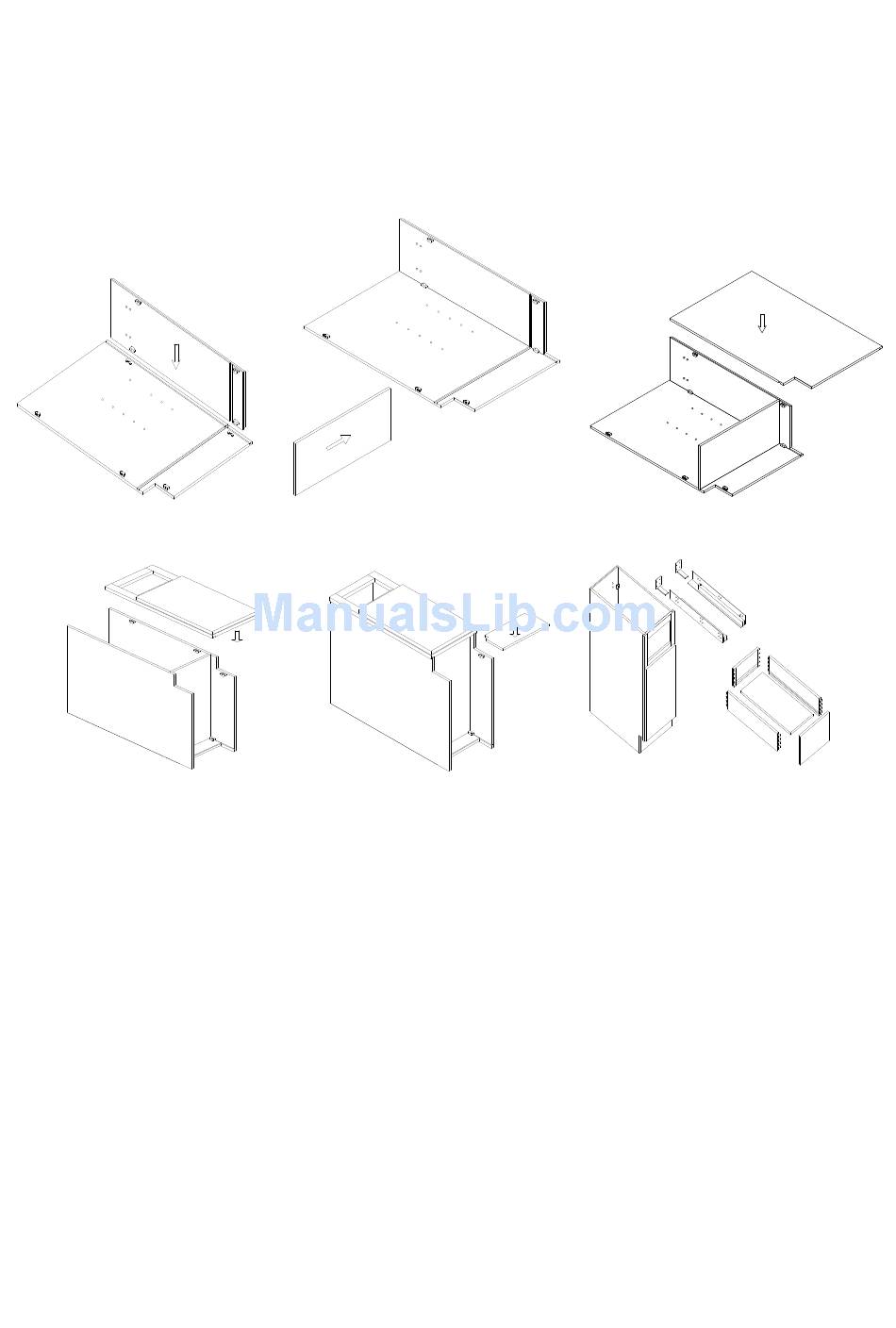

1. First put the grey rail holders into the holes on the back panel. Then lock the back panel onto a side
panel.
2. Next slide in the bottom panel.
3. Lock on the side panel for the other side.
4. Lock on the face frame. IF the side panels or bottom panel are a little warped, tap it with the rubber
mallet.
5. Add on toekick piece.
6. Assemble the drawers together with wood glue and the rubber mallet.
7. Put in the rails. Place the front of the rails at the bottom of the openings for each drawer before
screwing them in.
8. Put in the drawers.
Optional: Nail gun, Stapler
