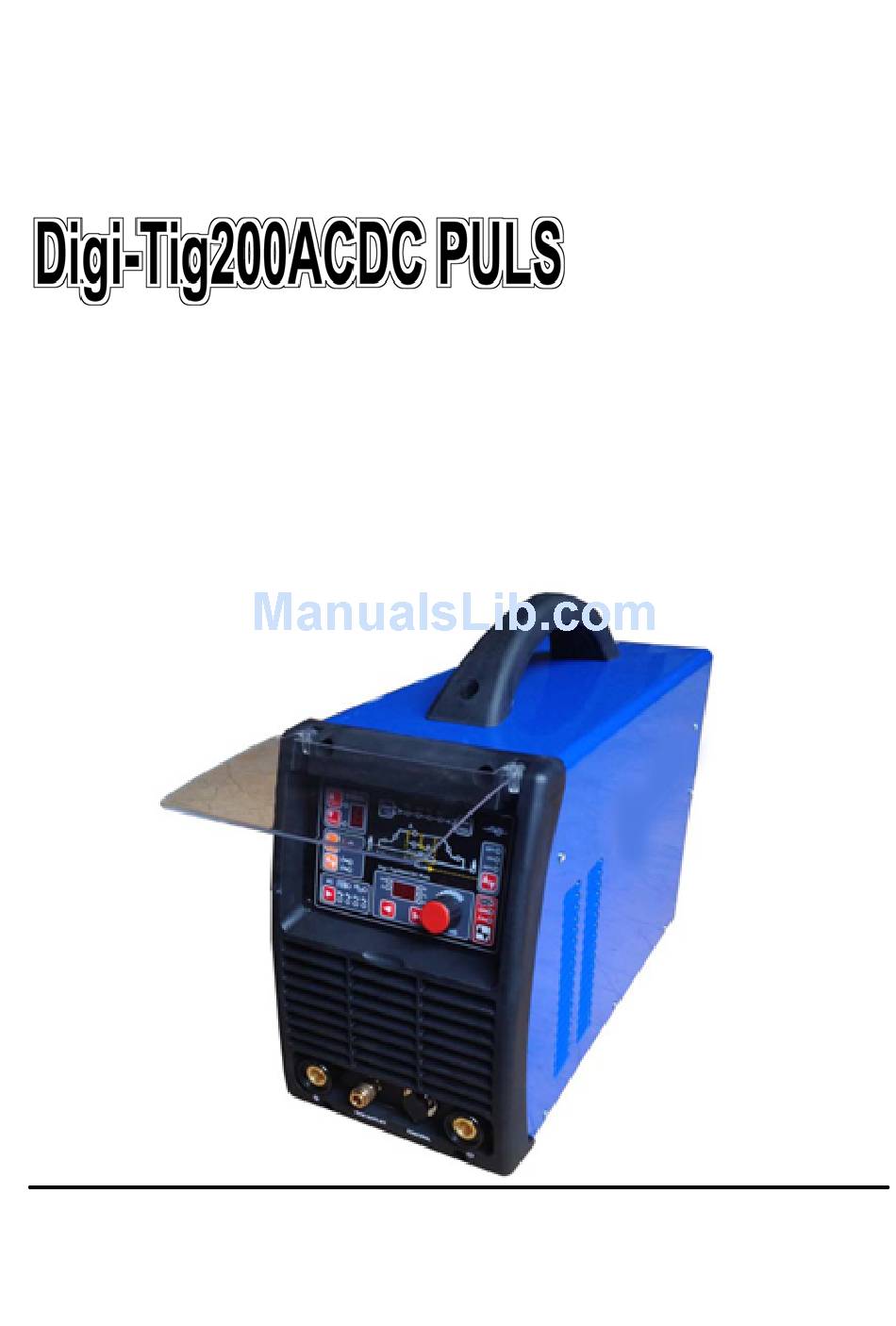

AlandWelding Digi-Tig200ACDC PULS Operator's Manual

Igbt inverter ac tig/dc tig dc mma welding machine

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

THANKS FOR PURCHASING PRODUCT

IGBT INVERTER

AC TIG/DC TIG

DC MMA

WELDING MACHINE

（ BE SUITABLE FOR 1x110V or1x 220V ）

Operator's Manual

Safety, Setup and General Use Guide

REV.1 0 00137-15

Issue Date: Dec. 9, 2015

Manual No. ： 0-1527

Table of Contents

Need help?

Do you have a question about the Digi-Tig200ACDC PULS and is the answer not in the manual?

Questions and answers

Summary of Contents for AlandWelding Digi-Tig200ACDC PULS

Page 1: Welding Machine
THANKS FOR PURCHASING PRODUCT IGBT INVERTER AC TIG/DC TIG DC MMA WELDING MACHINE （ BE SUITABLE FOR 1x110V or1x 220V ） Operator's Manual Safety, Setup and General Use Guide REV.1 0 00137-15 Issue Date: Dec. 9, 2015 Manual No. ： 0-1527...
Page 2: Dear Customer
Dear Customer, Thank you for selecting the our machine. We appreciate you as a customer and hope that you will enjoy years of use from your welder. Please go directly to the our website to register your unit and receive your warranty information. Your unit registration is important should any information such as product updates or re-calls be issued.
Page 3 Please record your equipment identification below for future reference. This information can be found on data plate at rear of machine. ： Product Digi-Tig200ACDC PULS Serial No. ___________________________________ Date of Purchase _____________________________ Where Purchased _____________________________ Whenever you request replacement parts or information on this equipment please always supply information...
Page 4: Safety Precautions
SAFETY PRECAUTIONS We are dedicated to providing you with the best possible equipment and service to meet the demanding jobs that you have. We want to go beyond delivering a satisfactory product to you. That is the reason we offer technical support to assist you with your needs should an occasion occur. With proper use and care your product should deliver years of trouble free service.
Page 5 SAFETY PRECAUTIONS These safety precautions are for protection of safety and health. Failure to follow these guidelines may result in serious injury or death. Be careful to read and follow all cautions and warnings. Protect yourself and others. Welding and cutting processes produce high levels of ultraviolet (UV) radiation that can cause severe skin burn and damage.
Page 6 SAFETY PRECAUTIONS WARNING! Persons with pacemakers should not weld, cut or be in the welding area until they consult with their physician. Some pacemakers are sensitive to EMF radiation and could severely malfunction while welding or while being in the vicinity of someone welding. Serious injury or death may occur! Welding and plasma cutting processes generate electro-magnetic fields and radiation.
Page 7 SAFETY PRECAUTIONS WARNING! Electrical shock can kill. Make sure all electrical equipment is properly grounded. Do not use frayed, cut or otherwise damaged cables and leads. Do not stand, lean or rest on ground clamp. Do not stand in water or damp areas while weld-ing or cutting. Keep work surface dry.
Page 8: Main Usage And The Range Of Usage
MAIN USAGE AND THE RANGE OF USAGE ， Digi-Tig200ACDC PULS Welder is triple functional machine used as DC MMA AC TIG, DC/ PULSE TIG Welder. All ferrous metals copper, Aluminium ,titanium and stainless steel material can be omnibearing welding in all position.The welding current is stable and stepless adjustable.The welding seam is nice.
Page 9 Ⅲ. OPERATING CONDITION AND WORK SURROUNDING 1. Operating condition: 。 Voltage of power source: 1x110V or 1x220V Frequency: 50/60Hz Reliable grounding protection 2.Work surrounding ① ℃ . relative humidity: not more than 90 %( average monthly temperature not more than 20 ) ②...
Page 10 Digi-Tig200ACDC PULS 1.Memory chanel LED 2. Data Display meter 3. Parameter Select function 4.indicating light of power 5. S -- unit of up & downslope time & pre& post flow time % -- unit of AC balance &peak time on Hz-- unit of pulse freq.&AC freq.
Page 11: Argon Arc Welding(Tig)
Ⅵ.METHOD OF THE OPERATION 1.ARGON ARC WELDING(TIG) a. FRONT OF WELDER b. BACK OF WELDER switch flow meter gas inlet pipe argon bottle torch workpiece 1.1 CLEARING BEFORE WELDING Tungsten argon an welding is very sensitive to surface contamination of filled metal. Therefore before welding is carried out, grease, paint and coating on the surface,lubricant for machining and oxidized film should be removed.
Page 12: Pulse Argon Arc Welding
Notice: During welding, when the" 12. 2T/4Tswitch"on "2T", switch of the torch must be pressed and can not be released.otherwise the arc will be broken. ⑦ .Releasing the switch of the torch, welding current will reduce gradually (time is adjustive) and arc extinguishes.The welding torch can not be removed as soon as the arc extinguishing.
Page 13: Ac Argon Arc Welding
resistance of molten seam and preservation of bath. It is easy to obtain even fusing deepness. This process is specially applicable to omni-bearing welding of sheet and formation to be done with both sides through one side welding. b. Heating and cooling of each welding point is very fast,.Therefore,the process is applicable for the workpiece with great difference of heat conductivity and thickness.
Page 14 2.Hand welding with electrode ① .selector "9" onto the position " DC+ " or "DC-" ② . select right welding current select empiric formula:I=40d, d is dia. of the electrode. ③ .Notice positive and negative connection during welding. WELDER ELECTRODE HOLDER WORKPIECE ④...
Page 15 Ⅷ. This product is sold subject to the understanding that if any defect in manufacture or material shall appear within 12 months from date of consumer sale, the manufacturer will arrange for such defect to be rectified without charge on the sales invoice and warranty card (except for any personal trouble).
Page 16: Packing List
─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ Certificate of quality Name of product: AC/DC/PULSE TIG WELDING Type of product: Digi-Tig200ACDC PULS Packing Test results of this welder fulfils_____________ _________technical requirements and its release from the works is granted.
Page 17 Do not touch electrically live parts or Keep flammable materials away. Wear eye, ear and body protection. WARNING electrode with skin or wet clothing. Insulate yourself from work and ground. Spanish No toque las partes o los electrodos Mantenga el material combustible Protéjase los ojos, los oídos y el AVISO DE bajo carga con la piel o ropa moja-...
Page 18 Keep your head out of fumes. Turn power off before servicing. Do not operate with panel open or Use ventilation or exhaust to guards off. WARNING remove fumes from breathing zone. Spanish Los humos fuera de la zona de res- Desconectar el cable de ali- No operar con panel abierto o AVISO DE...
