Summary of Contents for Silver Star SR-5000

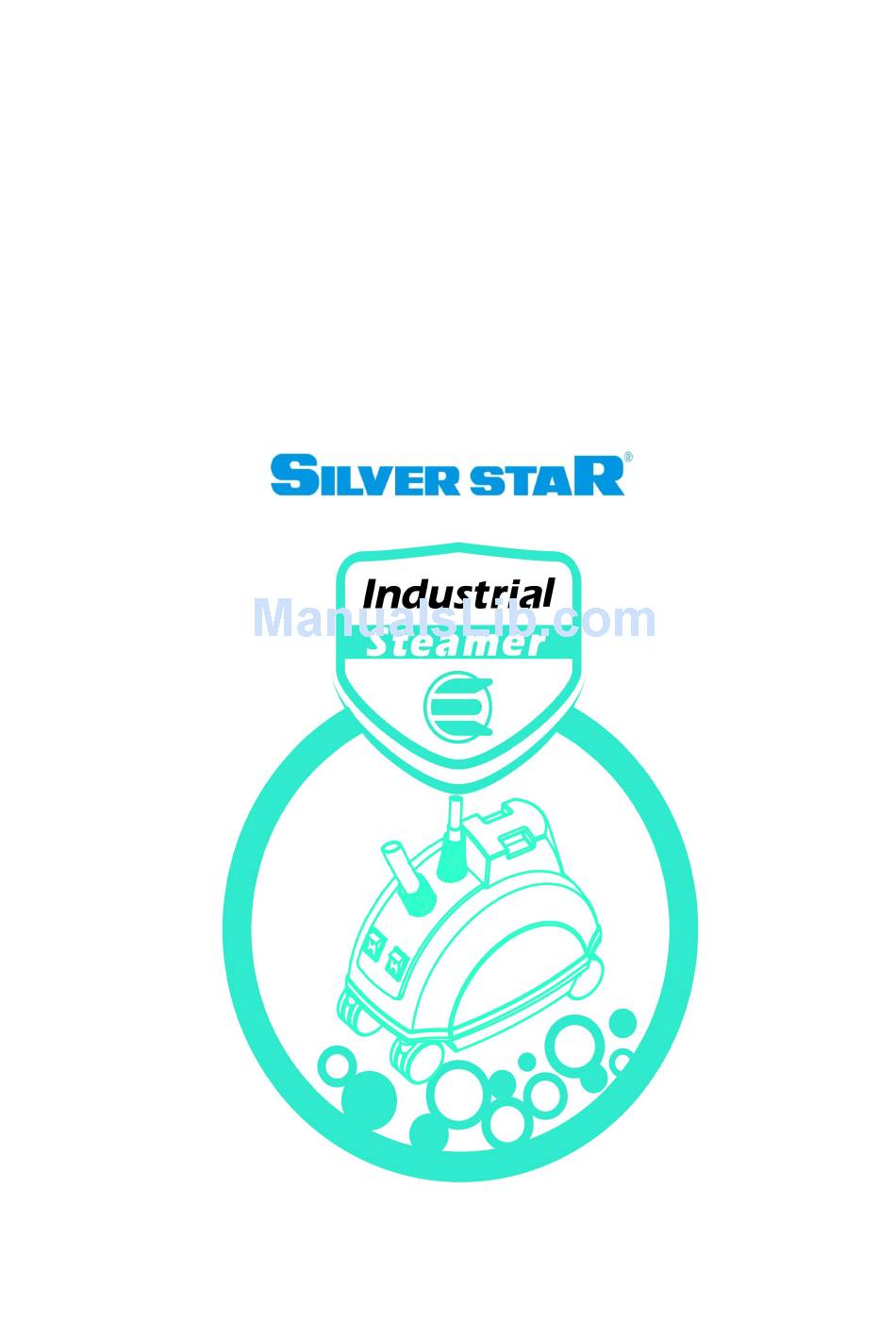

- Page 1 Industrial steam lron Silver Steamer USER MANUAL...
- Page 2 Steam Hose Set Water Tank Water Tank Power Cable Steamer Body Power Cable Steam Brush Size and Specifications Model Voltage Power Consumption Product Weight Product Size SR-5000 120V/220V 1350W 8.5Kg 400×260×320H SR-5000 127V/230V 1500W 8.5Kg 400×260×320H SR-8000 120V/220V 1350W 8.5Kg 400×280×320H...
-
Page 3: Circuit Diagrams
Silver Steamer Circuit Diagrams S/W1 S/W2 V: Voltage (AC120V, 230V), S/W1: Switch1, S/W2: Switch2, H1: Heater1, H2: Heater2, EG: Earth Ground, R1: Resistor1, R2: Resistor2, L1: Lamp 1, L2: Lamp 2, BZ: Buzzer, TS: Temperature Controller, TF: Temperature Fuse Installation and Operation 1. - Page 4 Safety Regulations ♣Please observe following safety regulations to prevent any danger or accidents. 1. Do not touch power plug with wet hands when plugging in to removing from power socket. 2. Do not remove the plug from the power socket by pulling on the cord. 3.
- Page 5 Silver Steamer Simple Cleaning Methods ♣ Clean the product as described following procedure when steam does not come out well during using it. ♣ When cleaning, make sure that the power plug has been removed from the power socket before proceeding. 2.
