Summary of Contents for SP Robotic Works Micro AGV

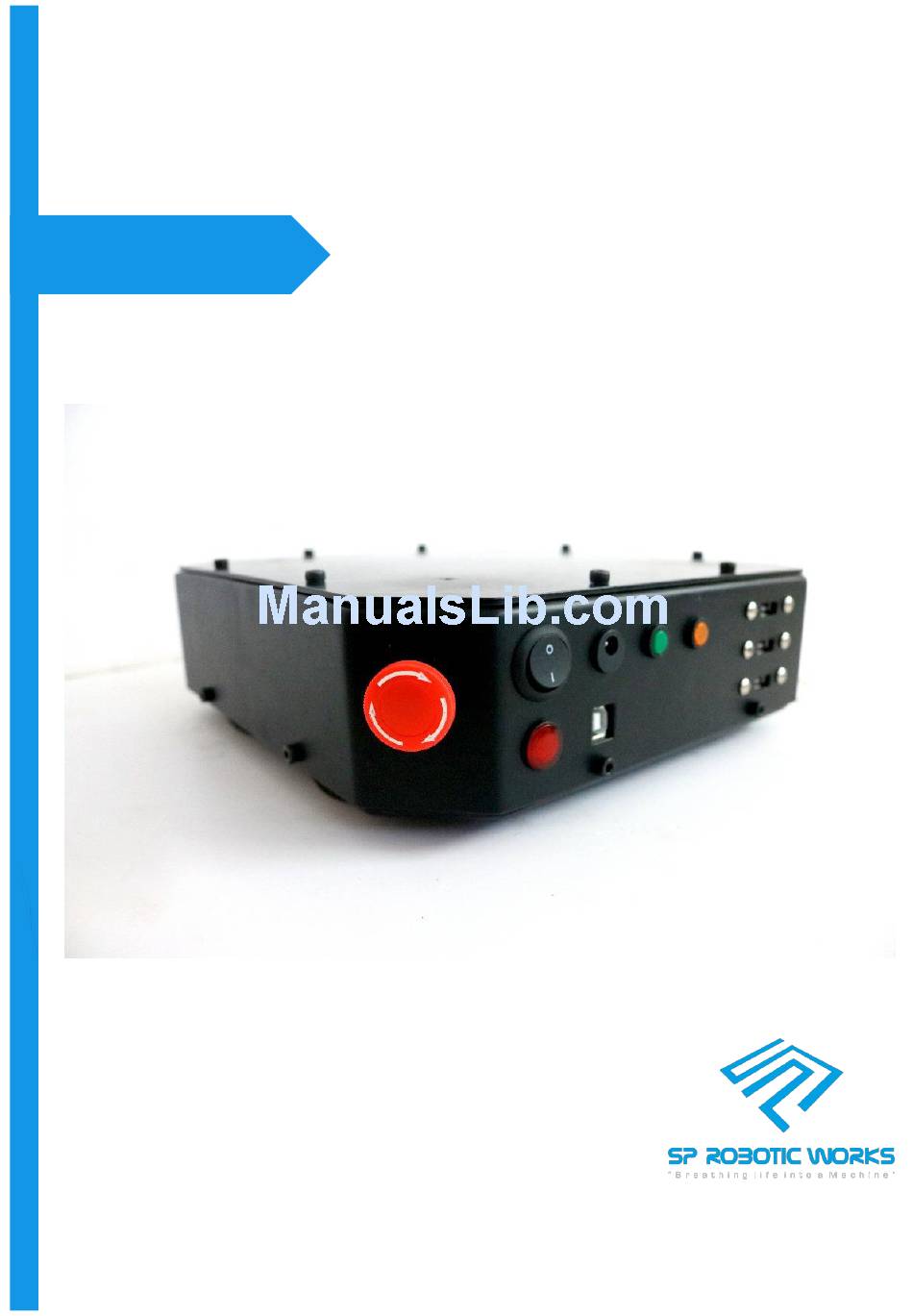

- Page 1 USER MANUAL MAY 2017 MICRO AGV v1.0...
- Page 2 MICRO AGV v1.0 Table of Contents ABSTRACT: ________________________________________________________________ 2 TECHNICAL SPECS: __________________________________________________________ 2 FEATURES: _________________________________________________________________ 2 KNOW THE PARTS: _________________________________________________________ 3 CHARGING ROBOT: __________________________________________________________ 4 PATH/GRID FOLLOWER: ______________________________________________________ 4 DOs and DONTs ____________________________________________________________ 5...
- Page 3 MICRO AGV v1.0 ABSTRACT A path follower robot capable of carrying up to 8 kg load. It specially designed for industrial applications like small scale material handling, Surveillances, Data logging, and many customized application according to the customer needs. TECHNICAL SPECS: ...
- Page 4 MICRO AGV v1.0 KNOW THE PARTS: Obstacle Sensor Path Sensor Wheels Mobile Charging Port Status LED Red Status LED Green Communication port Power Switch Emergency Stop Power Indicator Obstacle Sensor – Senses the obstacle in front of the robot. Path Sensor – Senses the path beneath the robot.
- Page 5 MICRO AGV v1.0 CHARGING ROBOT: 1. Switch off the robot. 2. Plug in the DC Adapter into robot’s charger socket. 3. Plug the another end into AC Power socket. 4. Notice the Status LEDs Red off Green Off = Battery Not Connected...
- Page 6 MICRO AGV v1.0 DOs and DONTs 1. Make sure the Power switch is off before plugging in the charger. 2. Keeping the Robot ON and charging will lead to damage the battery 3. Do not load the robot above the given specification.
