M U Z A K N E X T B O X – Q U I C K S T A R T G U I D E

What it is

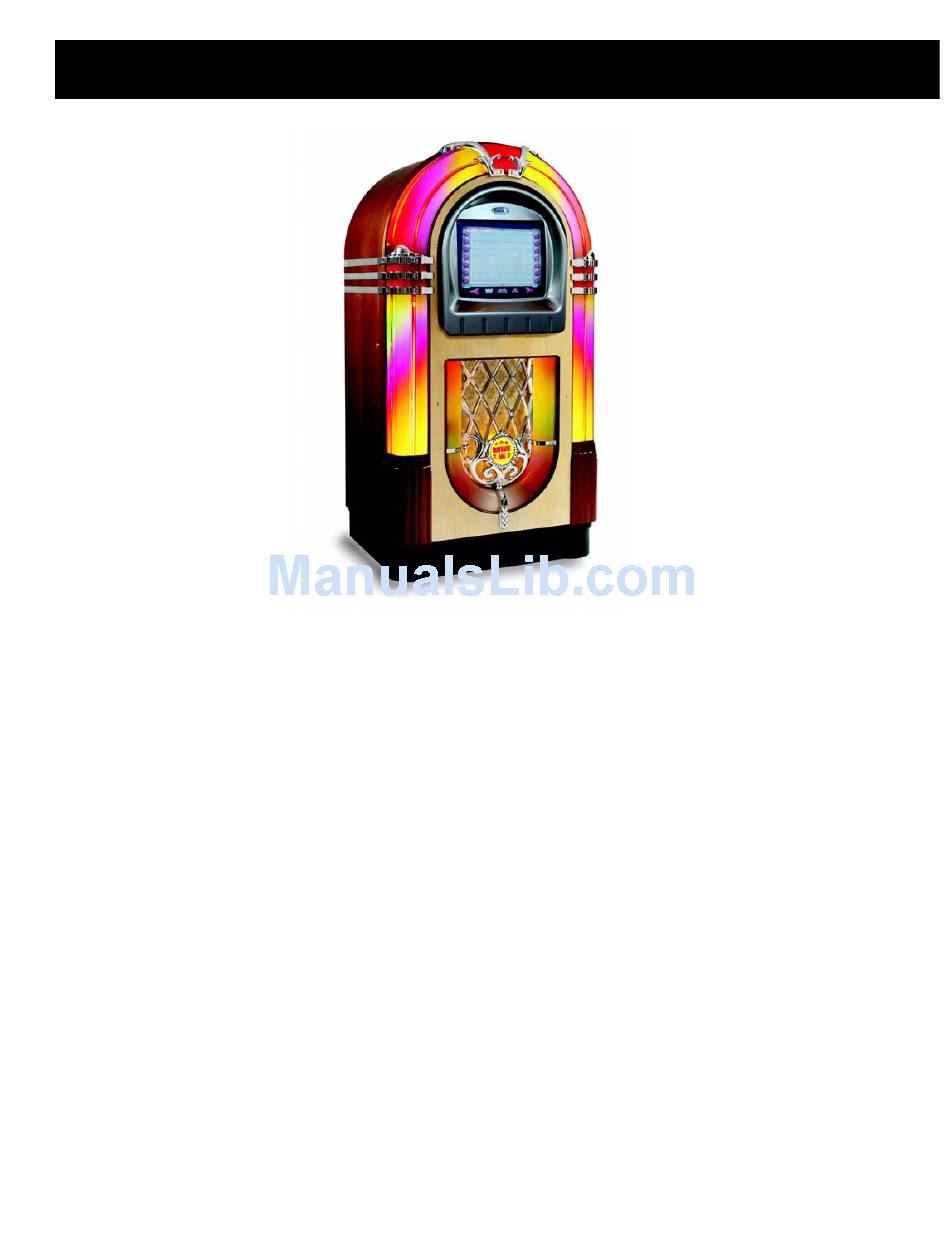

Muzak NextBox is a partnership between Muzak and commercial NextBox manufacturer Rowe International.
The existing Rowe Nostalgia NextBox has been modified to include a touch screen display, allowing the user
to view and interface with Muzak's music program. The NextBox operates in a free-play mode only.

How it works

One or more of Muzak's standard Audio Architecture or custom music programs are loaded onto an
Encompass CM hard drive. The NextBox display receives the song title and artist information from the
Encompass CM and displays this in a sortable format for user selection.
A user may search the song list in artist or title order to make a song selection. To protect the integrity of the
Audio Architecture, the VAA software then inserts the selected song when it next fits into the program play
clock. When no songs are selected the Encompass CM's Virtual Audio Architect (VAA) software dynamically
generates play lists, based upon play clocks and rules established by Muzak's Audio Architects.
The NextBox also includes a screen saver feature that cycles images after a predefined period of time.
Touching the display automatically returns the user to the song list.
October 6, 2005 v3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUZAK NEXTBOX and is the answer not in the manual?

Questions and answers

Summary of Contents for Rowe MUZAK NEXTBOX

  • Page 1 Muzak NextBox is a partnership between Muzak and commercial NextBox manufacturer Rowe International. The existing Rowe Nostalgia NextBox has been modified to include a touch screen display, allowing the user to view and interface with Muzak’s music program. The NextBox operates in a free-play mode only.
  • Page 2 Technical Features: • Virtual Audio Architect used to dynamically generate program. • Titles can be sorted by artist or title. • Insertion of customer-selected titles into program if allowed by the client. Maximum number of insertions at a given time is programmable per client’s instructions. Insertion list can be displayed or hidden per client’s instructions.
  • Page 3 Figure 1 Verify that the 9-Pin Serial and 15-Pin VGA connectors on the touch screen display cables are connected to the Encompass Display Engine. Confirm that the Ethernet cross-over cable connects the Encompass Display Engine to the Encompass CM via the RJ-45 jacks on the rear of each. Mount an equipment shelf to the NextBox back panel above the Encompass CM and Encompass Display Engine.
  • Page 4 13. Press enter and then the up arrow to verify DHCP is set to No. If it is set to Yes, simultaneously press and hold the up and down buttons to toggle DHCP to No. Then press enter to return to the main menu.
