Summary of Contents for Framon EXPRESS
-
Page 1: Instruction Manual

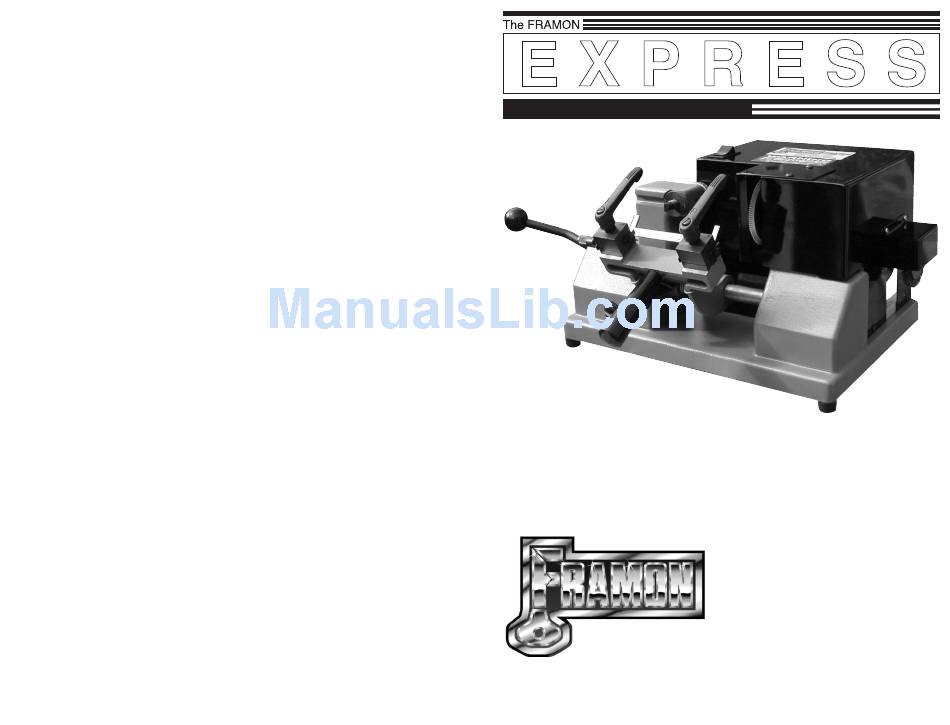

Semi-Automatic Duplicator Instruction Manual & Parts Book (989) 354-5623 FAX: (989) 354-4238 Framon Manufacturing Co., Inc. 909 Washington Avenue, Alpena, Michigan 49707 e-mail: express@framon.com Internet: www.framon.com... - Page 2 Part No. Description CAUTION: The cutter supplied with your EXPRESS Duplicator is designed LKMS076 Yoke Handle to cut brass keys only! LKMS004 LH Torsion Spring Do not attempt to cut steel keys! LKSH002 Guide Casting LKSH004 Yoke CNCMS13 Knurled Thumb Screw...
- Page 3 WARRANTY INTRODUCTION The warranty on the Framon Express machine is in effect for Congratulations on the purchase of your new Framon EXPRESS semi-automatic duplicator. You now own what we a period of one year from the date of purchase. Framon believe is one of the finest duplicators available today.
- Page 4 Loosen the cap screw located in the small channel in the front of the casting. Load two identical blanks, one in each vise and raise the yoke so the guide is resting on the tip of the key. With slight pressure, move the bearing assembly so that the cutter rests on the tip of the key blank (make sure a tooth on the cutter is touching, not the gap between the teeth).
- Page 5 CAUTION: Cutter damage may result if shoulder stop is not lowered! A unique feature of the Express is the built-in tip stops for shoulderless keys. When cutting a key such as Ford, the long Turn on the machine with the switch, located on the top of the side of the tip stop, affixed to the right side of the vise with guard.
- Page 6 LKSH024 Guide/ LK84S LKSH108 Guide Shaft Cutter DCSH114 Calibrated Ring LKSH122/123 LKMS450 LKSH471 Vise Bottom/Top Key Stop CNCMS06 Cutter Guard LKSH109 Switch ICMS561 LKMS460 Lock Knob Adj Handle Main Guard LKSH112 Lever Handle ICMS452 Brush Guard LKMS077 Black Plastic Ball DCMS252 Wire Brush LKSH121...
