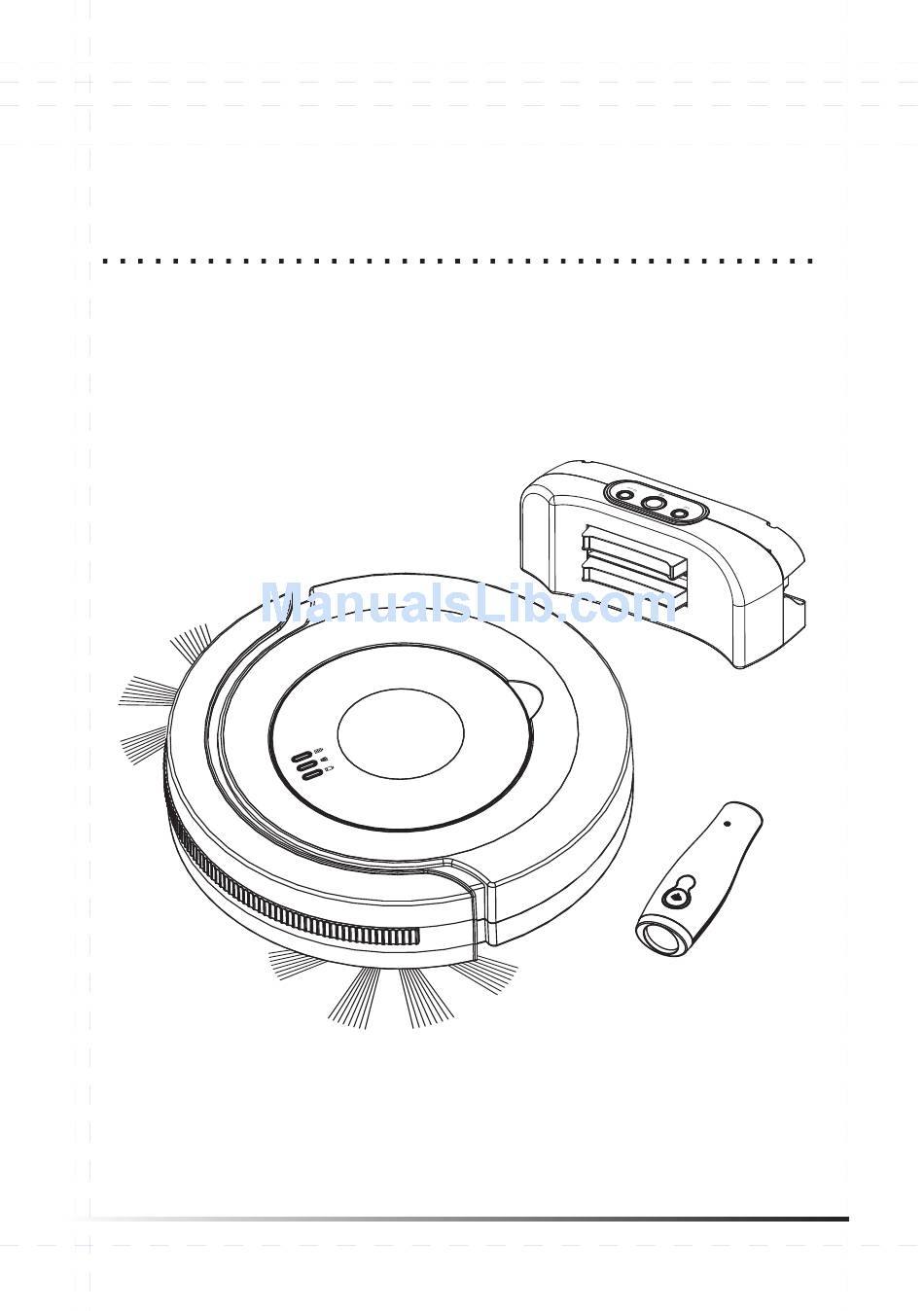

- Page 1 Robotic Vacuum Cleaner With Docking Station Operation Manual M285DP Rev.1602...
-
Page 3: Table Of Contents
* Battery and Recharging Instructions WARNING ------------------------------------------------------------------------ 6 SPECIAL FEATURES --------------------------------------------------------- 7 MAJOR COMPONENTS AND ATTACHMENTS ------------------------- 7 M285DP OVERVIEW ----------------------------------------------------------- 8 INSTALLATION GUIDE ------------------------------------------------------- 9 * Installing and Removing Side Brush * Removing Paper Holder * Installing Dusting Paper and Holder... -
Page 4: Safety Instructions
3. Before starting M285DP, be sure to install M285DP dust bin filter properly in case of any damage of M285DP. 4. Do not operate M285DP on wet floor or in moisture conditions, e.g. bathroom. Water and moisture could damage the circuit board in M285DP. -
Page 5: Safety Instructions
Please call your local dealer for service information. 12. Turn off the power and remove the battery from M285DP if the unit will not in use for a long period of time. 13. This appliance can be used by children aged from... -
Page 6: Battery And Recharging Instructions
5. The battery is rechargeable. Please use the voltage and current specified on the packing. If you are not sure of the voltage and current of your house, please contact your local power company or a licensed electrician. 6. Use only the battery supplied with your M285DP. - Page 7 10. Never touch the charger, plug or cable with damp hands. 11. If M285DP requires cleaning, unplug the adaptor, switch off the unit and take out the battery. 12. The battery must be removed from the appliance before it is scrapped.
-
Page 8: Warning
WARNING Following objects are strictly banned, otherwise the vacuum cleaner will be damaged or fire calamity will be caused, which bring such accidents as human body injuries: - Don’t pick up large or sharp broken such as glasses. - Don’t pick up harming or erodent liquids (solvent, corrosive, detergent…). -
Page 9: Special Features
This revolution Robotic Vacuum Cleaner is equipped with functions suitable for cleaning up floor surfaces of home and office such as wood, tile, and linoleum. M285DP Robotic Vacuum Cleaner With Docking Station is definitely a household helper. Working Patterns: Spiral... -
Page 10: M285Dp Overview
M285DP OVERVIEW Full Go Button Go Button 24H Button Dust Bin inside Bumper Contact plates for automatic charging Plane cover Front Small Wheel Side Brush Intake Valve Side Brush Wheel Cover Battery cover Left and Right Wheels D.C. jack Contact points for... -
Page 11: Installation Guide
INSTALLATION GUIDE Installing and Removing Side Brush: To install: Push the brush directly onto the holder.(Fig. 1) To remove: Hold the brush bristle and pull upward to remove the brush.(Fig. 2) PRESS PULL UP! HOLD CLICK! Fig. 1 Fig. 2 Removing Paper Holder Remove the dusting paper holder following the instruction as below diagram. -
Page 12: Installing Dusting Paper And Holder
INSTALLATION GUIDE Installing Dusting Paper and Holder: 1. Flat the dusting paper and put it on the floor or table. Then place the holder (the side with 4 stoppers face up) on the paper at the midpoint as below diagram. Stoppers Hole for the stopper... -
Page 13: Battery Installation And Removal
INSTALLATION GUIDE Battery Installation and Removal: 1. Turn off the power switch before installing the battery. 2. The details on how to remove the battery: To open the battery cover first by pressing the two points “A” (marked in the below diagram) and slide the battery cover in the direction of arrow “B”... -
Page 14: Recharging Battery
INSTALLATION GUIDE Recharging Battery: 1. Before charging, please check if the battery is properly mounted and turn on the power switch. 2. Two ways to charge the battery: A. Push the adaptor plug into d.c. jack at the side of the unit first, and then plug the a.c end of the adaptor into the a.c. - Page 15 INSTALLATION GUIDE Charging indication on the panel ＞Charging: “ CHARGE “ LED indication lamp with green light flashing. ＞Charging done: “ CHARGE “ LED indication lamp with green light on. ***Charging is controlled by timer to be recharged completely it requires 5 hours continuously.
-
Page 16: General Operation
GENERAL OPERATION Preparation for Operation: To ensure the best efficiency of M285DP, you have to remove any loose articles on the floor such as clothes, paper, loose cables and extension cords as well as to make sure rolling up curtains and drapes off the floor to avoid any possible accidents. In case of a loose cable is tangled with M285DP, the cable might move around with M285DP as it works and topple down the table, chairs, or cabinet and cause property damage. -
Page 17: Starting Operation
4. When the cleaner runs out of power, the “BATTERY LOW” LED lamp on the unit will be red and the cleaner will automatically stop. And M285DP will emit a buzz of warning indicating that the battery needs immediate recharging. The buzzer will sound every minute until power is exhausted. -
Page 18: Cleaning And Maintenance
CLEANING AND MAINTENANCE Maintenance Method: The operation and maintenance of the M285DP is very simple. After each use, clean any dirt left behind on the dust bin and filter and whenever the intake is stuffed. Cleaning Dust Bin: 1. Lift up the cover at "A" in the direction as arrow "B" shown in below diagram to remove the plane cover from the cleaner. - Page 19 CLEANING AND MAINTENANCE 3. Open the upper cover of the dust bin. 4. Lift up and take out the filter. 5. Clear out the dust and dirt from the dust bin.
- Page 20 CLEANING AND MAINTENANCE 6. Rinse the dust bin with tap water. It is not necessary to wash every time. Please do not put it into the washing machine to do the cleaning. 7. Periodically clean the filter with a soft bristle brush. 8.
-
Page 21: Cleaning Intake
CLEANING AND MAINTENANCE Cleaning Intake: After repeated use, dirt and dust might clog around the intake of the M285DP and the working efficiency can be reduced. To ensure the best efficiency and constant airflow, the intake should be cleaned periodically. -
Page 22: Trouble Shooting
Possible Cause Solution 1.Recharge the cleaner. 1.In battery Low condition. LED stays red after 2.Place the unit back to the 2.M285DP is lifted up from power on. floor. floor. M285DP could not The dust bin filter is not Install the dust bin filter vacuum effectively properly installed. -
Page 23: Warning Of Battery & Adaptor Usage
WARNING OF BATTERY & ADAPTOR USAGE 1. The protective devices cannot be reset or replaced after a short circuit or an overload. 2. Please follow the voltage and current specified and printed on the packing labels. Check with salesman or local power company if it is uncertain. - Page 24 WARNING OF BATTERY & ADAPTOR USAGE 14. Do not try to disassemble the battery. 15. Do not disregard kids playing with battery. 16. Do not contact eyes, skin, clothes with battery leaking fluid, wipe the leaking battery with dry cloth before recycle it properly.
- Page 28 Please register your warranty at www.v-bot.com.sg Terms and conditions applied. Service centre Blk 34 Whampoa West #01-87 Singapore 330034 Tel: +65 62911200...
