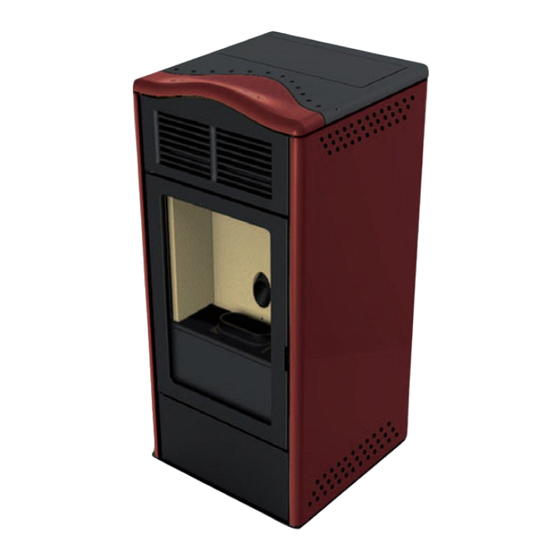

PIRO
Pellet stove
UK
Installation, use and maintenance

Advertisement

loading
Need help?

Need help?

Do you have a question about the PIRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Italiana Camini PIRO

  • Page 1 ® PIRO Pellet stove Installation, use and maintenance...
  • Page 2: Table Of Contents

    Declaration of performance (DoP - EK 131): Ref. data tag plate In addition, it is hereby declared that: the wood pellet stove PIRO is in compliance with the requirements of the European directives: 2014/35/EC - Low voltage directive 2014/30/EC - Electromagnetic compatibility directive...
  • Page 3 The warranty is only valid in the country of sale of the prod- uct. If the appliance is not commissioned by an authorised tech- nician, Italiana Camini will not provide warranty service. See the warranty booklet for details. The above terms do not affect the reseller's legal responsibil- ity for the legal warranty.
  • Page 4: Safety Information

    CLEARANCE. Keep flammable fluids away from to the warranty certificate inside the product: the product. Fire hazard. neither Italiana Camini nor the reseller are liable • blocking the aeration vents and air intakes in the for damage resulting from incorrect installation or room.
  • Page 5: General Information

    gENERAL iNFORMATiON ® DIMENSIONS (cm) Combustion air Ø 4 cm aria Ø 4 cm aria Ø 40 mm combustione combustione Smoke outlet Ø 80 mm Ø 8 cm uscita fumi Ø 8 cm uscita fumi Ø 4 cm aria Ø 4 cm aria combustione combustione Ø...
  • Page 6 Power supply 230 Vac +/- 10% 50 Hz Average power consumption 50 - 80 W Power consumption during ignition 300 W Protection on electronic circuit board T2A, 250 Vac, 5x20 Fuse italiana Camini reserves the right to change the products at its discretion without notice.
  • Page 7: Installation

    The power line must have a suitable cross-section for the stove’s power. An inadequate earthing system can cause anomalies for which Italiana Camini cannot be held liable. One fuses (4 A) is inserted in the socket with switch,...
  • Page 8 iNSTALLATiON ® SMOKE OUTLET The stove must have its own smoke outlet (the smoke the stove. cannot be discharged into a smoke flue used by other The stove is designed to work under any weather devices). conditions. In case of particular conditions, such as The smoke is discharged through the 8 cm diameter strong wind, the safety system may be activated, outlet at the back of the stove.
  • Page 9 iNSTALLATiON ® PREPARATiON AND UNPACKiNg The materials used in the packaging are not toxic or harmful, therefore no special procedures are required for their disposal. Storage and disposal or recycling are the responsibi- lity of the end user in accordance with applicable laws It is recommended that all vertical movements are carried out by suitable means and with adequate regard for...
  • Page 10 iNSTALLATiON ® FiTTiNg JACKET Proceed as follows ( see figures ) : • Remove the stove from the pallet , removing the bracket and screws on both side of the stove • Install the sides and screwing the screws on the back • Position the top...
  • Page 11 iNSTALLATiON ®...
  • Page 12 iNSTALLATiON ®...
  • Page 13: Instructions For Use

    NOTE regarding the fuel. diameter: 6 millimetres maximum length: 40 mm PIRO is designed and programmed to burn wood maximum moisture content: 8% pellets with 6 mm diameter. calorific value: at least 4100 kcal/kg. Pellets are a type of fuel in the form of little cylinders,...
  • Page 14 iNSTRUCTiONS FOR USE ® SyNOPTiC PANEL key to set the desired environmental indicates an alarm condition temperature or to enter the menu (set ambient temp.) key for setting the power of the stove indicates the functioning of the (set power) pellet-loading motor on/off or confirm/quit menu key this indicates the functioning of the...
  • Page 15 iNSTRUCTiONS FOR USE ® In automatic mode, you can limit the maximum power • To confirm the desired menu, press the key setting the value , as in manual mode . Example: if imposed power P3 , and then subsequently • To return to the previous menu, press the key imposed on the stove in automatic mode, the same 3 seconds. will modulate P1 to P3 . • To quit the menu, press the key for 6 seconds. VENTiLATiON ADJUSTMENT This function allows you to manage the ventilation SWITCHING ON/OFF speed.
  • Page 16 iNSTRUCTiONS FOR USE ® STAND-By FUNCTiON EXTERNAL THERMOSTAT In this mode, the stove will go off when the temperature This must be connected by the blue wire (optional code of the environment is 0.5°C higher than that requested, 640560) to the serial port positioned on the back of after a set time of 10 minutes (which can be changed the stove;...
  • Page 17 iNSTRUCTiONS FOR USE ® Scroll down the following menu (default setting is OFF): - M2-1: enables the chrono-thermostat - M2-2: daily programme - M2-3: weekly programme - M2-4: weekend programme - M2-5: Quit Choose the desired menu and confirm by pressing the key To set the stove to switch on and off and for time changes press the key...
  • Page 18: Maintenance

    MAiNTENANCE ® Before performing maintenance, disconnect the appliance from the mains. Regular maintenance is required for the stove to function correctly. Any problems resulting from lack of maintenance will immediately void the warranty. N.B. - any unauthorised modification is forbidden - Use spare parts recommended by the manufacturer - The use of counterfeit parts results in the...
  • Page 19 MAiNTENANCE ® WEEKLy MAiNTENANCE • Remove the ceiling (3 - fig. C) and tip the residue into the ash drawer. The ceiling is a component subject to wear, Italiana Camini does not accept responsibility for it, more so if any breaks are due to extracting or putting it back in its seating. ATTENTiON !!! After normal cleaning, iNCORRECT alignment of the crucible (a - fig. D) may compromise operation of the stove.
  • Page 20: Possible Troubleshooting

    ADViCE iN CASE OF PROBLEMS ® in the case of problems, the stove will switch off automatically, and an indication of the cause will appear on the display (see the various messages below). in the case of automatic switch-off, the stove must be allowed to complete the entire procedure (15 minutes with an acoustic signal), after which it can be restarted by pressing the key However, do not restart the stove until you have found out the cause of the error and until...
  • Page 21: Ignition Failure

    ADViCE iN CASE OF PROBLEMS ® SEgNALAZiONE iNCOVENiENTE AZiONi • Broken thermocouple when the stove can no longer broken smoke • Detached thermocouple read the smoke temperature temp. probe • Smoke temperature out of range • Blocked chimney • Incorrect installation • Stove clogged • Too many pellets loaded, check pellet feed regulation when the temperature of the (TAC) smoke exceeds the safety hot smoke...
  • Page 24 *941254-GB* ® cod. 941254 02.17/G...
