- Page 1 Model 372 Series 2, V2 Ohmmeter INSTRUCTION MANUAL SIMPSON ELECTRIC COMPANY 520 Simpson Avenue, Lac Du Flambeau, WI (715) 588-3311 FAX (715) 588-3326 Visit us on the web at: www.simpsonelectric.com Printed in U.S.A. Part No. 06-114979 Edition 7, 5/07...
- Page 2 This warranty shall not apply to any instrument or other article of equipment which shall have been repaired or altered outside the SIMPSON ELECTRIC COMPANY factory or authorized service centers, nor which has been subject to misuse, negli- gence or accident, incorrect wiring by others, or installation or use not in accord with instructions furnished by the manufacturer.
-
Page 3: Zero Adjustment
SHOCK HAZARD: As defined in American National Standard, C39.5, Safety ZERO ADJUSTMENT Requirements for Electrical & Electronic Measuring & Controlling Instrumenta- tion, a shock hazard shall be considered to exist at any part involving a potential Insert test leads into ohmmeter jacks and short lead slips together. in excess of 30 volts RMS (sine wave) or 42.4 volts DC or peak and where a Adjust ZERO OHMS control until the pointer rests over the zero division on leakage current from that part to ground exceeds 0.5 milliampere, when mea-... -
Page 4: General Description

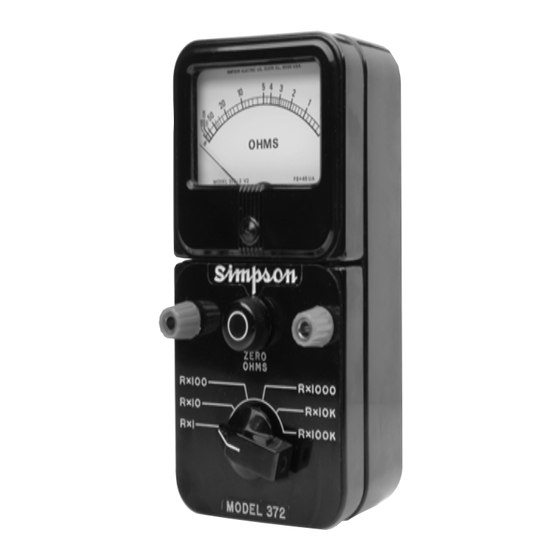

Contents GENERAL DESCRIPTION The Simpson Ohmmeter Model 372 Series 2, V2 is a six range instrument. It 1. GENERAL DESCRIPTION ..............5 measures values from 0.2 to 50 M with an accuracy of ±3% of arc. 2. INITIAL ADJUSTMENTS ..............5 3.
