Summary of Contents for Monster Solara

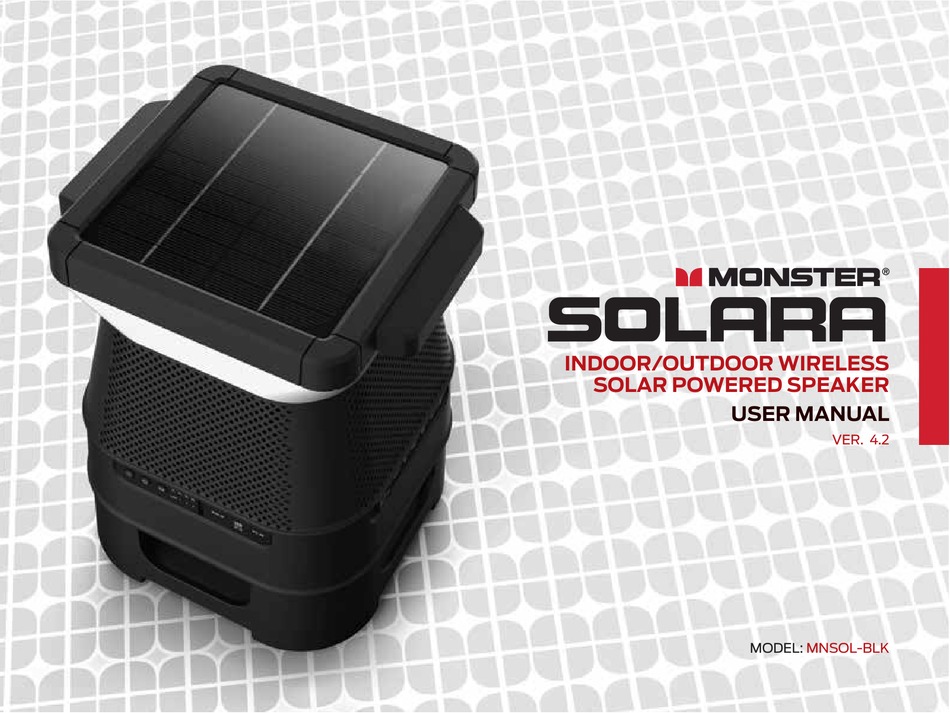

- Page 1 SOLARA INDOOR/OUTDOOR WIRELESS SOLAR POWERED SPEAKER USER MANUAL VER. 4.2 MODEL: MNSOL-BLK...
- Page 2 SOLAR PANEL SOLARA HIGHLIGHTS CARRYING 360˚ HANDLE LIGHT CONNECT 8 SPEAKERS 360˚ SOUND SUB-WOOFER LIGHT TIMER...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Package Contents Controls & Connections LED Indicators Getting Started Charging The Speaker LED Color Functions 3.5 mm Aux Input Bluetooth Connection EZ-PLAY Wireless Connection 12-13 Specifi cations Important Safety Instructions 17-18 Help & Troubleshooting FCC Warning Statement 20-21 Limited Warranty FOR QUESTIONS OR TECHNICAL SUPPORT PLEASE CALL:... -
Page 4: Package Contents
PACKAGE CONTENTS MONSTER SOLARA: Wireless Solar Speaker Power Adapter (5.5V/2.6A DC Adapter) (Not To Scale) Aux Cable (Not To Scale) User Manual (incl. Limited Warranty Statement) Quick Start Guide If any items are missing, contact our customer service team at 1.800.976.0677. -
Page 5: Controls & Connections
CONTROLS & CONNECTIONS Light Timer Battery Level Power Indicator ON/OFF Short Press Color Source Long Press Selection Battery Life Short Press Brightness Bluetooth Pairing Long Press (When in Bluetooth mode) Light Timer Short Press Wake Volume Long Press DOWN/UP Stadby Mode Input Play/Pause USB Charging... -
Page 6: Led Indicators
LED INDICATORS Bluetooth Slow Flash Fast Flash Solid Solid Bluetooth On Bluetooth Bluetooth Standby Pairing mode Connected Connected Mode (Transmit) Mode (Receive) Slow Flash Fast Flash Solid Slow Flash Fast Flash Solid Transmit Mode Transmit Mode Transmit Mode Receive Mode Receive Mode Receive Mode Standby... -
Page 7: Getting Started - Charging The Speaker
Solara speaker. Plug the power cable into a wall outlet. Flip the Power switch to ON o ON Solara will enter Bluetooth Pairing th Pairing mode automatically. Pair with r with your Bluetooth device. (Not To Scale) -
Page 9: Led Color Functions
LED COLOR FUNCTION CHANGING COLORS Short Press the Color/Battery Indicator button to cycle through the preset colors: Chrome (Demo Mode), Red, Dark Blue, Green, Purple, Amber, Light Blue, White Long Press (3 seconds) the Standby key to enter Standby mode mode NOTE: Long Press (3 seconds) the Color/Battery Indicator button to display battery capacity: (LOW, 1,2,3) -
Page 10: 3.5Mm Aux Input
3.5MM AUX INPUT (Cable Included) Ensure the speaker is in AUX mode, if not press the SOURCE button until the green LED is solid. Plug a the 3.5mm cable into the AUX port. Connect your audio device to the AUX cable your audio device to the AUX cable to play your music. -
Page 11: Bluetooth Connection
Press and hold the Bluetooth button for 3 seconds to enter pairing mode (BLUE LED will fl ash fast). Search for Bluetooth connections on your device. SOLARA Select “Monster Solara.” must be in The speaker will confi rm connection with an Bluetooth audible message (BLUE LED will turn solid). -
Page 12: Ez-Play Wireless Connection
EZ-PLAY WIRELESS CONNECTION (ADDITIONAL SPEAKERS SOLD SEPARATELY) The EZ-Play feature allows you to connect up to 8 compatible speakers and broadcast your favorite music through all speakers simultaneously – without using a single wire! Speakers can sync and play up to 100 feet apart from each other, and continue to function e ectively through walls. - Page 13 SET RX SPEAKER (RECEIVING) Make sure the speaker is powered on. The Bluetooth BLUE LED and EZ-PLAY TRANSMIT (TX) WHITE LED will fl ash slowly. Press the EZ-PLAY button to change the speaker mode from Transmit to Receive. The RECEIVE (RX) AMBER LED will fl...
- Page 14 Wireless speakers can free your listening experience in ways that a corded speaker cannot. But even wireless speakers need time to recharge at the power outlet. The Solara speaker harnesses the sun’s energy to recharge its power bank. Every minute out in the sun means less time being spent plugged into a socket.
-
Page 16: Specifi Cations
SPECIFICATIONS General Input(s) Bluetooth 3.0 | AUX | EZ-Play | USB (5V/ 1A) Wake Up | Brightness/Light Timer | Color/Battery Level | ON/OFF | Source | Buttons Bluetooth | EZ-PLAY | Play/Pause | Volume Down/UP Transmit (TX) (White) | Receive (RX) (Amber) | AUX (Green) | LED Indicators Bluetooth (Blue) | Battery/Timer (Red x1, Green x3) Power Input... -
Page 17: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read all instructions and save them for personal reference in the future. Follow all directions for operating the product. Heed all warnings on the product and in the operation instructions. 4. Clean with a dry cloth only. Always unplug the product from any power source before cleaning. 5. - Page 18 14. To use wirelessly, disconnect AC plug completely. The plug must be completed disconnected from the power outlet. 15. Do not stand, sit, jump or strike the Solara with sharp objects. The product may break and not function. 16. Solar panel must be cleared of dust, leaves and water to achieve maximum power conversion.
-
Page 19: Help & Troubleshooting
Press Play/Pause button on speaker. If source device is outside Bluetooth range move speaker closer. Smartphone / Tablet remote Ensure phone or tablet is properly paired with the Solara speaker. app isn’t working Please charge by plugging directly into wall outlet. Ensure that charging LED button is fl... -
Page 20: Fcc Warning Statement
FCC WARNING STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 21 A lightning fl ash and arrowhead within an equilateral triangle denotes the presence of insulated “dangerous voltage” within the product’s enclosure. The voltage may be of su cient magnitude to constitute a risk of electric shock to persons who come into contact with it. An exclamation point within an equilateral triangle denotes the presence of important operation &...
-
Page 22: Limited Warranty
Model: MNSOL-BLK This Monster-branded product, marketed as new, in the original carton to the original purchaser (“Product”), is warranted by Russell Distribution Company, LLC against manufacturing defects in materials and workmanship for a limited warranty period of Ninety (90) Days for Labor and One (1) year for Parts. This Limited Warranty is conditioned upon proper use of Product by you, the Purchaser. - Page 23 This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement noncommercial use of this Product, and shall not apply to the following, including, but not limited to: Damage which occurs in shipment; delivery and installation; applications and uses for which this Product was not intended;...
- Page 24 SOLARA INDOOR/OUTDOOR WIRELESS SOLAR POWERED SPEAKER MUSIC WITHOUT LIMITS www.MyMonsterAudio.com...
