- Page 1 User Manual RadTarge-Mini Pioneer of All-Digital Positron Emission Tomography & Radiation Detection...
-
Page 2: I Product Introduction
The readout of the photo detector signals is realized through our patented MVT or Multi Voltage Threshold technique. This puts RadTarge-Mini performance in a class of its own. Its detection sensitivity is up to 20 times higher than that of traditional Geiger-Müller or film based systems. A low energy threshold of 20 keV helps reliably detect radiation sources commonly encountered in industry and medical imaging. -
Page 3: Product Display

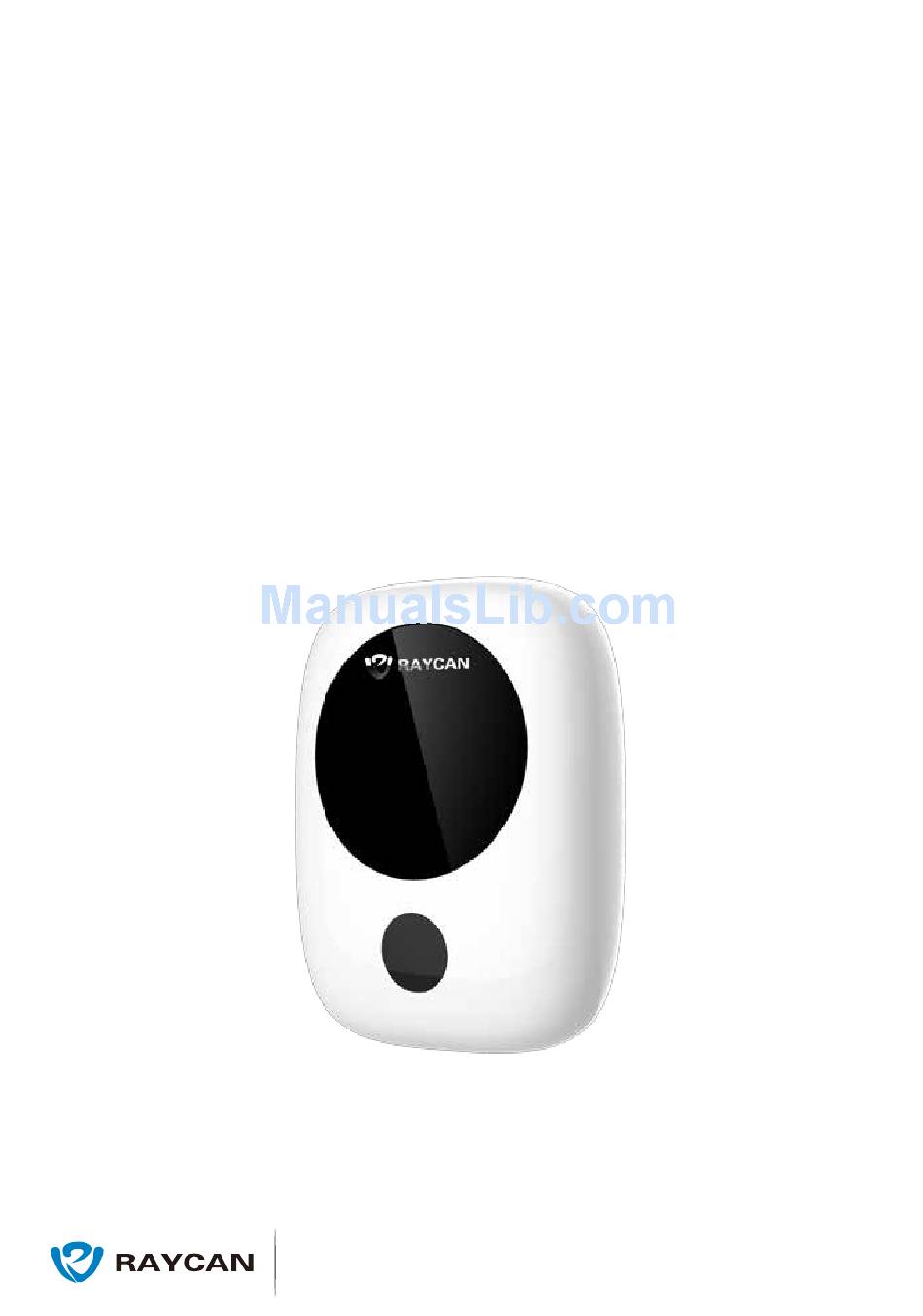

1.Package Diagram ①------RadTarge-Mini ②------User Manual Mini Card ③------Data Cable 2.Product Diagram 13.86 μSv/h RadTarge-Mini SN: 000XXX FCC ID:2AC7P-113 ①------Company Logo ⑤------RadTarge-mini Product Name (RadTarge-Mini) ②------Display Screen ⑥------Product Serial Number ③------Operation Button ⑦------FCC & CE Certification ④------Detector Location Mark ⑧------MicroUSB Port... - Page 4 3.Mini Card Diagram RadTarge-Mini App RadMay RadTarge-Mini Scan to download Service Hotline：(86) 512-6239-1918 iOS RadMay Download Code www.ray-can.com Android RadMay Download Code User Manual Download Code APP IOS APP Android User Manual Note: Visit http://ray-can.com/contact to download. Scan the user manual QR code to...
- Page 5 IV Operation Manual 1.Device Operation Instructions 1.1 Powering On Press the operation button for 4 seconds until the screen lights up,accompanied by a beep and vibration. Automatically enters the main interface/dose equivalent rate interface 3 seconds after the machine starts. 0.05 μSv/h Dose rate page...
- Page 6 1.3 Powering Off Press the operation button for 2 seconds to power off the device. The device will vibrate when it is successfully turned off. 1.4 Bluetooth When the device is connected to RadMay via Bluetooth, the Bluetooth icon will appear at the upper left of the display.
- Page 7 When powered off, a battery icon is displayed in the middle of the screen with a charging animation. When the battery is full, the charging animation stops. Charge in turn off mode When the device is not charged, the battery icon shows the remaining battery life. Full Partially charged Battery low...
- Page 8 Reset Users can reset the device via RadMay. After clicking the reset key, the device will take three actions: restore settings, format file system and restart. After restarting, all settings and data will be restored to default settings. Initializing Initializing Initializing Formatting File Sys..
-
Page 9: Specifications
2. Specifications Radiological Detector YSO(Ce) scintillator + SiPM Type of Radiation Detected Gamma; X-ray Energy Range 30 keV–3 MeV Dose Rate Range 1 µrem/h–10rem/h (0.01 µSv/h–100mSv/h) Integrated Dose Range 1 µrem–999 rem (0.01 µSv–9.99 Sv) Sensitivity 110 cps/mrem/h (11 cps/µSv/h) (∝ Cs-137) Energy Response ≤... - Page 10 Radiation Detection Features 3.1 Detector and Radiation RadTarge-Mini uses a YSO scintillation crystal coupled with SiPM as the detector to measure gamma and X-rays. It can measure dose equivalent rate and cumulative dose. 3.2 Dose Display The device can display real-time dose equivalent rate and cumulative dose. Users can switch the units between international standard units and traditional units through the RadMay app.
- Page 11 Angular Response Angular Response...
- Page 12 1 month. Ⅴ RadMay Application RadMay is a mobile app designed to manage dosage data from RadTarge-Mini. Additionally, using data from the smartphone's GPS, RadMay can establish the global radiation distribution and personal lifetime dosage log by recording, summarizing and analyzing radiation data.
- Page 13 RadMay Structure Register & Log in Measure Explore Global Setting User management The dose distribution Device settings Real-time dose Superman Radiation path APP settings Cumulative dose Monster Add Device Dr.MAY Integration Historical track Recording Settings Map display Recording Alarm reporting Historical curve Threshold setting Alarm reporting...
-
Page 14: Term Definition
Term Definition Real-Time Dosage (Dose Equivalent Rate)： Represents the health effects of ionizing radiation on the human body per unit of time. In the SI system of units, the unit of measure is μSv/h or mSv/h. 1 Sv/h = 1000 mSv/h，1 mSv/h = 10 00 μ Sv/h Cumulative Dose：... - Page 15 Click "Register" to enter the registration page and fill out the form. Press "Click to get verification code" to retrieve and enter the verification code to finish registration. Enter the verification code sent to your e-mail to complete registering. Log in Click "Forgot password"...
-
Page 16: Edit Profile
Edit Profile After login, click the "Profile" to edit your profile. Click ">" to enter the Personal Info page, and click edit to modify personal information. -
Page 17: Device Connection
“√”to save changes and return to the Profile page. Device Connection RadMay can help users manage their lifetime dosage. One account is tied to one RadTarge-Mini. New users need to pair their device to start their radiation detection journey. If the user needs to change his or her device, unpair the old device before pairing a new device. -
Page 19: App Settings
App Settings In the Profile page, click "App Settings" to enter the app settings page. Functions include "Alert settings," "Language," "Display units," "Back up data," "Recover data," "Version," "About RadMay," and "Contact us." "Alert settings" include "Dose rate pre-alarm," "Dose rate alarm,""Cumulative dose pre-alarm," and "Cumulative dose alarm."... -
Page 20: Device Settings
[Sync time]: Sync the device time with phone time, GMT. [Update firmware]: Update RadTarge-Mini firmware. [Default settings]: Reset settings to default. Measurement Measurement is the basic function module of RadMay. It can display and process RadTarge-Mini's dose rate and cumulative dose simultaneously. - Page 21 10. Explore By using the phone's GPS function, RadMay can record the trajectory of radiation, including time, location and dosage. Users can adjust measurement frequency by changing the distance and time parameters. Explore module uses Google Maps and Gaode Maps. All track logs are stored in the cloud server.
- Page 22 12. May coins Users can earn May coins by sharing dose rate, cumulative dose and track logs. Please click "Earn May coins" to learn the rules to earning May coins; click "Spend May coins" to contact us to redeem gifts. 13.
- Page 23 Version modification record Version Release Date Note V1.0 § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 Bldg 17, 8 Jinfeng Rd. Suzhou New District, Suzhou, 215163, China 86-0512-62391918 86-0512-62391928 Email info@ray-can.com www.ray-can.com RAYCAN US Subsidiary X-Z LAB, Inc. 2440 Camino Ramon Suite #264, San Ramon, CA 94583 925-359-6908 925-380-6784 Email contact@x-zlab.com www.x-zlab.com ©2016 RAYCAN Technology Co., Ltd. All Rights Reserved. Edition number：L-2-000002...
