Summary of Contents for home8alarm WGO2001

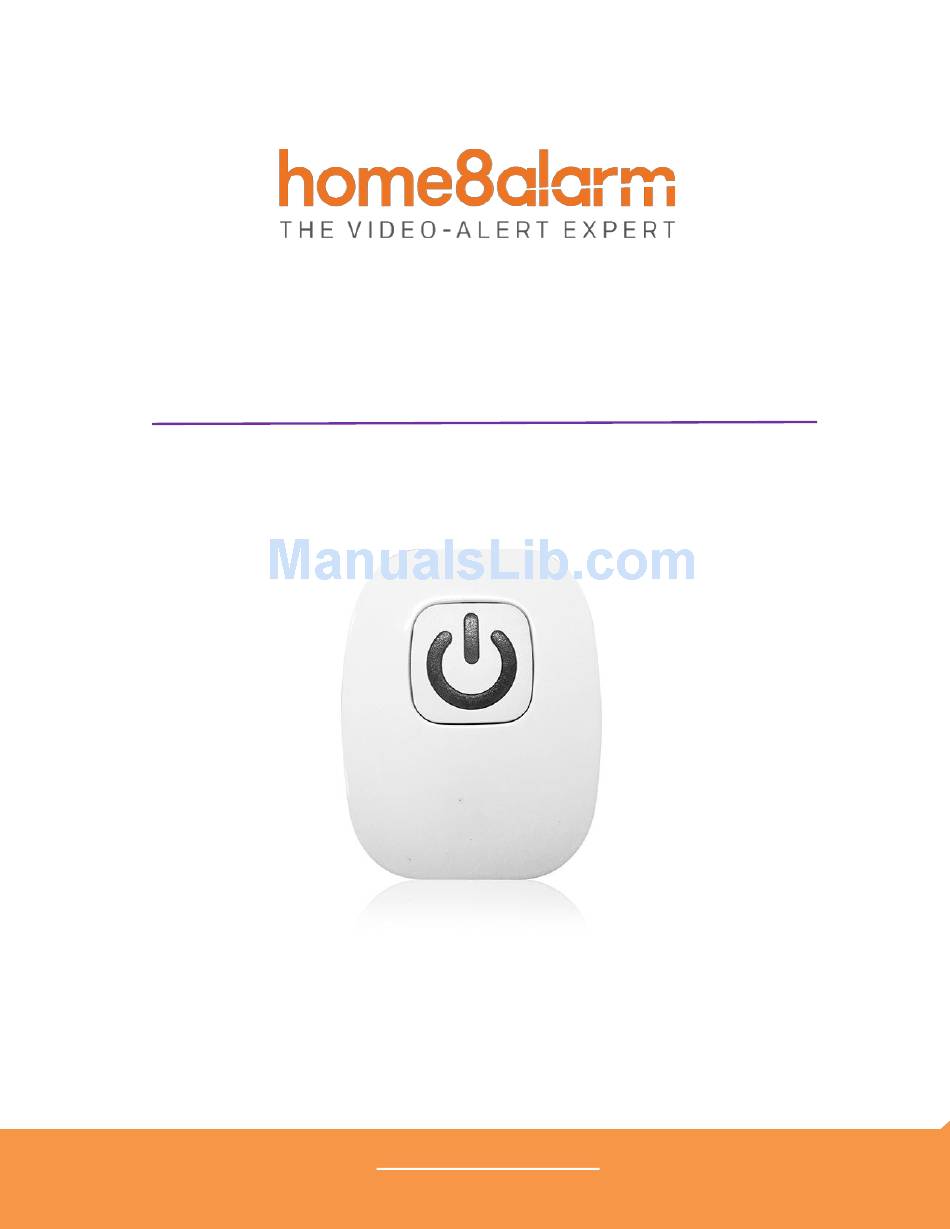

- Page 1 Garage Door Control Button WGO2001 User Manual home8alarm.com 1-844-800-6482 | support@home8alarm.com...
-
Page 2: Table Of Contents
Table of Contents Chapter 1. Introduction ................. 3 System Requirement ....................3 Chapter 2. Hardware Overview ..............4 Chapter 3. Garage Door Control Button Setup ........... 5 Powering up the sensor ................... 5 3.1.1 Press and hold down the button ....................5 3.1.2 While holding down the button, attach the power cable .............. - Page 3 Chapter 5. Starting to Use the Garage Door Control Button ....15 Once the device is successfully added, choose one of the following 3 installation methods (please review all methods thoroughly before choosing which might be best for your scenario): ......................... 15 Installation –...
-
Page 4: Chapter 1. Introduction
Chapter 1. Introduction The Garage Door Control Button allows you to remotely open and close your garage door. The owner and authorized users will be sent push notifications when the device is in operation. Working in conjunction with a Home8 camera, you can view the garage door opening and closing in live streaming video via the Home8 app. -
Page 5: Chapter 2. Hardware Overview
Chapter 2. Hardware Overview This section provides an overview of the Garage Door Control Button and its accessories. LED status Reset to factory light setting button Operation button Garage Door Control Button User Manual V1.0 2017... -
Page 6: Chapter 3. Garage Door Control Button Setup
Chapter 3. Garage Door Control Button Setup 3.1 Powering up the sensor 3.1.1 Press and hold down the button Garage Door Control Button User Manual V1.0 2017... -
Page 7: While Holding Down The Button, Attach The Power Cable
3.1.2 While holding down the button, attach the power cable 3.1.3 Continue holding down the button for 5 seconds until blinking (orange-red) starts Garage Door Control Button User Manual V1.0 2017... -
Page 8: Adding The Sensor To An Opu/Shuttle
3.2 Adding the Sensor to an OPU/Shuttle Before you begin using the sensor, it will need to be added to a system first. 3.2.1 Tap the menu icon to show the sidebar menu. 3.2.2 Tap “Device Management”. If you have more than one security shuttle, you may need to swipe left more than once to find the OPU/Shuttle to which you would like to add the sensor. -
Page 9: Tap On The '+' Next To Sensor List. Tap On 'Sensor' At The Bottom Of The Page
3.2.3 Tap on the ‘+’ next to Sensor List. Tap on ‘Sensor’ at the bottom of the page. 3.2.4 Follow the on-screen instructions and press “Next”. Scan the QR-code located on the bottom of the sensor and the “device adding” process will begin. Garage Door Control Button User Manual V1.0 2017... -
Page 10: When The Activation Is Completed, The Sensor Will Be Added To The Device Management Page. In
3.2.5 When the activation is completed, the sensor will be added to the device management page. In the illustration below, the name of the Security Shuttle is “Location10” and the name of the sensor is “Garage Door Opener E34D…”. Garage Door Control Button User Manual V1.0 2017... -
Page 11: Adding The Sensor To A Virtual Opu/Shuttle
3.3 Adding the Sensor to a Virtual OPU/Shuttle Before you begin using the sensor, it will need to be added to a system first. 3.3.1 Tap the menu icon to show the sidebar menu. 3.3.2 Tap “Device Management”. If you have more than one security shuttle, you may need to swipe left more than once to find the “New OPU/Shuttle”... -
Page 12: Select "Wi-Fi Sensor" And Press "Next
3.3.3 Select “Wi-Fi Sensor” and press “Next”. 3.3.4 Follow the on-screen instructions and press “Next”. Garage Door Control Button User Manual V1.0 2017... -
Page 13: Scan The Qr-Code Located On The Bottom Of The Sensor And The "Device Adding" Process Will Begin. Enter The Password For Your Wi-Fi Network And Press "Next
3.3.5 Scan the QR-code located on the bottom of the sensor and the “device adding” process will begin. Enter the password for your Wi-Fi Network and press “Next”. 3.3.6 When the activation is completed, the sensor will be added to the device management page. -
Page 14: Chapter 4. Garage Door Control Button Settings
Chapter 4. Garage Door Control Button Settings For relevant sensor setting adjustments, follow the steps shown below. 1. Tap the menu icon to show the sidebar menu. 2. Tap “Device Management”; then tap “Garage Door Opener XXXXXxxxx” under “Sensor List” to reach the “Edit Sensor”... -
Page 15: Display Name
4.1 Display Name This option allows you to change the display name. To do so, tap “Display Name”; then, change the name according to your preference. When finished, tap the check icon located on the upper-right corner. Note: The maximum length of the display name is 40 characters. -
Page 16: Chapter 5. Starting To Use The Garage Door Control Button
Chapter 5. Starting to Use the Garage Door Control Button At this stage, your sensor is now ready for use. 5.1 Once the device is successfully added, choose one of the following 3 installation methods (please review all methods thoroughly before choosing which might be best for your scenario): 5.1.1 Installation –... - Page 17 5.1.1.4 The remaining wires will go into the Garage Door Control Button 5.1.1.5 Insert wires into the Garage Door Control Button (one per hole, either hole choice is fine) 5.1.1.6 Attach the power adapter 5.1.1.7 Mount the Garage Door Control Button via Double-sided tape or screws Garage Door Control Button User Manual V1.0 2017...
-
Page 18: Installation - Method 2 - Connect To Existing Opener
5.1.2 Installation – Method 2 – Connect To Existing Opener 5.1.2.1 Unscrew opener from the wall 5.1.2.2 Access the back of the opener 5.1.2.3 Loosen the screws (Note: The 2 wires will not cause a harmful electrical shock) 5.1.2.4 Attach a U-fork wire to the top screw Garage Door Control Button User Manual V1.0 2017... - Page 19 5.1.2.5 Attach a U-fork wire to the other screw 5.1.2.6 Tighten the screws 5.1.2.7 Remount the existing opener 5.1.2.8 Insert wires into the Garage Door Control Button (one per hole, either hole choice is fine) Garage Door Control Button User Manual V1.0 2017...
-
Page 20: Installation - Method 3 - Directly Connect To The Garage Door Motor
5.1.2.9 Attach the power adapter 5.1.2.10 Mount the Garage Door Control Button via Double-sided tape or screws 5.1.3 Installation – Method 3 – Directly Connect To the Garage Door Motor 5.1.3.1 Access the wire panel of the motor unit 5.1.3.2 Loosen the garage door opener wire screws (Note: The 2 wires will not cause a harmful electrical shock) Garage Door Control Button User Manual V1.0 2017... - Page 21 5.1.3.3 Attach a U-fork wire to one screw 5.1.3.4 Attach a U-fork wire to the other screw 5.1.3.5 Insert wires into the Garage Door Control Button (one per hole, either hole choice is fine) 5.1.3.6 Attach the power adapter Garage Door Control Button User Manual V1.0 2017...
-
Page 22: Operating - You Can Control Your Garage Door Remotely Via The App Or By Simply Pressing The Garage Door Control Button
5.1.3.7 Mount the Garage Door Control Button via Double-sided tape or screws 5.2 Operating – You can control your garage door remotely via the APP or by simply pressing the Garage Door Control Button 5.2.1 Local control by pressing button – Press button to open/close your garage door. -
Page 23: Remote Control Via The App - There Are 2 Methods In Opening The Garage Door
5.2.2 Remote control via the APP – There are 2 methods in opening the garage door (Note: Every action will have a 15-second cool-down period before the next action can be processed. It is represented by a grey control button). 5.2.2.1 Method 1 5.2.2.1.1... - Page 24 5.2.2.2 Method 2 5.2.2.2.1 Tap “Automaation” tile 5.2.2.2.2 By pressing the garage door opener control button icon (when red), you can easily open/close your garage door remotely from yur smart device. Garage Door Control Button User Manual V1.0 2017...
-
Page 25: Chapter 6. Notifications
Chapter 6. Notifications Whether the system is in Armed, Disarmed, or Stay Mode status, once the garage door opener button is pressed, the owner and authorized users will get a notification of “Garage door opener pressed”. (If your phone is locked) (If you are in the APP) Garage Door Control Button User Manual V1.0 2017... - Page 26 (If you are in Full Screen Video Mode) Garage Door Control Button User Manual V1.0 2017...
-
Page 27: Chapter 7. Other Information
Chapter 7. Other Information 7.1 LED Indicator 7.1.1 Green – Power on 7.1.2 Blinking Green – WiFi disconnect 7.1.3 Red – Open/Close action is in progress 7.2 Reset 7.2.1 A hard reset will restore your device to factory default settings. 7.2.2 Press and hold down the reset button on the back of device with a pin for approximately 5-8 seconds. -
Page 28: Appendix - Glossary Of Terms
Appendix – Glossary of Terms Arm: The cameras and other security related sensors in the system are actively monitoring the surroundings. Any suspicious activity that has been detected by the camera or sensor will prompt the app to immediately send a notification.
