USER MANUAL
Spy RF ModeM Wifi
10392

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spy RF ModeM Wifi and is the answer not in the manual?

Questions and answers

Related Manuals for JRI Spy RF ModeM Wifi

Summary of Contents for JRI Spy RF ModeM Wifi

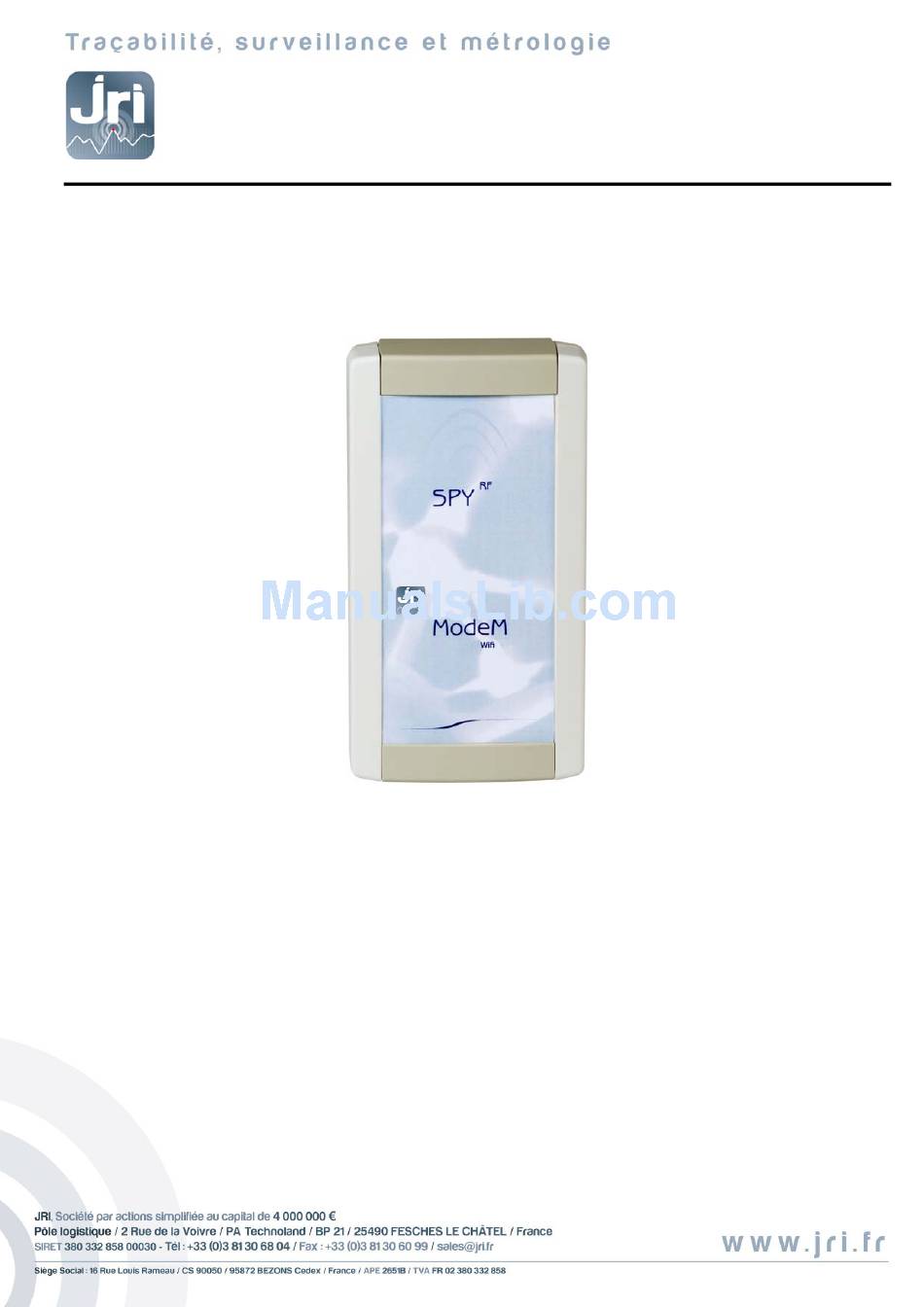

  • Page 1 USER MANUAL Spy RF ModeM Wifi 10392...

  • Page 2: Table Of Contents

    Checking the software version of the SPY RF WiFi ModeM....................8 Configuration of the WiFI ModeM ............................10 Setting up a connection with Sirius ............................12 VI. WARRANTY ................................. 15 VII. MAINTENANCE CONTRACT ............................15 VIII. ENVIRONMENT PROTECTION ........................... 15 ©JRI...

  • Page 3: Introduction

    (2) this device must accept any interference received, including interference that may cause undesired operation In accordance with FCC requirements, changes or modifications not expressly approved by JRI could void the user's authority to operate this product.

  • Page 4: Installation

    Network indicators Reset button Power supply 100-230VAC indicators 50-60Hz 9VDC 650mA LED light symbols  Power supply Running on mains power supply Running on battery – no mains power supply  Network WiFi Network connection WiFi Network activity ©JRI...

  • Page 5: Characteristics

    First you need to establish a connection between the WiFi ModeM and the temporary WiFi Network Then you need to configure the WiFi ModeM with the settings of the Destination WiFi Network. 2) Setting up a connection with the WiFi Module There are two possibilities depending on your current type of network: Infrastructure ©JRI...
  • Page 6  Set the PC with a static IP address. On a device equipped with a WiFi card:  Open the network connections  Right click on « Wireless Network Connexion » and select « Properties » ©JRI...
  • Page 7  In the « Wireless Network Properties » select : 1. Network name SSID: Connect or alternate 2. Authentification : Open 3. Encryption: None 4. Select « This ia a peer-to peer (Ad hoc) … »  Once this has been done switch on the WiFi Modem. ©JRI...

  • Page 8: Checking The Network Connection

    4) Checking the software version of the SPY RF WiFi ModeM In the below Digi Device Discovery window:  Highlight the line corresponding to the WiFi Modem and double-click or click on « Open web interface » in the upper left corner of the window. ©JRI...
  • Page 9  The Login window will appear in your browser :  Enter Username : root Password : dbps, then click « Login »  The home page of the Digi Connect Wi-ME configuration and Management will appear:  Click on « Update Firmware ». ©JRI...

  • Page 10: Configuration Of The Wifi Modem

     At last, select Reboot (Administration Menu/Reboot) 5) Configuration of the WiFI ModeM  Log on once more to the SPY RF WiFi ModeM with Digi Discovery or its static IP address (depending on the configuration)  Select « Network » ©JRI...
  • Page 11  If the network has been modified (into Connect f. ex), enter the initial network name. Select « Connect to any available Wifi network », select the country of residence, then click « Apply ».  Open the “Wifi Security Settings” tab ©JRI...

  • Page 12: Setting Up A Connection With Sirius

    To do this, right-click on the setup Icon and « solve the compatibility issues » then « the software worked on previous versions of Windows » and select the first choice on the list.  Select « Add a New Device ». ©JRI...
  • Page 13  At « Default Network Profile » select « TCP ; Typical Settings » if your network is a Local Area Network (LAN). If not, then choose « TCP : Less Overhead » for a Wide Area Network (WAN).  Click on « Apply », and then « Apply ». ©JRI...
  • Page 14  If the SPY RF Wifi ModeM is still not connected, restart the computer.  If the SPY RF Wifi ModeM is still not connected then go to « Digi Device Discovery », reset the SPY RF WiFi Modem to factory default settings, and then repeat the procedure starting from chapter V. ©JRI...

  • Page 15: Warranty

    In no circumstances will JRI' liability exceed the price of the product paid by the buyer or the cost of replacement. JRI shall not in any event be liable to the Buyer for any indirect or consequential loss or damage costs or expenses whatsoever which might arise out of or in connection with the supply of the product or its consequent use.
