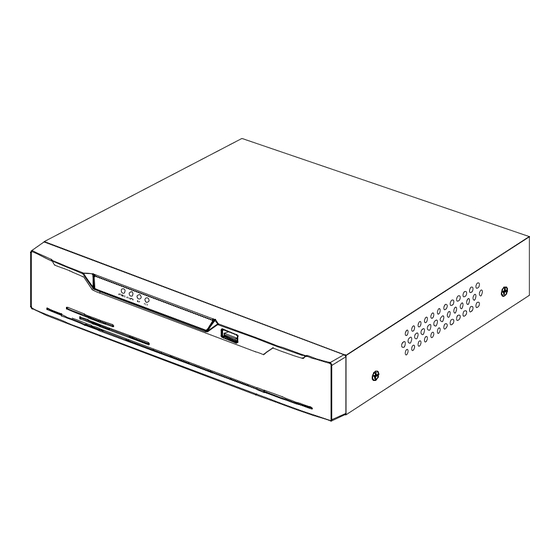

Sunell SN-ADR2208E1 User Manual

Hybrid digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links



Hybrid Digital Video Recorder
Issue
V1.0
Date
2016-12-22

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN-ADR2208E1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunell SN-ADR2208E1

  • Page 1: User Manual

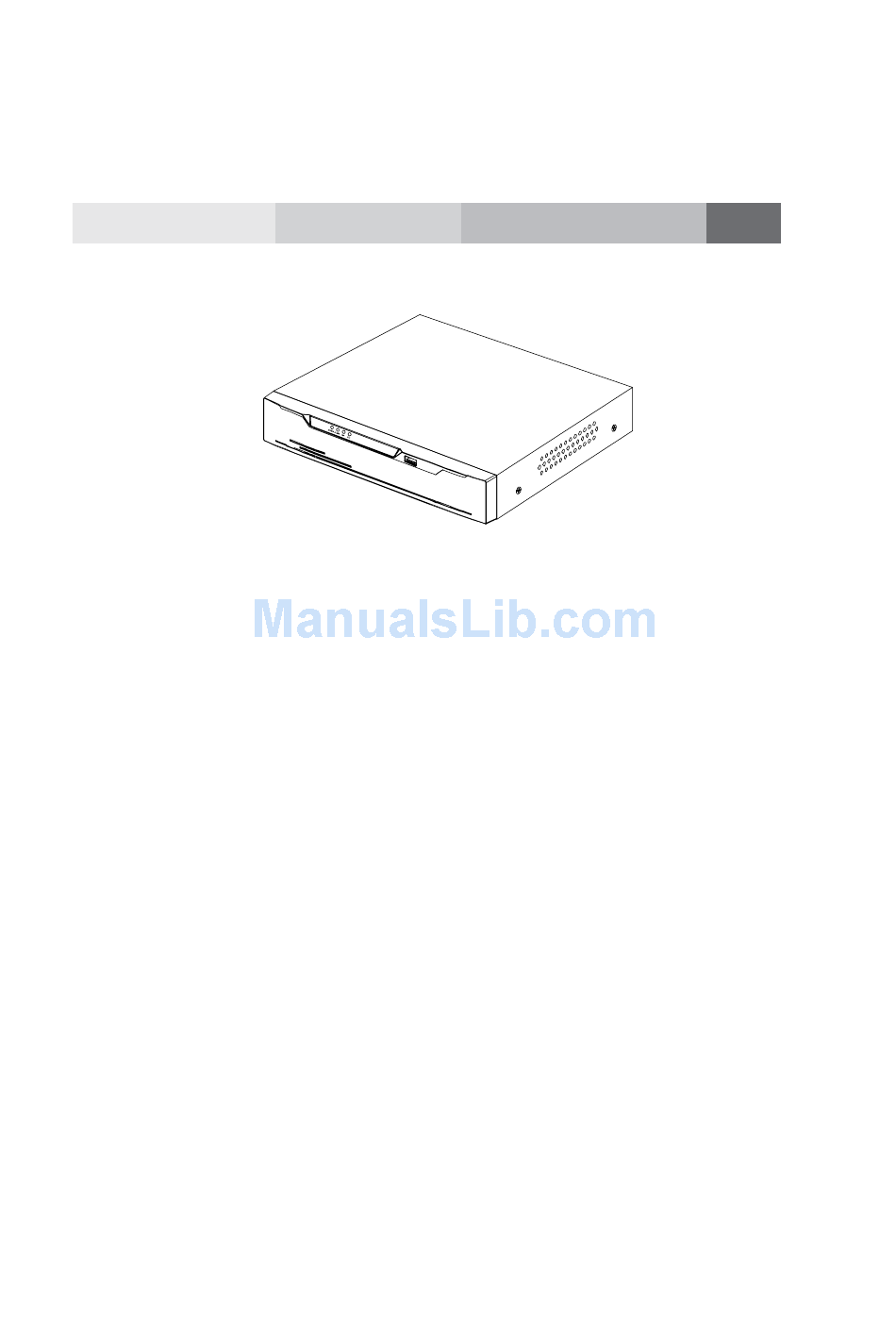

        Hybrid Digital Video Recorder User Manual Issue V1.0 Date 2016-12-22...

  • Page 2: About This Document

    Hybrid Digital Video Recorder User Manual About This Document About This Document Purpose This document describes the hybrid digital video recorder (HDVR) in terms of product features, hardware installation, network access, network configuration, routine maintenance, and common fault analysis. Intended Audience This document is intended for: Technical support engineers.

  • Page 3: Table Of Contents

    Hybrid Digital Video Recorder Contents User Manual Contents About This Document ....................i   Contents ........................ii   Preface ........................... 1     Important Notes ........................1   About This User Manual ...................... 1   Installation Environment and Precautions ................1 2 Basic Operations ......................
  • Page 4 Hybrid Digital Video Recorder User Manual Contents   5.2 Alarm ..........................21   5.2.1 Surveillance ...................... 21   5.2.2 Sensor ....................... 22   5.3 Record .......................... 22   5.4 Privacy ......................... 24   5.4.1 Protect ......................24   5.4.2 Modify Password ..................... 25  ...

  • Page 5: Preface

    Hybrid Digital Video Recorder 0Preface User Manual Preface Important Notes Thank you for choosing the HDVR. Please read the user manual carefully before using this product. The HDVR is a complex system-based device. To avoid misoperations and malfunctions caused by environmental factors and human factors during installation, commissioning, and application, note the following points when installing and using this product: Read the user manual carefully before installing and using this product.
  • Page 6 Hybrid Digital Video Recorder User Manual 0Preface Table 1-1 Installation environment Item Description Electromagnetism The HDVR meets the national standards of electromagnetic radiation and does not cause harm to the human body. Temperature –10 C to +45 Humidity 20% to 80% Atmospheric pressure 86 kPa to 106 kPa Power supply...

  • Page 7: Basic Operations

    Hybrid Digital Video Recorder 2 Basic Operations User Manual 2 Basic Operations Powering on the Device Ensure that the HDVR is correctly connected to a power supply, and a display is correctly connected to the high definition multimedia interface (HDMI) or video graphics array (VGA) port of the HDVR before power-on.

  • Page 8: Powering Off The Device

    Hybrid Digital Video Recorder User Manual 2 Basic Operations The hard disk is new and is not formatted. Log in to the system and format the hard disk. The hard disk is formatted, but the file system is inconsistent with the file system supported by the HDVR.

  • Page 9: Adding Cameras

    Hybrid Digital Video Recorder 2 Basic Operations User Manual The username and password are both admin. If you forget password, click Forgot password. There are two methods of retrieving the password: 1. Scan the UUID QR code on the device and send the QR code to your seller to retrieve password.

  • Page 10: Quick Navigation

    Hybrid Digital Video Recorder User Manual 3 Quick Navigation 3 Quick Navigation After the HDVR operation screen is displayed, right-click on the screen or move the cursor to the topmost or downmost position of the HDVR screen. The HDVR floating menu bar is displayed.

  • Page 11: Playback

    Hybrid Digital Video Recorder 3 Quick Navigation User Manual PTZ Operations The PTZ control and function settings are applicable only to high-speed PTZ cameras and cameras externally connected to PTZs. Click the PTZ button on the real-time video toolbar. The PTZ control screen is displayed, as shown in Figure 3-3.

  • Page 12: Search

    Hybrid Digital Video Recorder User Manual 3 Quick Navigation Figure 3-4 Playback screen The toolbar at the bottom of the playback screen is described as follows: : Slow play : Fast forward : Pause : Backup. After this button is clicked, the video backup starts. This function is available after a USB flash drive is connected to the HDVR.
  • Page 13 Hybrid Digital Video Recorder 3 Quick Navigation User Manual Operation Description Click Search in the quick navigation bar to access the search screen, as shown in Figure 3-5. Figure 3-5 Search screen The toolbar at the bottom of the play window is described as follows: : Slow play : Fast forward : Pause...

  • Page 14: Picture Grid

    Hybrid Digital Video Recorder User Manual 3 Quick Navigation Step 2 Select a date in the calendar on the right side of the search screen. Step 3 Click on the left side of the time axis below the play window to switch the time axis, and then select time.

  • Page 15: Event

    Hybrid Digital Video Recorder 3 Quick Navigation User Manual Step 3 Select a time range on the right of . For example, if you select 7, it indicates that the selected time range is 07:00:00-08:00:00.Videos in this time range are displayed as 12 thumbnails at an interval of 5 minutes in the window on the right.

  • Page 16: Camera Management

    Hybrid Digital Video Recorder User Manual 4 Camera Management 4 Camera Management Camera management mainly involves analog cameras and coaxial high-definition cameras. Cameras can be directly connected to input channels of the HDVR. When analog cameras are insufficient, the HDVR automatically searches for and adds (that is, binds) network cameras in the same Local Area Network (LAN).

  • Page 17: Unbinding A Camera

    Hybrid Digital Video Recorder 4 Camera Management User Manual Operation Steps Step 1 Select a network camera to be bound in the camera list on the right side. The real- time video and basic information of the network camera are displayed on the left side.

  • Page 18: Picture Param

    Hybrid Digital Video Recorder User Manual 4 Camera Management 4.2 Picture Param Picture parameters refer to basic attributes of a picture, including the luminance, saturation, sharpness, and contrast. You can set picture parameters for each channel based on scenarios. Operation Description Click Picture Param next to Camera in the main menu or click Menu in the upper left corner of the camera management screen and choose Picture Param to access the Picture Param screen, as shown in Figure 4-3.

  • Page 19: Encode Param

    Hybrid Digital Video Recorder 4 Camera Management User Manual ----End 4.3 Encode Param The system allows you to set the main video resolution, sub video resolution, and image quality (low-quality, medium-quality, high-quality, or best-quality) for cameras in a channel, and view the frame rate and stream size in Encode Param. Operation Description Click Menu in the upper left corner of the camera management screen and choose Encode Param to access the Encode Param screen, as shown in Figure 4-4.

  • Page 20: Alarm Setup

    Hybrid Digital Video Recorder User Manual 4 Camera Management 4.4 Alarm Setup The system allows you to set alarm types for cameras of channels in Alarm Setup. Operation Description Click Menu in the upper left corner of the camera management screen and choose Alarm Setup to access the Alarm Setup screen, as shown in Figure 4-5.

  • Page 21: Motion Detection

    Hybrid Digital Video Recorder 4 Camera Management User Manual 4.5 Motion Detection Motion detection refers that an alarm is triggered when an image in a specified area changes. Operation Description Click Menu in the upper left corner of the camera management screen and choose Motion Detection to access the Motion Detection screen, as shown in Figure 4-6.

  • Page 22: Privacy Area

    Hybrid Digital Video Recorder User Manual 4 Camera Management 4.6 Privacy Area The system allows you to mask images in a specified area and this area is called privacy area. Operation Description Click Menu in the upper left corner of the camera management screen and choose Privacy area to access the Privacy area screen, as shown in Figure 4-7.

  • Page 23: Setting

    Hybrid Digital Video Recorder 5 Setting User Manual 5 Setting The system allows you to set basic information, alarms, video, privacy, network, disk management, and other parameters for the system in Setting. Figure 5-1 shows the system setting screen. Figure 5-1 Setting screen 5.1 Basic The system allows you to view the firmware version and device name, set the display resolution, system language, time zone, time and date, and restore factory defaults in...

  • Page 24: Time

    Hybrid Digital Video Recorder User Manual 5 Setting Step 4 Click Restore Defaults to restore current settings to factory defaults. Step 5 Click OK to save system settings or click Cancel to cancel settings. After you click Restore Defaults and save the settings, the HDVR will restart. ----End 5.1.2 Time Operation Steps...

  • Page 25: Alarm

    Hybrid Digital Video Recorder 5 Setting User Manual 2. Click Modify Time to save the time settings. Step 6 Click OK to save settings or click Cancel to cancel settings. ----End 5.2 Alarm The system allows you to set alarm surveillance and alarm sensor in Alarm. 5.2.1 Surveillance Operation Steps Step 1...

  • Page 26: Sensor

    Hybrid Digital Video Recorder User Manual 5 Setting ----End 5.2.2 Sensor Operation Steps Step 1 On the Setting screen, choose Alarm > Sensor to access the sensor setting screen, as shown in Figure 5-4. Figure 5-4 Sensor setting screen Step 2 Select a channel in Sensor.
  • Page 27 Hybrid Digital Video Recorder 5 Setting User Manual Figure 5-5 Record setting screen Step 2 Select a value from the Record expiration drop-down list. If you select one week or two weeks from the Record expiration drop-down list, a message indicating that some video data may be deleted and asking you whether to continue the operation, is displayed.

  • Page 28: Privacy

    Hybrid Digital Video Recorder User Manual 5 Setting 5.4 Privacy 5.4.1 Protect Operation Steps Step 1 On the Setting screen, choose Privacy to access the privacy setting screen, as shown in Figure 5-6. Figure 5-6 Privacy setting screen Step 2 Click Protect.

  • Page 29: Modify Password

    Hybrid Digital Video Recorder 5 Setting User Manual 5.4.2 Modify Password Operation Steps Step 1 On the privacy setting screen, click Modify Password to access the password modification screen, as shown in Figure 5-7. Figure 5-7 Password modification screen Step 2 Enter the correct old password, new password, and confirm password, and click Modify.
  • Page 30 Hybrid Digital Video Recorder User Manual 5 Setting Figure 5-8 IPv4 network setting screen Step 2 Click the button next to Get IP Automatically to enable or disable the function of automatically getting an IP address. The function is enabled by default. If the function is disabled, click input boxes next to IP, Netmask, and Gateway to set the parameters as required.

  • Page 31: Ddns

    Hybrid Digital Video Recorder 5 Setting User Manual Figure 5-9 Network check screen Step 5 Click OK to save IPv4 network settings or click Cancel to cancel settings. ----End 5.5.2 DDNS Operation Steps Step 1 On the Setting screen, choose Network > DDNS to access the DDNS network setting screen, as shown in Figure 5-10.

  • Page 32: Disk

    Hybrid Digital Video Recorder User Manual 5 Setting Step 2 Click the button next to Enable to enable the DDNS function. It is disabled by default. Step 3 Select a required value from the Protocol drop-down list. Step 4 Set URL, Account, and Password. Step 5 Click Check.

  • Page 33: Clearing Disk Data

    Hybrid Digital Video Recorder 5 Setting User Manual Step 2 You can view the total capacity, used capacity, and SN of a disk on the disk management screen. ----End 5.6.2 Clearing Disk Data Click Clear in the lower part of the disk management screen. A message, indicating that all video data will be cleared and asking you whether to continue the operation, is displayed.

  • Page 34: Shutdown

    Hybrid Digital Video Recorder User Manual 5 Setting 5.8 Shutdown Operation Description On the Setting screen, choose Shutdown. The message "Click OK to power off" is displayed, as shown in Figure 5-13. Click OK to power off the HDVR. Figure 5-13 Shutdown message box screen ----End Issue V1.0 (2016-12-22)

  • Page 35: Log Center

    Hybrid Digital Video Recorder 6 Log Center User Manual 6 Log Center The system allows you to set and view records of any operations performed on the HDVR in Log Center, including power-on, parameter settings, and camera management. Operation Steps Step 1 Click Log Center in the main menu to access the Log Center screen, as shown in Figure 6-1.
  • Page 36 Hybrid Digital Video Recorder User Manual 6 Log Center Figure 6-2 Log play screen ----End Issue V1.0 (2016-12-22)

  • Page 37: Alarm

    Hybrid Digital Video Recorder 7 Alarm User Manual 7 Alarm The system allows you to view alarm events, set the timeline, and clear alarms in Alarm. 7.1 Event Operation Steps Step 1 Click Alarm in the main menu to access the Event Center screen, as shown in Figure 7-1.

  • Page 38: Timeline

    Hybrid Digital Video Recorder User Manual 7 Alarm Figure 7-2 Alarm video play screen ----End 7.2 Timeline The system allows you to set the timeline to play alarm videos presented by time on each day of a week. Operation Steps Step 1 Choose Alarm >...

  • Page 39: Clear Alarm

    Hybrid Digital Video Recorder 7 Alarm User Manual Figure 7-3 Timeline screen Step 2 Select the alarm time to view the alarm records on that day. Step 3 Double-click an alarm picture to play the alarm video. ----End 7.3 Clear alarm Step 1 When the buzzer beeps, click Clear alarm in the main menu to stop the alarm.
