720P HD Wireless Doorbell Instruction

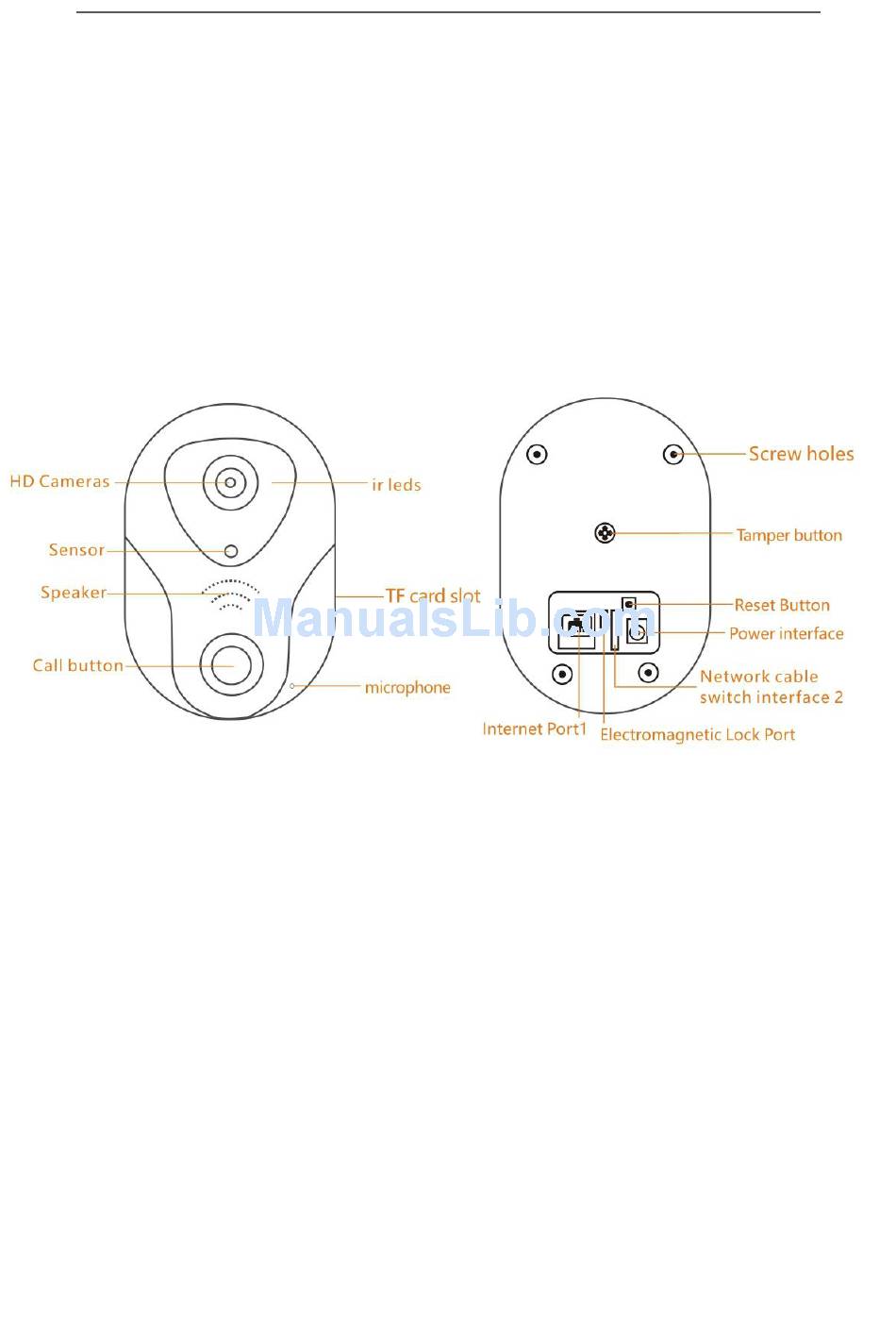

一. Hardware
Electromagnetic Lock configuration instructions：
1.Unlock-COM
2.Unlock-NC
3.Unlock-Button 1
4.Unlock-Button 2
Network cable switch interface configuration instructions：
1.12V_POE-
2.12V_POE-
3.RX-
4.12V_POE+
二. Download APP
V1.0
5.12V_POE+
6.RX+
7.TX-
8.TX+
第 1 页
Advertisement
Summary of Contents for DAGRO L1-NJ
- Page 1 720P HD Wireless Doorbell Instruction V1.0 一. Hardware Electromagnetic Lock configuration instructions： 1.Unlock-COM 2.Unlock-NC 3.Unlock-Button 1 4.Unlock-Button 2 Network cable switch interface configuration instructions： 1.12V_POE- 5.12V_POE+ 2.12V_POE- 6.RX+ 3.RX- 7.TX- 4.12V_POE+ 8.TX+ 二. Download APP 第 1 页...
-
Page 2: Network Configuration
Please visit：163eye.cc 1.Search "163Eye" in Iphone App Store .And install, or scan right code, more details 2.Search “ 163Eye "in android market or Scan QR code to download and install it 3.APP。Register and Login APP. 2.Choose register mode 3.APP 。 Choose 1.Open APP and click and finish it as per the to login APP. - Page 3 Tip: Pls ensure the wifi that you set can connect to the mobile phone or iPad normally. 1.1.Start the APP , 2.2.Follow the tips to 3.Input wifi name & Click "+"that in the operate , when all password , then click upper right corner and finish cilck "Next"...
-
Page 4: Security Protection
When you use the RJ45 cable connect the doorbell, choose the manual addition, and then you can finish as per the tips. 四. Visitors calling 1.Visitor press the calling 2.Popup message from APP, button answer or hang up After answering, you can call intercom, take photos, open the door etc. Full duplex intercom call, which is more convenient to use. - Page 5 Alarm Settings 1.Click the device Click Alarm Settings 3.Check whether the receiving alarm information name and settings on the pop-up dialog bar is open and whether box. there is the machine account on the alarm push account bar. Alarm Information Bar details : Receiving Alarm :was closed by default.
-
Page 6: Other Functions
Disarming : Disarming is default . The lock icon is opened , the mobile phone can not receive the alarm messages . Arming: After the arming setting , the lock icon is closed , the mobile phone can receive the alarm messages 六．... - Page 7 Media Setting : Video Format (NTSC/ PAL) , Volume , Image Reverse Security Settings : modify admin password of the device Network Settings : Ethernet / WIFI Alarm Settings : Setting the alarm details Recording Setting : Setting the record type (recording way option , before setting , pls insert the SD card into the card slot ) infrared alarm device, max support 64pcs device (Options ) Storage settings : check the TF/SD card information...
- Page 8 other function Instruction 八. 1.Full Duplex voice intercom, So easy 2.Support onvif function 3.Support CMS client . Pls download it from this link : http://163eye.com 九. Parameters Parameters Master GM8135S Chip 1280*720 HD(1280*720) 1Megapixel Resolution Full Duplex voice intercom , support two- way audio Video Alarm Detection...
- Page 9 第 9 页...
