H&H CPS-Q5 User Set-Up And Operating Manual

Handset & 2-way communicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Set-up and
Operating
Manual
Q-5 System: Handset &
2-way Communicator

Advertisement

Table of Contents
loading

Summary of Contents for H&H CPS-Q5

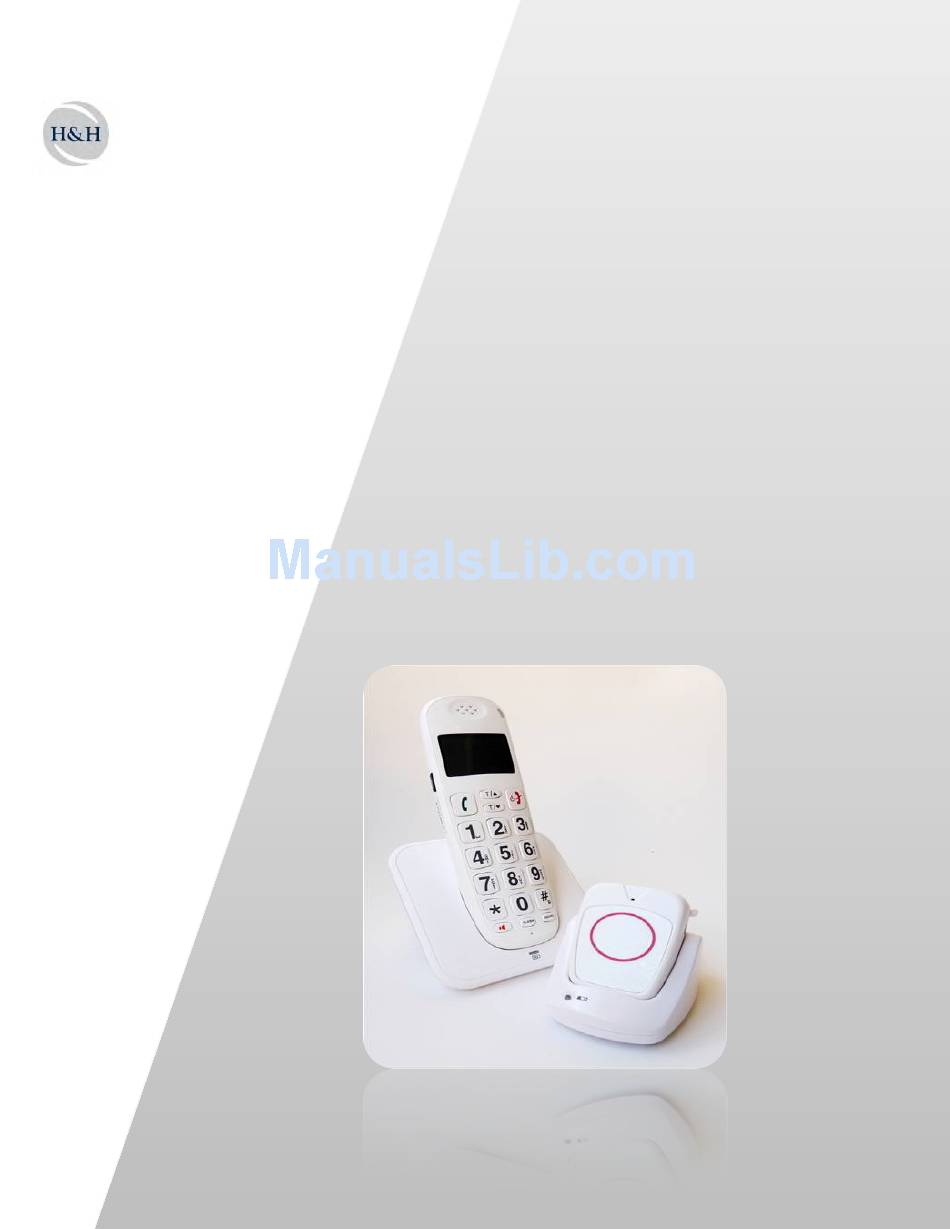

  • Page 1 User Set-up and Operating Manual Q-5 System: Handset & 2-way Communicator...

  • Page 3: Table Of Contents

    Contents Important Safety Information ....................2 Limited Liability Statement ...................... 3 About the CPS-Q5 ........................4 Package Contents ........................5 Handset Features and Controls ....................6 General Information ......................8 Backup Battery During a Power Failure ................8 SOS Triggering ........................9 Alarm Distress (SOS) Button the Communicator ..............

  • Page 4: Important Safety Information

    Important Safety Information Please make sure to review the information in this manual and keep it for future reference. Please be aware of the following important details when installing and using the CPS-Q5 System: • Do not submerge any of the products in water. The communicator is water resistant and can be worn in the shower, but should never be immersed in water.

  • Page 5: Limited Liability Statement

    The purchaser also agrees, by using the CPS-Q5 System, to the following terms and conditions. It will be the sole responsibility of the purchaser to assure that the CPS-Q5 System is programmed, connected, and set-up properly and safely; and that the unit is utilized and maintained correctly.

  • Page 6: About The Cps-Q5

    About the CPS-Q5 The CPS-Q5 system is a DECT cordless phone and Personal Emergency Response (PERS) communicator for your emergency needs all in one system. The CPS-Q5 system unique handset features: • Digital cordless handset DECT 6.0, 1.9GHz technology for enhanced voice quality and exceptional range from the base up to 1300 feet •...

  • Page 7: Package Contents

    Handset Items and Accessories Handset Handset Battery Belt Clip Phone Cord 3.7V 800 mAh lithium Handset Base/Charger Base Battery Base AC Adapter 3.7V 850 mAh lithium Communicator Items and Accessories Communicator AC Adapter Communicator Charger Adjustable Lanyard Belt Clip CPS-Q5 User Manual...

  • Page 8: Handset Features And Controls

    7. Redial button 11. Speaker button- 8. Flash and intercom Speaker is on back of button REDIAL phone 12. Microphone Handset Back View 1. Lanyard cord (optional) 2. SOS button 3. Belt Clip 4. Speaker 5. Battery house/cover CPS-Q5 User Manual...
  • Page 9 3. Backup batteries Base Back View house/cover 4. Channels for line cord and power supply cord 5. Power supply socket 1. Line cord socket 2. Extra socket for future dry contact support – available in late 2013. CPS-Q5 User Manual...

  • Page 10: General Information

    Backup Battery During a Power Failure The CPS-Q5 base supports an option for a rechargeable back-up battery. When a backup battery is installed, during a power failure, the system operates normally for at least 12 -24 hours standby time and 4 hours talk time on either the communicator or handset.

  • Page 11: Sos Triggering

    SOS Triggering Note: the CPS-Q5 system will detect when the Communicator is in alarm status! During a telephone conversation if an alarm is triggered by another handset and or communicator (that are registered to the base), the telephone conversation will be immediately and automatically terminated, allowing the SOS alarm to be sent.

  • Page 12: Handset: Features While Handset Is In Use

    On the handset screen, you will see Phonebook highlighted. 2. Press again to select the feature. You can also access the Phonebook by selecting the Down Arrow while in standby mode. CPS-Q5 User Manual...
  • Page 13 Note: 2 numbers can be entered for the same name. To enter additional names and numbers, please follow instructions above. To enter a number from standby mode, type the number first and then press will then have the option to save it to phonebook. CPS-Q5 User Manual...

  • Page 14: Handset Menu Choice 2: Call Lists

    4. Use arrows buttons to scroll and then press Missed Calls In this category you can view missed calls. . The missed numbers will be shown 1. With “Missed calls” highlighted, press on the display. CPS-Q5 User Manual...
  • Page 15 3. If you press again, you may Edit, Save to Phonebook, Delete or Call. CPS-Q5 User Manual...

  • Page 16: Handset Menu Choice 3: Organizer

    “Clock” and key in the desired time in a 24 hour clock mode. 5. When finished, move the highlight down to “Repeat” and select the necessary alarm use by using the left side volume button (once, custom or everyday). CPS-Q5 User Manual...

  • Page 17: Handset Menu Choice 4: Settings

    In this category you can delete terminals (communicator and/or handsets) that have been registered to the base. You may select the terminal you want to delete and press ,”Logout?” will display on the screen, press to confirm “Deregistration”. CPS-Q5 User Manual...
  • Page 18 3 pre-registered telephone numbers announcing the communicator is in low battery state and the communicator needs to be charged immediately Low Battery Alert, press , you will have two options: CPS-Q5 User Manual...
  • Page 19 1. You may name the handset or leave it empty. 2. Press and by using the characters on the keypad, input the desired name. You may use up to 10 characters in the handset name for example: “Kitchen”. When finished press to save and confirm. CPS-Q5 User Manual...
  • Page 20 2. Keypad, scroll down using the button, press . Choose either silent or tone and press Volume, press .Ring tone will display press . Using the button set your desired volume then press CPS-Q5 User Manual...
  • Page 21 Note: To lock the keypad, press and hold the STAR (*) key for 3 seconds. To unlock, press and hold the STAR (*) key for 3 seconds. SOS Setting The CPS-Q5 system has 2 alarm buttons; one on the back of the handset and the other on the communicator. 1. In standby mode, press and then highlight “Settings”.
  • Page 22 SOS alarm and begins dialing the numbers you have entered. 2. If the first number is busy, the CPS-Q5 system will detect a busy signal, within 8-10 seconds it will dial the next number (unless there is only one number registered in the SOS list, the same number will be dialed again).

  • Page 23: Room Monitor (Eci)

    Room Monitoring Status 1. By default the room monitor (ECI) is set to Off. 2. To change the room monitor On/Off setting, scroll using the button to make your choice, and then press the button. CPS-Q5 User Manual...
  • Page 24 The call party will need now to enter the correct 4 digits access code set in the system. After entering the correct access code the CPS-Q5 system will now monitor the room in speaker mode. • If the access code has been entered incorrectly, the unit will automatically disconnect the call (after 10 seconds).
  • Page 25 Settings main menu. 3. Scroll using the button change PIN press 4. Then input old PIN (default pin 0000), press 5. Input new 4 digit PIN, press 6. Input new 4 digit PIN again, press CPS-Q5 User Manual...

  • Page 26: Communicator Features And Controls

    3. Microphone 4. Channel for the lanyard 5. Label for name 6. Speaker 7. On/Off 8. SOS button 9. Charging contacts Base Front View 2. Charging contacts 3. Charging indicator Base Back View 1. Power supply socket CPS-Q5 User Manual...

  • Page 27: General Information

    6. When a communicator is misplaced: On the handset base press and release the Page button on the base. The communicator registered to the base will automatically ring. • To cancel, press the Page button again on the base. • To answer on the communicator, press the SOS button. CPS-Q5 User Manual...

  • Page 28: Sos Triggering

    The SOS button on the back of the handset or on the communicator will activate and send a SOS distress call to the call center. Up to 5 contact numbers can be entered into the SOS menu. CPS-Q5 User Manual...

  • Page 29: Communicator Battery Information

    Please charge the communicator when you hear the voice prompt, you will have 30 minutes to place the communicator on the charger before the call center is notified. However it is best if you charge the communicator daily. CPS-Q5 User Manual...

  • Page 30: Turning On Or Off The Communicator

    1. Press and hold the On/Off button for 7 seconds, a set of tones will be heard. Troubleshooting If you have a problem with the system, please give us a call at (800) 615-9039 Replacement Parts/Optional Accessories For replacement parts or optional accessories, please contact your service provider. CPS-Q5 User Manual...
  • Page 31 HH-IMG, USA 2251 N Rampart Blvd, Suite 243 Las Vegas, NV 8912 Phone: 702-900-7543 Fax: 760-888-9258 Website: www.
