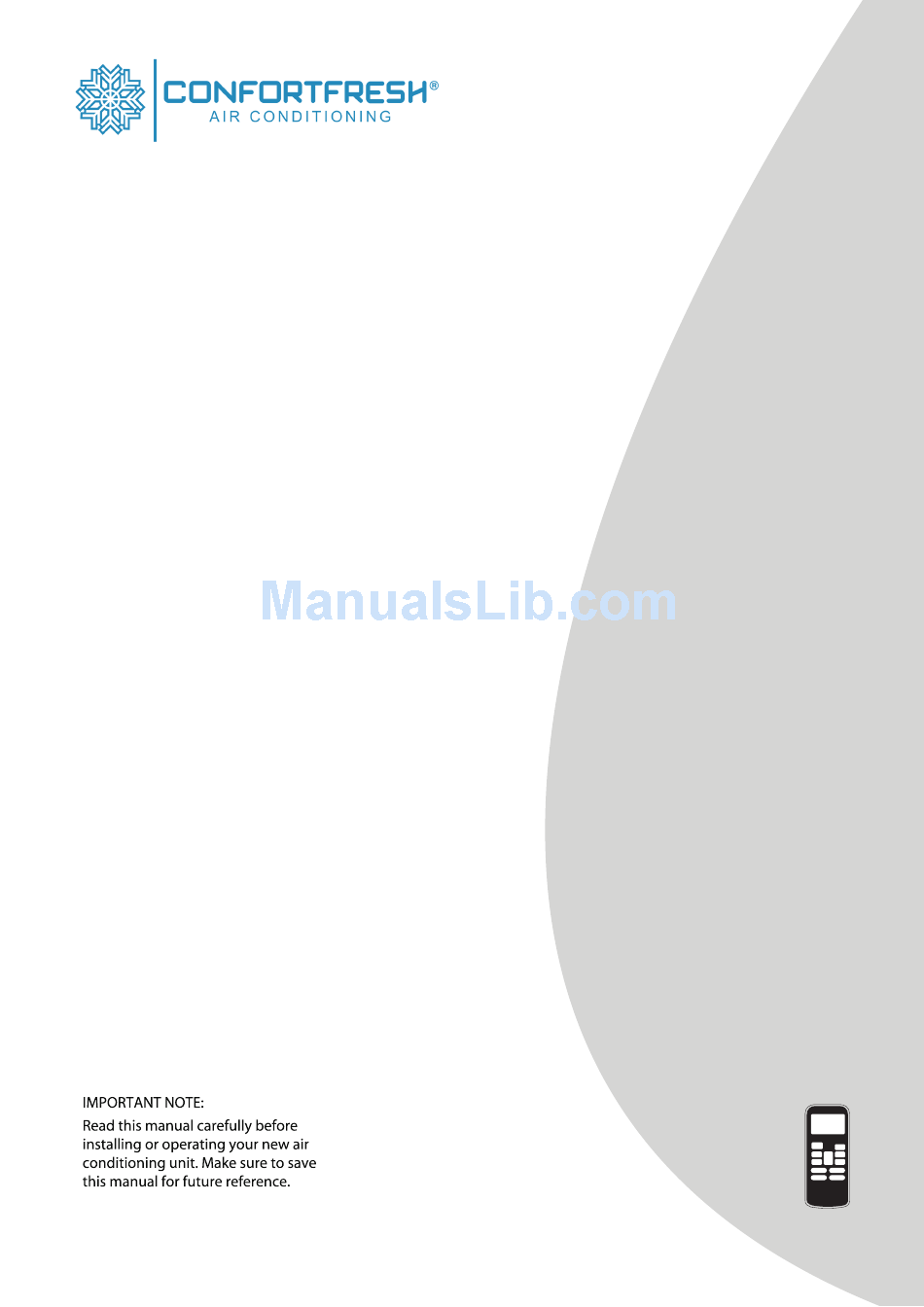

  • Page 1 Owner’s Manual Ceiling Floor...

  • Page 2: Table Of Contents

    PRECAUTION ●Read the following “ PRECAUTIONS” carefully before installation. ●The air conditioner must be installed by professional technicians. ●The installation should be done in accordance with the manual. ●Please forgive delay of notice in case of any advancement. Content Usage PRECAUTIONS -----------------------------------------------------2 PARTS AND FUNCTIONS ----------------------------------------- 4 OPERATION AND PERFORMANCE ---------------------------------6...

  • Page 3: Precautions

    USAGE PRECAUTIONS SA FET Y INF ORMAT IO N Read the following " PRECAUTIONS" carefully before installation. The caution items stated here must be followed because these important contents are related to safety. The meaning of each indication used is as below. Incorrect installation due to ignoring of the instruction will cause harm or damage, and the seriousness is classified by the following indications.
  • Page 4 Descrition of symbols Description of icon Icon Meaning Symbol Meaning Contents prohibited are represented Mistaken operation/use may cause Warning by nots or figures. death or serious injury. Mistaken operation/use may cause Execution in force. Iterms forcibly executed Notice injury or damage of properties only. are represented by notes or figures.

  • Page 5: Parts And Functions

    PARTS AND FUNCTIONS Indoor Unit Air Outlet Refrigerant Pipe Junction Filter Remote controller receiver Air outlet Refrigerant connection pipe Air inlet Stop valve Air Outlet grille Remote controller Air outlet Outdoor Unit Requirements Do not run the unit until it has been elctrified for 2 hours.
  • Page 6 3 minutes protection Restart the unit at once after stopping or turning it off, compressor will not operate in the first 3min ,this phenomena is one of system functions(self-protection)。 Feature of heating When indoor unit operate in the heat mode, no heat air blows out till3-5min after heat exchanger being warm The outdoor fan motor may stop runnig during operation if outdoor temperature is high.

  • Page 7: Operation And Performance

    OPERATION AND PERFORMANCE CHECKS BEFORE OPERATION Check if the ground wire is connected well. Check if the air filter is installed well. You must clean the filter and then start the air conditioner when it is not used for a long time. Check that the air outlet or inlet of outdoor unit is not blocked.

  • Page 8: Maintenance

    MAINTENANCE Malfunction & Handling Ways If the following situation happens, please stop running the air conditioner and cut off the power and contact with dealers. ＂Malfunction＂words is shown on the wire controller and give off the sound of buzzer. The fuse breaks down or the breaker makes a mistake frequently. Malfunction External material or water enter into the inside of indoor unit.
  • Page 9 2.Defrosting In heating mode, the outdoor heat exchanger may be frosted because the outside temperature is too low. The frost cover may ill effect normal heating effect for AC. Thus, AC will automatically defrost after heating mode is running for a while. In the process of defrostation, the compressor is running with the indoor and outdoor fans stop.

  • Page 10: Trouble Shooting

    2. When used again after the unit stops for a long period: When cleaning the filter and indoor unit, you must stop the unit and cut off power supply. Wipe the indoor uni twith soft cloth. It is forbidden to posh the machine with petrol, benzene, lye, powder, detergent, insecticide etc., Which will damage the unit.

  • Page 11: Remote Controller

    WIRING DIAGRAM INDOOR UNIT CAUTION: These units musts be POWER: 3-core cable wired and installed in accordance with 3 x 0.75mm 3-core cable all national and local safety codes. 3 x 0.75mm POWER: 3-core cable 3 x 5mm Fig.13 Control wiring for A/C systems. WIRING DIAGRAM REMOTE CONTROLLER Button...
  • Page 12 Remote control DISPLAY Meaning of symbols on the liquid crystal display No. Symbols Meaning FEEL mode indicator COOLING indicator DEHUMIDIFYING indicator FAN ONLY OPERATION indicator HEATING indicator TIMER OFF indicator TIMER ON indicator AUTO FAN indicator LOW FAN SPEED indicator MIDDLE FAN SPEED indicator HIGH FAN SPEED indicator SLEEP indicator...

  • Page 13: Cooling Mode

    COOLING MODE The cooling function allows the air conditioner to cool the room and at the same time reduces the humidity in the air. To activate the cooling function ( COOL ) , press the MODE button until the symbol appears on the display.

  • Page 14: Dry Mode

    TIMER MODE----TIMER ON To set the automatic switching on of the air conditioner. To program the time start,the appliance should be off. Press TIMER , Set the temperature with pressing the key ▲ or ▼,Press TIMER Again , set the time with pressing the key ▲ or ▼, Press the key more times till on the display you can read the time which passes between the programming and the timed start.

  • Page 15: Sleep Mode

    FEEL MODE To activate the FEEL (automatic) mode of operation, press the MODE button on the remote control until the symbol appears in the display. In the FEEL mode the fan speed and the temperature are set automatically according to the room temperature (tested by the probe which is incorporated in the indoor unit)to ensure user comfort.

  • Page 16: Air Flow Direction Adjustment Procedure

    Air flow direction adjustment procedure Adjusting air flow direction Up/down direction can be adjusted by using the AIRFLOW button on the remote controller. This button,each time pressed,changes the mode in the following sequence: AUTO push the LOUVER button,changes the mode to swing louver. Push the button,to stop swing.
  • Page 17 Remote controller handling procedure Batteries replacing procedure Following cases signify dead cells.Replace the dead batteries with new ones. Receiving sound is not emitted from the unit when signal is transmitted. Indicator becomes indistinct. Please slide and remove the cover. Slide the cover upwardly in the direction of the NOTE...
