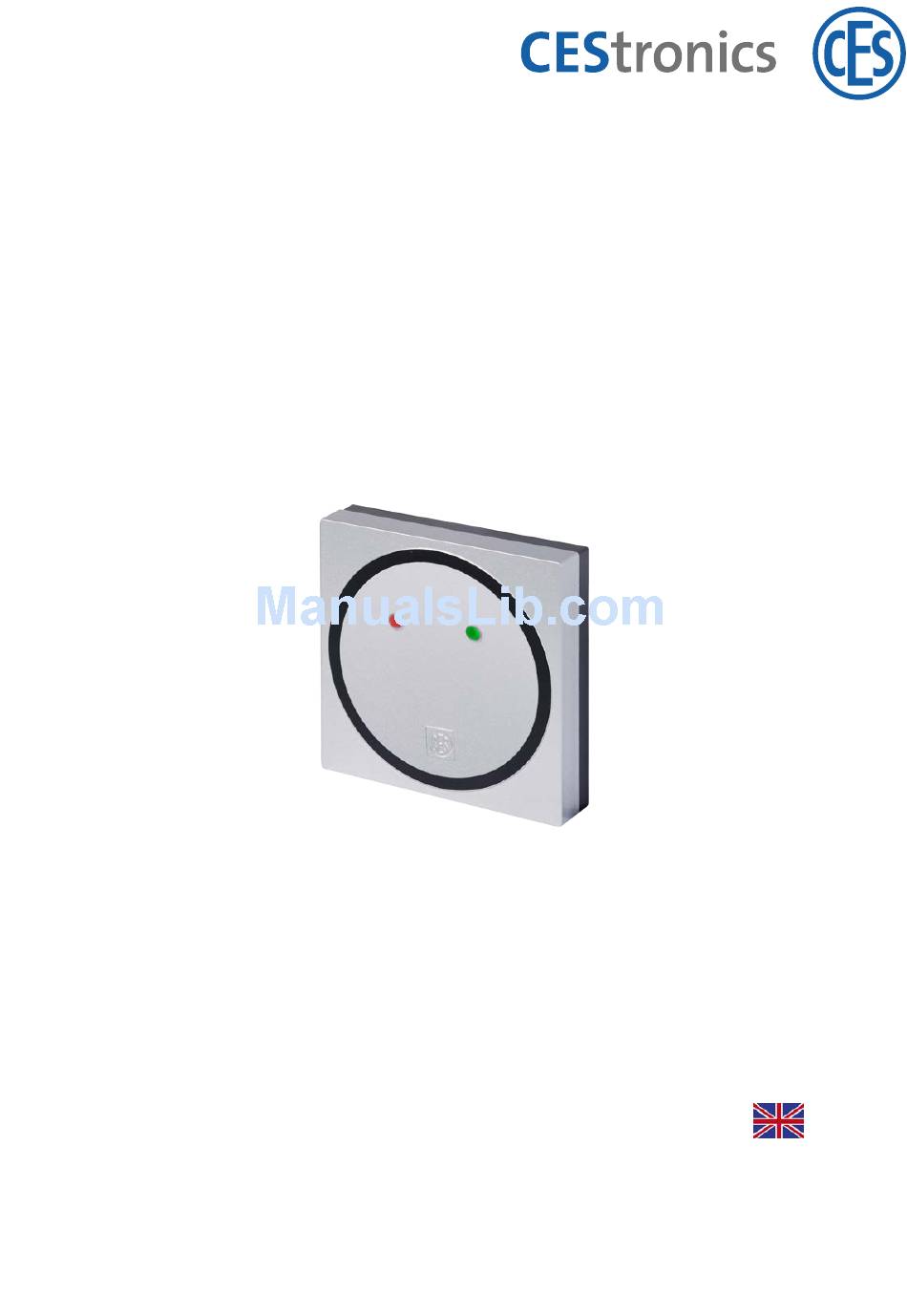

- Page 1 CES OMEGA FLEX Update-Terminals Update-Terminal Assembly and Operating Instructions English Version VA BRO2269-2...
-
Page 2: Table Of Contents
4 About the OMEGA FLEX system 4.1 What is OMEGA FLEX? 4.2 How does the OMEGA FLEX work? 4.3 Which system components are included in the OMEGA FLEX? 5 Update-Terminal basics 5.1 About the Update-Terminal 5.2 About the validation of locking media 5.3 About the validity of the locking media... - Page 3 7.5 Transmitting radio cell settings via an RF-Stick 7.6 Activating the online mode of an Update-Terminal 7.7 Deactivating the online mode of an Update-Terminal 7.8 Checking quality of wireless connection 7.9 Authorising an RF-Stick-Master 7.10 Deleting System-Master 8 Operation 8.1 Programming Locking media 8.2 Validating the locking media 9 Disposal 9.1 Notes on disposal...
-
Page 4: About This Manual
The necessary expertise regarding the intended use of the product are presumed for the use of this manual. The necessary product training is conducted by your CES partner. In case it has not yet been done, please contact your CES partner to get the product training. -
Page 5: Notes On Trademark Protection
1 About this manual For service assistance please contact your CES partner. 1.5 Notes on trademark protection MIFARE, MIFARE classic, MIFARE Ultralight and MIFARE DESFire are registered trademarks of NXP B.V. and are used under license. Update-Terminal Page 5 of 41... -
Page 6: Manufacturer's Warranty
2 Manufacturer's warranty 2 Manufacturer's warranty The following damages are not covered by the manufacturer warranty: Damages to the exterior mechanical parts as well as subsequent damages arising from normal wear and tear. Damages caused by external events or influences Damages caused by deficient installation Damages caused by deficient maintenance Damages caused by false operation... -
Page 7: Ce Declaration Of Conformity
3 CE Declaration of conformity 3 CE Declaration of conformity The Declaration of Conformity is available online via www.ces.eu Update-Terminal Page 7 of 41... -
Page 8: About The Omega Flex System
Depending upon the intended purpose, OMEGA FLEX can fulfil a variety of complex tasks. So, e.g. besides the authorisations assigned for the locking media, also time slots can be defined within which these authorisations are valid (see "OMEGA FLEX system functions"... - Page 9 (Long shield MLS). This allows you to combine the electronic and mechanical handle sets with each other in a uniform design. 4.3.2 Locking media The locking media can open the doors equipped with OMEGA FLEX locking devices: Key fob Key fob Slim line...
- Page 10 4 About the OMEGA FLEX system 4.3.3 Administration devices Administration devices serve to manage the OMEGA FLEX system: Master media RF-Stick Desktop-Reader Access-Point and Desktop-Writer and repeater PC with Programming Adaptor Programming cable OMEGA Suite 4.3.4 Update-Terminals With Update-Terminals, the users can program and validate their locking media in V-Net themselves.
- Page 11 4 About the OMEGA FLEX system Variants and their relevance Variant Meaning Programming via.. Online/ Offline "NoTime" Master media and an Offline (No time profiles, no events available) RF-Stick LINE "Time" Master media and an Offline (Authorisations (Time profiles and events available)
-
Page 12: Update-Terminal Basics
5 Update-Terminal basics 5 Update-Terminal basics 5.1 About the Update-Terminal An Update-Terminals allow the users to program their locking media themselves. The Update- Terminals can program the locking media (i.e. Add or delete authorisations) validate the locking media extend the validity of the locking media block the locking media 5.2 About the validation of locking media The validation is a backup function in the V-NET. -
Page 13: About The Blocking Of Locking Media
5 Update-Terminal basics Example: You want to issue a locking media to a new employee already before the commencement of his work, however, the locking media should only be usable from his first working day. In addition, the end-date of the validity ensures that from a chosen time onwards, no access can be made. -
Page 14: Assembly
6 Assembly 6 Assembly 6.1 Scope of delivery 1 Assembly frame 1 Update-Terminal (Consisting of cover and controller) 2 Universal screws 2,5 x 20 mm 2 Dowel (for fixing screws) 2 Fixing screws 3 x 30 mm 6.2 Parts description Shield Controller Assembling frame... -
Page 15: Connections
6 Assembly 6.3 Connections Connections for potential-free switch (not used currently) Connection for relay (no function) Connections for power supply Screw terminals from controller to reader (not required for WT-I and Update-Terminal) 6.4 Wiring Screw terminal for power supply, 12-24 V AC/DC Screw terminal for power supply, 12-24 V AC/DC Update-Terminal Page 15 of 41... -
Page 16: Assembly
6 Assembly 6.5 Assembly Tools required: Tool Required for Slot-head screwdriver Lifting the cover 5 mm bis 9 mm Slot width Slot-head screwdriver Screwing the universal screws Screwing the fixing screws (in case you use the delivered ones) Drill Drill holes in the mounting surface depends on the mounting surface Update-Terminal Page 16 of 41... - Page 17 6 Assembly Assembly preparations 1. Remove the Update-Terminal from the MOUNTING FRAME (if mounting frame is available). You are now holding the Update-Terminal (consisting of ) in your hands. CONTROLLER COVER 2. Loosen the , by setting the slot head screwdriver COVER (5 mm to 9 mm slit width) in the recess in the cover and lift it gently.
- Page 18 1. Only for surface mounting. Mount the mounting frame on the surface. For mineral subfloors (Stone, concrete, etc.) use the supplied . For other DOWELS FIXING SCREWS surfaces, you can purchase suitable fasteners from your CES partner for fastening technology. Update-Terminal Page 18 of 41...
- Page 19 6 Assembly 2. Make all necessary cable connections, see "Wiring" page 15. Make sure that wiring is carried out only by electricians or by specialists trained by CES partner. 3. Screw the with two on the CONTROLLER UNIVERSAL SCREWS mounting frame or on the switch box.
- Page 20 6 Assembly 5. Push the on the , until it snaps in COVER CONTROLLER audibly. The Update-Terminal is now assembled. Update-Terminal Page 20 of 41...
-
Page 21: Administration
The administration is done centrally by the OMEGA Client, i.e. the programming jobs are transmitted automatically via wireless online connection to the online locking devices. If you administer your OMEGA FLEX system with an RF-Stick, you will need at least the following administration devices and master media:... - Page 22 7 Administration 1. Optional: Specify the radio cell for the Update-Terminal. A detailed manual is available in the OMEGA Suite Help. If you specify the radio cell, you must authorise the RF-Stick-Master for the Update- Terminal to transmit the radio cell changes to the Update-Terminal via an RF-Stick. 2.
-
Page 23: Authorising System-Master
7 Administration 7.3 Authorising System-Master After the System-Master has been read into your OMEGA client, it is automatically authorised to program the Update-Terminal. If it is not read or if you want to specify a radio cell before the first programming, you must authorise it manually. - Page 24 Since, at any given time only one authorised for this locking device. System-Master exists which can be authorised on the basis of individual system identification code for a locking device, there is reason to suspect manipulation. Contact your CES partner immediately! Update-Terminal Page 24 of 41...
-
Page 25: Authorising An Rf-Stick-Master
7 Administration 7.4 Authorising an RF-Stick-Master The authorisation of the RF stick master is only necessary if you want to specify a radio cell. Required master media: System-Master RF-Stick-Master Procedure: 1. Hold the System-Master for ca 1 second in the reading field of the Update-Terminal to end the “authorise master media mode. - Page 26 7 Administration 3. Hold the System-Master for ca 1 second in the reading field of the locking device to end the “authorise master media” mode. The following signal appears: 1x long green and 1x long beep. The “authorise master media” mode will end automatically after 5 seconds. Die new authorisations remain stored.
-
Page 27: Transmitting Radio Cell Settings Via An Rf-Stick
7 Administration 7.5 Transmitting radio cell settings via an RF-Stick After you have specified a radio cell in the OMEGA Client (A detailed manual is available in the OMEGA Suite Help.), you must transmit the settings via an RF-Stick to the Update-Terminal. Required master media and administration devices: RF-Stick-Master RF-Stick... - Page 28 7 Administration As soon as the RF-Stick has been detected, the transmission begins. During transmission, the Update-Terminal device flashes green. The radio cell settings are now transmitted to the Update- Terminal. After transmission is completed, the RF-Stick and the Update-Terminal are disconnected automatically.
-
Page 29: Activating The Online Mode Of An Update-Terminal
7 Administration 7.6 Activating the online mode of an Update-Terminal Required master media: RF-Ini-Master For the activation of online mode it is not necessary to authorise the RF-Ini-Master in advance. Procedure: 4. Hold the RF-Ini-Master for ca 1 second in the reading field of the Update-Terminal. Following signals appear: A: 1x short green and 1x short beep = successfully connected to the Access-Point... -
Page 30: Deactivating The Online Mode Of An Update-Terminal
7 Administration 7.7 Deactivating the online mode of an Update-Terminal Required master media: RF-Ini-Master For the deactivation of the online mode it is not necessary to authorise the RF-Ini-Master in advance. Procedure: 1. Hold the RF-Ini-Master for ca two seconds in the reading field of the Update-Terminal. The following signal appears: 2x short green and 2x short beep 2. -
Page 31: Checking Quality Of Wireless Connection
7 Administration 7.8 Checking quality of wireless connection Required master media: RF-Trace-Master The RF-Trace-Master is ready for immediate use and does not have to authorised first. Procedure: 1. Hold the RF-Trace-Master for ca 1 second in the reading field of the Update-Terminal. The following signal appears: 1x short green and 1x short beep Update-Terminal... - Page 32 7 Administration 2. The locking device shows now the quality of the wireless connection: Very good sufficient weak No wireless connection The Access-Point associated with the Update-Terminal shows during wireless connection test the quality of the wireless connection with the same signalling as the locking device. 3.
-
Page 33: Authorising An Rf-Stick-Master
7 Administration 7.9 Authorising an RF-Stick-Master Required master media: System-Master RF-Stick-Master Procedure: 1. Hold the System-Master for ca 1 second in the reading field of the Update-Terminal to start the “delete master media mode” of the locking device. The following signal appears: 1x short green and 1x short beep 2. - Page 34 7 Administration The “delete master media mode” will end automatically after ca 5 seconds. The master media which were previously held in reading field will be deleted from the Update- Terminal. The RF-Stick-Master is now not authorised for the Update-Terminal any more. Troubleshooting: Signalling Reason...
-
Page 35: Deleting System-Master
7 Administration 7.10 Deleting System-Master If you have lost the RF-Stick-Master, you can delete the RF-Stick-Master from the Update- Terminal by deleting the System-Master. Required master media: System-Master Procedure: 1. Hold the System-Master for ca 5 seconds in the reading field of the Update-Terminal. The following signal appears: 2x short green and 2x short beep 2. -
Page 36: Operation
8 Operation 8 Operation This chapter is intended for persons who program their locking media with an Update-Terminal. 8.1 Programming Locking media Procedure: 1. Hold an authorised V-NET locking media in the reading field of the Update-Terminal (maximum distance ca 10 mm). The following signal appears: 1x long blue signal followed by blue flashing signals (= Programming is in progress). -
Page 37: Validating The Locking Media
8 Operation 8.2 Validating the locking media Procedure: 1. Hold an authorised V-NET locking media in the reading field of the Update-Terminal (maximum distance ca 10 mm). The following signal appears: 1x long blue followed by 1x short green The locking media is now validated. In case you wanted to program the locking media, it has however only been validated, then it could be due to following reasons: - no programming jobs for the locking media were existing... -
Page 38: Disposal
Package The packagings of the OMEGA FLEX components are made of environmentally friendly, reusable materials. Specifically, these are: Outer packaging and inlays of cardboard... -
Page 39: Index
10 Index 10 Index Administration device 10 Coupled 8 Decoupled 8 Locking device 8-9 Variants 10 Locking media 8-9 OMEGA FLEX system 8 Opening duration 8 Target group of the manual 4 Transponder 8 Update-Terminal Page39 of 41... - Page 40 10 Index Validation 12 Validity 12 Variants (locking devices) 10 changing 11 Update-Terminal Page40 of 41...
- Page 41 C. Ed. Schulte GmbH United Kingdom Zylinderschlossfabrik CES Security Solutions Ltd. Friedrichstraße 243 Unit 4 Kendon Business Park D-42551 Velbert Maritime Close, Medway City Estate +49 2051 204 0 Rochester, Kent ME2 4JF +44 1 634713369 +49 2051 204 229 +44 1 634786833 info@ces.eu...
