ST Electronics HB180 User Manual

1. Introduction

HB180 miniature microwave motion mensor is a X-Band
Bi-Static FM Doppler transceiver module. It has built-in
voltage tuned Dielectric Resonator Oscillator (VT-DRO)
and a pair of micro-strip patch antenna array, making them
ideal for OEM usage as FM transceiver or FSK ranging
motion detectors.
This User Manual highlights some important points for
application with HB 180 module.

2. Mounting

Header pins can be used to connect the terminals (V1, V3, IF, GND) to the power supply,
FM signal generator and the amplifier circuits to serve as mounting support. Other
mounting methods may be used. Caution must be taken to avoid pressure or stress being
applied to the chassis of the module as it may cause performance deterioration.
ST Electronics (Satcom & Sensor Systems) Pte. Ltd.
29 New Industrial Road, ST Electronics Paya Lebar Building, Singapore 536213
Tel: (65) 6521 7888 Fax: (65) 6521 7333 Email: agilsense@stee.stengg.com
Website: www.agilsense.com ( Regn: 199103901W )
X-Band FSK Microwave Motion Sensor module

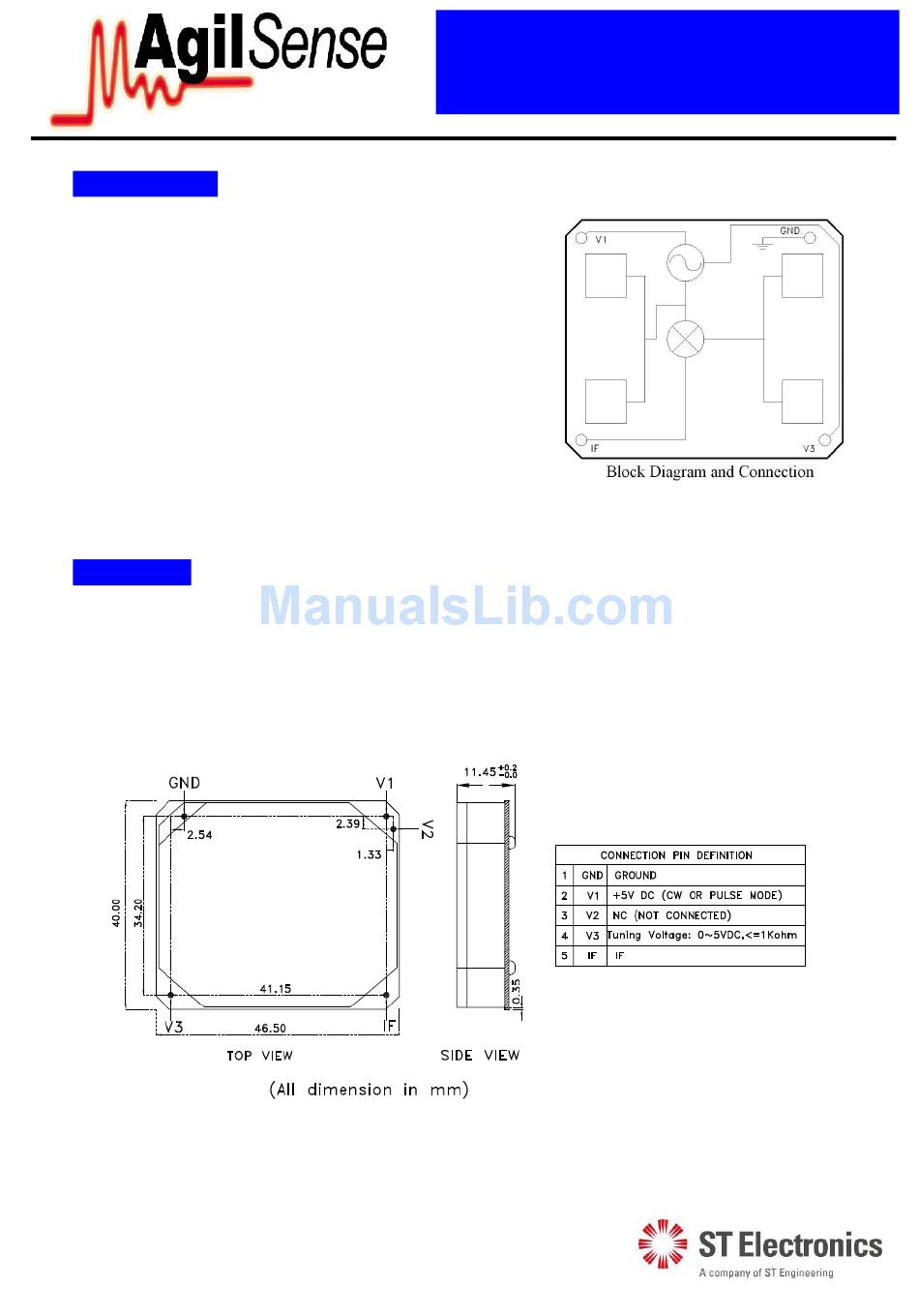

Figure2: Outline Diagram
1 of 8
HB180 Users Manual
Figure1: Block Diagram
V1.00
