EPON 1GE ONU User Manual

Chapter1: Overview

1.1 Product Description

EPON 1GE ONU meet telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home)
broadband speed, SOHO broadband access, video surveillance and other requirements and
design an EPON Gigabit Ethernet products
It is based on mature and stable, cost-effective
.
EPON technology, high reliability, easy management, configuration flexibility and good quality
of service (QoS) guarantees to meet the technical performance of the module IEEE802.3ah,
China Telecom EPON equipment technical requirements (V2.1) and other specifications.

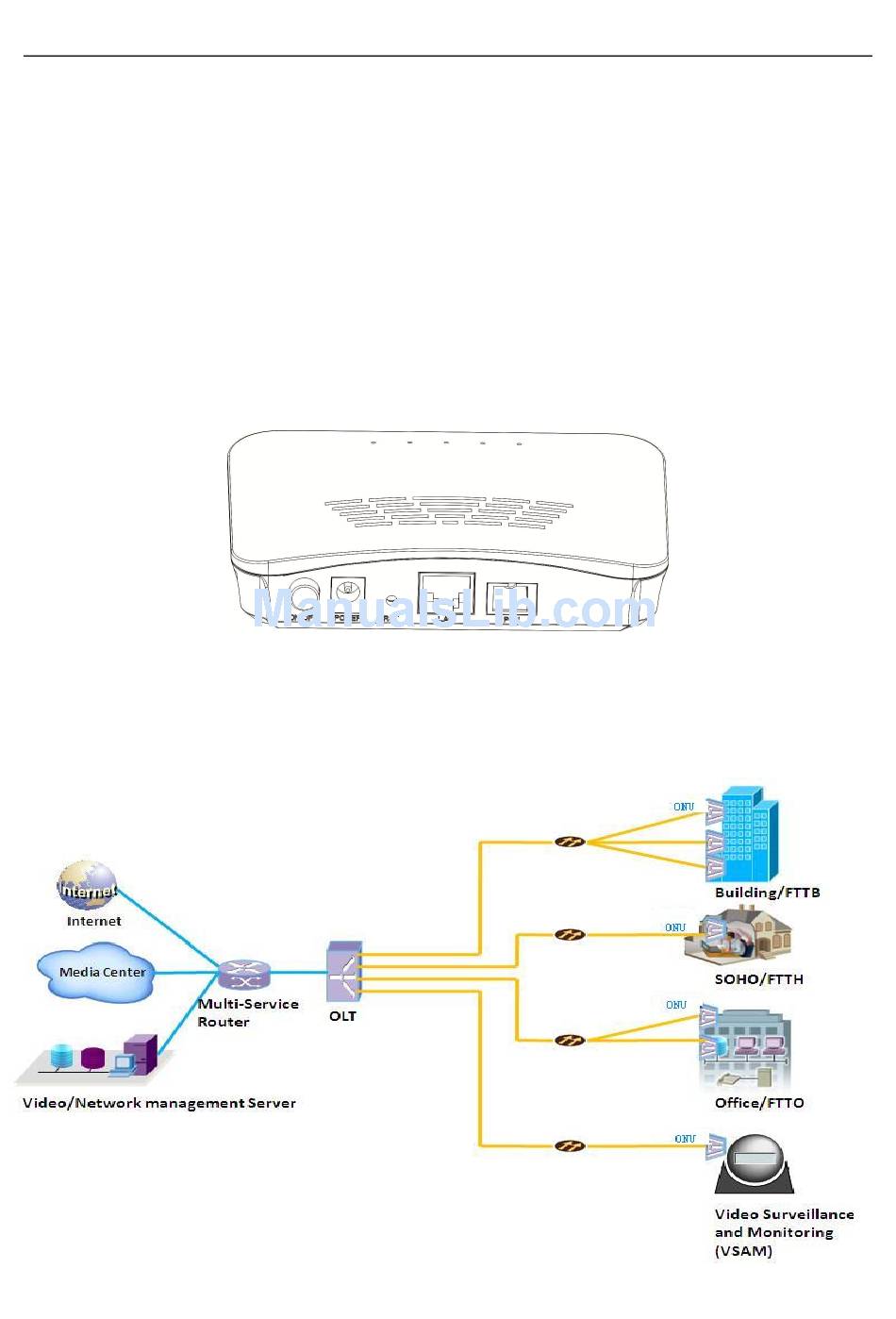

Figure 1 1GE
1.2 Application Chart

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPON 1GE ONU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Extralink EPON 1GE ONU

  • Page 1: Chapter1: Overview

    EPON 1GE ONU User Manual Chapter1: Overview 1.1 Product Description EPON 1GE ONU meet telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design an EPON Gigabit Ethernet products It is based on mature and stable, cost-effective EPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module IEEE802.3ah,...

  • Page 2: Technical Parameters

    EPON 1GE ONU User Manual Figure 2 Application Chart 1.3 Technical parameters Technical item 1EPON connector,SC single-mode/single-fibre,downlink/uplink PON interface 1.25Gbps Wavelength Tx1310nm,Rx 1490nm Optical interface SC connector 1x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100M LAN interface Full/Half, 1000M Full Duplex, RJ45 connector 5, For Status of SYS、POWER、LOS、PON、LAN...
  • Page 3 EPON 1GE ONU User Manual Device workplace should avoid radio transmitters, radar stations, and high-frequency interference from power equipment. Users cable typically require alignment indoors if outdoor lightning traces measures should. Equipment Installation ONU product is a fixed configuration cassette equipment, site equipment installation is relatively simple.
  • Page 4 EPON 1GE ONU User Manual Blink Normal running Table 2 Panel lights on...

  • Page 5: Equipment List

    EPON 1GE ONU User Manual 2.3 Lan Port Connection definition Function direction Grade RX+( receive data BI_D0+( Bi-directional Data+) input Input/output RX-(receive data -) BI_D0- (Bi-directional Data-) input Input/output TX+ (send data +) BI_D1+( Bi-directional Data+) output Input/output NC(null) BI_D2+( Bi-directional Data+)

  • Page 6: Basic Configuration

    EPON 1GE ONU User Manual Basic Configuration Figure 3 Web login Web login default username: admin, password: admin Figure 4 Device Information Device Status Menu displays the current device base informations.Including Device Name、Firmware Version、Lan IP Address、System Uptime and PON Mac Address.
  • Page 7 EPON 1GE ONU User Manual Figure 5 Modify Loid、Password、Vendor ID and Model Name EPON Setting Menu displays the current device Loid、Password、Vendor ID and Model Name informations. LOID: 0-24 bytes. LOID Password: 0-12 bytes. Vendor ID: 0-4 bytes. Model Name: 0-4 bytes.
  • Page 8 EPON 1GE ONU User Manual Figure 7 Upgrade Firmware Upgrade Menu displays the current equipment upgrades related information. Figure 8 Reboot Reboot Menu displays the current equipment informations of reboot.

  • Page 9: Chapter4: Troubleshooting

    EPON 1GE ONU User Manual Chapter4: Troubleshooting 1. After power all the lights are lit？ Reasons: 1) Power connection errors; 2) Power is not normal. Solution: 1) Check that the power cable is connected; 2) The rear panel of the power supply is turned on.
