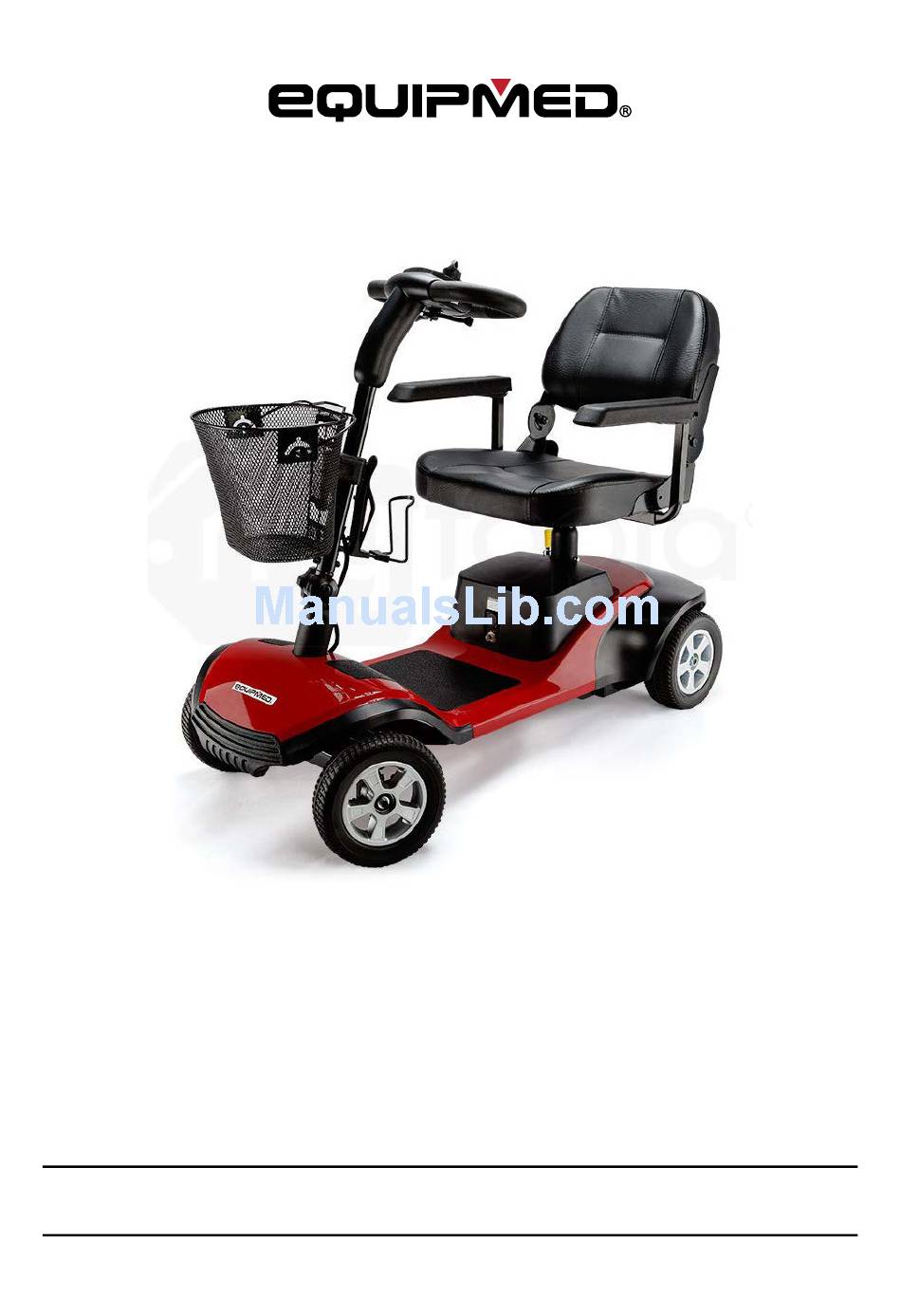

Electric Mobility Scooter –
FreeRoam
User Manual
[Revision 2.0 May 2017]
READ THIS MANUAL CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE – FAILURE TO DO SO
MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • Products covered by this manual
may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2017 Equipmed
Advertisement
Table of Contents
Related Manuals for equipmed FreeRoam
Summary of Contents for equipmed FreeRoam
-
Page 1: User Manual
READ THIS MANUAL CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE © 2017 Equipmed... -
Page 2: Safety
Electric Mobility Scooter – FreeRoam Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or... -
Page 3: Table Of Contents
Electric Mobility Scooter – FreeRoam Table of Contents Safety ..............................2 Assembly and Disassembly ......................4 Assembly ..............................4 Disassembly ............................... 4 Operation ............................5 Tiller Console Components ........................5 Key Switch ............................5 Throttle Control Lever .......................... 5 Horn Button ............................5 Battery Condition Meter ........................ -
Page 4: Assembly And Disassembly
Electric Mobility Scooter – FreeRoam Assembly and Disassembly Assembly To assemble the Scooter: 1. Loosen the tiller adjustment knob, raise the tiller to its desired position, and re-tighten the tiller adjustment knob. 2. Turn the tiller lock knob to its UNLOCKED position. -
Page 5: Operation
Electric Mobility Scooter – FreeRoam Operation Tiller Console Components The tiller console houses all controls needed to drive your Scooter, including the key switch, throttle control lever, horn button, speed adjustment dial, and the battery condition meter. See image below. -
Page 6: Lower Tiller Components
Electric Mobility Scooter – FreeRoam Lower Tiller Components Tiller Adjustment Knob Your Scooter is equipped with an adjustable pivoting tiller that you can position to maximize your ergonomic comfort. To use the tiller adjustment knob: 1. While supporting the tiller, turn the tiller adjustment knob counter clockwise to loosen the tiller. -
Page 7: Rear Section Components
Electric Mobility Scooter – FreeRoam Rear Section Components The manual freewheel lever, anti-tip wheels, motor/transaxle assembly, and charging system components are located on the rear section of your Scooter. See image below. Manual Freewheel Lever Whenever you need or want to push your Scooter for short distances, you can put it in freewheel mode. The manual freewheel lever is located at the top right of the rear section. -
Page 8: Charger Power Cord Receptacle
Electric Mobility Scooter – FreeRoam Charger Power Cord Receptacle The Scooter’s 3-pin off-board charger cord plugs into this receptacle. See image below. Off-Board Battery Charger The off-board battery charger, when plugged into the charger power cord receptacle and a standard electrical outlet, charges the Scooter’s batteries. -
Page 9: Charging Precautions
Electric Mobility Scooter – FreeRoam To check the battery strength during charging, you must first unplug the charger power cord and turn on your Scooter. Charging Precautions PROHIBITED! Never use an extension cord to plug in your battery charger. Plug the charger directly into a properly wired standard electrical outlet. - Page 10 Electric Mobility Scooter – FreeRoam Follow these easy steps to charge your batteries safely: 1. Position your Scooter close to a standard electrical outlet. See image below. 2. Remove the key from the key switch. 3. Make certain that the manual freewheel lever is in drive mode 4.
-
Page 11: Maintenance
Electric Mobility Scooter – FreeRoam Maintenance Your Scooter requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance with an authorised Service Centre. -
Page 12: Proper Disposal Of Your Scooter
Electric Mobility Scooter – FreeRoam • Avoid storing your Scooter where it will be exposed to temperature extremes. WARNING! Always protect batteries from freezing temperatures and never charge a frozen battery. Charging a frozen battery can result in damage to the battery. - Page 13 Electric Mobility Scooter – FreeRoam Flash 5 Possible Fault Action Park Brake Fault Either a park brake release switch is active or the park brake is faulty. Check the park brake and associated connections and wiring. Ensure any associated switches are in their correct positions.
-
Page 14: Specifications
Electric Mobility Scooter – FreeRoam Specifications Model FreeRoam Material Durable easy-clean vinyl Maximum Safe Slope 8° Maximum Climbing Ability 8° Turning Radius 140cm Speed (Maximum) Variable up to 7km/h Range per Charge Up to 16km Motor 24volt DC motor Weight Capacity... - Page 15 ©2017 Equipmed. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
