PIRO MINI Quick Start Guide V

First: understanding PIRO MINI

PIRO MINI Smart Gimbal is is an excellent mobile phone shooting stabilization equipment.

equipped with high-precision three axis PTZ, integrates advanced PTZ autostability algorithm,

Through use of this equipment, users enable the mobile phone to capture the clear and stable

image and video in a moving environment. Products can be connected with "Areox Play" APP by

Bluetooth, and then achieve face recognition, target tracking, 9 square capturing,

180°/360°panoramic capture and other innovative capture features, making application scenarios

of the product more rich.

Second: Download and Install "AreoX Play" App

When using this device in the first time, users need to install the corresponding official APP in

their intelligent mobile phone.

IOS users search "Areox Play" in App Store, then download and install it.

Android users search for "Areox Play" in Google Play or Baidu application market, download

it and install it.

Or visit the official website: www.areox.com. Download Android APP on the page of PIRO

PIRO Quick Start Guide V1.2

1.2

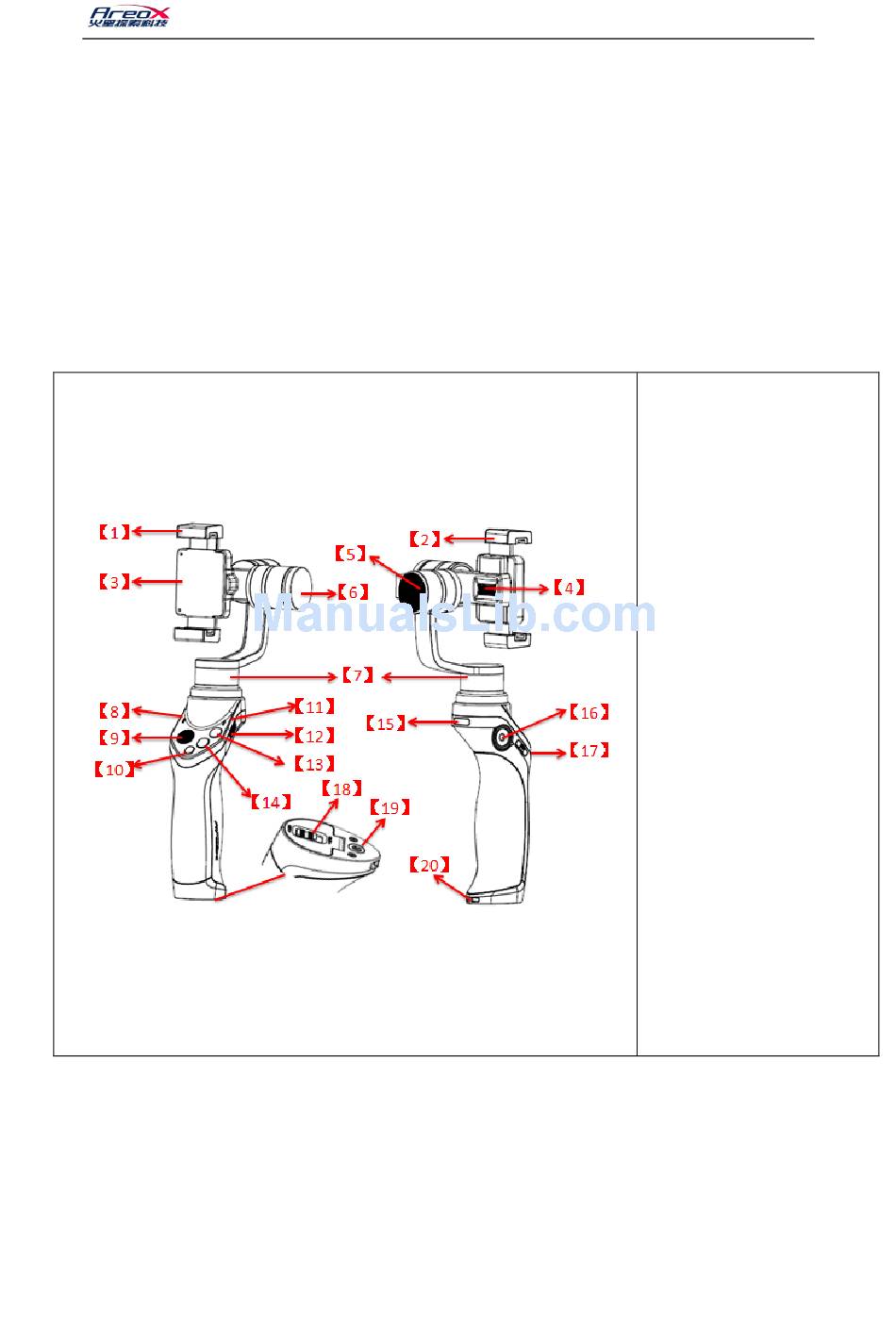

1. Front fill light

2. Back fill light

3. Phone holder

4. Phone bracket locking

5. roll motor

6. Pitch motor

7. Heading motor

8. Mode indicator

9. Rocker

10. Mode key

11. Power indicator

12. Focusing and push rod

13. Photograph key

14. Record Video key

15. Charging port

16. side

17. Power switch

18. Battery bottom cover

19. Bottom screw peripheral

20. Lanyard hole

knob

for adjusting and filling

light

screw

peripheral

interface

Table of Contents

Need help?

Do you have a question about the PIRO MINI and is the answer not in the manual?

Questions and answers

Summary of Contents for Areox PIRO MINI

Page 1 Through use of this equipment, users enable the mobile phone to capture the clear and stable image and video in a moving environment. Products can be connected with "Areox Play" APP by Bluetooth, and then achieve face recognition, target tracking, 9 square capturing, 180°/360°panoramic capture and other innovative capture features, making application scenarios...
Page 2 After completing the installation of battery, you shall install the mobile phone on the device. Under the condition that the PIRO MINI power supply is off, adjust the locking knob of the mobile phone support, so that the mobile phone can...
Page 3 1. Start the mobile phone Bluetooth, and remove the phone screen rotation lock, so that the phone can display with transverse screen. 2. Adjust the balance of mobile phone, and start the PIRO MINI power, then waiting for PTZ powered to maintain balance.
Page 4 Seventh: Handle Operation There are a power switch, a light focusing button and fill light key on the side of PIRO MINI handle. And there are joystick keys, photograph key, video key and mode selection key in the front.
Page 5 PIRO Quick Start Guide V1.2 Eighth: APP interface operation When the phone APP connects with PIRO MINI Bluetooth, the shooting interface appears. At this time, you can read product power and current main mode of operation on the interface. Through the APP, you can select modes, take pictures and camera shooting, switch front and rear facing cameras, alter camera settings, view the library and so on.
Page 6 APP interface of the latest version. If some basic settings in the APP are not explained, users can experience by themselves. ◆To understand all the information and functions of the PIRO MINI robot, please refer to the PIRO MINI User Manual.
