Summary of Contents for Tibo Smart Amp

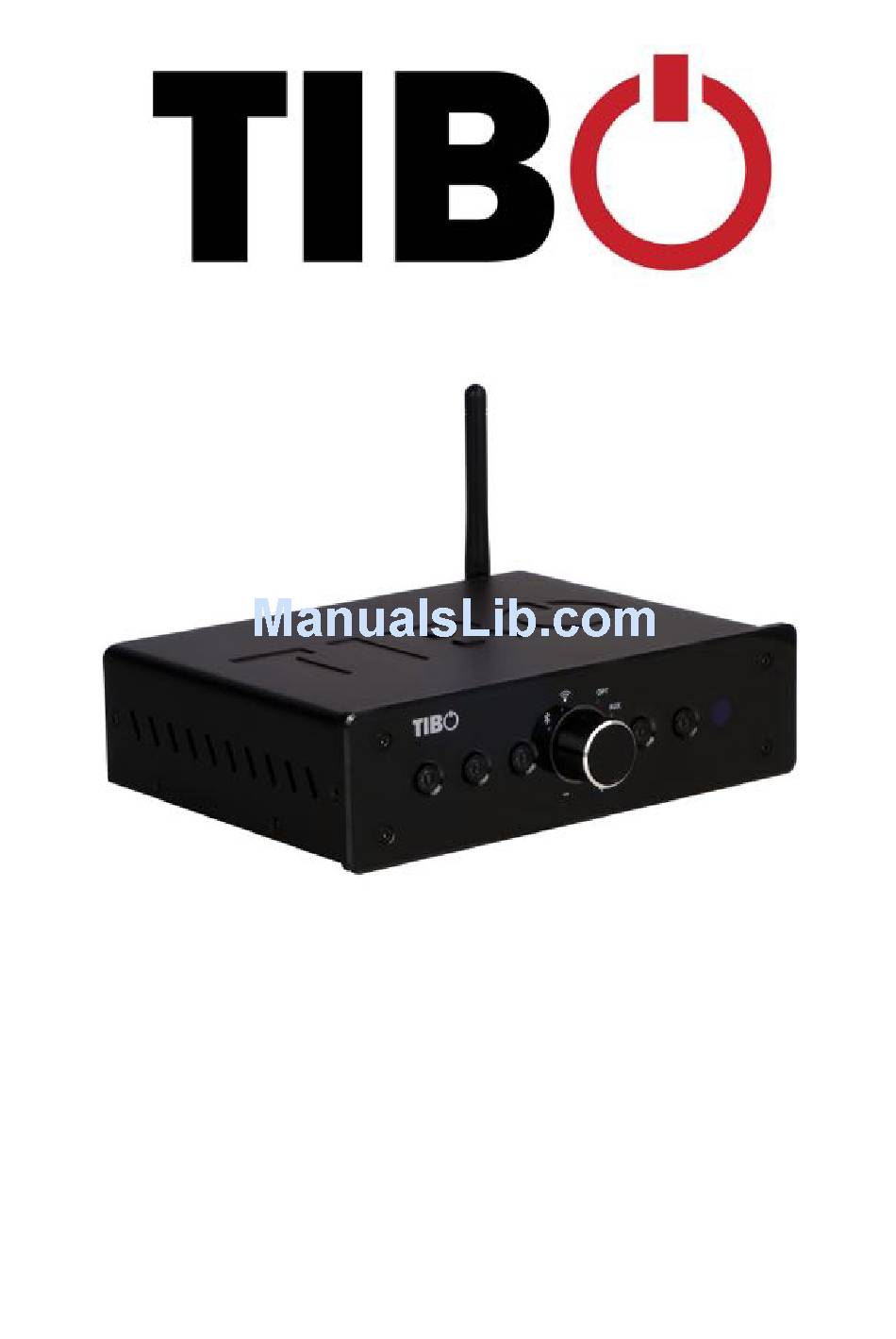

  • Page 1 Smart Amp – User Manual...

  • Page 2: Table Of Contents

    Contents • Safety Information • Introduction • First time setup • Wi-Fi mode • Solo mode and group mode • Using the pre-set functions • Bluetooth mode • Aux In mode • Optical mode • Connecting a subwoofer • Additional Information •...

  • Page 3: Safety Information

    • Safety Information Do not share the power socket with another appliance. Do not disassemble or attempt to repair the appliance on your own. lf you are not using the appliance, pull the power cord out of the mains socket. Be careful of the power cord and maintain it as appropriate.

  • Page 4: Installation Location

    Do not wash the appliance or use it in the bathroom, or it may cause potential injuries and other problems. Installation location Leave sufficient space around the appliance of at least 5 cm from any wall/obstacle to ensure proper ventilation and prevent the appliance from overheating.
  • Page 5 Storm lf the appliance is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute. Do not drop small items or a liquid into the appliance In the event that you find small items or a liquid inside the appliance, you see smoke or smell an odour, immediately disconnect the appliance from the power grid.

  • Page 6: Introduction

    We hope that your experience with the Smart Amp will be enjoyable for many years to come. Old and new technology combine to create the world’s first Smart Amp. TIBO Smart Amp is a class D mini amp with big sound, can stream music Wi-Fi or Bluetooth.

  • Page 7: First Time Setup

    First time setup • In the box - Smart Amp - UK Standard Plug - EU Standard Plug - Quick Start Guide - Remote Control Front panel layout Pre-sets 1-5 Power on/off, volume and mode selector dial Remote sensor...
  • Page 8 Rear panel layout Antenna WPS button AUX in L/R SUB out Optical input Speaker output – L/R Power input On/Off switch...

  • Page 9: Remote Control

    Remote control 1. Power on/off 2. Mute 3. Skip track forward/backward 4. Pre-sets 1-5 5. Mode select 6. Volume up/down 7. Play/pause 8. Light bulb – Change colour of the our ring surrounding central dial...
  • Page 10 2. Connect the appropriate power cord to the power input port on the rear of the Smart Amp. Then turn on the Smart Amp by pressing the on/off switch to 3. The Smart Amp will respond by saying “Power on”...
  • Page 11 With the TIBO app you can: • Browse and connect to over 15000 internet radio stations • Select a sound source • Manage Multi Mode groups • Set up, modify, and play your pre-sets • Check what song or other media is currently playing •...

  • Page 12: Wi-Fi Mode

    “Wi-Fi mode” or press the mode select button on the remote control. 2. Open the TIBO app on your Android or iOS device and follow the instructions on screen. 3. Once opened, if your TIBO app has no devices connected to it, the screen should look like this.
  • Page 13 5. Find your Wi-Fi network, type in your password and then press ‘Next’. 6. Short press the WPS button on the rear of the Smart Amp. The amp will respond by saying “Searching for Wi-Fi connection.” Then press ‘Next’...
  • Page 14 7. Then wait for the Smart Amp to connect to your Wi-Fi. When connected, the Smart Amp will respond by saying “Wi-Fi connected. Then press ‘Next.’ 8. You can now name your Smart Amp within the app. Either select from the list of pre-set options or click on custom to set your own name.
  • Page 15 9. Your Smart Amp will now appear on your ‘Device List’ within the app. To add more devices, press the ‘cross’ icon in the top right of the screen.
  • Page 16 Playing music via Spotify 1. Play some music in Spotify. 2. Click on ‘Devices Available’ at the bottom of the screen on Spotify. 3. Find your Smart Amp on the list and connect.
  • Page 17 Playing Internet Radio and My Music Swipe left and right to navigate between each page of the app. Click on ‘My Music’ to play music from your device or click ‘TuneIn’ to search for thousands of internet radio station.
  • Page 18 ‘Device List’ and drag it on top of another speaker. 3. When grouped together, the Smart Amp will respond by saying “group mode.” There will also be a white line on the app to show the connection of grouped speakers.

  • Page 19: Using The Pre-Set Functions

    • Using the pre-set functions 1. On the main menu of the TIBO app, click on TuneIn and search for the radio station that you’d like to save as a pre-set. 2. Next to all the radio stations you will see a...

  • Page 20: Bluetooth Mode

    The Smart Amp will respond by saying “pre-set saved.” 4. Press the corresponding number button on the Smart Amp to recall the pre-set. Bluetooth mode • 1. Hold the power/mode button to turn on. If performed correctly, Smart Amp will respond by saying “Power on.”...

  • Page 21: Aux In Mode

    Smart Amp. When connected, the speaker will respond saying “Bluetooth connected.” 5. You can now play music to the Smart Amp via your device. • Aux In mode 1. Whilst the Smart Amp is turned off, connect a 3.5mm jack cable to the ‘Line in’...

  • Page 22: Optical Mode

    2. Turn on your Smart Amp and press the mode button until Optical mode is selected. Smart Amp will respond by saying “Optical mode.” 3. You can now play music to the Smart Amp via your source. • Connecting a subwoofer 1.

  • Page 23: Additional Information

    2. Factory reset: Pressing the WPS button will make the Smart Amp search for a Wi-Fi connection. However if you HOLD the WPS for 5 seconds, the Smart Amp will restore itself to factory settings.

  • Page 24: Troubleshooting

    Wi-Fi - Product too far away from router Cannot connect to router - Ensure router is dual band, as TIBO products only connect with 2.4GHz and NOT 5GHz Product dropping in and out - Source is too far away...

  • Page 25: Specifications

    • Specifications Product name Smart Amp Power supply AC 100-240V Max output power 2 x 50W Frequency response 20Hz – 20kHz Impedance 4 ohms Bluetooth range 10 meters Dimensions 190 x 139 x 52mm Weight 1.3kg Sound resolution 24 bit/192kHz The Bluetooth®...
