System Requirements
• Computer with USB port (USB 2.0 or higher)
• Pentium-class computer or notebook
(500 MHz or higher)
• Installation in Microsoft Windows 10,
Windows 8/7 (32-bit and 64-bit edition),
Windows Vista (32-bit edition)
Customer Service
• Manual
en.avm.de/service/manuals/fritzwlan
• Service
en.avm.de/service
• Support
en.avm.de/service/support-request/
your-support-request
• Download en.avm.de/service/downloads
en.avm.de
© AVM GmbH · Alt-Moabit 95 · 10559 Berlin · Germany · Telephone +49 30 39976-0 · info@avm.de
Technical Specifi cations
• Compatible with 802.11n (300 Mbit/s),
802.11g,a (54 Mbit/s), 802.11b (11 Mbit/s)
• With 802.11n up to 300 Mbit/s (gross) for
wireless high-speed access (LAN/DSL); the actual
user data rate will be somewhat lower
• Maximum wireless LAN security with WPA2
(802.11i), or alternatively, WPA, WEP (128/64)
• WPS (Wi-Fi Protected Setup): simple wireless LAN
confi guration with compatible remote sites
• Stick & Surf: Simple adoption of wireless LAN
settings from AVM FRITZ!Box products with a
USB port
Configuration
figuration
and Operation
Operation

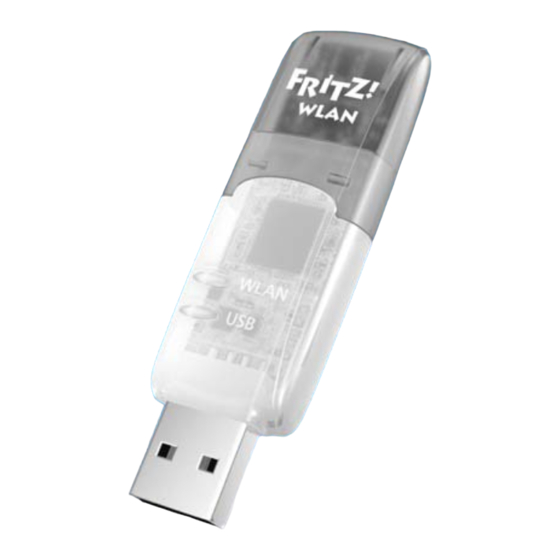

FRITZ!WLAN
USB Stick N
Advertisement
Table of Contents
Related Manuals for FRITZ!WLAN Stick N
Summary of Contents for FRITZ!WLAN Stick N
- Page 1 FRITZ!WLAN USB Stick N System Requirements Technical Specifi cations • Computer with USB port (USB 2.0 or higher) • Compatible with 802.11n (300 Mbit/s), 802.11g,a (54 Mbit/s), 802.11b (11 Mbit/s) • Pentium-class computer or notebook (500 MHz or higher) • With 802.11n up to 300 Mbit/s (gross) for wireless high-speed access (LAN/DSL);...
- Page 2 PDF manual available on our website at en.avm.de/service. The FRITZ!WLAN USB Stick N is a wireless LAN device for the USB port. At your com- puter’s USB port it can establish wireless connections to a wireless access point or direct connections to other wireless devices.
- Page 3 WPS Quick Connection and Manual Connection (Page 6) 4. Insert the FRITZ!WLAN USB Stick N in The FRITZ!WLAN USB Stick N can be connected with the wireless access point your booted computer. via WPS. WPS (Wi-Fi Protected Setup) is a fast and simple way to establish a Flashes briefl...
- Page 4 Establishing a Wireless Connection Using WPS 4. Select the wireless network of a wire- The FRITZ!WLAN USB Stick N can establish wireless connections to wireless LAN access less access point and click Connect. Entering points with WPS. If a participating wireless LAN device does not support WPS, the...
- Page 5 LAN station and enables simple, direct data The FRITZ!WLAN software is installed on your computer along with the FRITZ!WLAN USB exchange. The network is set up by one of the wireless LAN devices; the other partici- Stick N.
- Page 6 The best transmission speeds can be achieved by operating your wireless access point in the 5-GHz frequency band. The 5-GHz band is subject to less interference and The licensing conditions valid for the FRITZ!WLAN USB Stick N are stipulated in the provides more channels for transmission than the 2.4-GHz frequency band.
