GRx Diagnostics TD-1241 Owner's Manual

Forehead thermometer pro
Hide thumbs
Table of Contents

Advertisement

Quick Links

Forehead Thermometer Pro (TD-1241)
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD-1241 and is the answer not in the manual?

Questions and answers

Summary of Contents for GRx Diagnostics TD-1241

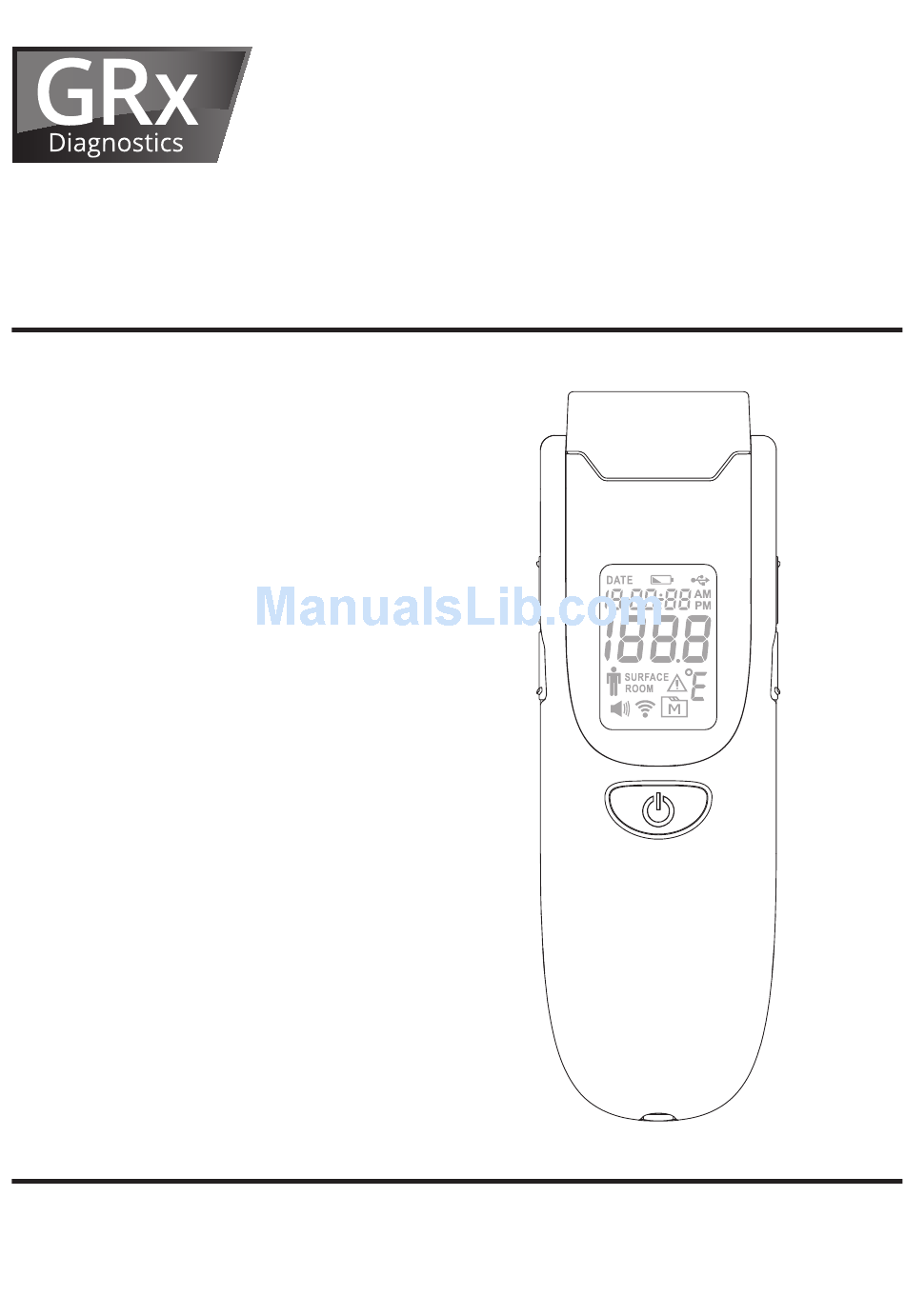

  • Page 1 Forehead Thermometer Pro (TD-1241) Owner’s Manual...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ THIS BEFORE USING The following basic safety precautions should always be taken. 1. Close supervision is necessary when the thermometer is used on children or handicapped persons. 2. Use the thermometer only for the intended use described in this manual.
  • Page 4 TABLE OF CONTENTS CAUTIONS AND WARNINGS RESTRICTIONS OF USE INTRODUCTION HIGHLIGHTED FEATURES PACKAGE CONTENTS THERMOMETER PARTS DISPLAY SCREEN DISPLAY MODE SETTING THE THERMOMETER REPLACING THE BATTERIES ABOUT NORMAL BODY TEMPERATURE & FEVER USING THE DEVICE As a Body Scan Thermometer As a Surface Scan Thermometer As a Room Scan Thermometer RECALLING THE MEMORY...

  • Page 5: Cautions And Warnings

    (-4°F to 140°F) and relative humidity less than 95% Avoid direct sunlight. Avoid dropping the thermometer; if it happens and you think the thermometer may be damaged, please contact GRx Diagnostics immediately. Do not touch the lens. Do not disassemble the thermometer.

  • Page 6: Introduction

    INTRODUCTION Thank you for choosing GRx Forehead Thermometer Pro. Please read this instruction manual first so you can use this thermometer safely and correctly. Please keep this instruction manual for future reference. This innovative medical device uses advanced infrared (IR) technology to measure temperature instantly and accurately on the forehead/surface/rooms.

  • Page 7: Highlighted Features

    HIGHLIGHTED FEATURES Fast and accurate: meets the accuracy requirement specified in ASTM E1965-98 and the EC directive 93/42/EEC. Non-contact measurement that does not require probe cover, thereby saving cost of replacement. Automatically power off if left idle for 30 seconds. Memory function allows you to recall up to 30 previous results.

  • Page 8: Thermometer Parts

    THERMOMETER PARTS °C / °F Button SET Button Probe Display Screen On/Scan Button MODE Button MEM Button Battery Cover Bluetooth Indicator DISPLAY SCREEN Low battery indicator Date indicator Date/Time Temperature reading Body temperature indicator Object surface temperature indicator Room temperature indicator Memory mode Temperature unit Error warning...

  • Page 9: Display Mode

    DISPLAY MODE Three modes can be selected. 1. Body mode This mode is used to measure the forehead temperature. It also provides a clock. 2. Surface mode This mode is used to measure the object surface temperature. It also provides a clock. 3.

  • Page 10: Setting The Thermometer

    SETTING THE THERMOMETER You will need to set the time for first-time use or after replacing the batteries. Step 1 Press the to turn on the thermometer first. Press for 5 seconds to enter the setting mode. Step 2 Set the date and time Press the Mode or °C / °F button to select the correct month.

  • Page 11: Replacing The Batteries

    NOTE If the meter is left idle for 30 seconds during the setting mode, it will switch off automatically. REPLACING THE BATTERIES The thermometer comes with two 1.5 V AA alkaline batteries. The meter will display “ ” to alert you when the meter power is getting low.

  • Page 12: About Normal Body Temperature & Fever

    ABOUT NORMAL BODY TEMPERATURE & FEVER Body temperature can vary from one individual to the next. It also varies by location on the body and time of day. The below table shows the statistical normal ranges from different sites. Please keep in mind that temperatures measured from different sites, even at the same time, should not be directly compared.

  • Page 13: Select The Temperature Unit

    SELECT THE TEMPERATURE UNIT This meter provides two measurement units for indicating the body / surface / room temperature, °C or °F. Step 1 Press the to turn on the thermometer first. Step 2 Press the °C / °F button to select your preferred temperature unit. Press to begin measurement or keep the meter idle for 30 seconds so it automatically turns off.

  • Page 14: Using The Device

    USING THE DEVICE As a Body Measurement Thermometer Step 1 Remove the front protective cap if present. Press to turn on the thermometer. Step 2 Press the Mode button for 5 seconds to enter the display mode to select Body mode.
  • Page 15 NOTE As the forehead measurement temperature is likely to be affected by sweat, oil and the surroundings, the reading should be taken as a reference only. If the probe is placed at an angle close to the forehead measurement, the reading will be affected by the surrounding temperature.
  • Page 16 Step 3 Move the probe close to the object surface. Press and hold . Make sure the probe is flat and close to the object surface, not at an angle. Perform an object measurement within a distance of 5 cm. Step 4 Read the result.
  • Page 17 Step 2 Press the Mode button for 5 seconds to enter the display mode to select Room mode. The Room temperature indicator “ ” flashes. Step 3 Press and hold the On/Scan button. The built-in sensor inside the thermometer will capture the ambient room temperature automatically.

  • Page 18: Recalling The Memory

    RECALLING THE MEMORY Your thermometer stores the 30 most recent readings Step 1 Ensure the thermometer is OFF before recalling the memory. Step 2 Press to turn on the thermometer. Step 3 Press the MEM button to enter the memory mode. Each time you press the MEM button, a result will be displayed in the order of dates...

  • Page 19: Bluetooth Pairing

    Step 4 Exit the memory. Press the ON/SCAN button to return to the measurement mode, or keep the meter idle for 30 seconds in the memory mode; it will switch off automatically. BLUETOOTH PAIRING You can transmit data from the thermometer to your devices via Bluetooth.

  • Page 20: Care & Cleaning

    Bluetooth indicator on the meter BLUETOOTH STATUS INDICATOR The Bluetooth function is on and waiting Flashing Blue for connection. Solid Blue The Bluetooth connection is established. NOTE 1. While the meter is in transmission mode, it is unable to perform a test. 2.

  • Page 21: Troubleshooting

    The table below shows problems you may encounter. All error messages below would be shown together with a backlight. Please follow “What to do” to resolve problems. If the problem still exists, please contact GRx Diagnostics for help. Message What it means...

  • Page 22: Specifications

    SPECIFICATIONS Model no. TD-1241 150mm(L) x 48.48mm(W) x Dimensions 55.16mm(H) 76.5 g Weight (without 2 x1.5V AA batteries) Battery 2 x 1.5 V AA alkaline batteries forehead: 22°C to 44°C (71.6°F to 111.2°F) surface mode: 0 to 100°C (32°F to Displayed temperature range 212°F)

  • Page 23: Symbol Information

    SYMBOL INFORMATION Symbol Referent Consult instructions for use Manufacturer Serial number Caution, consult accompanying documents Type BF Equipment Authorised representative in the European Community Collection for electrical and electronic equipment Temperature limitation Humidity limitation CE mark Ingress protecting rating REFERENCE STANDARDS Device Standard: Device Corresponds to the requirements of the standard for infrared ther- mometers.
  • Page 28 Distributed by GRx Diagnostics 4 Wintonlea, Monument Way West, Woking, Surrey, GU21 5EN, UK Website: www.grxdiagnostics.co.uk Customer careline: 01483 755133 TaiDoc Technology Corporation B1-7F, No. 127, Wugong 2nd Rd., Wugu Dist., 24888 New Taipei City, Taiwan www.taidoc.com MedNet GmbH Borkstraβe 10, 48163 Münster - Germany...
