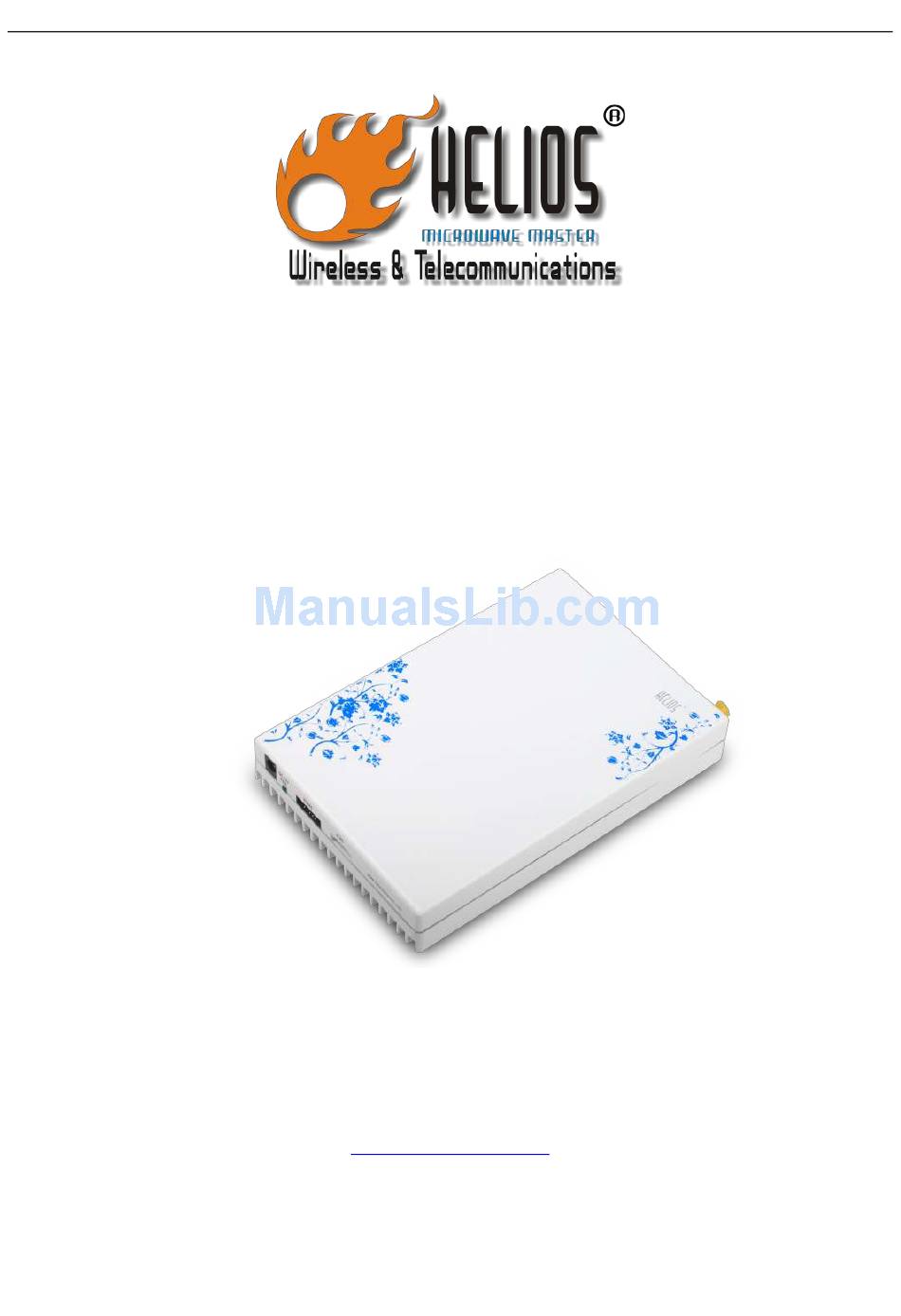

Helios Digital TD-LTE ICS Pico Repeaters ® TD-LTE 2300MHz / TD-LTE 2500MHz / TD-LTE 2600MHz User Manual Fujian Helios Technologies Co., Ltd. www.heliostelecom.com... - Page 2 Contents Copyright ..........................................3 Disclaimer ..........................................3 Warning ............................................4 Overview ..........................................5 Illuminating ........................................... 5 Product Overview ....................................... 6 Main Features ........................................6 Application Diagram ......................................7 Technical Specification ..................................... 7 Typical Applications ......................................9 Optional Accessories ......................................9 Installation ..........................................
-
Page 3: Copyright
Copyright © Copyright Helios Telecom. All rights reserved. The copyright of this document is owned by Fujian Helios Technologies Co., Ltd. without the prior written permission obtained from Fujian Helios Technologies Co., Ltd., this document shall not be reproduced and excerpted in any form or by any means, stored in a retrieval system, modified, distributed and translated into other languages, applied for a commercial purpose in whole or in part. -
Page 4: Warning
Fujian Helios Technologies Co., Ltd. Warning The product has been tested and found to comply with the Federal Communications Commission(FCC) RF Exposure Requirements,pursuant to FCC Part 27. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5dB,especially where the output signal is re-radiated and can cause interference to adjacent band users. -
Page 5: Overview
Fujian Helios Technologies Co., Ltd. Thanks for choosing Helios Pico Repeaters, please read the User Manual carefully before using the repeater. 1 Overview TDD-LTE, also known as TD-LTE, was adopted as the evolution of choice for TD-SCDMA, China’s 3G standard. Compare with LTE FDD, LTE TDD uses a different approach, a single frequency sharing the channel between transmission and reception, spacing them apart by multiplexing the two signals on a real time basis. -
Page 6: Product Overview
Fujian Helios Technologies Co., Ltd. 3 Product Overview A. DC-12V: Connect to AC/DC power adapter, input voltage is +12VDC B. PWR indicator: Green LED for power supply indicator C. RS485 port: Connect to laptop via RS485 cable for local control D. -
Page 7: Application Diagram
Fujian Helios Technologies Co., Ltd. is 1. Configurable field length of DwPTS/GP/UpPTS by software (0 to 8). Both support Normal CP (Cyclic Prefix) and Extended CP. Innovative Digital Filtering and advanced baseband algorithms in SDR to provide accurate AGC, MGC and Power Control for each time slot with minimum time delay. - Page 8 Fujian Helios Technologies Co., Ltd. ≤-14dBm 5.05MHz~10.05MHz ≤-15dBm 10.05MHz~offset-max ≤-36dBm@RBW100KHz 9kHz ～1GHz Spurious Emissions ≤-30dBm@RBW1MHz 1GHz ～12.5GHz 5MHz > 20dB ACRR 10MHz > 20dB Output Intermodulation ETSI TS 136 106 -90～-40dBm Synchronization Range Maximum Input Power -10dBm, 1 minute Input Power Detection Detection Range for each time slot: -80dBm～-20dBm Output Power Detection Detection Range for each time slot: -20dBm～+15dBm...
-
Page 9: Typical Applications
Fujian Helios Technologies Co., Ltd. 7 Typical Applications Office, mini basement and so on. Meeting room, supermarket, marketplace and so on. Pub, net bar, dance hall, coffee hall, health club, entertainment place, house, office plant, yacht, public security system and so on. 8 Optional Accessories Yagi Antenna Arrester... -
Page 10: Commissioning
Fujian Helios Technologies Co., Ltd. 10 Commissioning 1) Plug in the AC/DC power adapter to the nearest 120VAC mains socket, and connect the DC output port to the DC-12V input port of TD-LTE ICS Pico Repeater. 2) Power On. 3) Check the green PWR LED indicator of TD-LTE ICS Pico Repeater should be light 4) The TD-LTE ICS Pico Repeater can run normally after above process. -
Page 11: Software Installation
Fujian Helios Technologies Co., Ltd. 11.3 Software Installation Click on TDDMATE_Setup_V4.2.exe as following: Click Next to install the software. Click Finish to finish the installation. 11.4 Log on Click shortcut TDDMATE on the desktop as following: Default User Name: admin Default Password: admin, click Enter to log on www.heliostelecom.com... - Page 12 Fujian Helios Technologies Co., Ltd. Administrator: has the right to set and query information. The administrator username and password are available to set from Tool / Management sub-menu. After successful logon, it will enter into the main windows of TDDMATE LCT Software V4.2, and shows the default page of “Basic Info”.
-
Page 13: Basic Info
Fujian Helios Technologies Co., Ltd. 11.5 Basic Info This window shows basic information of TD-LTE ICS Pico Repeater. TDD Switch Method: There’re four options: UL Off/DL On, UL On/DL Off, UL Off/DL Off and Normal Carrier Selection Mode: Manual/Automatic. ... -
Page 14: Alarm Info
Fujian Helios Technologies Co., Ltd. Device has been detected on the COMx port, the baud rate is 9600bps: When the software is open, it will automatically search available COM port and check if it’s connected to valid TD-LTE ICS Pico Repeater. “Device has been detected on the COMx port, the baud rate is 9600bps”... -
Page 15: Advance
Fujian Helios Technologies Co., Ltd. Timeslots: Timeslot number. Input Power: Input power of the timeslot in dBm. Output Power: Output power of the timeslot in dBm. LNA ATT: LNA attenuation in dB. DSP ATT: DSP attenuation in dB. ... - Page 16 Fujian Helios Technologies Co., Ltd. TDD Switch Mode: Including 4 modes of Uplink Off/Downlink On, Uplink On/Downlink Off, Uplink Off/Downlink Off and Normal Carrier Selection Method: Manual/Automatic Manual Locked Carrier: Lock the carrier from the Carrier List ...
-
Page 17: Hardware
Fujian Helios Technologies Co., Ltd. DwPTS UpPTS DwPTS UpPTS Total ATT: Total system attenuation ICS Enable: Switch on/off ICS function Carrier List: It supports up to 5 carriers (default working bandwidth is 20MHz which can be customized) in the carrier list which can be customized. It’s used for carrier scanner ... -
Page 18: Setup Wizard
Fujian Helios Technologies Co., Ltd. Hardware Information: Manufacture: default Helios, configurable Model No: Model number of the Pico Repeater 485 Address: default 00 Operator Code: PLMN code of the operator Protocol Version: NMS protocol version number ... - Page 19 Fujian Helios Technologies Co., Ltd. Wizard Mode: Automatic: In automatic mode, it will scan and lock on the strongest carrier according to the carrier list, users no need to do anything. However the locked carrier maybe not the target carrier which users want to use ...
- Page 20 Fujian Helios Technologies Co., Ltd. The 2 Step: Detection of Channel Parameters It supports up to 5 carriers (default working bandwidth is 20MHz which can be customized) in the carrier list which can be customized List from Intelligent Carrier Scanner: Click this button to get detailed information of all carriers within the carrier list ...
- Page 21 Fujian Helios Technologies Co., Ltd. The 4 Step: Set the Uplink/Downlink Allocation As per 3GPP standard, there’re 7 kinds of Uplink/Downlink Allocations as following: Uplink-Downlink Allocations Subframe number UL/DL Period Configuration (ms) Users should select appropriate configuration number according to BTS’ configuration ...
- Page 22 Fujian Helios Technologies Co., Ltd. The 6 Step: Set the Special Subframe As per 3GPP standard, there’re 9 kinds of Special Subframe configuration as following: DwPTS/GP/UpPTS length (OFDM symbols) Normal CP(Cyclic Extended CP(Cyclic Prefix) Prefix) Format DwPTS UpPTS DwPTS UpPTS Users should select appropriate configuration number according to BTS’...
- Page 23 Fujian Helios Technologies Co., Ltd. Helios® Single Band Digital TD-LTE ICSPico Repeater User Manual Edition 3.0 (August 2012) © 2012 Fujian Helios Technologies Co., Ltd. All rights reserved. Information in this guide is subject to change without notice. www.heliostelecom.com...
