Summary of Contents for Pure Blue H2O PB-1DCS2M114M

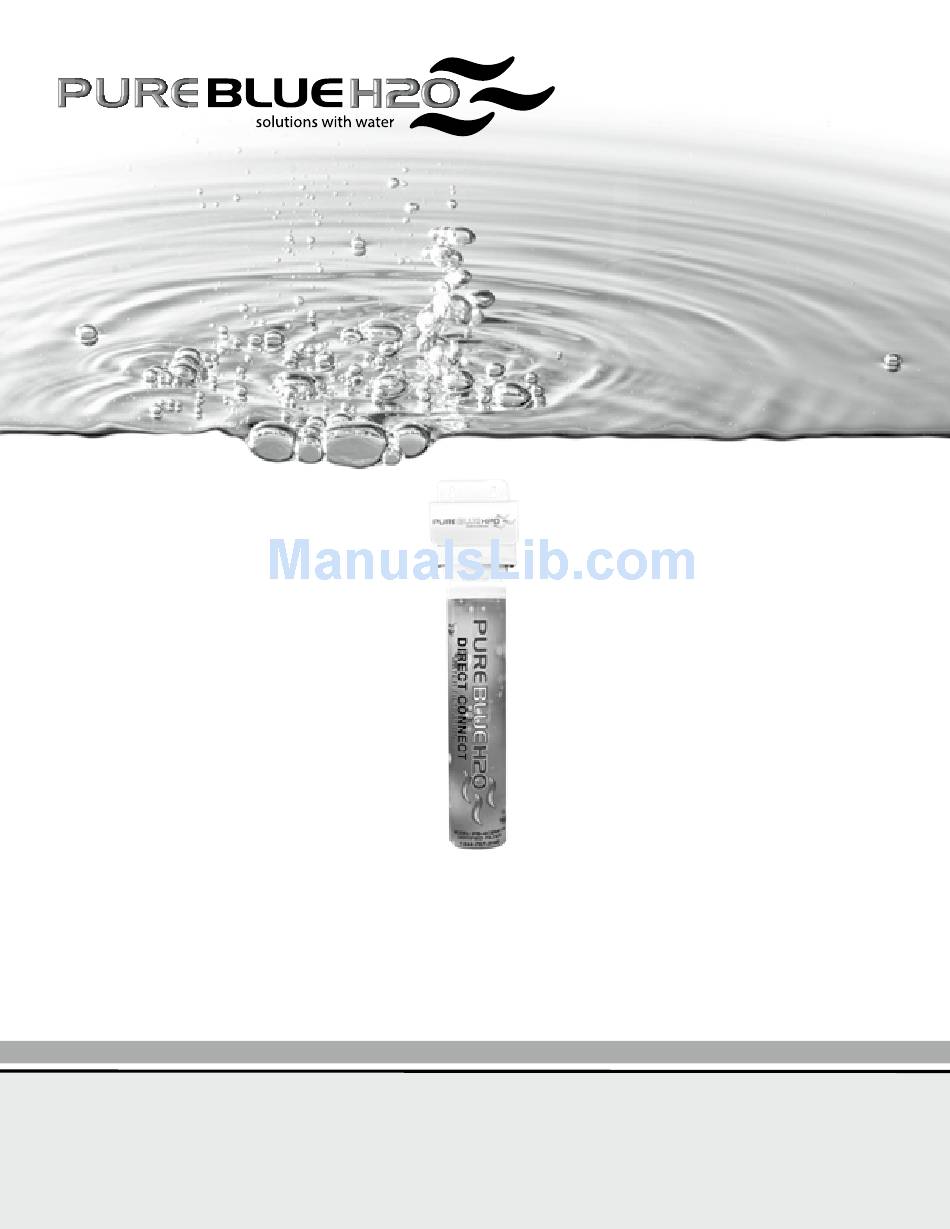

- Page 1 SINGLE STAGE DIRECT CONNECT WATER FILTRATION SYSTEM INSTRUCTION MANUAL for MODEL (s): PB-1DCS2M114M, PB-1DCS4M114M and PB-1DCS6M114M Pure Blue H2O, LLC 13813 Monroes Business Park Tampa, FL 33635 USA www.pureblueh2o.com • support@pureblueh2o.com (844) 787-3148 • (844) PURE-1-4-U 2017.11 #E1616...
-
Page 2: Operational Parameters
Operating Pressure: 100 psi (7.03 kg/cm 30 psi (2.11 kg/cm pH Parameters: Maintenance of System Replacement for Filters as follows: System Part Number Filter Part Number Replacement PB-1DCS2M114M PB-2CBM114 Every 6 months PB-1DCS4M114M PB-4CBM114 Every 6 months PB-1DCS6M114M PB-6CBM114 Every 6 months... - Page 3 REQUIRED TOOLS & MATERIALS • Phillips Head Screwdriver • Tape Measure • Adjustable Wrench • Safety Glasses • Utility Knife • Pencil • Drill and 1/8” Drill Bit • Pan or Bucket PACKAGE CONTENTS (A). System Head with Attachable Bracket Assembly (Mounting Bracket) (B).
-
Page 4: Specifications
SPECIFICATIONS System Part Number Certification Flow Rate (GPM) Capacity PB-1DCS2M114M 0.75 PB-1DCS4M114M 1.25 PB-1DCS6M114M 1.50 PRECAUTIONS • For cold water use only. Do not use on hot water line. • After prolonged periods of non-use (such as vacation) it is recommended that the system be flushed thoroughly. - Page 5 PREPARE SITE FOR INSTALLATION Prior to starting, close the cold water shut-off valve. NOTE: You must check and comply with all local plumbing codes. • Consult your local plumbing codes and install accordingly. • Position on cabinet wall in a space that provides easy access for future filter replacements and is within reach of water supply using tubing provided.
- Page 6 FILTER INSTALLATION NOTE: Mount the filter system to a solid cabinet or wall. If a solid surface is not available, use hollow-wall anchor bolts or toggle bolts (not included) to secure to the wall. May stand freely. 1. Turn off the cold water supply line, then turn on the kitchen faucet and allow water to drain from line.
- Page 7 6. Determine lengths of 3/8” tubing needed to connect the System Head inlet (white collet/tubing) and outlet (blue collet/tubing) to the water supply adapter (reference image left for inlet (white collet) and outlet (blue collet) location). Be sure to allow enough tubing to prevent kinking in the line.
- Page 8 USER’S INSTRUCTION MANUAL FOR ELECTRONIC MONITOR Reset Buzzer Hole Battery Tray Top Case Bottom Case 1 . INSTALLING BATTERIES To install the battery pull out the battery tray and insert the battery into the designated slot. NOTE: Battery size: CR2032 2.
- Page 9 FILTER REPLACEMENT INSTRUCTIONS NOTE: Preparing for filter removal, use a small pan, large bowl or towel to catch potential water drizzle from pressurized water in filter system. 1. Turn off incoming water supply from the cold water supply line. 2. Drain the excess cold water from the faucet supply line. a.
-
Page 10: Troubleshooting
TROUBLESHOOTING LEAKS BETWEEN THE SYSTEM HEAD ASSEMBLY AND THE FILTERS: 1. Turn off water supply to the filter system and dispense water from kitchen faucet until water and airflow stops. 2. Remove filter and inspect o-rings to make sure they are in place and clean. 3. - Page 11 (1) any part of the unit has been subjected to any type of tampering, alteration, or improper use after delivery, or (2) it has been repaired by someone not approved by Pure Blue H2O, LLC. Pure Blue H2O, LLC is not responsible for damage in transit.
- Page 12 Pure Blue H2O, LLC 13813 Monroes Business Park Tampa, FL 33635 USA www.pureblueh2o.com (844) 787-3148 • (844) PURE-1-4-U...
