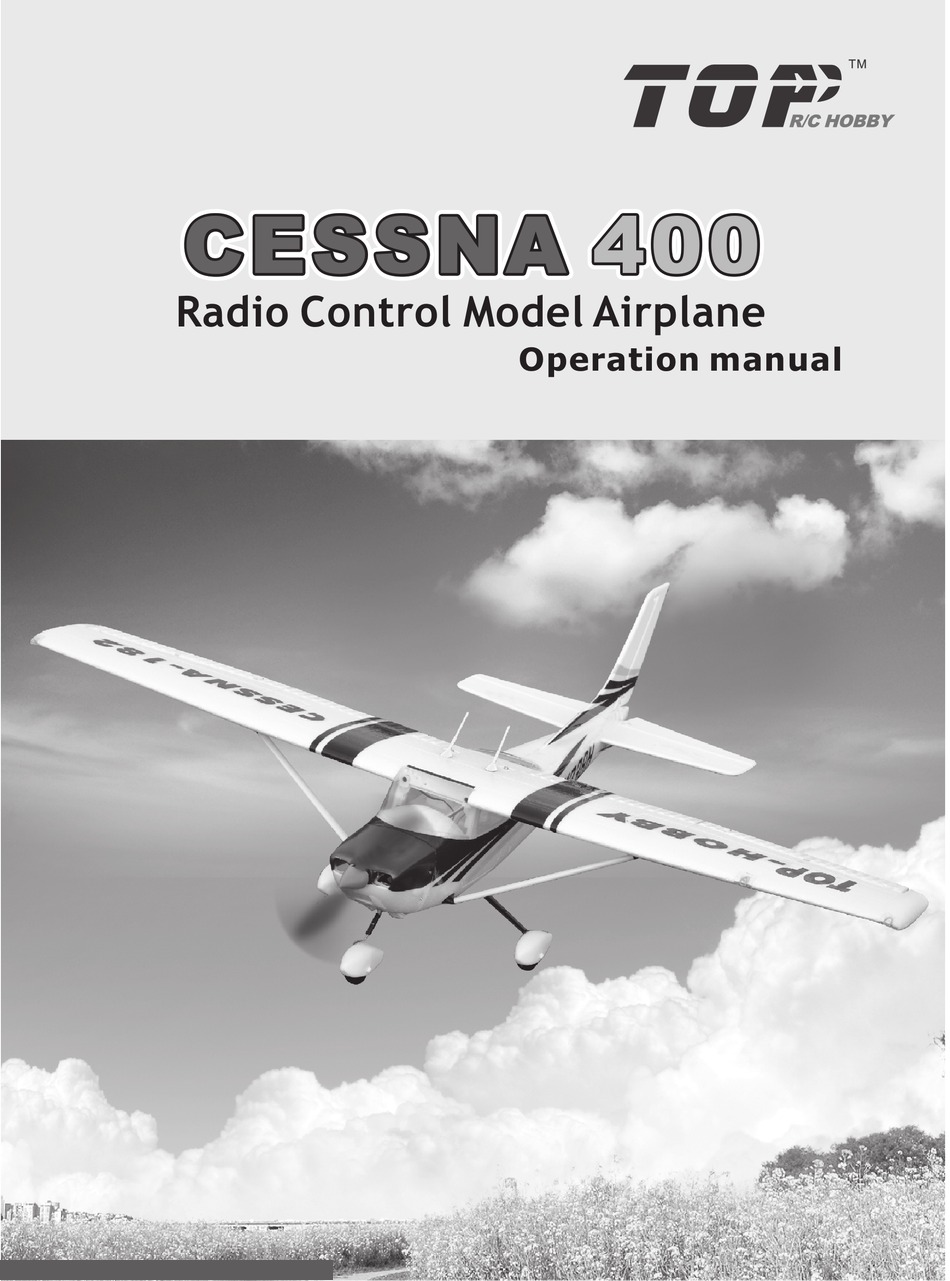

- Page 1 CESSNA 400 CESSNA 400 CESSNA Radio Control Model Airplane Operation manual...
- Page 2 8.Do not attempt to catch the plane when you are flying it. 9.The user should bear full responsibility of proper operation and usage with regards to this model.We, Top RC together with any distributor of us will not be responsible for any liability or loss due to improper operation.
-
Page 3: Brief Introduction
Brief introduction Thank you for purchasing the “ ” remote control model airplanes from Top RC, and we hope this plane will bring CESSNA endless joy to you after you choose it. ★ With the EPO foam materials, it is very light and strong;... -
Page 4: Assemble Processes
Assemble processes 1.Install the main landing gear Take of the fuselage& main landing gear&stopper& foam glue from the box.Assemble the main landing gear into the slot of the fuselage,and add the glue to the wooden stopper, then insert it into the slot.At last, lock the main landing gear. - Page 5 Assemble processes 4. Install the propellor Take of the cowling& propellor&nut&spanner from the box, please lock the propellor by the following pictures. 5.Finished the assembly of the Cessna.
-
Page 6: Adjustment S Teps
Adjustment steps 1.Turn on the transmitter , and please make sure that there is enough power for the transmitter. Push the joystick for throttle and throttle trim switch to the lowest position,and other trim switch should be in the neutral position. 2.Please make sure that the battery is full power ,and connect to the ESC plug , then install the battery into the battery case. - Page 7 Adjustment steps 5.Check the center of gravity and make sure that the CG of the plane should be within the range as indicated by the arrows. 45-48mm 6.Finished the adjustment for CESSNA Saftey precautions 1.If you have the simulator, we suggest that you can practise your skill by the simulator before you fly this model,which will bring some help for you.
-
Page 8: Charging Method And Cautions
Charging method and cautions Li-Po battery(balance changer) specifications Specifications: Input voltage: DC 10V~15V Output voltage:2S-3S Li-Po battery Charging current: 1.0A Indicator state: Green: Charge complete & no battery Red: Charging The batteries are inspected separately. When the voltage reaches 4.20V, the charging process stops. Operating Then plug cigarette into its socket in car (Adapter should be connected if charge at home: connect the adapter to home power... - Page 9 6. Do not drive a nail into the battery, strike it by hammer or tread it. 7. Do not impact or toss the battery. 8. Do not use the battery with conspicuous damage or deformation. 9. Do not charge a warm battery. Allow it to cool completely before attempting to charge. 10.
- Page 10 Spare parts No:top00401 No:top00412 No:top00402 No:top00413 No:top00403 No:top00414 ( blue) Fuselage(blue) Fuselage(red) Main wings(blue) Main wings(red) Canopy Canopy(red) No:top00406 No:top00404 No:top00415 No:top00405 spinner Tail wings(blue) Tail wings(red) Landing gear No:top00407 No:top00408 No:top00409 Propellor screws set foam glue No:top202 No:top505 No: op404 20A Brushless ESC 11.1V,1300mah lipo battery DST-1200 brushless motor...
- Page 11 CESSNA 400 CESSNA 400 CESSNA Radio Control Model Airplane Shenzhen Top RC Hobby Co.,Ltd www. toprchobby.com Tel: 0086-(0)755-27559991 Fax: 0086-(0)755-27559990 Made in china...
