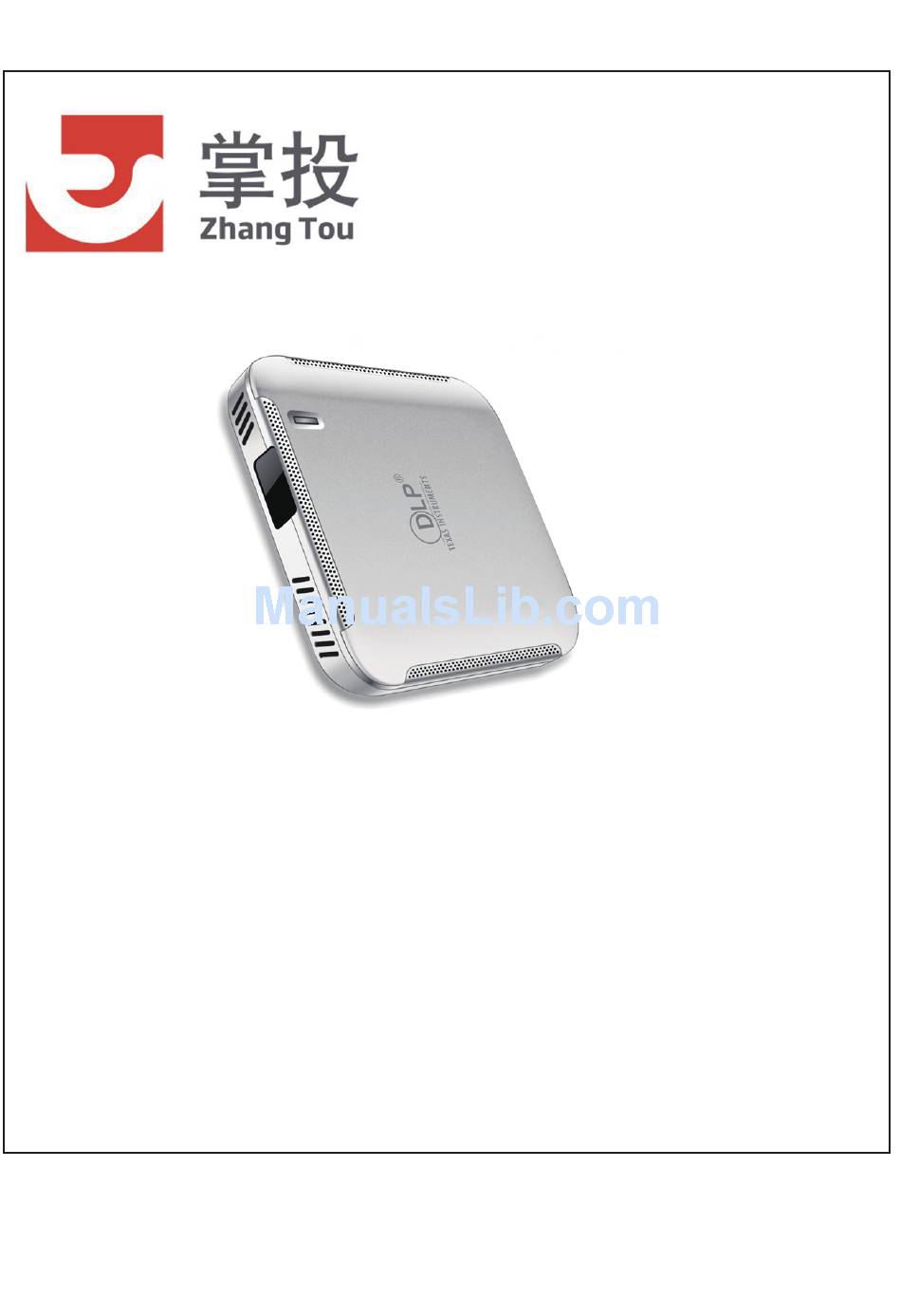

Ghost
i800
Dear Customer:
Thanks for choosing our Pico Projector.
We sincerely hope that you can pleasantly experience this device and functions!
About this Manual
You can use your device easily by following this Installation Guide. Check these chapters bolew for
more detail information
Please read this instruction carefully, to make sure using your device correctly, please abide by every
installation instruction. Any losses caused by failure to comply with the instructions, the manufacturer
will not bear the relevant responsibility.
PRAYTECH (HK) CO.,LTD
Advertisement
Summary of Contents for PRAYTECH Ghost i800
- Page 1 Please read this instruction carefully, to make sure using your device correctly, please abide by every installation instruction. Any losses caused by failure to comply with the instructions, the manufacturer will not bear the relevant responsibility. PRAYTECH (HK) CO.,LTD...
-
Page 2: User Manual
User Manual Description: Ghost i800 Smart Pico Projector uses the DLP chip, bright LED and equipped with the Android operating system, simple intelligent system control; supports multi-screen interactive with Android phones, Android PAD, iPhone, iPad; Internal dual built-in WIFI supports wireless Internet access, supports 1080P HD HDMI IN input; deep development of Android 4.X system, supports varieties of Android apps and games;... - Page 3 1. Inital Installation: Put the projector on a flat desktop,or fix the nut on the bottom with a tripod,adjust to the right position for watching pefectly. Connecting with power adapter 1.1 Plug one end of the power cord to the projector 1.2 Plug the power plug into a power socket or terminal block 1.3 During charging, the LED located on display panel shows red, after the battery is fully charged it will turn green.
- Page 4 5.1 Interface introduction： Online Vedio: Commonly used vedio player app. Click to add more Settings: Set WIFI, language, time etc. My apps: Preinstalled Apps or postinstalled Apps Music: Music player App, Click to add some commonly used music player Apps. Local: View local pictures, vedios,profiles etc.Click to add commonly used Apps 6.Wi-Fi connection：...
- Page 5 8. Upload vedios,pictures and profiles to projector： Uploaded by USB cable 8.1.1 Plug Micro USB to projector,plug USB to a PC.。 8.1.2 Open “My computer”, a “MTP USB Device” shows up.(P7) （P7） 8.1.3 Open “MTP USB Device/Internal Storage” and find a directory or a root directory you want to upload, then complete upload by copy and paste 9.
- Page 6 11.1.2 Turn “Airplay” on in your iPhone/iPad, as the picture(P9) shows. （P9） （P10） （P11） 11.1.3 Select”Happy Cast(xxx)”, as picture(P10) shows, turn on “Mirror”,as (P12) shows, after a few seconds the projector shows the same screen as your iPhone/iPad does, then wireless display is finished.。 （P12）...
- Page 7 11.2.1.3 Click “HappyCast(xxx)”, shows as (P14), Click “Start”, then the projector shows the same screen as your phone. 11.2.2 Connecting by Miracast 11.2.2.1 Open “My Apps/Miracast” as (P15) shows (P15） 11.2.2.2 Make sure your phone and projector is in a same LAN(We use a sony Xperia smartphone as an example,the location of wireless display is different due to different phones) 11.2.2.3 Click “Settings”...
- Page 8 11.4 Access router, smartphone that support DLNA 11.4.1 Open “My Apps/Media Center”, as (P23) shows, select the first “DLNA DMP” and open it （P23） 11.4.2 If your router/smartphone supports DLNA, the name of router/smartphone will be displayed on right side, open it and view images and watch vedios.
- Page 9 13.Settings 13. 1 Connect with a bluetooth device 13.1.1 Open “Settings”, as (P26) shows, select “Other”, as (P27) shows （P26） （P27） 13.1.2 Open “Bluetooth”, as (P28) shows, system will search Bluetooth devices automatically NOTE: Make sure your Bluetooth of device is open （P28）...
- Page 10 Projector Parameters Name： “zhangtou” Smart Pico Projector Model： Ghost i800 Dimension： 111x112x19mm Weight： 265g Battery capacity： 3600mAh Projection Parmeters: LED: OSRAMLED LED Life： 30000 hours Projection Solution： TI DLP Brightness： 120 Lumens Projection Ratio 1.4 Projection Distance 0.3m Max prjection Size： 150 inch Aspect Ratio: 16:9 NTSC Color gamut: >100%...
