Summary of Contents for CITC DMX FX-15 250051
-
Page 1: Operating Instructions
DMX FX-15 SWITCH PACK Operating Instructions P/N 250051 (120V) P/N 205052 (230V) - Page 2 To ensure proper operation of this unit, please take some time to read the manual carefully. We believe you will enjoy years of great service if you properly care for your new DMX FX-15™ Switch Pack. CITC 1420 80th St. SW #D Everett, WA 98203 (888) 786-CITC www.citcfx.com...
- Page 3 Contents 1. Equipment Supplied 2. Accessories 3. Description 4. Safety Instructions 5. Operating the DMX FX-15™ Switch Pack 5.1 Selecting The Location 5.2 Electrical Power Requirements 5.3 Hooking Things Up 5.4 Parts Location 5.5 Setting The DMX Address 5.6 Operation 5.7 Indicator Lights (LED) 5.8 Troubleshooting 6.
- Page 4 1. Equipment Supplied DMX FX-15™ Switch Pack Power Cord o 120V (14 Gauge) o 230V (16 Gauge) Instruction Booklet & Warranty Card Universal Plug Adapter (230V Only) 2. Accessories Hanging Bracket w/ Safety Cable C-Clamp ...
-
Page 5: Safety Instructions

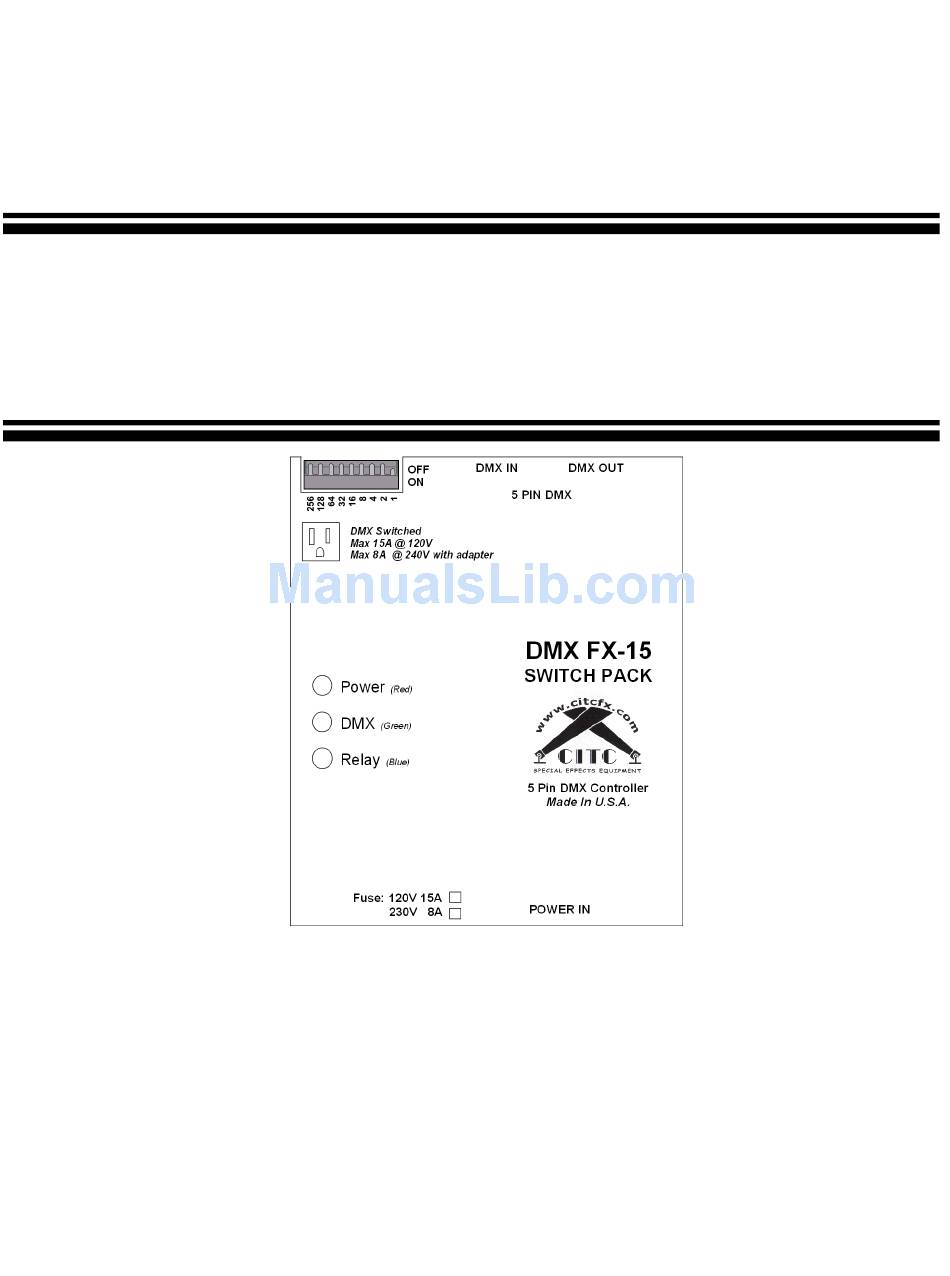

The DMX FX-15™ Switch Pack is CITC’s newest innovation allowing you to add DMX control to a multitude of equipment. Its compact and rugged design offers an ON/OFF amazing 15 amps of control on 120V and 8 amps on 230V. - Page 6 1. DMX OUT (FEMALE 5-PIN DMX XLR) 2. DMX IN (MALE 5-PIN DMX XLR) 3. DMX ADDRESS (DIP SWITCHES) 4. POWER OUT (3-PRONG OUTLET) 5. FUSE HOLDER 6. POWER IN (IEC MALE OUTLET) 7. INDICATOR LIGHTS (LED)
- Page 7 5.5 Setting The DMX Address The DMX FX-15™ can be addressed to any DMX channel from 1 to 511. The DMX FX-15™ occupies just one channel of DMX to operate. The DMX FX-15™ Switch Pack will not operate when all nine dip switches are in the “OFF”...
-
Page 8: Troubleshooting
o OFF: No line voltage present. GREEN / DMX: o ON: DMX-512 signal present. o OFF: No DMX-512 signal present. BLUE / RELAY: o ON: The switch is active and line voltage is present at the “POWER OUT” outlet. o OFF: The switch is inactive and line voltage is not present at the “POWER OUT”... - Page 9 4. Freight costs to CITC when under the limited warranty services are the responsibility of the customer. CITC will pay freight for return.
- Page 10 Obtain your RMA# by calling CITC. Payment arrangements for repair must be made before receiving RMA # in case unit is not covered under Limited Warranty. Send unit to: CITC RMA # XXXXXXX 1420 80 St. SW #D Everett, WA 98203...
