Mitox 650DX Premium+ Operator's Manual

Hide thumbs

Advertisement

Table of Contents

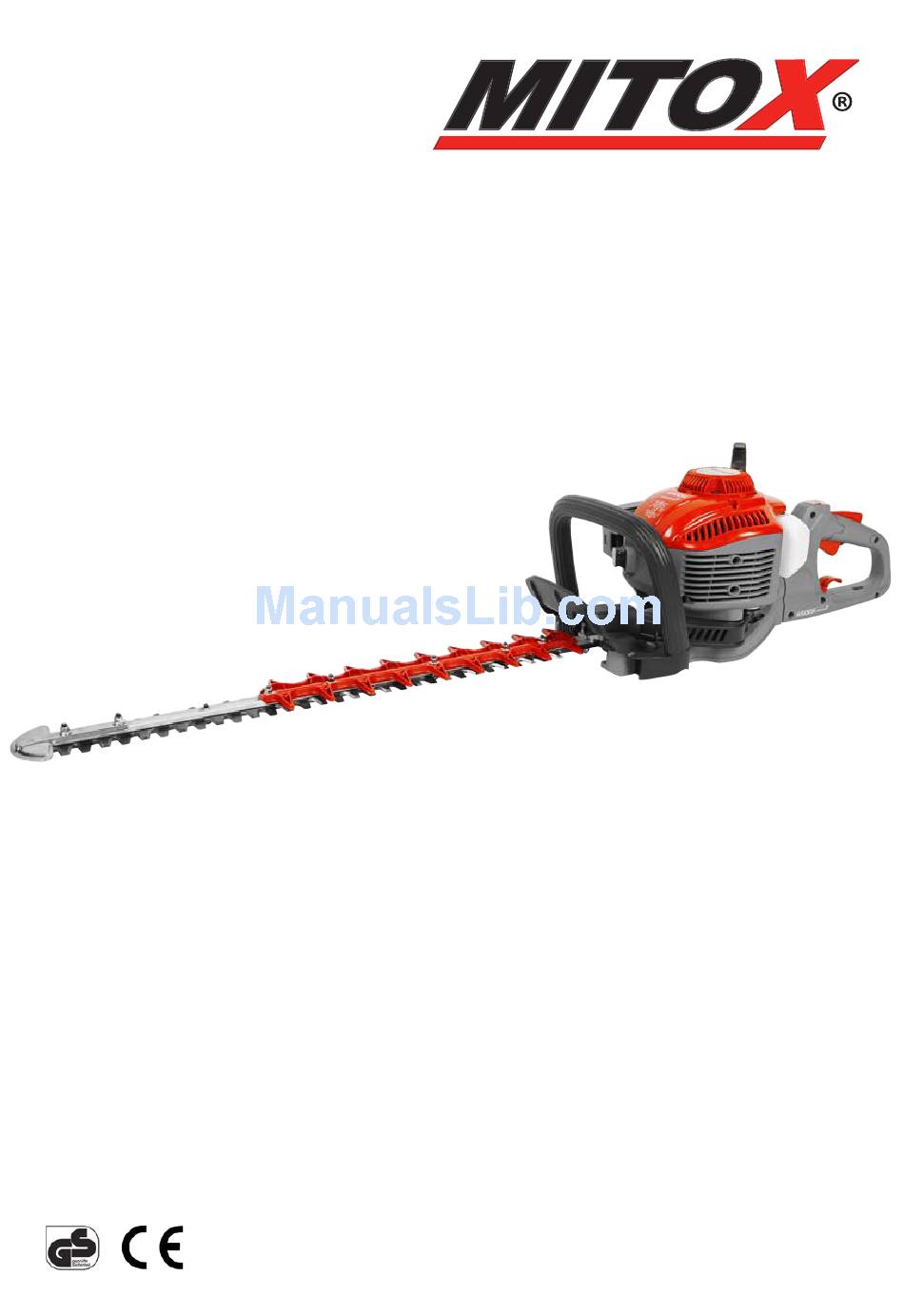

www.mitox.co.uk
Operator's Manual
user manual, maintenance instructions and spare parts
650DX / 750DX Premium+ Hedgetrimmer
Read this manual carefully before operating the machine
Original Instructions Version June 16
650DX+/750DX+_080616

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 650DX Premium+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mitox 650DX Premium+

  • Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 650DX / 750DX Premium+ Hedgetrimmer Read this manual carefully before operating the machine Original Instructions Version June 16 650DX+/750DX+_080616...
  • Page 2 650DX / 750DX Premium+ Hedgetrimmer Component Location Ignition switch Front handle Muffler Fuel tank Blade Starter Blade guard Rear handle Throttle lever PRODUCT DESCRIPTION This Hedgetrimmer is a 2 stroke fast running power tool and is designed to be used in a domestic application for trimming new growth on hedges.

  • Page 3: Warnings In The Manual

    650DX / 750DX Premium+ Hedgetrimmer Warnings in the Manual This mark indicates instructions which must be followed in order to prevent accidents which could lead to serious bodily injury or death. IMPORTANT This mark indicates instructions which must be followed or it leads to mechanical failure, breakdown, or damage.

  • Page 4: Safety Precautions

    650DX / 750DX Premium+ Hedgetrimmer Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read. If the warning labels provided with your hedgetrimmer become damaged, peel off, or otherwise become illegible or difficult to read, order new labels from the authorised servicing dealer and replace the damaged labels.
  • Page 5 This product has been designed to be used as a hedge trimmer power tool as described previously and it should never be used for any other purpose; doing so could result in unforeseen accidents and injuries occurring. Only approved Mitox accessories should be used with this product.
  • Page 6 650DX / 750DX Premium+ Hedgetrimmer Never use the Hedgetrimmer in conditions as described below: When the ground is slippery or when other conditions exist which might make it difficult to maintain a steady posture while using the hedgetrimmer. At night, at times of heavy fog, or at any other times when your field of vision is limited and it would be difficult to gain a clear view of the area where the hedgetrimmer is to be used.
  • Page 7 650DX / 750DX Premium+ Hedgetrimmer Improper handling can cause accidents which may in turn lead to serious injury or death. For this reason, you should always be careful to adhere to the following instructions when using your hedgetrimmer. Never hold the hedge trimmer in a way in which the blades are pointing towards someone else.

  • Page 8: Before Starting The Engine

    650DX / 750DX Premium+ Hedgetrimmer Before Operating the Hedgetrimmer Before beginning work, carefully check the work area and remove any obstacles. Within a perimeter of 15 metres of the work area should be considered a hazardous area into which no-one should enter while the hedgetrimmer is being used, and when necessary this area should be marked with a warning rope, warning signs, or other forms of warning.
  • Page 9 650DX / 750DX Premium+ Hedgetrimmer Avoid Noise Problems Check and follow the local regulations for sound levels and hours of operation for garden machinery. In general, operate hedgetrimmers between 8 am and 5 pm on week days and 9 am to 5 pm at weekends.
  • Page 10 650DX / 750DX Premium+ Hedgetrimmer Two-Stroke Fuel Fuel is very flammable. Do not smoke or bring any flame or sparks near fuel. Always stop the engine and allow it cool before refuelling. Refuel outdoors on bare ground, restart the engine at least 5m away from the refuelling stop.
  • Page 11 650DX / 750DX Premium+ Hedgetrimmer Fuel Storage Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly. When storing the hedge trimmer for a period of more than one month, empty the fuel tank, and run the engine to empty the carburettor of fuel.

  • Page 12: Starting The Engine

    650DX / 750DX Premium+ Hedgetrimmer Operation Keep clear of the blades as they may start moving when engine starts. Starting the Engine CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is extended, this can damage the starter mechanism.
  • Page 13 650DX / 750DX Premium+ Hedgetrimmer Fig 3 Fig 4 Fig 3 - While holding the unit firmly, pull out the Fig 4 - Move the choke lever to the off starter rope firmly until engine fires position (d). (indicated by a cough from the engine). Pull the starter rope until the engine starts.

  • Page 14: Stopping The Engine

    650DX / 750DX Premium+ Hedgetrimmer Stopping the Engine Set the engine to idling by releasing the throttle lever. Set the ignition switch to the off position ‘’O’’ (STOP). After the engine has stopped, wait at least 30 seconds before attempting to restart. If the engine fails to stop, set the choke lever to the on position to stall the engine;...
  • Page 15 650DX / 750DX Premium+ Hedgetrimmer Transportation Never transport the hedgetrimmer with the engine running. An engine that is running could be accidently accelerated causing the blade to engage. Make sure the blade safety guards are in place when transporting the hedge trimmer. When carrying by hand, the cutting head should be pointing backwards.
  • Page 16 650DX / 750DX Premium+ Hedgetrimmer HORIZONTAL CUT: In order to get the best cutting results, slightly tilt the blade 5 to 10° towards the cutting direction. Cut slowly, especially when cutting thick hedges. The hedgetrimmer must only be used to trim hedges or small bushes. It is not to cut other types of material.
  • Page 17 650DX / 750DX Premium+ Hedgetrimmer Always wear heavy-duty gloves when handling the blades. Blades Check blades for damage before using the hedgetrimmer. Clean any residue from the blades using a cleaning agent. Lubricate the blades with spray oil before and after use. Sharpening Always keep the file at an angle of 45°...

  • Page 18: Safety Lock

    650DX / 750DX Premium+ Hedgetrimmer Safety Lock The safety lock is to prevent the throttle lever from accidentally being engaged. The throttle lever (a) can only be operated, if the safety lock (b) is held down. Check if the safety lock and throttle levers return to their original position and the engine returns to idling when you release your hand from the handle.

  • Page 19: Air Filter

    650DX / 750DX Premium+ Hedgetrimmer Air Filter Before using the hedgetrimmer, check the foam air filter (a) and pre-filter (b). Being clogged, will reduce the engine performance. Clean the filter element in warm, soapy water, dry completely before installing. If the element is broken or shrunk, replace with a new one.

  • Page 20: Troubleshooting

    650DX / 750DX Premium+ Hedgetrimmer Troubleshooting Engine will not start, power loss: • Check that the fuel tank is not empty. Fill with mixed fuel. • The fuel does not reach the carburettor. Change the fuel filter in the fuel tank. •...
  • Page 21 650DX / 750DX Premium+ Hedgetrimmer Service Schedule Every Every Every Before Component Procedure Note Hours Hours Hours Fuel Leaks / Fuel Clean Up • Spillage Fuel Tank / Fuel Inspect / Clean Replace if • Filter Neccessary Idle Adjusting See Adjusting Adjust if •...

  • Page 22: Specifications

    650DX / 750DX Premium+ Hedgetrimmer Specifications Model ........................650DX+ / 750DX+ Type ..................Double / Single Sided Hedgetrimmer Blade length (from the tip of Gear Case) 650DX+ ..........................600 mm 750DX+ ..........................750 mm Effective cutting length 650DX+ ..........................550 mm 750DX+ ...........................

  • Page 23: Ec Declaration Of Conformity

    650DX / 750DX Premium+ Hedgetrimmer EC Declaration of Conformity We Mitox (Rochford Garden Machinery Ltd) - BA9 9RS (importer) declare that the product(s): Designation: Petrol Powered Hedgetrimmer Model(s): 650DX Premium + / 750DX Premium + Type/Serial No: As per rating label on machine...
  • Page 24 650DX / 750DX Premium+ Hedgetrimmer Original Instructions Version June 16 650DX+/750DX+_080616...
  • Page 25 650DX / 750DX Premium+ Hedgetrimmer ITEM PART NUMBER DESCRIPTION MIGB/T845 ST4.8X25 TAPPING SCREW ST4.8X25 MIGJB25D.00.00-13 WASHER 5X12X1.5 MIHT2360D.00.00-1 FRONT HANDLE MIHT2360D.01.09.03-00 COVER MIHT2360D.04.00-2 GEAR BOX COVER MIGB/T97.1 M5 WASHER M5 MIGB/T93 M5 SPRING WASHER M5 MIGB/T6191 M5X18 SCREW M5X18 MIHT2360D.00.00-2 BLADE DRIVE CASE (BASE) MIGB/T845 ST4.2X14 TAPPING SCREW ST4.2X14...
  • Page 26 650DX / 750DX Premium+ Hedgetrimmer ITEM PART NUMBER DESCRIPTION MIHT2360D.04.00-5 OUTPUT SHAFT MIGB/T276 6001-2RS BEARING 6001-2RS 12X28X8 MIGB/T6191 M6X22 SCREW M6X22 MIGB/T93 M6 LOCK WASHER M6 MIGB/T97.1 M6 FLAT WASHER M6 MIHT2360D.04.00-1 BLADE DRIVE CASE (TOP) MIGJB25D.04.01-00 GREASE NIPPLE MIHT2360D.04.01-00 CLUTCH DRUM MIGB/T6191 M5X12 SCREW M5X12...
  • Page 27 650DX / 750DX Premium+ Hedgetrimmer Original Instructions Version June 16 650DX+/750DX+_080616...
  • Page 28 650DX / 750DX Premium+ Hedgetrimmer ITEM PART NUMBER DESCRIPTION MIGB/T845 ST4.8X25 TAPPING SCREW ST4.8X25 MIGJB25D.00.00-13 WASHER 5X12X1.5 MIHT2360D.00.00-1 FRONT HANDLE MIHT2360D.01.09.03-00 COVER MIHT2360D.04.00-2 GEAR BOX COVER MIGB/T97.1 M5 WASHER M5 MIGB/T93 M5 SPRING WASHER M5 MIGB/T6191 M5X18 SCREW M5X18 MIHT2360D.00.00-2 BLADE DRIVE CASE (BASE) MIGB/T845 ST4.2X14 TAPPING SCREW ST4.2X14...
  • Page 29 650DX / 750DX Premium+ Hedgetrimmer ITEM PART NUMBER DESCRIPTION MIHT2360D.04.00-5 OUTPUT SHAFT MIGB/T276 6001-2RS BEARING 6001-2RS 12X28X8 MIGB/T6191 M6X22 SCREW M6X22 MIGB/T93 M6 LOCK WASHER M6 MIGB/T97.1 M6 FLAT WASHER M6 MIHT2360D.04.00-1 BLADE DRIVE CASE (TOP) MIGJB25D.04.01-00 GREASE NIPPLE MIHT2360D.04.01-00 CLUTCH DRUM MIGB/T6191 M5X12 SCREW M5X12...
  • Page 30 650DX / 750DX Premium+ Hedgetrimmer 650DX+ / 750DX+ ENGINE Original Instructions Version June 16 650DX+/750DX+_080616...
  • Page 31 650DX / 750DX Premium+ Hedgetrimmer ITEM PART NUMBER DESCRIPTION MIHT2360D.01.08.02-00 HAND SCREW MIHT2360D.01.08.00-1 AIR FILTER COVER MIHT2360D.01.08.00-3 AIR FILTER MIHT2360D.01.08.00-2 SPONGE FILTER MIGB/T9074.4 M5X65 SCREW M5×65 MIHT2360D.01.08.00-4 BLOCK MIHT2360D.01.00.00-15 BUSH 5X6.5X9 MIHT2360D.01.00.00-10 LOCK PLATE MIHT2360D.01.08.03-00 AIR FILTER CASE MIHT2360D.01.00.00-9 GASKET (AIR FILTER) MIHT2360D.01.00.00-4 CABLE SUPPORT FRAME MIHT2360D.01.06.00-00A...
  • Page 32 650DX / 750DX Premium+ Hedgetrimmer ITEM PART NUMBER DESCRIPTION MIHT2360D.01.09.02-00 EXHAUST PIPE MIHT2360D.01.09.00-1 GASKET (EXHAUST) MIHT2360D.01.09.01-00 EXHAUST MIHT2360D.01.00.00-7 GASKET (EXHAUST) MIGB/T6191 M5X20 SCREW M5X20 MIHT2360D.01.02.00-00 CYLINDER COVER MIHT2360D.01.00.00-8 GASKET (CYLINDER) MIHT2360D.01.03.00-1 PISTON RING MIHT2360D.01.03.02-00 PISTON MIYD36.01.03.00-4 PISTON PIN CIRCLIPS MIHT2360D.01.03.01-00 CRANKSHAFT MIGB/T276 6000/P6 BEARING 6000/P6...
  • Page 33 650DX / 750DX Premium+ Hedgetrimmer ITEM PART NUMBER DESCRIPTION MIGB/T845 ST4X14 TAPPING SCREW ST4.2X14 MITCS6200.02.00-3 STARTER HANDLE MIGJB25D.02.00-3 ROPE MIHT2360D.01.12.00-00 STARTER MIGB/T6187.1 M6 HEXAGON NUT WITH FLANGE M6 MIHT2360D.01.10.00-00 FLYWHEEL MIGB/T6191 M5X25 SCREW M5X25 MIHT2360D.01.01.00-1 TOP CRANKCASE MIGB/T1099 3X3.5X10 SEMI-CIRCULAR KEY 3X3.5X10 MIHT2360D.01.03.03-00 BEARING 8X11X10 MIHT2360D.01.03.00-2...
  • Page 34 650DX / 750DX Premium+ Hedgetrimmer Original Instructions Version June 16 650DX+/750DX+_080616...
  • Page 35 650DX / 750DX Premium+ Hedgetrimmer Original Instructions Version June 16 650DX+/750DX+_080616...
  • Page 36 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
