Summary of Contents for Unitron Johansson UNIVERSE 8600

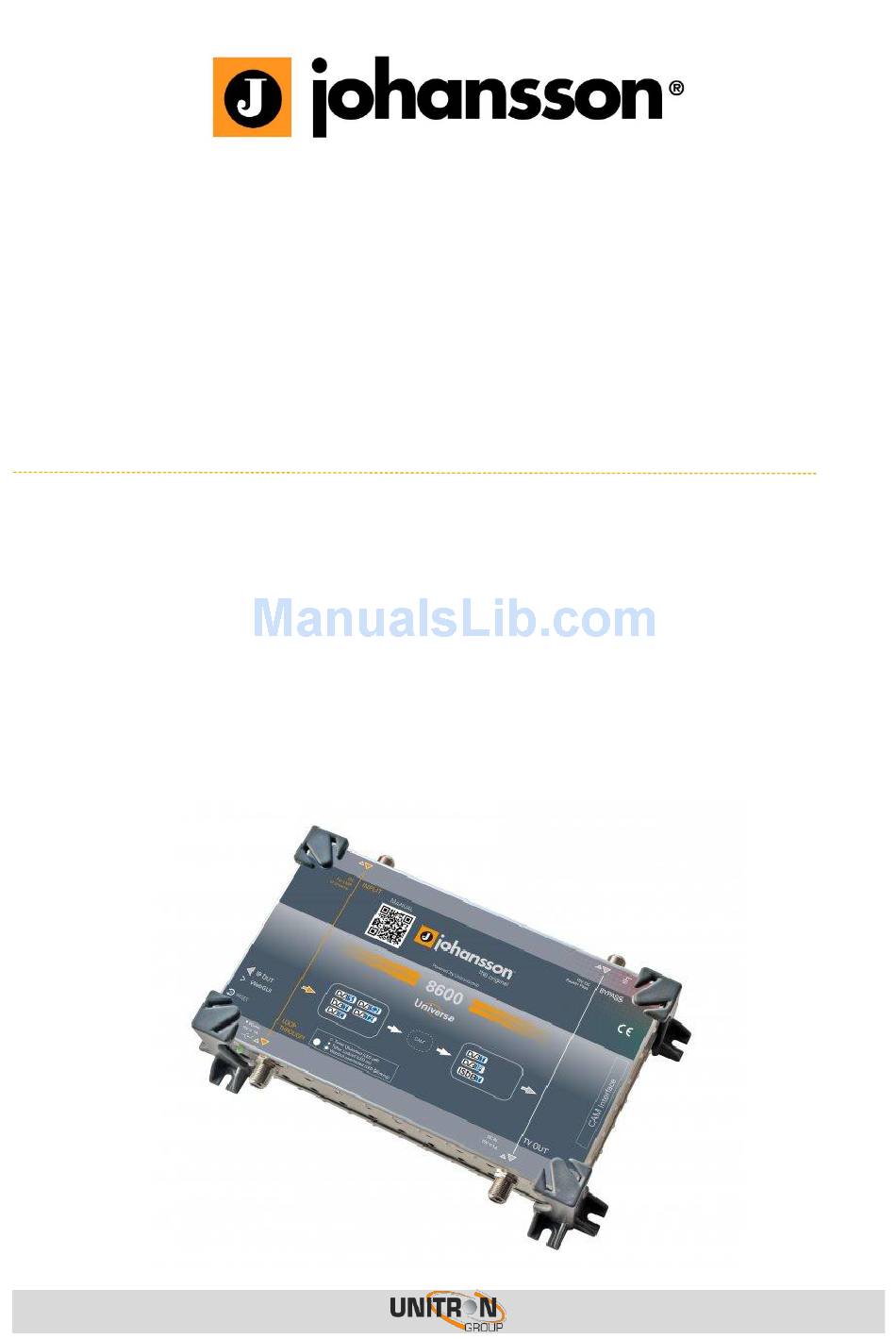

Page 1 User Manual UNIVERSE Ref. 8600...
Page 2: Universe (Ref
No part of this manual may be copied, reproduced, transmitted, transcribed or translated into any language without permission. Unitron reserves the right to change the specifications of the hardware and software described in these manuals at any time. Unitron cannot be held liable for any damages resulting from the use of this product.
Page 3 UNIVERSE (REF. 8600) ONTENTS 1. I ................4 NTRODUCTION Product description ..................... 4 Package contents ....................4 Mounting ......................4 Typical installation ....................5 Safety Instructions ..................... 7 2. I ............8 NSTALLATION OF THE ARDWARE Module overview ....................8 Connecting the power supply ................
Page 4: I Ntroduction
UNIVERSE (REF. 8600) 1. I NTRODUCTION Product description  Receives 1 transponder from any DVB source (satellite, terrestrial or cable)  Decrypts the PayTV channels, when a professional CAM is inserted  Puts the demodulated transponder on your private coaxial and IP network ...
Page 5: Typical Installation
UNIVERSE (REF. 8600) Typical installation  Perfect when your TV installation does not have satellite tuners, but you wish to receive satellite TV.  Perfect when your TV installation does not support DVB-T2 tuners, but you wish to receive the newest DVB-T2 signals. See figure 1. ...
Page 6 UNIVERSE (REF. 8600) 75  cap 75  cap 75  cap 2: DVB-T DVB-S2 DVB-T IGURE CONVERTED TO CHANNELS 3: DVB-S2 DVB-T IGURE CONVERTED TO...
Page 7: Safety Instructions
UNIVERSE (REF. 8600) Safety Instructions Read these instructions carefully before connecting the unit To prevent fire, short circuit or shock hazard:  Do not expose the unit to rain or moisture.  Install the unit in a dry location without infiltration or condensation of water. ...
Page 8: Module Overview
UNIVERSE (REF. 8600) 2. I NSTALLATION OF THE ARDWARE Module overview 1. INPUT: DVB-S/S2, DVB-T/T2, DVB-C 2. BYPASS: to insert a network of existing TV channels (should be blocked with a 75 DC- blocked resistor when not used) 3. CAM INTERFACE 4.
Page 9: Connecting The Power Supply
UNIVERSE (REF. 8600) Connecting the power supply The Universe works with the supplied adaptor of 15V DC. The power supply can be connected via the inlet (6) but the Universe can also be powered via the TV OUT (4). 15V DC is also being supplied to the BYPASS (2), which enables 1 power supply to feed more than 1 unit.
Page 10: I Nstallation Of The H Ardware
UNIVERSE (REF. 8600) 3. C ONFIGURATION OF THE MODULE 3.1. Minimal system requirements The WebGUI is supported by the following web browsers (and newer versions of these browsers):  Chrome 4  Safari 3.1  Firefox 3.6  Explorer 9 ...
Page 11 UNIVERSE (REF. 8600) Check the radio button “Use the following IP address” and enter an IP and subnet mask. You can leave the Default gateway and DNS settings empty. Open your browser and surf to the website http://192.168.50.50. If everything went fine you will see the following webpage, if not check your network settings and try again.
Page 12: Device Information
UNIVERSE (REF. 8600) 3.2.1. Device Information Device Information gives some basic information about the device. Here you can find the serial number, firmware version, the release date of the firmware and the hardware version. This is useful for checking if your device is up-to-date. 3.2.2.
Page 13: Network
UNIVERSE (REF. 8600) Network Go to “Device Configuration”  “Network” to change your IP settings. After changing the IP settings you will need to reconnect to the new IP. You can choose to obtain an IP address automatically. This requires a DHCP server, which is available on most home and professional IP networks.
Page 14: Input Settings
UNIVERSE (REF. 8600) 3.2.3. Input Settings Choose the mode you want to use and if required the type of LNB. The following settings depends on the Mode and LNB used. If you select the Universal or C-Band LNB the LO Frequency and Band / Tone settings will not be shown because those settings are filled in automatically.
Page 15: Single Cable (En 50494) And (En 50607)
UNIVERSE (REF. 8600) Single Cable (EN 50494) and (EN 50607)  LO Frequency (kHz): The LO Frequency used in the LNB. Set this to 0 when intermediate frequencies (IF) are used for tuning. This setting will be filled in automatically when choosing the Universal or C-Band LNB type.
Page 16 UNIVERSE (REF. 8600) The LNA/LNB is now configured. Next we will configure the tuner. Change your input type to the DVB source you are using. Select the frequency and symbol rate or bandwidth to match the transponder you want to receive and click on “Apply”. To know the transponder go to http://www.lyngsat.com or http://kingofsat.net.
Page 17 UNIVERSE (REF. 8600) If the tuner is well configured and the lock icon is green the list of channels should be available. Select the service(s) you want to run through the CAM Interface by checking the Descramble checkboxes. A red lock means the service is encrypted and a green one means the service runs through the CAM module and can now be decrypted.
Page 18 UNIVERSE (REF. 8600) 3.2.4 The CAM menu will open automatically in a few seconds, if it doesn’t you can click the “(Re)open CAM Menu” button. To use the CAM menu click on the menu item you want to open and click on “Return” to go back 1 step in the menu. The CAM menu will be different if you use another CAM module and/or CAM card.
Page 19: Output Settings
UNIVERSE (REF. 8600) 3.2.5 Output Settings Click on “Add Service” to add a service to an IP stream. You can keep adding services until the CPU hits 100%. But if the CPU usage exceeds 90% you can have performance issues, due to peaks in the services.
Page 20 UNIVERSE (REF. 8600)  Enabled: Turns the service on or off. Can be used instead of the delete button if you are planning to use that service later.  Delete button: Deletes the service from the list.  Details: Show advanced settings about the service, see details below. ...
Page 21 UNIVERSE (REF. 8600) In the RF Output section, the Universe has to be configured differently than the IP Output. While in the IP section, you add services to your list, in the RF section you have to disable services till you have no longer an overflow. The reason is that for instance a 55Mbps satellite transponder will not fit in a DVB-T MUX of 32 Mbps.
Page 22 UNIVERSE (REF. 8600)  SID: Service ID.  Type: : HD-TV : SD-TV : Radio : Data  Lock: : Descrambled service. : Scrambled service. No lock: FTA service.  Name: Name of the service.  Enabled: Add the service to the RF output. If you disable a video service only the video stream will be disabled, see remark below.
Page 23 UNIVERSE (REF. 8600) Click on details to enter the advanced settings for that service. Here you can enable or disable the underlying streams. Don’t forget to press the “Apply” button.  PID: Package identifier.  Type: : Video : Audio : Data ...
Page 24: Import And Export Settings
UNIVERSE (REF. 8600) Disabling SIDs vs disabling PIDs. If you disable all PIDs but let the covering SID enabled your receiver will still find the service but there will be no image or sound. This can be used if you temporary want to disable a service but don’t want to rescan your receiver.
Page 25 UNIVERSE (REF. 8600) ECHNICAL PECIFICATIONS 8600 – Universe INPUT Number of inputs 1 with passive loop-through (-2dB) Tuner Frequency Range 42 – 2150 Input level -65 to -20 DVB-S/S2 Standard DVB-T/T2 DVB-C 0/13/18/22kHz DC remote power for LNB or LNA DiSEqC, EN50494, EN50607 RF OUTPUT Number of outputs...
Page 26 UNIVERSE (REF. 8600) GENERAL CI slot Input voltage 12-20 Power consumption 7 (without CAM and without remote power) DC jack Ø 2.1 Powering remote units Yes, 1 unit can power other units Operating temperature °C 0-50 Dimensions 222x142x50 Weight Accessories 15V power adapter, 1 Ethernet cable...
Page 27: C Onditions Of Warranty
If during this period of warranty the product proves defective, under normal use, due to defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace the product. Return the product to your local dealer for reparation...
Page 28 UNIVERSE (REF. 8600) UNITRON NV Frankrijklaan 27 B-8970 Poperinge Belgium T +32 57 33 33 63 F +32 57 33 45 24 sales@johansson.be www.johansson.be...
