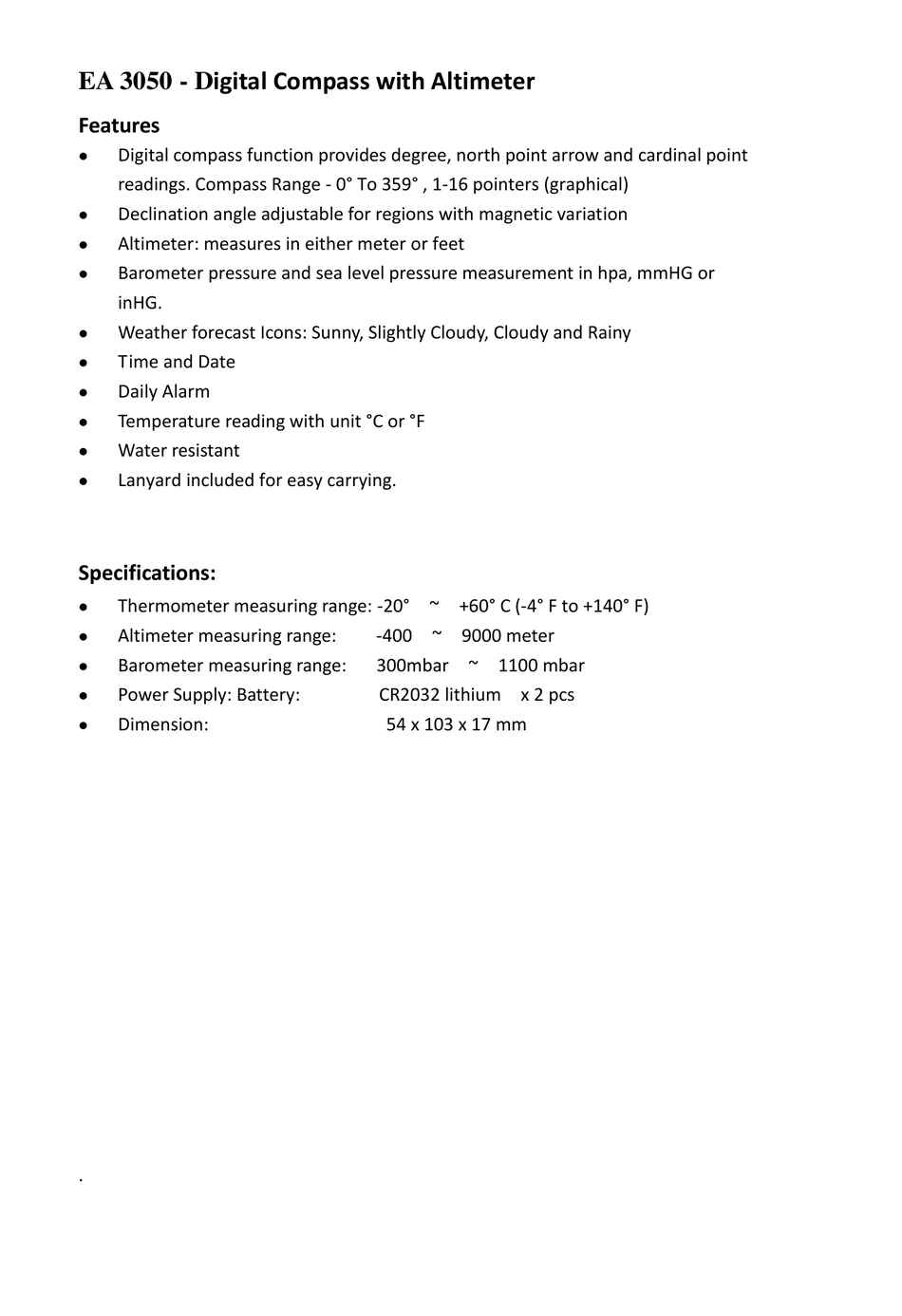

EA 3050 - Digital Compass with Altimeter
Features
Digital compass function provides degree, north point arrow and cardinal point
readings. Compass Range - 0° To 359° , 1-16 pointers (graphical)
Declination angle adjustable for regions with magnetic variation
Altimeter: measures in either meter or feet
Barometer pressure and sea level pressure measurement in hpa, mmHG or
inHG.
Weather forecast Icons: Sunny, Slightly Cloudy, Cloudy and Rainy
Time and Date
Daily Alarm
Temperature reading with unit °C or °F
Water resistant
Lanyard included for easy carrying.
Specifications:
Thermometer measuring range: -20° ~ +60° C (-4° F to +140° F)
Altimeter measuring range:
Barometer measuring range:
Power Supply: Battery:
Dimension:
.
-400 ~ 9000 meter
300mbar ~ 1100 mbar
CR2032 lithium x 2 pcs
54 x 103 x 17 mm
Advertisement
Table of Contents
Summary of Contents for Technoline EA 3050
-
Page 1: Specifications

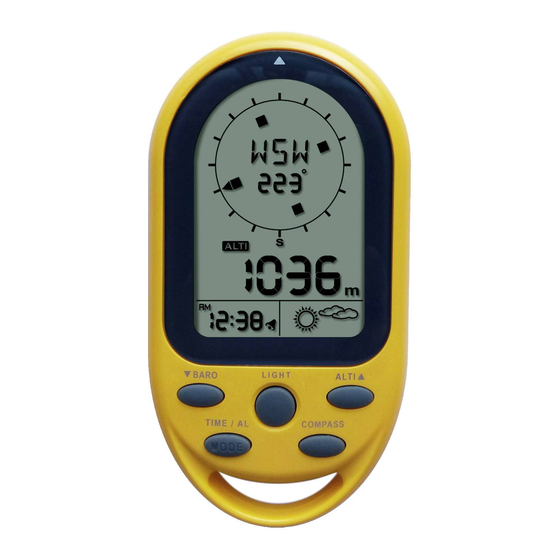

EA 3050 - Digital Compass with Altimeter Features Digital compass function provides degree, north point arrow and cardinal point readings. Compass Range - 0° To 359° , 1-16 pointers (graphical) Declination angle adjustable for regions with magnetic variation ... - Page 2 Main Appearance 1: BARO/▼button: Access to barometer setting mode/decrease values 2: ALTI/▲ button: Access to altitude setting mode/ increase values 3: TIME/AL/ MODE button: Toggle display between time, date and alarm. Access to Time/Alarm setting mode 4: COMPASS button: Access to compass setting mode; Quit any setting mode 5: LIGHT/LOCK button: Turn on the backlight;...
- Page 3 LCD DISPLAY 1: Cardinal point when the compass in the north direction 2: Direction arrow 3: Temperature: appears if not in compass mode 4: Low battery Indicator 5: Appears when in Altimeter mode 6: Indicates maximum altitude 7: Indicates the display format of Day and Month 8: AM / PM 9: Year 10: Keypad is locked...
-
Page 4: Time Mode
Set Up: Use a small screwdriver to remove the screw on the battery cover, take the battery out with a thin stick, inserted 2 PCS CR2032 lithium batteries, and place the positive side of the battery upward. Then tighten the screw on the battery screw. - Page 5 the LCD ), Hold “TIME/AL” button for 3 seconds to enter alarm clock setting mode. Press “▼”or “▲”to change setting, and press “TIME/AL” button to confirm and move to next setting. The setting sequence are as follow: Hour, Minute and Alarm ON （ ）/OFF ...
- Page 6 (2) To Set Sea Level Pressure and Weather Forecast Icons (ⅰ) Current barometric pressure: (ⅱ) Sea level pressure (“SEA” icon display on the LCD) Press “BARO” button to enter Barometer mode, LCD will display the current barometric pressure, press “BARO” button again to display the sea level pressure.
- Page 7 COMPASS The compass shows the bearing in degrees due North together with 16 cardinal points Press COMPASS button, the unit will enter Compass mode, Hold the unit horizontal. Point the 12 o’clock position of the unit in the direction you want to measure.
- Page 8 (1) Compass Sensor Calibration The compass should be calibrated before use OR when the battery is replaced. In COMPASS mode, hold “COMPASS” button for 3 seconds to enter the compass sensor calibration mode, press COMPASS button to start the calibration Keep the unit in a level position or on top of a non-metallic table/desk, reference ...
- Page 9 Press “▼”or “▲”to change the angle value, range from -90°to 90°, and press “MODE” button to confirm and exit the setting. TEMPERATURE When compass mode is off, the top 2 row LCD display will provide the reading of temperature with unit of °C or °F, the range from -20°C to 60°C.
