InterMetro Industries Corporation

Wilkes-Barre, PA 18705

1-800-992-1776 www.metro.com

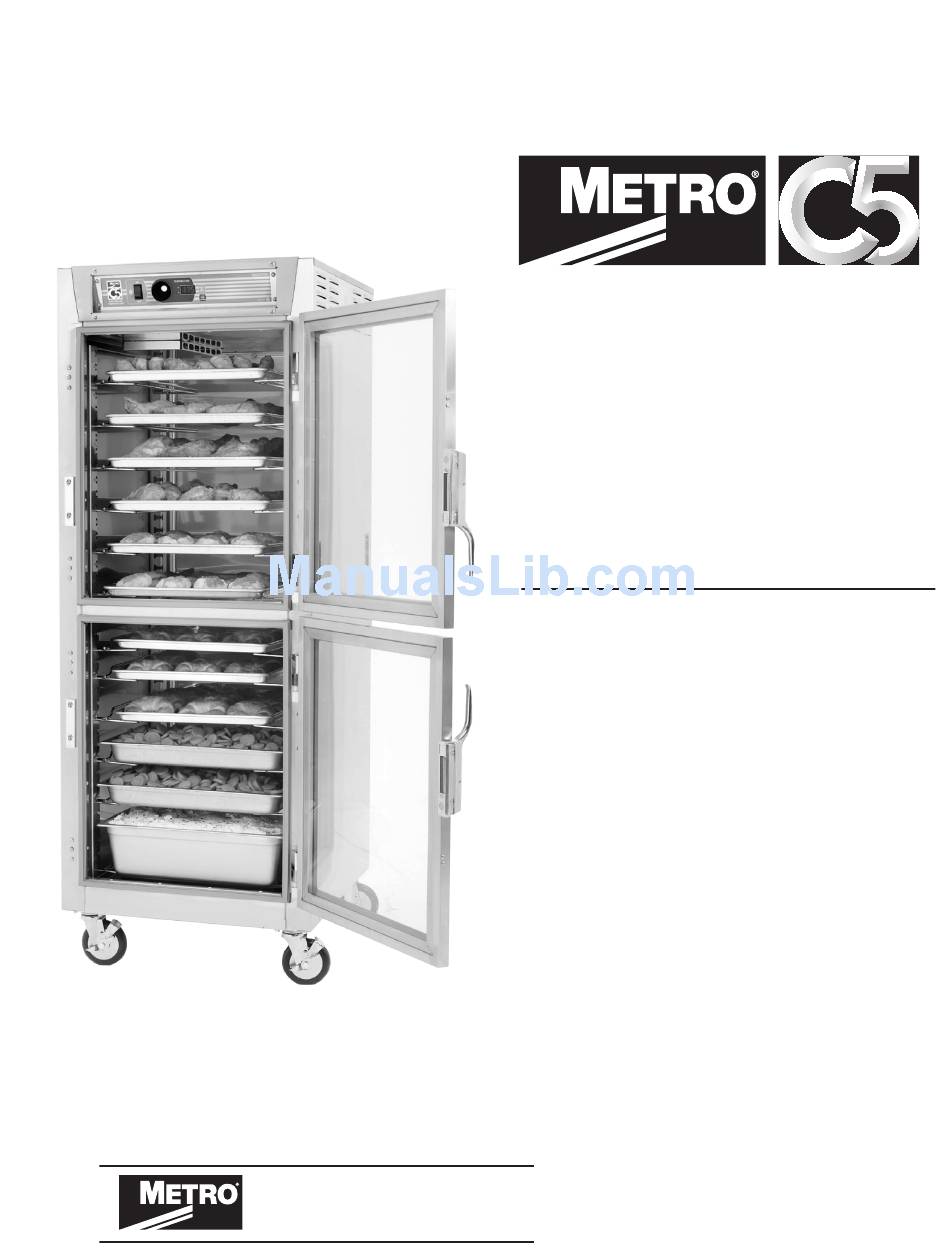

8 Series

Controlled

Temperature

Heated Holding

Cabinets

INSTRUCTIONS

FOR USE

This manual covers cabinets with electrical ratings

of: 120V 2000W, 120V 1440W & 220-240V 1681-2000W.

Metro Heated Cabinets are for

Hot Food Holding applications only

When ordering

electrical parts,

always confirm the

rating listed on rear

cabinet data plate.

Differences on voltage,

amps or wattage are

listed with bold text

in replacement part

descriptions.

L01-425

Rev.G

10/11/17

Table of Contents

Need help?

Do you have a question about the METRO C5 8 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for InterMetro Ind. METRO C5 8 Series

Page 1 8 Series Controlled Temperature Heated Holding Cabinets INSTRUCTIONS FOR USE This manual covers cabinets with electrical ratings of: 120V 2000W, 120V 1440W & 220-240V 1681-2000W. When ordering electrical parts, always confirm the rating listed on rear cabinet data plate. Differences on voltage, amps or wattage are listed with bold text in replacement part...
Page 2 1. With the POWER switch OFF, plug the supply power cord into an appropriate, grounded, receptacle. (refer to the cabinet data plate for voltage and ampere rating). 2. Ensure that the cabinet’s floor duct and water pan are installed. (refer to the cabinet operating instructions). This helps to distribute the heat evenly throughout the cabinet. 3. If extra humidity is desired, fill the water pan in the floor duct of the cabinet with clean warm water.
Page 3 TABLE OF CONTENTS SECTION PAGE I. Basic Operating Guidelines ....Inside Front Cover II. Safety Instructions ..............1 III. Identifying Your Cabinet ............. 2 IV. Installation & Set-up ............. 3 V. Product Features ..............7 VI. Operating Instructions ............8 VII.
Page 4 IDENTIFYING YOUR CABINET For future reference, note the serial and model number, found on the data plate of the cabinet, here. Model number Serial number Date the cabinet was put into service Fill out and return the warranty card located at the back of this manual.
Page 5 INSTALLATION AND SET-UP Check for Shipping Damage: Check the packaging and cabinet for shipping damage before and after unloading the unit, and after removing all the packaging. The receiver of this product is responsible for filing freight damage claims. This equipment must be opened immediately for inspection.
Page 6 INSTALLATION AND SET-UP (continued) SLIDE INSTALLATION The rack uprights have been installed at the factory. If removed for cleaning, reinstall by hanging them on the shoulder rivets on the side walls of the cabinet. TOP VIEW SLIDE POSITION to MAXIMIZE 3"...
Page 7 INSTALLATION AND SET-UP (continued) CORRECT ORIENTATION OF LIP LOADED SLIDE RACKS Full Height Full Height Height Height Under Counter Single Door Dutch Doors Cabinet Cabinet Cabinet 2-piece Construction 2-piece Construction 1-piece Construction 1-piece Construction 1-piece Construction Part No. RPC5-L9 Part No.RPC5-L9 Part No.
Page 8 REVERSING THE DOORS WARNING TIP HAZARD • Tip Hazard: On Pass-Thru cabinets that include any clear doors, when field reversing, the front and back doors must be hinged from opposite sides of the cabinet. See illustration below. Clear Doors Clear Doors Hinged on Hinged on opposite...
Page 9 PRODUCT FEATURES Control Panel Tray Slides Field Reversible Doors Air Duct Be careful when opening the doors as hot, humid air will escape the cabinet. Water Pan Fill with water. Capacity is Flush Pull Handles 1 quart (1 liter). Floor Duct Holds water pan and evenly distributes air flow.
Page 10 OPERATING INSTRUCTIONS Power-Up & Pre-Heat • When the cabinet is switched on, the controller displays “Set Pnt” followed by the current temperature set point. The temperature display will begin to blink, indicating that the cabinet is pre-heating. The display will stop blinking after the temperature set point is reached.
Page 11 The cabinet control will “remember” its setting when the cabinet is turned off. Therefore, when the unit is turned on the setting will be the same as it was during the previous use. A red indicator light below the digital display indicates when the temperature heater element is energized. As the control setting is adjusted, it may take a few moments for the status of the indicator light to reflect the new control setting and cabinet condition depending on when in the control cycle the setting is changed.
Page 12 BASIC TROUBLESHOOTING Warning: Only factory approved service agents should attempt to service, repair or replace electrical components, wiring or power cord. 1. Controls do not work (no display or indicator light): a. Check that the cabinet is plugged in. b. Check that the outlet has power. c.
Page 13 SERVICE and REPLACEMENT PARTS C5 8 SERIES REPLACEMENT PARTS — ELECTRICAL Confirm the cabinet electrical rating before ordering components. Warning: Only factory approved service agents should attempt to service, repair or replace electrical components, wiring or power cord. To access the controller area, remove the (7) screws holding the cabinet top in place. Lift the rear portion of the cabinet top and slide it away from under the front control bezel, removing it from the cabinet.
Page 14 SERVICE and REPLACEMENT PARTS (continued) C5 8 SERIES REPLACEMENT PARTS — CABINET BODY ITEM # Replacement Part No. Description ITEM # Replacement Part No. Description CABINET BODY (continued) CABINET BODY RPC14-042 DOOR HINGE —1 PIECE RPC06-873B FULL HEIGHT DOOR GASKET B5DNB 5"...
Page 15 SERVICE and REPLACEMENT PARTS (continued) Replacement Parts Diagram AIR DUCT See page 11. or 9A STRAIGHT PLUG CORD SHOWN or 8A CABINET BODY CONTROL PANEL See page 11. FLOOR DUCT *For slide identification, see pages 4 and 5.
Page 16 SERVICE and REPLACEMENT PARTS (continued) Only factory approved service agents should attempt C5 8 Series Wiring Diagram Warning: to service, repair or replace electrical components, wiring or power cord. CONTROL PANEL BOTTOM CONTROL PANEL TOP BLACK...
Page 17 InterMetro Industries Corporation (hereinafter referred to as “Seller”) warrants to the 10/17...
Page 18 Thank you for purchasing a Metro C5 Controlled Temperature Cabinet. We are certain you will be more than satisfied with its quality and performance. Please fill in the warranty information space below so we may register your warranty. Also, so that we may learn more about our customers and hopefully be of continued service in the future, please take a moment to fill in the customer information space below.
Page 19 STAPLE HERE...
Page 20 THIS PAGE IS KEPT INTENTIONALLY BLANK...
Page 21 InterMetro Industries Corporation North Washington Street, Wilkes-Barre, PA 18705 L01-425 Rev. G 10 For Product Information Call: 1-800-992-1776 Information and specifications are subject to change Visit Our Web Site: www.metro.com without notice. Please confirm at time of order.
