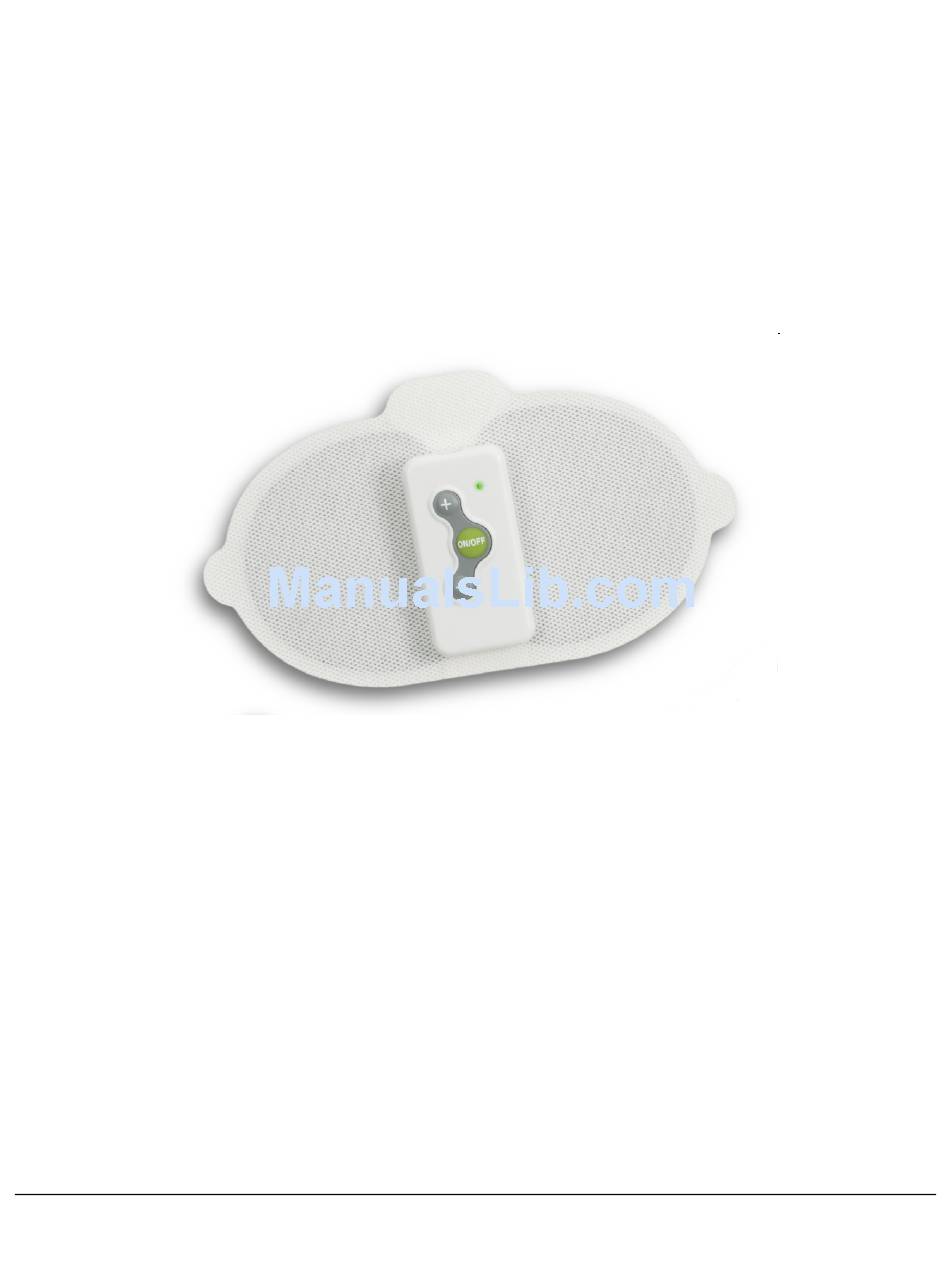

- Page 1 Manual of Electronic Pulse Stimulator PL-029K8B Operation Manual PL-029K8B Edition V1.0 ‐ 1 ‐...
- Page 2 Table of Contents Introduction............................3 Indications for Use...........................3 Safety Warning..........................4 Contraindications..........................4 Warnings............................4 Precautions............................4 Adverse Reactions........................... 5 Environmental Condition for Transport and Storage..............5 Symbols interpretation........................6 Safety Test Standards........................6 Electromagnetic Compatibility and FCC statement................ 6 Product Specifications........................11 Setup.............................. 13 Recommended Use Positions......................
-
Page 3: Introduction
Introduction Electronic Pulse Stimulator delivers electric pulses generated to the user’s skin through the electrodes. The portable and compact device has multiple modes of different pulse frequencies, covering Transcutaneous Electrical Nerve Stimulation (TENS) and Powered Muscle Stimulation (PMS). It includes operating elements of ON/OFF button, intensity increase/mode selection button, and intensity decrease/timer selection button, and could be attached and detached to the electrode through the two snap-on connectors. -
Page 4: Safety Warning
Safety Warning Contraindications Do not use this device on patients who have a cardiac pacemaker, implanted defibrillator, or other implanted metallic or electronic device, because this may cause electric shock, burns, electrical interference, or death. Do not use this device on patients whose pain syndromes are undiagnosed. Warnings Do not apply stimulation over the patient’s neck because this could cause severe muscle spasms resulting in closure of the airway, difficulty in breathing, or adverse effects on heart rhythm or blood... -
Page 5: Adverse Reactions
ii. disrupt the healing process after a recent surgical procedure; (2) that the device is not effective for pain of central origin, including headache; (3) that the device is not a substitute for pain medications and other pain management therapies; (4) that the device has no curative value;... -
Page 6: Symbols Interpretation
Symbols interpretation Fragile, handle with care Type BF applied part Keep the product in the dry CAUTION, Avoid injury. place Read and understand Away from water and rain. owner’s manual before operating this product. This way up Manufacturer Symbol for "AUTHORISED Product package should be REPRESENTATIVE IN recycled. - Page 7 operation! (4) Caution: This machine should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, this machine should be observed to verify normal operation in the configuration in which it will be used Guidance and manufacturer’s declaration –...
- Page 8 Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Electromagnetic Immunity test IEC 60601 test level Compliance level environment - guidance...
- Page 9 Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Immunity IEC 60601 test Compliance Electromagnetic environment - guidance test...
- Page 10 The subject device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The product generates, uses, and can radiate radio frequency energy and, if not installed and used accordance with the instructions, may cause harmful interference to radio communications.
-
Page 11: Product Specifications
(5).USB line *1pc (6).Output wire * 1pc (7).Storage bag * 1pc Controller introduction Technical Information Device name Electronica pulse Dimensions 35*68*11.5mm stimulator Model/type PL-029K8B Weight Power Powered by internal3.7V Automatic shutoff 30 minutes supply li-ion battery Biphasic rectangular Waveform Degree of protection... - Page 12 Pulse 1-500 Hz (Hz=vibration Grade of waterproof IP22 frequency per second) Output Max. 80Vpp ±20%(at Product life 1 year Voltage 500ohm load) Treatment 10 min, 20 min, 30 min, Lifetime for electrode Storage for 1 year（no time 40 min, 50 min, 60 min,90 use）, Times of reusable: min, 120 min,540 min 30 times...
-
Page 13: Setup
Setup Unpack the box of the product, take the product and accessories out, and connect the electrode pad onto the device. There are large, medium, and small size gel pads suitable for different body position. For example, large size gel pad is suitable for back and waist, medium size gel pad for shoulder and neck, the small size gel pad for joints. -
Page 14: Operating Instruction
Operating instruction The following steps are used to guide the device operation, and the details about each step are listed in the following table. Step – Check the battery power for the Electronic Pulse Stimulator The Electronic Pulse Stimulator comes with a built-in rechargeable battery, and could be used as received. - Page 15 Press the - button for 3 seconds to change the stimulation time. Step - Adjust the stimulation intensity Press and release the “+” button to increase the stimulation intensity, and press and release the “-” button to decrease the intensity. Note: With the increase of intensity, you may experience sensations like tingling, vibration, etc.
- Page 16 Lift at the edge of the electrode and peel. When not in use, store the electrode in the re-sealable bag in a cool place, out of direct sunlight and dirty. Recommended practice: Duration suggested for each skin area is 20 min and 2 times per day. Consult with your physician for longer and more frequent uses.
- Page 17 APP application Download the APP. (1). Make sure your smart phone is above Bluetooth 4.0 version. This APP can only be applied to the phone with Bluetooth version above 4.0. (2).When you search “TENS+EMS” in the App Store and Google Play, you will find the APP icon as below, download it and install it to your phone.
- Page 18 (3).Click the App icon to open the App, you will be reminded to open Bluetooth first. Once the blue tooth is opened, the app will automatically connect to the TENS unit which has been turned on. The Tens unit controller will make buzz after successfully connected with the APP. Note: If the App did not connected automatically, please click the upper right corner to access the BLUETOOTH section to scan the TENS unit for the connection.
- Page 19 (8). The following information could be viewed when the user clicks Warnings, Intended Use, and Body Area Applied, respectively. (9). The recorded pulse mode, Intensity, and Time could be viewed when the user click “Data Record”. (10). The Bluetooth page will display the TENS device connected to the App. (11).
-
Page 20: Cleaning And Maintenance
Cleaning and maintenance Please use the moisturized cloth of water or neutral detergent to clean the device first, and then use the dry cloth to wipe it again. The electrode pads coming with the device are disposable, and should be replaced when their adhesiveness becomes worse. -
Page 21: Trouble Shooting
Restart the device and wireless controller to re-connect automatically. Switch to operate the device itself manually. Manufacturer： JKH Health Co., Ltd. Previous name: Shenzhen Jingkehui Electronic Co., Ltd. Address: 4-5F, Building 12, Hengmingzhu Industrial Park, Xinqiao Tongfuyu Industrial Area, Shajing,Baoan, Shenzhen, China...
