- Page 1 AVIOM16/ AmAhA Dn/Up - Aviom Up/Dn - 16 ch Up/Up - 8 ch Mode Dn/Dn - Test Stereo Link UtpUt Ard fOr iGitAl ixers AVIOM16/o-Y1 A-Net Out Made in USA Uide...
- Page 2 A-Net and the A-Net logo are trademarks of Aviom, Inc. Aviom and the Aviom logo are trademarks of Aviom, Inc. Pro16 is a trademark of Aviom, Inc. All other trademarks are property of their respective owners. Information in this document is subject to change. All rights reserved.
- Page 3 • You must turn off the power of your device before you begin installing the AVIOM16/o-Y1 card. • Be sure to disconnect the power cable from the main unit before installing this card (to eliminate shock hazard).
- Page 4 • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the product not expressly approved by Aviom, Inc. could void the user’s FCC authority to operate the equipment.
-
Page 5: Warranty Information
To fulfill warranty requirements, your Aviom product should be serviced only at an authorized Aviom service center. The Aviom serial number label must appear on the outside of the unit, or the Aviom warranty is void. This manual and its contents are copyrighted by Aviom, Inc. All rights are reserved by Aviom, Inc. - Page 6 If a defect is discovered, first write or call Aviom, Inc. to obtain a Return Authorization number. No service will be performed on any product returned without prior authorization.
-
Page 7: The Ethercon Connector

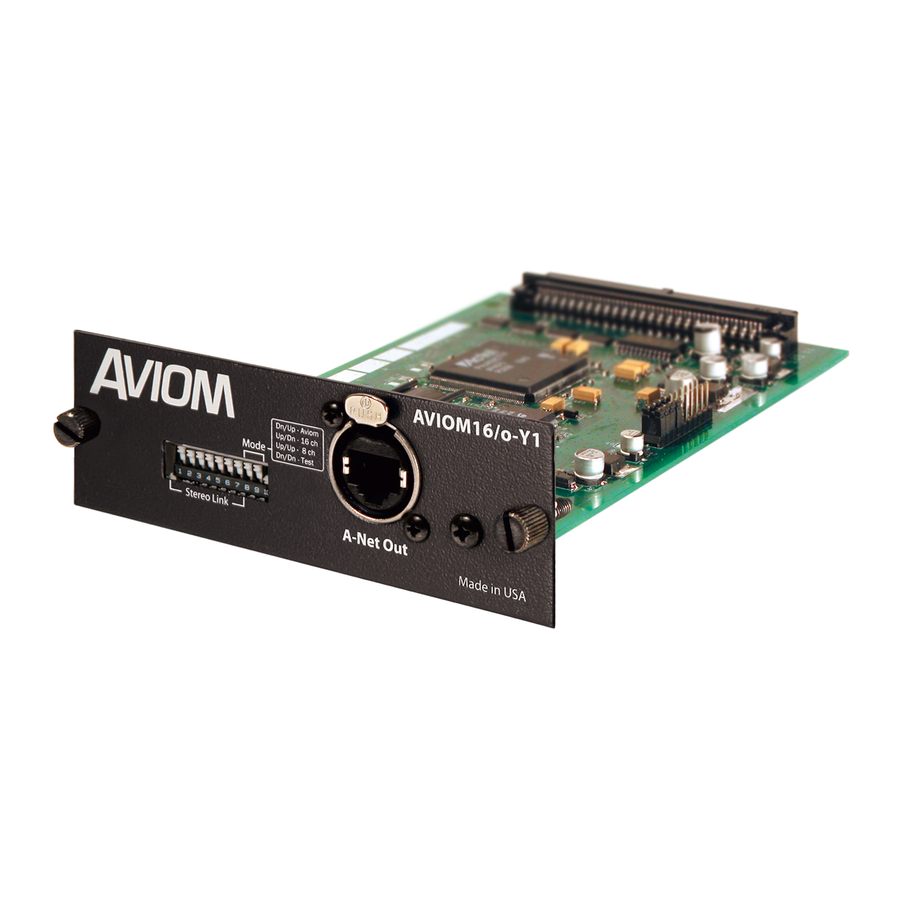

Features The AVIOM16/o-Y1 interface card (or “Y1” card for short) provides a host of professional features designed to make using A-Net Pro16™ monitoring products flexible and easy to configure in a variety of professional audio situations. -
Page 8: Y1 Card Components
• Start with the power to the Yamaha mixing console off. • Remove the mixer’s power cord from the wall receptacle. • Remove the cover plate on the rear of the Yamaha Dn/Up - Aviom Up/Dn - 16 ch Up/Up - 8 ch Mode Dn/Dn - Test... -
Page 9: Dip Switch
Y1 card and Yamaha mixer. • Attach the Y1 card permanently by tightening the two thumb screws on the rear panel of the Y1 card. : Aviom suggests using Category 5e (or better) cables when making A-Net connections. DIP Switch The 10-position DIP switch provides two separate functions. -
Page 10: Mode Select Switches
Switch 9 o and Switch 10 o The Yamaha console software recognizes the Aviom Y1 A-Net card ID’s and will display “Aviom” in all text fields Mode Stereo Link – Aviom Mode Mode Stereo Link... - Page 11 : Not all Yamaha mixers are compatible with Aviom Mode. Software and firmware updates to the Yamaha console may be required. Consult Yamaha Customer Service and/or your mixer’s documentation for additional details. Switch 9 o and Switch 10 o ...
- Page 12 products designated as 8-channel devices. Consult the Yamaha mixing console’s documentation for additional information about 8-channel compatibility. Switch 9 o and Switch 10 o In Test Mode, channels 1 through 4 output a 1kHz, 48k sample rate sine wave. This mode can be used to troubleshoot an audio system.
-
Page 13: Connecting Pro16 Devices
Cat-5e cable from the A-Net output of the Y1 card to the A-Net In on the first Pro16 device starts an A-Net distribution network. No configuration is required for the Aviom devices. Pro16 A-Net allows both serial (daisy chain) and parallel connection topologies. -
Page 14: Parallel Connections
A-Net connections. About Pro16 A-Net A-Net is Aviom’s proprietary high-speed data transmission protocol designed specifically to transport uncompressed high fidelity streaming audio in real time over inexpensive Cat-5e cabling. A-Net is based on the physical layer of Ethernet, which provides Pro16 A-Net a mature and robust base on which to build. -
Page 15: Cable Lengths
A-Net signal to fiber optic at the source location and then back to Cat-5 at the destination. Several companies make fast Ethernet to fiber media converters that can be used with your Aviom equipment. Note: While the Category 5 cables and connectors used on... - Page 16 A-Net In 11 A-Net Out 11 A-Net Output 6 A-Net Pro16 12 A-Net signal repeater 13 power cable 1 AN-16/o Output Module 11 Aviom Mode 8 boot-up console 8 Cable Lengths - Cat-5e 13 card mode selection 8 Cat-5e cables unshielded 13...
- Page 17 MY8-AT Mode 9 networking products 13 Operating Temperature 2 Parallel 12 Personal Mixers 7 PM1D 5 MY8-AT Mode 9 power cable AC 1 Pro16 5 Pro16 Series 11 repeater A-Net 13 router, switch 13 sample rate 10, 12 Series 11 shielded Cat-5e cable 13 signal repeater A-Net 13...
- Page 18 Aviom Warranty Registration Please take a moment to fill in this warranty registration form. Return it to Aviom via mail or fax. All information will be kept confidential. Model Number ... Model Number ... Model Number ... Model Number ...
- Page 20 Aviom, Inc. 1157 Phoenixville Pike Suite 201 West Chester, PA 19380 www.Aviom.com Part Number 9310 1008 0001F...
