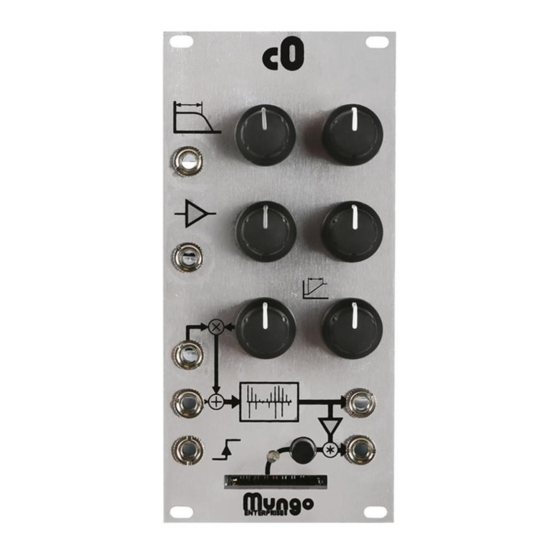

Summary of Contents for Mungo Enterprises c0
- Page 2 12HP Frequency Modulation, signal input and depth control Frequency Offset, added to modulation sets the frequency scaled in V/octave. of the sample rate conversion and convolution. Amplitude Offset, added to modulation sets the Amplitude Modulation, signal input and depth control exponential gain applied to the convolution.
- Page 3 12HP Delay Modulation, independent to each channel, signal Delay Offset, independent to each channel, added to input and depth control scaled in V/octave. the modulation and midi note value. Exponentially scaled. Ranges from 0.2 ms to over 2 s. Slew Limiter, variable slew rate applied to the delay time Input Amplifier, bipolar gain control of channel A.
- Page 4 12HP Frequency Offset, added to modulation and midi note value sets the cutoff frequency of the low pass filter. Frequency Modulation, signal input and depth control Scaling is exponential V/octave for both the offset and scaled in V/octave. modulation sources. Assignable Modulation, signal input and depth control.
- Page 5 12HP Depth Offset, added to modulation sets the offset of Depth Modulation, signal input and depth control linearly the audio window ratiometrically to the remaining buffer scaled in volts per second of delay/offset time. within the full waveform. Width Offset, added to modulation sets the width of the Width Modulation, signal input and depth control linearly audio window ratiometrically to the full size of waveform.
- Page 6 Live Mode, the function button swaps between the two live modes Playback Mode, the function button cycles through the wave files when an SD card is not installed. stored on the SD card if inserted. Once a file is loaded the card can be removed and the sound will remain in memory until the function While the LED is lit the hold mode is enabled, it samples the current button is pressed again to change mode or load another sound.
- Page 7 12HP Modulation, signal input and depth control modulating Delay Time, period between trigger and attack of envelope the gain of channel 1. scaled exponentially. Attack Rate, rate at which envelope approaches full scale, Channel 1, signal input and inverting gain/attenuation. scaled exponentially.
- Page 8 12HP Width Offset, added to the modulation sets the peak Width Modulation, signal input and depth control scaled amplitude of the noise signal, maintaining a constant signal in linear amplitude. power. Frequency Offset, added to the modulation sets the Frequency Modulation, signal input and depth control frequency of the oscillator triggering the sampling.
- Page 9 16HP Size, modulation input, depth, and offset control Strike Softness, filter of the impulse. scaled in V/octave. Continuously variable. Location of strike, modulation input, depth, and Central Size, damping area, ratiometric to full size. offset control used at trigger. Ratiometric of size. Decay, modulation input, depth, and offset control Central Decay, decay in central region.
- Page 10 16HP Size, modulation input, depth, and offset control Width, ratio of width to depth of sound stage. exponentially scaled. Size of the entire sound stage. Scaled exponentially. Decay, exponentially scaled, maintains constant Location of source, modulation input, depth, and power at output. offset control.
- Page 11 12HP Start, sets the position at start of playback, ratiometrically Loop Start, sets the position for the start of looping, scaled with the waveform. ratiometrically scaled with the waveform. Gate Input, positive going edge triggers sampler start and negative going edge triggers the end of looping. Loop Width, sets the position for the end of looping, Sampler Frequency, signal input and sampler playback ratiometrically scaled with the waveform and added to the...
- Page 12 Looper Phase Locked Loop, (PLL) the reset input of the looper Sampler, the sampler data is loaded from the SD card by holding triggers a PLL to lock onto the incoming period of the positive going zoom in (+) while pressing the load button. Total memory available edges of the signal.
- Page 13 12HP Base Frequency Modulation, signal input and depth Base Frequency, added to modulation sets the lower control scaled in V/octave. frequency of the bandpass filter bank. Exponentially scaled. Filter Width, added to modulation sets the width of the Filter Width Modulation, signal input and depth control bandpass region of the filter bank.
- Page 14 12HP Frequency Offset, added to fixed and variable modulation Frequency Modulation, signal input and depth control and midi note value sets the frequency of the sawtooth core scaled in V/octave. oscillator. Phase Offset, added to modulation sets the phase offset Phase Modulation, signal input and depth control scaled of both outputs to the sawtooth core oscillator.
