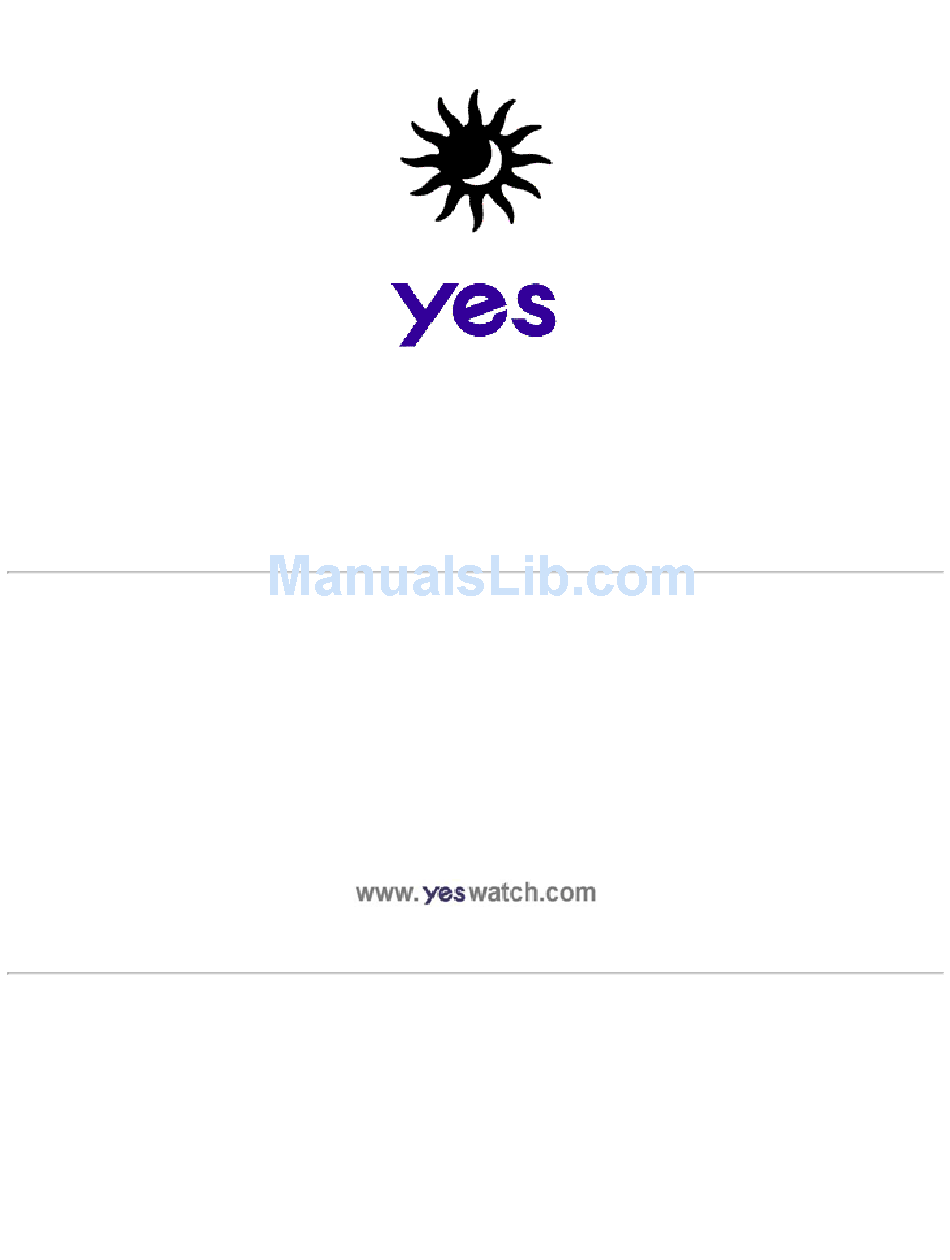

Instruction Manual

4.0

Ana-digit 24 hour Solunar Movement

zulu - inca - kundalini - cozmo

Welcome to the Ownership

of a YES Watch.

YES is a complex time machine

and offers layers of time not usually found in a wristwatch.

Solar time, lunar time, digital time and military time,

along with many other features,

are all packed into one time piece.

In order to get the most out of your watch,

we strongly recommend reading this manual.

Need help?

Do you have a question about the Zulu series and is the answer not in the manual?

Questions and answers

Summary of Contents for YES Watch Zulu series

Page 1 Ana-digit 24 hour Solunar Movement zulu - inca - kundalini - cozmo Welcome to the Ownership of a YES Watch. YES is a complex time machine and offers layers of time not usually found in a wristwatch. Solar time, lunar time, digital time and military time, along with many other features, are all packed into one time piece.
Page 3 Basic Button Functions M - The Mode button is used to cycle through these modes: SHOWING TIME (for HOME / AWAY locations) SET HOME > SET AWAY > SET TIME SETLCD RING > STOPWATCH > TIMER S/M CALC > PET COUNTDOWN S - The Set &...
Page 4 To do this you need to know latitude, longitude, time zone and DST system for your location. Go to LAT/LON under L in city listing for either SET HOME or SET AWAY mode, then push S to enter the setting sequence guided by a flashing letter or number.
Page 5 SOLAR TIME The main center segments shows the ratio of day and night, times for sunrise and sunset, and they relate to the 24-hour dial. Each solar segment represents 15 minutes. LUNAR TIME The smaller circle in the bottom half of the LCD indicates the lunar phase. Each moon phase segment represents about 44 hours.
Page 6 CROSS QUARTERS On cross quarter dates, the days halfway in between equinoxes and solstices, the LCD center segments will turn into a sun display. Every 30 minutes the event name will display for 30 seconds and flash a thick ray sun display. To show regular time display push and hold S for 2 seconds.
Page 7 BACK LIGHT Push B once to turn back light on for 3 seconds. When setting the watch at night, push B frequently to keep the backlight on. To use backlight during time data review, push B. TURNING DIGITAL TIME OFF Push B twice to turn digital time display off.
Page 8: How To Use The Stopwatch
SR/SS ALT = LCD ring will show day/night ratio and sun set/rise for alternate location. The watch will show MR/MS if the watch is restarted, battery exchanged, or if no choice has been made. How to use the Stopwatch Push M 5 times until display reads 00:00:00 c. Push L to start stopwatch and S to stop it. Time elapsed will display.
Page 9 Pushing L during data review sequence will speed it up. Push and hold L for 2 seconds to change to next group of data during the CITY & TIME data > SUN data > MOON data review sequence. Push M anytime to revert to regular time display. How to use PET countdown The Phase Elapsed Time function is used to count down the days,, hours, minutes and seconds to a specific event.
Page 10 How to Adjust the Bracelet Place the bracelet in the link adjustment tool as shown. Make sure the screw-pin points in the same direction as the arrow on the back of the link. Carefully align screw pin with link pin, guide the bracelet into place and then slowly start turning the wheel inwards.
Page 11 Push S to cycle through DST AUTO > DST ON > DST OFF choices and push L to lock your selection. This feature applies to locations set by LAT/LON as well. Following are DST definitions used in programming: USA DST = SA = Standard American DST. Starting Spring 2007 DST begins on the second Sunday of March and ends on the first Sunday in November.
Page 12 Please note that .3 decimal indicates 30 minutes. LAT / City Listing DST Zone display Aberdeen ABERDEN 57n / 2w Abha ABHA 18n / 43e Abidjan ABIDJAN 6n / 4w Abilene ABILENE 32n / 100w sa Abu Dhabi ABUDABI 24n / 55e Abuja ABUJA 9n / 7e...
Page 13 Azores AZORES 38n / 26w no Baghdad BAGHDAD 33n / 44e Bahia Blanca BAHBLNC 38s / 63w no Bahrain BAHRAIN 26n / 50e Bakersfield, CA BAKRSFL 35n / 119w sa Baku BAKU 41n / 49e Bakwanga BAKWANG 6s / 23e Bali BALI 8s / 115e...
Page 14 Bombay BOMBAY 19n / 73e Bordaux BORDAUX 45n / 1w Boston BOSTON 42n / 71w sa Bouake BOUAKE 8n / 5w Brasilia BRASILA 16s / 48w sb Brisbane BRISBNE 27s / 153e no Birmingham,GB BRMGHGB 52n / 2w Birmingham,US BRMGHUS 33n / 87w sa Brownsville BRONSVL 26n / 98w sa Brunei...
Page 15 Cincinnati CINCNAT 39n / 84w sa Cleveland CLEVLND 41n / 82w sa Campo Grande CMPGRND 21s / 55w sb Columbia,SC COLMBIA 34n / 81w sa Colorado Springs COLOSPN 39n / 105w sa Columbus, GA COLUMBG 32n / 85w sa Columbus, OH COLUMBO 40n 83w Comodore Rivadavia COMRIVA 46s / 68w no Conakry...
Page 16 Fargo FARGO 47n / 97w sa Fayetteville FAYETVL 35n / 79w sa Fiji FIJI 18s / 178e no Firenze FIRENZE 44n / 11e Flagstaff FLAGSTF 35n / 112w no Fortaleza FORTALZ 4s / 39w Freetown FREETWN 8n / 13w Fresno FRESNO 37n / 120w sa Frankfurt...
Page 17 Hartford HARTFRD 42n / 73w sa Havana HAVANA 23n / 82w sa Port Hedland HEDLAND 21s / 118e no Helsinki HELSINK 61n / 25e Hermosillo HERMSIL 29n / 111w sa Hilo HILO 20n / 155w no Hobart HOBART 43s / 147e st Hong Kong HONGKON 23n / 114e no Honolulu...
Page 18 Kikwit KIKWIT 5s / 18e Kingston KINGSTN 18n / 77w no Kinshasa KINSHAS 5s / 15e Kisangani KISANGA 1n / 25e Knoxville KNOXVIL 36n / 84w sa Koh Samui KOHSAMU 9n / 100e Koln KOLN 51n / 7e Kota KOTA 25n / 76e Krakow KRAKOW 50n / 20e...
Page 19 Macchu Picchu MACHUPI 13s / 73w no Madagascar MADGSCR 19s / 47e Madison MADISON 43n / 89w sa Madras MADRAS 13n / 80e Madrid MADRID 40n / 4w Madurai MADURAI 10n / 78e Malatya MALATYA 38n / 38e Managua MANAGUA 12n / 86w no Manaus MANAUS 3s / 60w...
Page 20 Montes Claros MTCLARO 17s / 44w sb Mulege MULEGE 27n / 112w sa Multan MULTAN 30n / 72e Munich MUNICH 48e / 12e Murmansk MURMNSK 69n / 33e Muscat MUSCAT 23n / 58e Mykonos MYKONOS 37n / 26e N'Djamena N DJAME 12n / 15e Nagpur NAGPUR...
Page 21 Palermo PALERMO 38n / 13e Palm Springs PALMSPR 34n / 116w sa Panama PANAMA 9n / 79w Paramaribo PARAMAR 6n / 55w Paris PARIS 49n / 2e Pelotas PELOTAS 32s / 52w sb Pensacola PENSACL 31n / 87w sa Perm PERM 58n / 57e Perth...
Page 22 Rochester ROCHSTR 43n / 77w sa Rome ROME 42n / 13e Rosario ROSARIO 33s / 61w no Roseau ROSEAUI 15n / 61w no Sacramento SACRMTO 39n / 122w sa Salt Lake City SALTLKC 41n / 112w sa Salvador SALVADR 13s / 39w no Samoa SAMOA 13s / 171w no...
Page 23 St. Louis STLOUIS 39n / 90w sa Sault Ste.Marie STMARIE 47n / 84w sa St.Marteen STMARTIN 18n / 63w no Stockholm STOKHLM 59n / 18e Strasbourg STRASBR 48n / 8e Stuttgart STUTGRT 49n / 9e Sundsvall SUNDSVL 63n / 17e Surabaya SURABYA 8s / 112e Sydney...
Page 24 Vancouver VANCUVR 49n / 123w sa Venezia VENEZIA 46n / 12e Veracruz VERACRZ 19n / 96w sa Victoria,Seychelles VICTORI 4s / 55e Vienna VIENNA 48n / 16e Vientiane,Laos VIENTIA 18n / 102e NO Vila, VANUATU VILA 18s / 168e no Vilnius VILNIUS 55n / 25e...
Page 25: Water Resistance
+1 to +12 EAST -1 to -12 WEST in 30 minute increments. They meet at the date line which cuts through the Pacific Ocean. Each time zone corresponds to 15 degrees, yet over land is governed by geographical boundaries. When setting your HOME or AWAY location by LAT/LON please use the map to choose your time zone. Water Resistance.
Page 26 date purchased purchase location...
