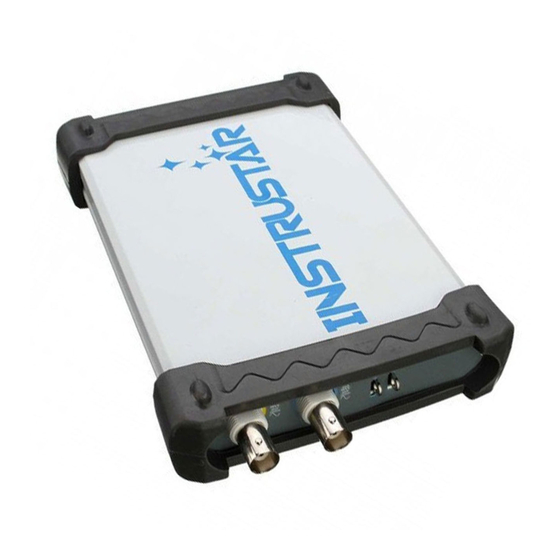

Summary of Contents for InstruStar ISDS205A
- Page 1 ISDS205 ISDS205 User Guide InstruStar Electronic Technology 2016-11-10 InstruStar Electronic Technology http://www.instrustar.com/...
- Page 2 ISDS205 contents 1.Introduction…………………………………………………………1 2.Feature Description…………………………………………………1 3.Software Installation…………………………………………………2 4.Interface………………………………………………………………3 5.Oscilloscope / Spectrum Analyzer/DDS……………………………5 6.Data Recorder…………………………………………………………5 7.Logic Analyzer………………………………………………………5 8.Saleae Logic Logic Analyzer…………………………………………6 InstruStar Electronic Technology http://www.instrustar.com/...
- Page 3 ISDS205 PC SYSTEM REQUIREMENTS Win7，Win8，Win10 Windows XP， Pentium or higer processor USB2.0 High speed port. 512MB RAM 1GB hard disk space InstruStar Electronic Technology http://www.instrustar.com/...
- Page 4 Input Protection Diode，50Vpk Auto Set Yes(10Hz to 20MHz) Trigger Mode Auto、Normal and Signal Trigger Type No、Rising edge、Falling edge、 Rising edge or Falling edge Trigger Level Trigger Source CH1, CH2 Buffer Size 1MB/CH Bandwidth 20MHz Max Sample 48MS/s InstruStar Electronic Technology http://www.instrustar.com/...
- Page 5 The maximum 4G, recording time associated with the Save File sampling rate Note: The specific speed recorder with computer processing speed, and if use high sampling rate, the situation may break. Logic Analyzer(205C/205X) Channel Sample 8 channel: 250K~24M Hz InstruStar Electronic Technology http://www.instrustar.com/...
- Page 6 Square Wave Rising/Falling Time ≤100ns Square Wave Duty Circle 1%~99% SWEEP Sweep Range Fs 到 Fe Sweep Time Range 0.1 ~10 s Amplitude 0.5Vp-p ~ 10Vp-p 3.Software Installation Please refer to the "Software and Driver Installation.pdf". 4.Interface 4.1 ISDS205A InstruStar Electronic Technology http://www.instrustar.com/...
- Page 7 ISDS205 4.2 ISDS205B 4.3 ISDS205C InstruStar Electronic Technology http://www.instrustar.com/...
- Page 8 7.1.1 Channel Control Start or Stop Capture. 7.1.2 Channel Num Set the num of the channels to be collected. 7.1.3 Sample Length Set the length of the data to be collected. 7.1.4 Sample Figure 7.1 properties InstruStar Electronic Technology http://www.instrustar.com/...
- Page 9 Saleae Logic position. Plugged into the USB, the software automatically recognizes and displays the Connected. Interface shown in Figure 8.1 More information, please view Saleae Logic software instructions, is located in "\Saleae Logic\Logic Guide.pdf" Figure 8.1 Saleae Logic interface InstruStar Electronic Technology http://www.instrustar.com/...
