Please read the manual before use.
The information in this document won't be modified or extended
in accordance with any notice.
The watch should be charging 2 hours at least before use.
1. Product specification
CPU MTK2502
Memory:RAM 32Mb+ ROM 32Mb,
Capacitive touch screen 1.22" 240*240 pixel
Bluetooth version 4.0
Function: BT Call , BT SMS, Anti-lost, Alarm, Pedometer, Sleep monitor,
Sedentary reminder, Information notification etc.
Battery Lithium-ion 3.7V 280mAh
2.Product details:
2.1 Product details
Power Key:
2.2 Products quick into：
Smart Watch
User Guide
Power On/Off；Awaken/turn off screen；Back to main menu
Advertisement
Summary of Contents for AX Technologies 43602502
-

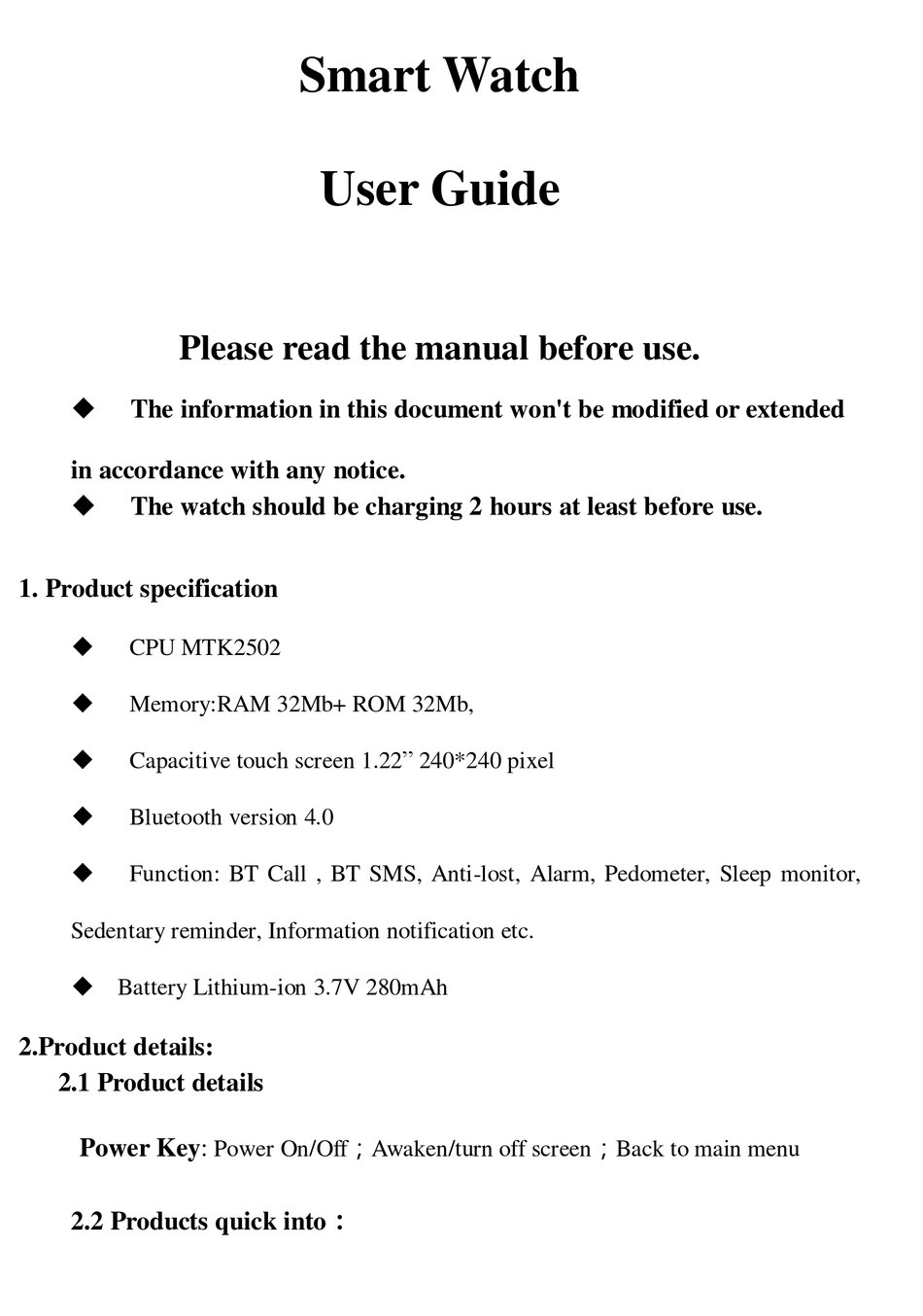

Page 1: User Guide
Smart Watch User Guide Please read the manual before use. The information in this document won't be modified or extended in accordance with any notice. The watch should be charging 2 hours at least before use. 1. Product specification ... - Page 2 You can enter into next page by sliding screen left, and return to last page by sliding screen right. 2.3 Clock Display Setting method： Method 1: Power on the device,when the watch is in clock mode,please long press middle screen and set different clock interfaces as you like by sliding screen right or left. Method 2:Power on the device, Enter the main menu: settings--clock—clock type, then choose the clock mode if you like.
- Page 3 3.2 Connection and Synchronize data 3.2.1 Bluetooth connection iPhone:Connect your phone and watch via Bluetooth from your iphone setting,then open the Fundo Wear app,select the green “+”icon from the “Fundo Wear”APP home screen,select the “Bluetooth connection” icon to connect your watch to the “Fundo Wear”...
- Page 4 Notice： The Sync software can open in sync APP already installed and Accessibility, the mobile will show Bluetooth connected done after 2-5min;the watch will inform you the time of Sync with phone, than the Sync switched on. The message will sync to you watch when it incoming to mobile .
- Page 5 3.3 Enable Notifications This will allow your smart watch to send you notifications from apps you have installed on your iPhone or Android device. For example: if you want your email notifications send to your smart watch, enable the app on the “Fundo Wear ”App. When an email is received it will notify you on your smart watch.(Only for Android device) (See illustration images below) Notice：...
- Page 6 Shown all records including miss call,dialed calls and receive call;You can check the date,time and phone number of the miss call after you choose it,but only can call this number. 3.4.3 BT Paired devices from smart watch 3.4.4 Remote notifier When there is SMS(only for Android device), incoming messages from Skype and other applications on the connected phone, the watch phone will alert you to read them.
- Page 7 be one hours. 3.4.10 Calculator Use your watch build in caculater. 4. Notice 4.1 Full charge before use, the charge time need 2 hours. 4.2 Use the accessories cable and charger, or your android phone accessories . 4.3 Bluetooth will disconnect when exceed the distances, after switch on the Anti-lost, the smart search function can’t be use before reconnect with Bluetooth.
- Page 8 If it’s in low power, please charge the watch 5.3 Using time too short. When the battery is not full,please make sure it is full power(full charge need 2hours at least). 5.4 Unable to charge. The battery’s life will be reduced after few years.Please check if the battery are work.
- Page 9 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
