Dbworth XT-009S User Manual

Gsm / gprs / gps motorbike /vehicle smart tracker

Advertisement

Quick Links

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China
sales@dbworth.net
GSM / GPRS / GPS
MOTORBIKE /VEHICLE
SMART TRACKER
XT-009S

Advertisement

loading
Need help?

Need help?

Do you have a question about the XT-009S and is the answer not in the manual?

Questions and answers

Summary of Contents for Dbworth XT-009S

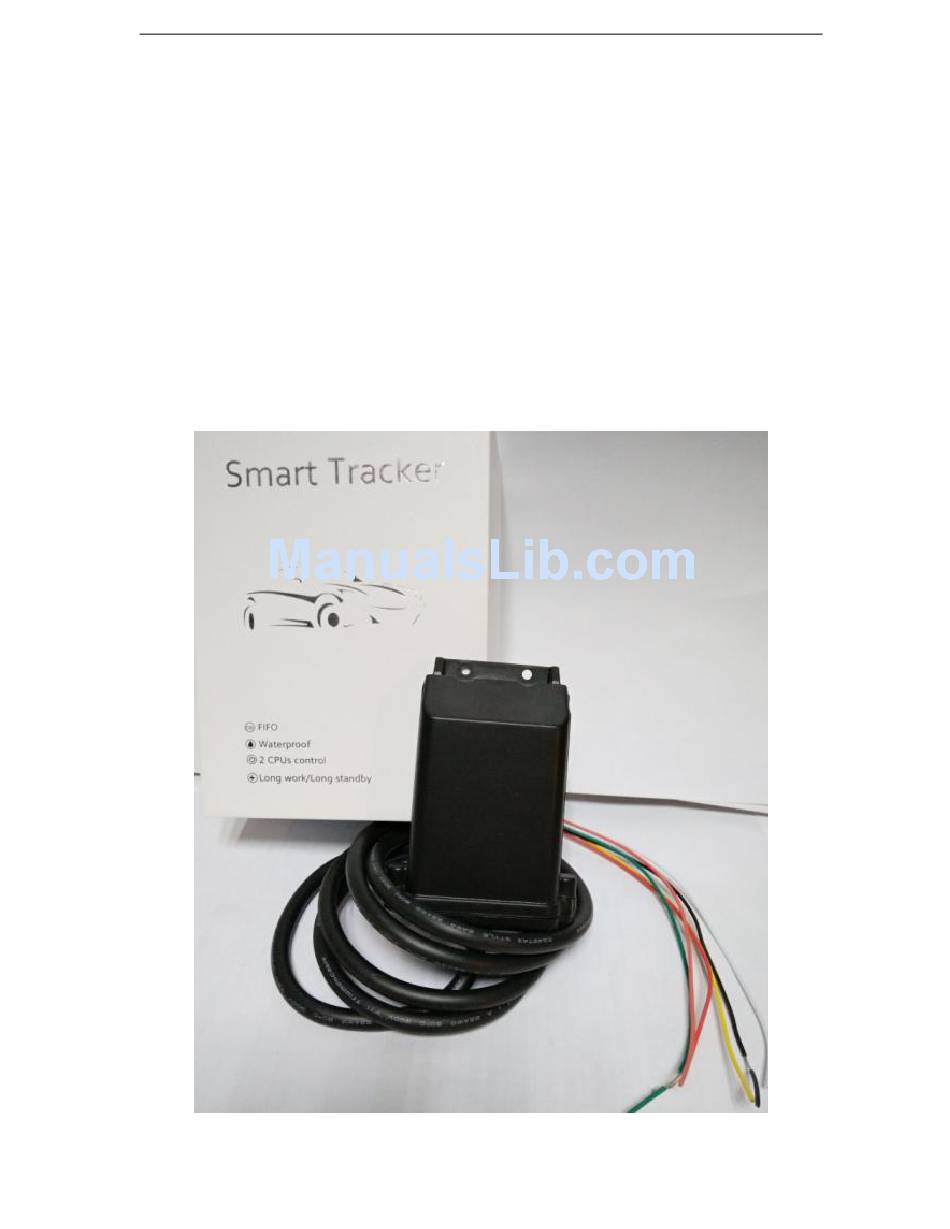

  • Page 1 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net GSM / GPRS / GPS MOTORBIKE /VEHICLE SMART TRACKER XT-009S...
  • Page 2 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net 1.Overview A.features:  FIFO  FOAT  Tlimit  Relay cut off  2Cpus Control  Waterproof /IP68  Voice monitoring  Blind Area data log  Intelligent Power Saving ...
  • Page 3 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net 2.Application  Vehicle/Boat/motorcycle / rental / fleet management Assets safety   Vehicle management  Tracking an offense 3.XT009S and accessories...
  • Page 4 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net...
  • Page 5 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net 4. Wires connection Red: Connect to constant DC+ Car Battery(6-36V)  Black: Connect to Earth (Chassis) Car battery(-)  Green: Connect to ACC  Yellow: Connect to SOS button ...
  • Page 6: Specifications

    Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net Specifications Item Specifications Dimension 73.5(L)*46(W)*24(H)mm Frequency bands GSM: 850/900/1800/1900Mhz Weight DC Input Voltage 6V-36V Backup battery 850mAh/3.7v Power consumption 10mA standby current standby time 3-5days Working temperature -20°C to 70°C...
  • Page 7 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net 6. Installation I. Open XT009S II.Install : A.Prepare a Nano sim-card...
  • Page 8 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net Install Nano size Sim-card and Microphone C.Connect the Backup battery...
  • Page 9 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net III.Locations for XT009S Installation Below are the recommended areas available within a vehicle for TM009 installation. These are suggestions only, as depending on the vehicle type, there may be many possible locations to hide/install the unit.
  • Page 10 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net System indicator (Green) Status Description Constant ON Backup Battery no enough power Quick flash Searching signals Flash slowly Normal Working Mode In sleep mode 9. Commands Function: All commands are not case sensitive ,123456 is the default password.GPRS commands (no password required).
  • Page 11: Commands List

    Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net Get: imei=864811037009987 admin=18682286009,,,, gprs=122.10.36.11,2020,cmnet,, tz=8.0h tsn=40s 22.564871,114.032768 0km/h ,ok! Commands List Password123456 667788 Password changed to 667788 Adminip 123456 122.10.36.11 2020 Set Sever’s IP (or DNS) ,port Apn123456 cmnet Set Sim card Apn...
  • Page 12 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net Geofence123456,01=11402.6460/2233.9750/500,02=11302.6460/3333.9750/600,03=11502.6460/4233. 9750/700,04=11602.6460/5233.9750/800,05=11502.6460/4233.9750/900,en=1 En=1 ,enable the Geofence En=0, disable 500 600 700 800 900 are the radius of each geo-fence Unit: M (meter) IN/OUT of each fence , will generate an alert “...
  • Page 13 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net 2495=== LAC (location area code) 12e1=== cell ID 460,0,2495,12e1 is GSM ID, please ask your GSM network for this information. Generally speaking, the gsm operator will not give this information to others.When the tracker is lost,...
  • Page 14 Shenzhen Dbworth Co.,Ltd 6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China sales@dbworth.net 12 . Data string Power connected 170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F, Poweron,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1.. 170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F, help,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1.. To admin number Firmware FOTA successfully 170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,fota success,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1.. To admin number Main DC+ missing 170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F, MainBattery,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1.. To admin number ACC ON 170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,...
