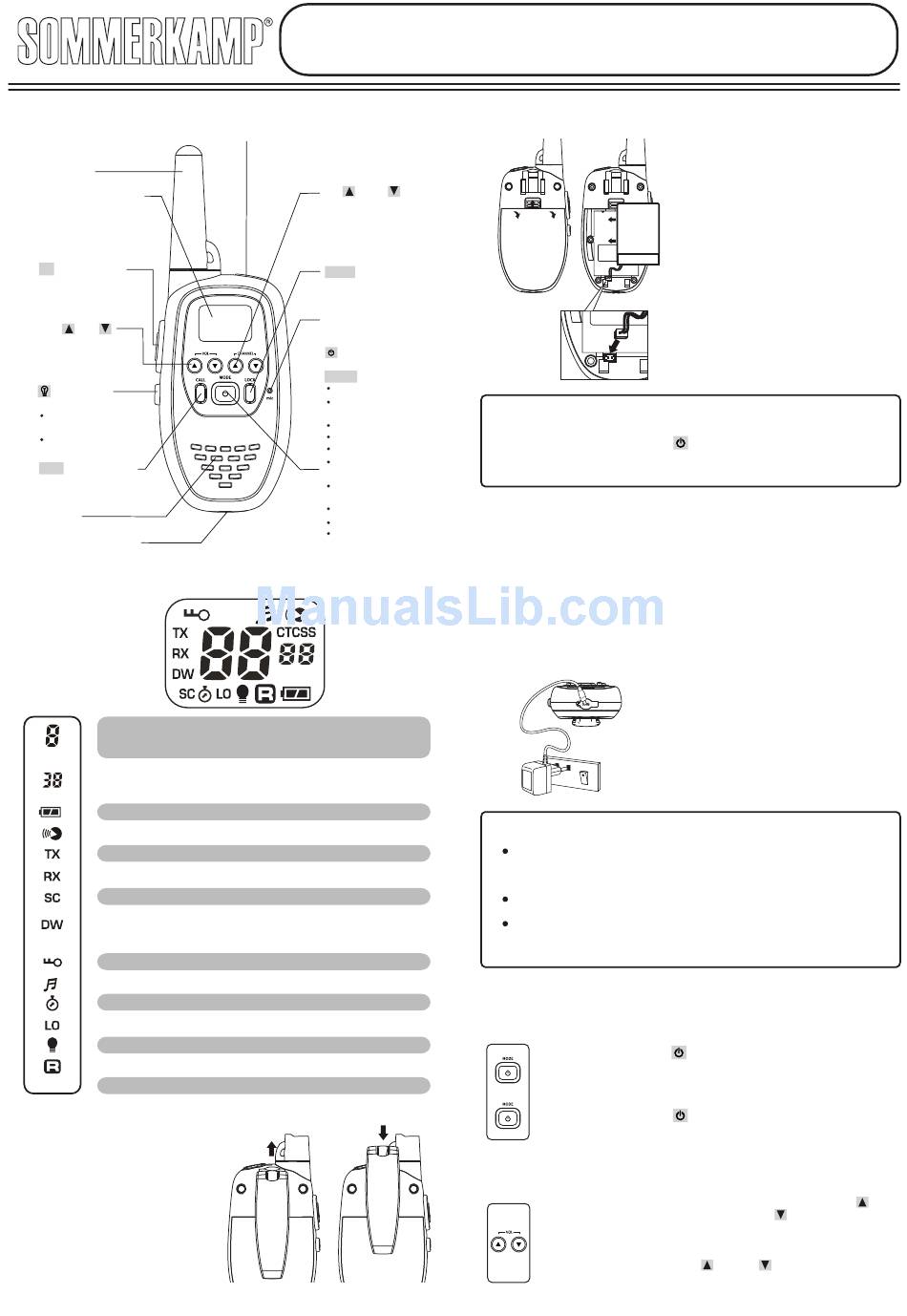

Sommerkamp SK-101LR Owner's Manual And Operating Instructions

Communicator Controls
Antenna
LCD Screen - Displays
the current channel
selection and other
radio symbols.
PTT (PUSH to TALK)
button - Press and
hold to transmit.
VOL (UP)/
(DOWN) buttons -
Press to change
volume Up or Down.
(Monitor &
LAMP) button -
Press to monitor the
current channel.
Turn ON back light.
CALL button - Press
to send ringing tone
to other PMR units
Speaker
AC-DC/Car Adaptor
charge jack
1. LCD Screen
Channel Number. Changes from 1 to 8 as selected by
the user.
CTCSS Code. Changes from 1 to 38 as selected by
the user.
Flash when start charging function.
Displayed when the Vox feature is enabled.
Displayed when transmitting a signal.
Displayed when receiving a signal.
Blinks during Channel scan mode.
Displayed when the Dual Watch function is turned
ON.
Displayed when the Key Lock feature is activated.
Displayed when Key tone is turned ON
Displayed when the Stopwatch feature is turned ON.
Displayed when turn to low power
Power saver indication
Displayed when Roger tone is turned ON.
2. Installation
2.1 Removing the Belt Clip
a. Pull the Belt Clip Latch away
from the PMR.
b. While pulling the Belt Clip
Latch, push up the Belt Clip
as shown in Figure 1.
2.2 Installing the Belt Clip
a. Slide the Belt Clip into the
slot as shown in Figure 2.
b. A Clip is locked into position.
LONG RANGE COMMUNICATOR MODEL SK-101LR
OWNER'S MANUAL AND OPERATING INSTRUCTIONS
Ear/Mic Jack
CH (UP)/
(DOWN) buttons -
Press to change
channels, and to
select other settings.
LOCK (Key Lock /
Enter) button
Mic (Microphone)
Power ON/OFF
(press & hold) and
MODE button -
Sub-code selection
Hi / Low power
selection
Vox Level & ON/OFF
Channel scanning
Sub-code scanning
Dual watch
scanning
Call tone melodies
selection
Roger tone setting
Key tone setting
Stop watch function
Belt clip latch
Figure 1 Figure 2
2.3 Installing the Battery Pack
Figure 4
Figure 3
Figure 4a
This unit has a built in POWER SAVER feature for maximum battery
life. But when the COMMUNICATOR is not being used, conserve
battery power by pressing the
pack if the unit will not be used for a long period of time.
2.4 Charging the Rechargeable Battery pack
Using the AC-DC Adaptor plug
a. Insert the small plug on the end of the AC-DC adaptor into the
Charger jack located at the bottom side of the unit (Figure 5).
b. Plug the AC adaptor into the AC wall outlet.
When charging, the Battery indicator icon will flash on the LCD
Screen. It takes about 10 hours to fully recharge the battery if they've
become completely run down, new battery takes up to 14 hours to
fully charge.
Figure 5
Notes:
Caution: Danger of explosion if battery is incorrectly placed.
For the Rechargeable battery pack, replace only
with same type and make of the battery pack that
comes with the unit.
Remove the battery pack if the unit will not be used for a long
period of time.
To reduce the risk of electric shock, do not expose this
appliance to rain and moisture.
3. Operation
3.1 Turning the Unit ON/OFF
To Turn ON;
a. Press and hold the
beep tone will be heard and the LCD Screen will display
the current channel.
To switch OFF;
b. Press and hold the
Dual tone will be heard and the LCD Screen will turn
blank.
3.2 Adjusting the Speaker volume
There are 8 volume levels.
a. To adjust the speaker volume level, press the VOL
button to increase, or press the VOL
to decrease. During the adjustment, the LCD Screen will
display LE icon and the corresponding number of the
volume level.
b. When press & hold VOL
Volume level will be increased or decreasd continously
to maximum or minimum setting, users will then hear
double beep tone as alert.
1. Release the BATTERY COMPARTMENT
COVER LATCH located on the rear side
of the unit (see Figure 3) and remove
the BATTERY COMPARTMENT COVER
from the BATTERY COMPARTMENT.
2. Install 1x3.7V Lithium rechargeable
battery pack (optional) as shown (See
Figure 4).
3. Insert the battery pack connection pin
into the jack located inside battery
compartment (See Figure 4a). Use pen
or other tool to press and ensure pin
being fully pushed into jack.
4. Reinstall the BATTERY COMPARTMENT
COVER and lock the BATTERY
COMPARTMENT COVER LATCH into
position.
button to OFF. Remove the battery
Important:
Turn OFF the PMR unit
when charging. Charge
the Battery pack 10~14
hrs. prior to initial use.
(Power) button for two seconds. A
(Power) button for two seconds. A
(DOWN) button
(UP) or (DOWN) buttons,
(UP)
