Page 1 China SKYLINE Technology Co.,Ltd. SK GoIP User Manual V1.6...
Page 2 GoIP User Manual http://www.chinaskyline.net Tel/Fax: 86-755-82435955 : Floor 6,Building 4,No.7 Lipu Street | Dafapu Community,Bantian Road |Longgang District, Office Address shenzhen city | Guangdong,China Content Content................................. 2 About..................................4  Intro................................. 4  TECHNICAL PARAMETER.......................... 5  View................................. 7 Quick Start................................8 ...
Page 3 China SKYLINE Technology Co.,Ltd.  Network Setting..........................20  SIP Setting............................20  Port Setting............................22  Base Station............................23  Rules Setting............................25  Mobile Setting........................... 27  SMS Setting............................29  Automation............................31  Simpool Setting..........................33  InterCall Setting..........................34 ...
Page 4: About
GoIP User Manual About  Intro SKYLINE INTERNATIONAL COMMUNICATION Co., Ltd. was founded in 2002.We have 70 employees, 15 departments and more than 10 production lines. More than 200 companies have established business with us, and they are from 40 different countries.
Page 5: Technical Parameter
China SKYLINE Technology Co.,Ltd.  TECHNICAL PARAMETER Features：Relay Encryption Solution(Fix IP Blocking)/Bandwidth Optimization/SIM Rotating Automatically(Fix SIM Blocking)/Base Station Switch/SIM Hot Plugging/Remote Control(Manage Device Anywhere)/Muti-Codec Support)/SMS Receive & Send Human Behavior Channels: 32/128 SIP V2.0 RFC3261 RTP/RTCP RFC3551 Echo/Silence control Caller Anonymous...
Page 6 GoIP User Manual CDMA PARAMETERS CDMA channels: 128 Channels Network types: 450/800/1900MHz Antenna connector: SMA (female), Impedance 50 Ω MAIN POWER Power Input: 100-240V~50-60Hz 1.2A MAX Power Output: 12V/5A Internet DHCP, DNS, PPPoE IPv4, TCP, UDP HTTP, FTP, TFTP, ARP, NTP OTHER Working Temperature: 0~+50℃...

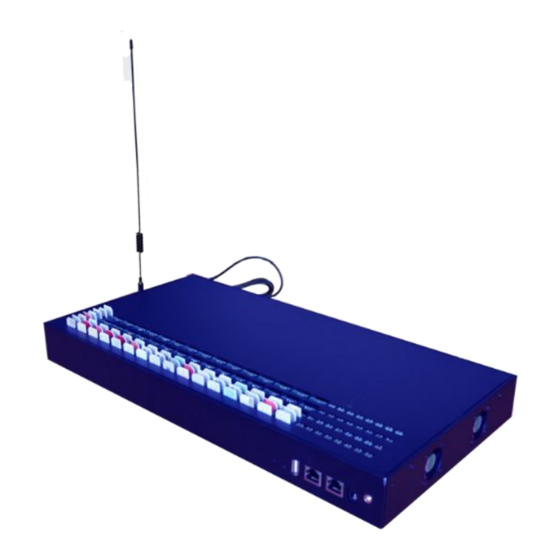

Page 7: View
China SKYLINE Technology Co.,Ltd.  View 1, SIM slots: The 32/128 GoIP device can read 128 SIMs totally. It means the gateway can support 32/128 calls concurrently (32/128 channels), and each channel can read 4 SIMs named (This SIMs will rotate to avoid blocking).
Page 8: Quick Start
GoIP User Manual 5, RESET: Restore the factory default (Press the button and hold on for more than 5s). 6, Power connector. Input power: 100-240V ~ 50-60Hz 1.2A MAX Output power: 12V/5A 7, LAN: Ethernet port. 100M/10M Adaptive 8, WAN: Ethernet port. 100M/10M Adaptive The default WAN IP is 192.32/1288.1.10...
Page 9: Insert Sim Cards
China SKYLINE Technology Co.,Ltd.  Insert SIM cards A/C: The chip side towards up. B/D: The chip side towards down.  Connect Device Connect the power adapter to keep power on, connect a RJ45 network cable from GoIP WAN port to a router① LAN port (The router should be connected to internet).
Page 10: Connect To Network
GoIP User Manual When login successfully, the “Initial Setting” guide page will be help to make gateway working more easily Actually, only IP address and SIP info are needed then the GoIP gateway can start to transfer VOIP calls.  Connect To Network Dynamic IP: DHCP②...
Page 11: Connect To Sip Server
China SKYLINE Technology Co.,Ltd. 2, The WAN IP should be unique or it will conflict with other network devices. 3, Check the IP Mask and Default Gateway in your router configuration. The WAN IP segment will be same with the router which gateway connect to. For example, the router LAN IP is 192.32/1288.10.1, and the gateway WAN IP should be...
Page 12 GoIP User Manual If the router’s LAN IP segment is not same with GoIP WAN segment (192.32/1288.1.10), need modify GoIP default IP. First, connect a computer to the same router with GoIP, add the GoIP IP segment in the computer.
Page 13: How To Insert Sim Cards
China SKYLINE Technology Co.,Ltd. Save it, then input “192.32/1288.1.10” in the browser, log into the page and change the WAN IP to be compatible with the router. How to change WAN IP?  How to Insert SIM cards? Refer to “Insert SIM...
Page 14: How To Make Test Voip Calls
GoIP User Manual  How to make test VOIP calls? After Preparation Work is done, insert cards & network connected, a test call is necessary. 1, Download a softphone, like x-lite, install and run it. 2, Connect this softphone with GoIP peer to peer. Display Name, User name, Password can be anything.
Page 15: How To Activate The Sims Locked
China SKYLINE Technology Co.,Ltd. Domain: Input GoIP WAN IP. Unchecking the “Register with domain and receive incoming calls”. 3, Dial a phone number and test.  How to activate the SIMs locked? When the SIMs are locked temporarily, SIM status will be .
Page 16: Goip Details
GoIP User Manual GoIP Details  Status Information Show the device status.  Call status Port: The current SIM port. Call Status: IDLE/INVITE/Alerting/Connected/DSC. SIM Led: SIM mobile network status. Registering: Registered: Calling: Locked: Register fail: Invalid SIM: Sleep SIM: Provider: The SIM MCC+MNC⑤ or Mobile operator name. ⑤MCC: Mobile Country Code.
Page 17: Device Status
China SKYLINE Technology Co.,Ltd. Show the call data. PortNo.: SIM No.. Calls: Received calls need to be sent out. Alerted: Sent out calls number. Connected: Calls connected successfully. Consecutive Fails: Calls sent out with aborted consecutively. No Carriers: Calls disconnected with No Carriers.
Page 18: System Status
GoIP User Manual Show the SIP status. PortNo.: The channel No. Registration Status: The status of connecting to SIP server. Module Status: ON/OFF.  System status Network status: WAN and LAN port. WAN is used to connect to network, LAN is used to connect to computer if necessary. System status Current Time: (The device will proofread time with NTP server) Set the Time Zone in “System Settings->User &...
Page 19: Sms Statistics
China SKYLINE Technology Co.,Ltd.  SMS statistics On this page, you can scan the SMS statistics include the total SMS numbers re ceived from wireless network, the total numbers of SMS send out to phone user, the total number of send successfully for every SIM card.
Page 20: Gateway Settings
Security: Transfer calls with proxy server in a security way. SIP parameters: Refer to “Connect to SIP Server”. Primary Proxy IP: The security relay proxy server IP address. Proxy Port: Relay proxy port. Contact the SKYLINE tech support to install proxy server software.
Page 21 China SKYLINE Technology Co.,Ltd. We suggest that keep this advanced setting default, any problems, please contact SKYLINE tech support online.
Page 22: Port Setting
GoIP User Manual  Port Setting The SIM cards mobile network jump among different frequency to search base station. Some SIMs only support one frequency or dual band, to save the mobile registration time, select the correct Frequency Band Lock The Operator The gateway hardware modules are controlled by “AT Command”, and the SIM can get extend service by sending USSD Command from SIM operator.
Page 23: Base Station
China SKYLINE Technology Co.,Ltd.  Base Station User can limit the base station numbers and time allowed to connect, then the SIMs won’t jump among them too frequent to get poor calling quality. Surely, the optimization and binding are both supported in “Base Station Setting/Operations”...
Page 24 GoIP User Manual Base Balancing: This will take active in Auto mode. When its enable, SIM cards in this gateway will connect to base stations allowed evenly, or there may be offline problem. Auto: SIMs register to the base station with best signal. Poll: SIMs register to the base station in the list in turn.
Page 25: Rules Setting
China SKYLINE Technology Co.,Ltd. Input a Start IMEI number with 15 digits; Input the IMEI database capacity around size. A new IMEI number will be active after rebooting or changing SIMs.  Rules Setting The dial pattern string is a normal regular expression. For example: The pattern 90[1-4] means the dialed number start with 90 and end with anyone of 1/2/3/4.
Page 26 GoIP User Manual Outbound Prefix: The rule take effect when GoIP is used for terminal. Original Prefix: The called number prefix reach GoIP from SIP server. Translated Prefix: Another number which GoIP rewrite the Original prefix to. Callerid Hidden: Hide the SIMs number in GoIP when Callee ’s phone receive the VOIP calls.
Page 27: Mobile Setting
China SKYLINE Technology Co.,Ltd.  Mobile Setting When SIMs inside need PIN code to unlock, user can type those code in this ABCD option in advanced. Billing: Specify whether enable GoIP billing or not. If set to Enabled, system will bill the outbound calls for the port which has been assigned with billing tariffs.
Page 28 GoIP User Manual Fields are specified as following: Name: Specify the provider name. Query Method : Choose USSD or SMS Method to query Caution Balances: Specify four balances separated by semi-colon. Each balance corresponds to one Keyword from left International Keys to right Other Keys in Keyword List table.
Page 29: Sms Setting
China SKYLINE Technology Co.,Ltd.  SMS Setting Operations: Click “Details” button to jump to “SMS Details” page. Choose different port and different SIM to check SMS received.
Page 30 GoIP User Manual Recipients: Specify the recipients. Semi-colon can be used to separate multiple receivers. Content: Specify the sms content. Send To Local SIM:Enable this feature and set the local SIM’s number,the inter port will send sms. By Duration: Gateway will start sms sending by the device online time, and the time between minimum minutes and maximum minutes.
Page 31: Automation
China SKYLINE Technology Co.,Ltd.  Automation This section is being designed to be personate to avoid SIM blocking automatically. Even so, more information about local mobile operator, such as SIM blocking rule or law, then a safe schedule setting will be helpful and effective.
Page 32 GoIP User Manual User can limit each SIM total call duration, OK calls amount, failed calls, no carrier calls, no ring calls, no answer calls and short duration calls. This option will help to improve the ASR, ACD. Every condition takes effective, the current SIM will be locked, the next one in this channel is working ⑦...
Page 33: Simpool Setting
China SKYLINE Technology Co.,Ltd.  Simpool Setting SIM Poll: When you enable it, cards on gateway will be disabled, it can just use these cards on SIM Pool. Use Local Policy: If it is enabled, the policy of page Automation can be used in SIM Pool.
Page 34: Intercall Setting
GoIP User Manual  InterCall Setting This panel allow SIMs in the gateway to call each other randomly. Consider that SIMs inside only call out all the time, so it’s easy to be judged as an illegal use. When enable “Port Inter-Calling”, every SIM can receive income call in period which is custom option in “Conditions Settings”.
Page 35 China SKYLINE Technology Co.,Ltd.
Page 36: Callback Setting
GoIP User Manual  Callback Setting Callback function, when you dial the SIM in gateway with mobile phone, it will hang up soon and send a call back to you, after you pick up the call, you can dial a VoIP extension or another phone number. If you want to use this function, please enable it and set the callback numbers.
Page 37: Callwait Setting
China SKYLINE Technology Co.,Ltd.  CallWait Setting Call waiting is a feature supported by SIM carrier, when there is a second call dialing into this SIM card, there will be waiting tone instead of hang up. You can enable it when you need this feature.
Page 38: Call Dur Setting
GoIP User Manual  Call Dur Setting Call duration control is for users to control the SIM using time. And the data will not flush even you restart the device or pull off the SIM. Use Global Setting: Enable: all channels use same call duration limitation. Disable: you can set different call duration limitation for single channel.
Page 39: Auto Recharge
China SKYLINE Technology Co.,Ltd.  Auto Recharge Auto Recharge: Auto recharge will work when enable it. Server Address: The auto recharge server address. Username: It is created in ear system. Password: It is created in ear system. Status: Show the registration status.
Page 40: Status Notification
GoIP User Manual  Status Notification With this function, device will send state notification which includes registration status, SIM status and CDR to the server State Notification: If it is enabled, device will send state notification to the server. Server Address: The server which can get state notification. Username: The device account in ein system.
Page 41: System Settings
China SKYLINE Technology Co.,Ltd.  System Settings  Codec G729, G.723, G.711, iLBC and AMR are supported. Option about voice include volume, ring type. We suggest users to keep them default when this parameters are not understood well.
Page 42: Network Debug
GoIP User Manual  Network Debug A ping tool is easy to check the gateway network status. Especially when calls can’t connect but every SIP parameters are correct, this tool will be helpful to find out problems.  Log System You can enable the specific progress module running logs to monitor the device working status, and set the log file size.
Page 43: File Management
China SKYLINE Technology Co.,Ltd.  File Management Administrator can export the system info to debug device.  User & Device Support different Account level to log into this gateway management web page. Device Alisa: Give this gateway a new name.
Page 44: Update & Restore
Most of the time, GoIP gateways don’t have public static IP, so can’t be logged into in other network. But if there is a server, ERM remote software installed in, remote access will be possible. Contact SKYLINE tech support to install this ERM remote software in your server.  Update & Restore Import upgrade firmware, configuration files in “Import File”.
Page 45: Module Update
China SKYLINE Technology Co.,Ltd.  Module Update On this page, you can update the GSM/CDMA/WCDMA module software for every channel.  Save & Reboot Save settings and reboot.
Page 46: Initialization
GoIP User Manual  Initialization Initial Setting page is used to be easy starting for gateway user at the first time. When SIP info are empty, this welcome page show in the browser when user log into it, otherwise, “System Status” is the default page. How to set this page?
